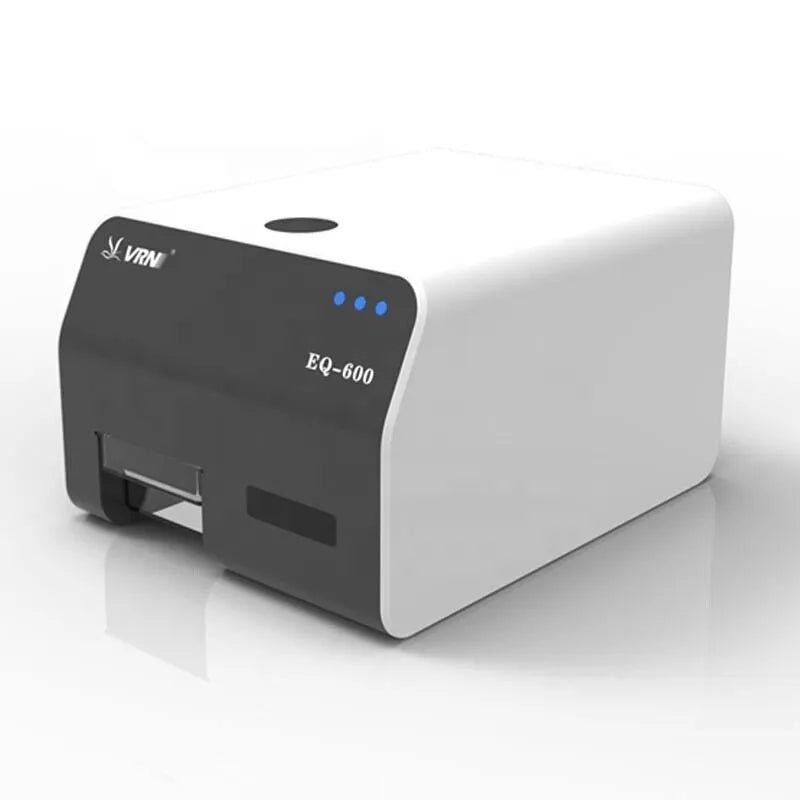

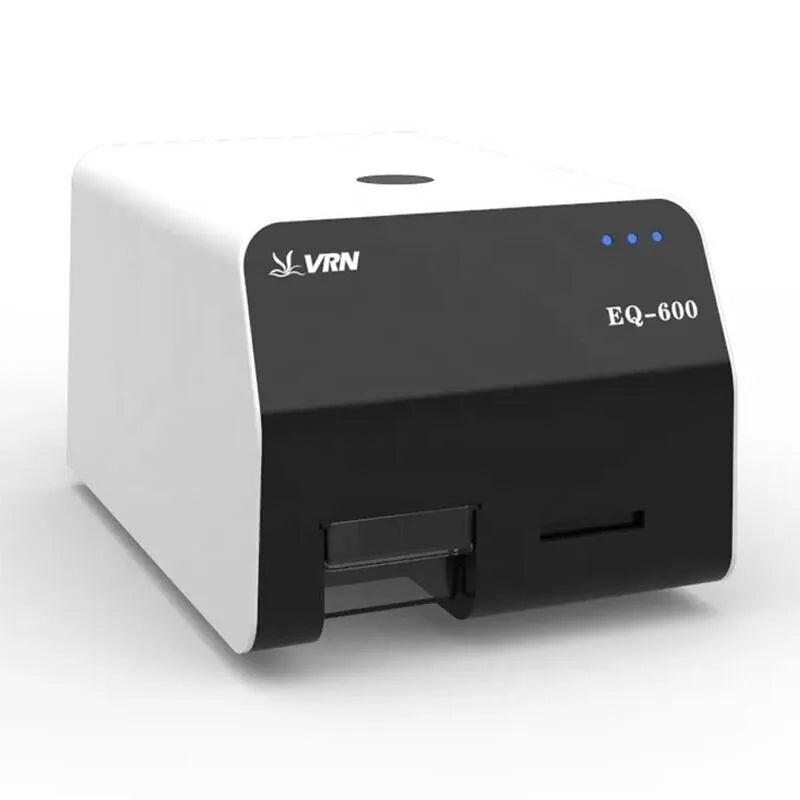

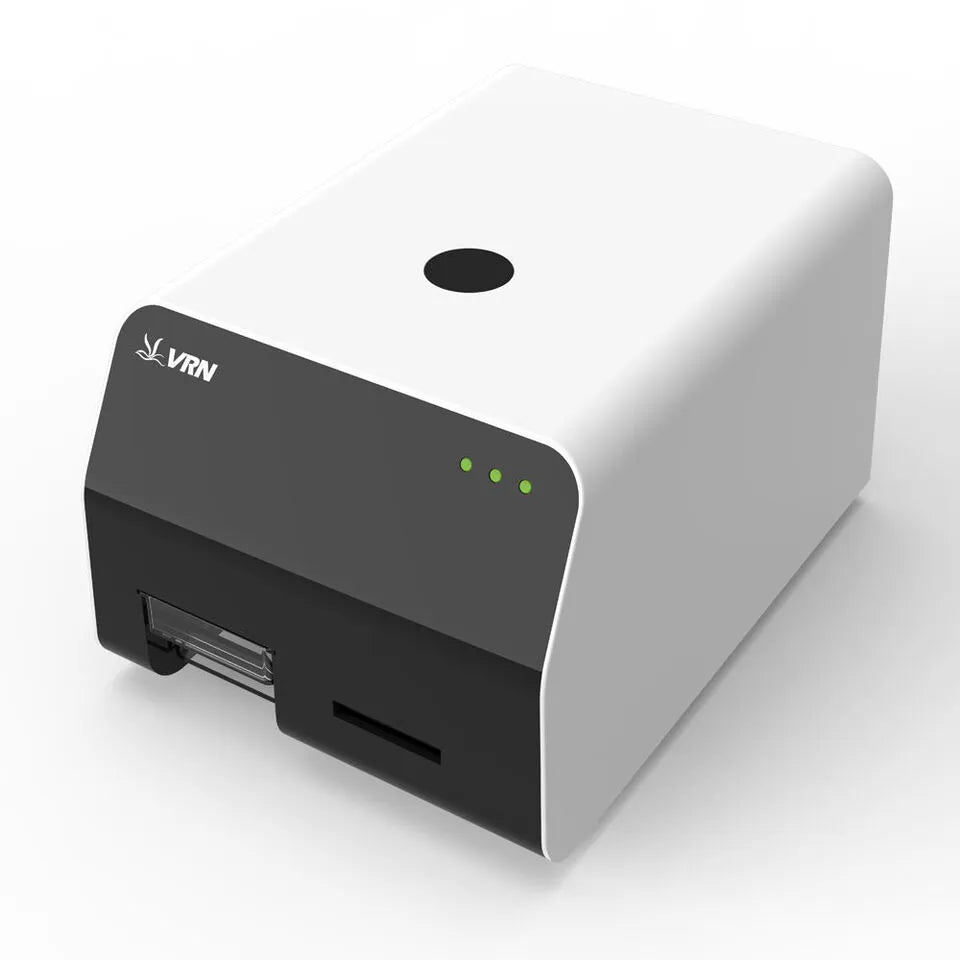

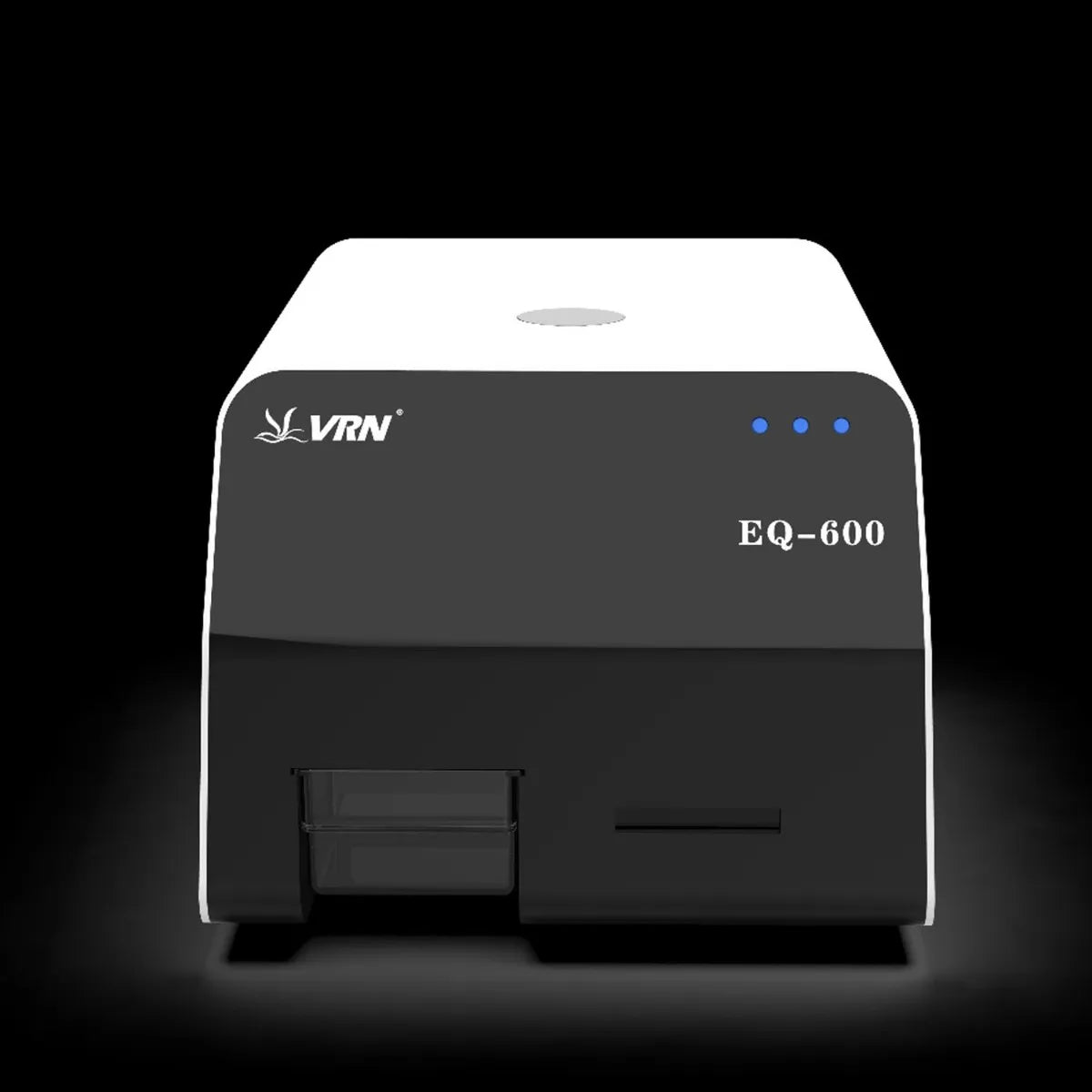

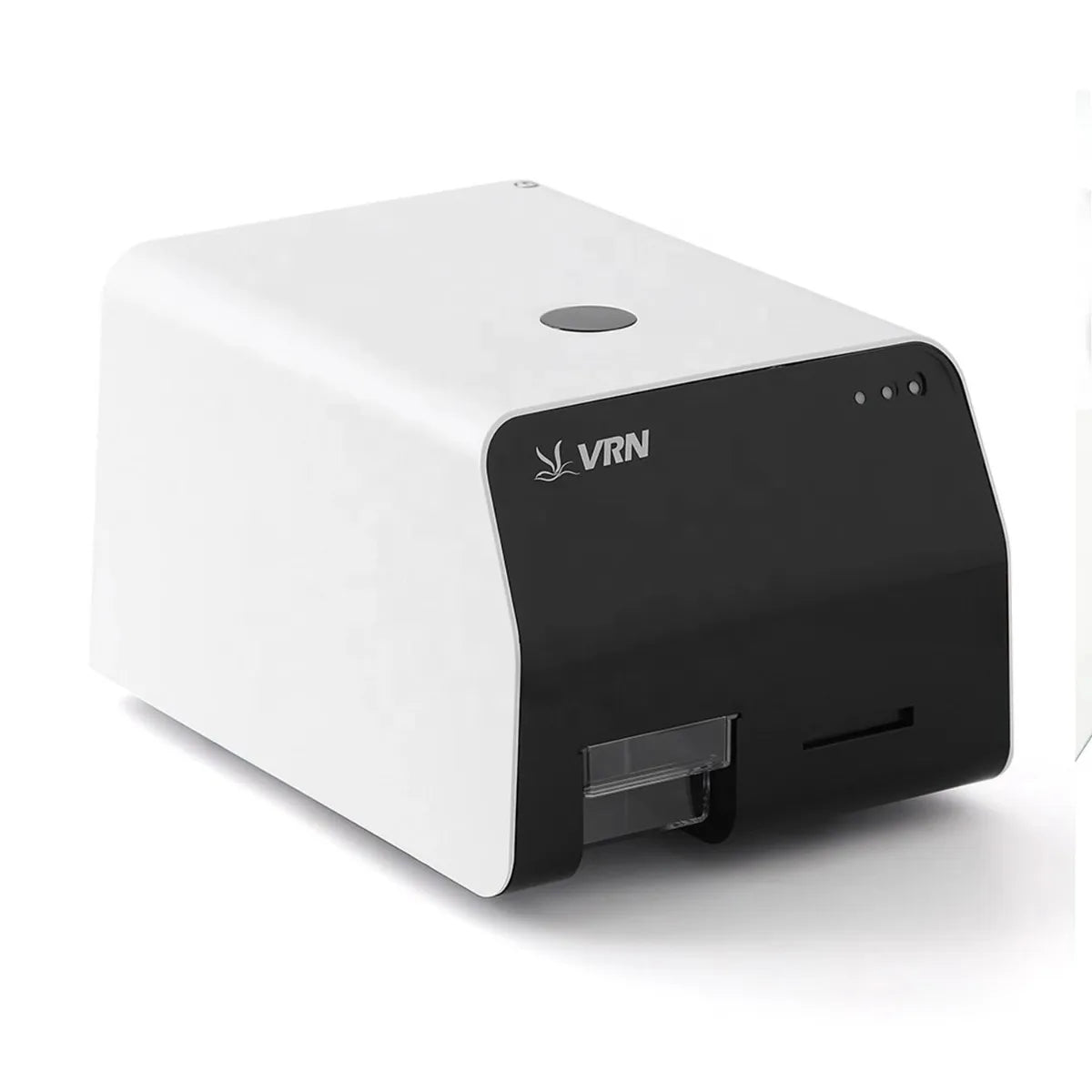

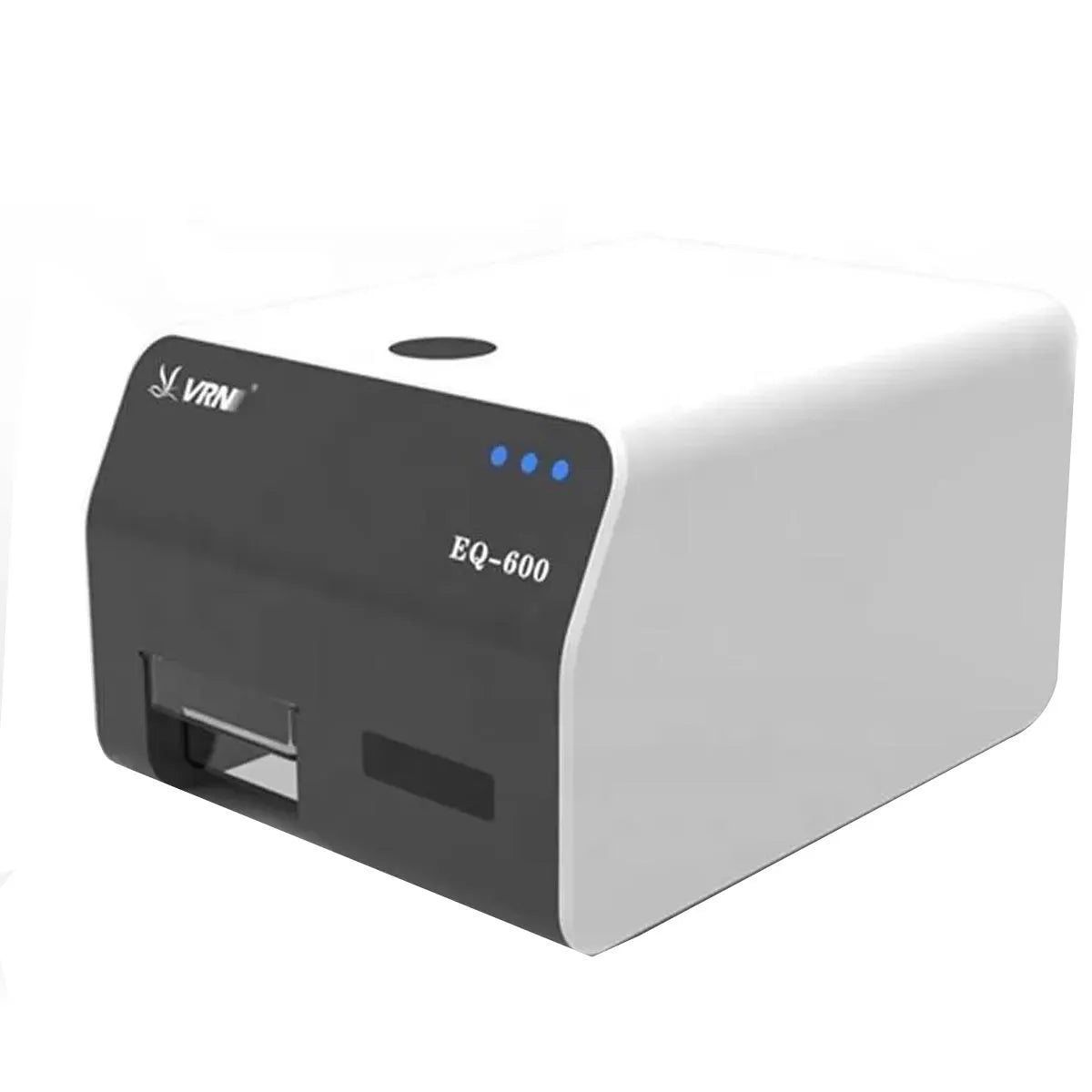

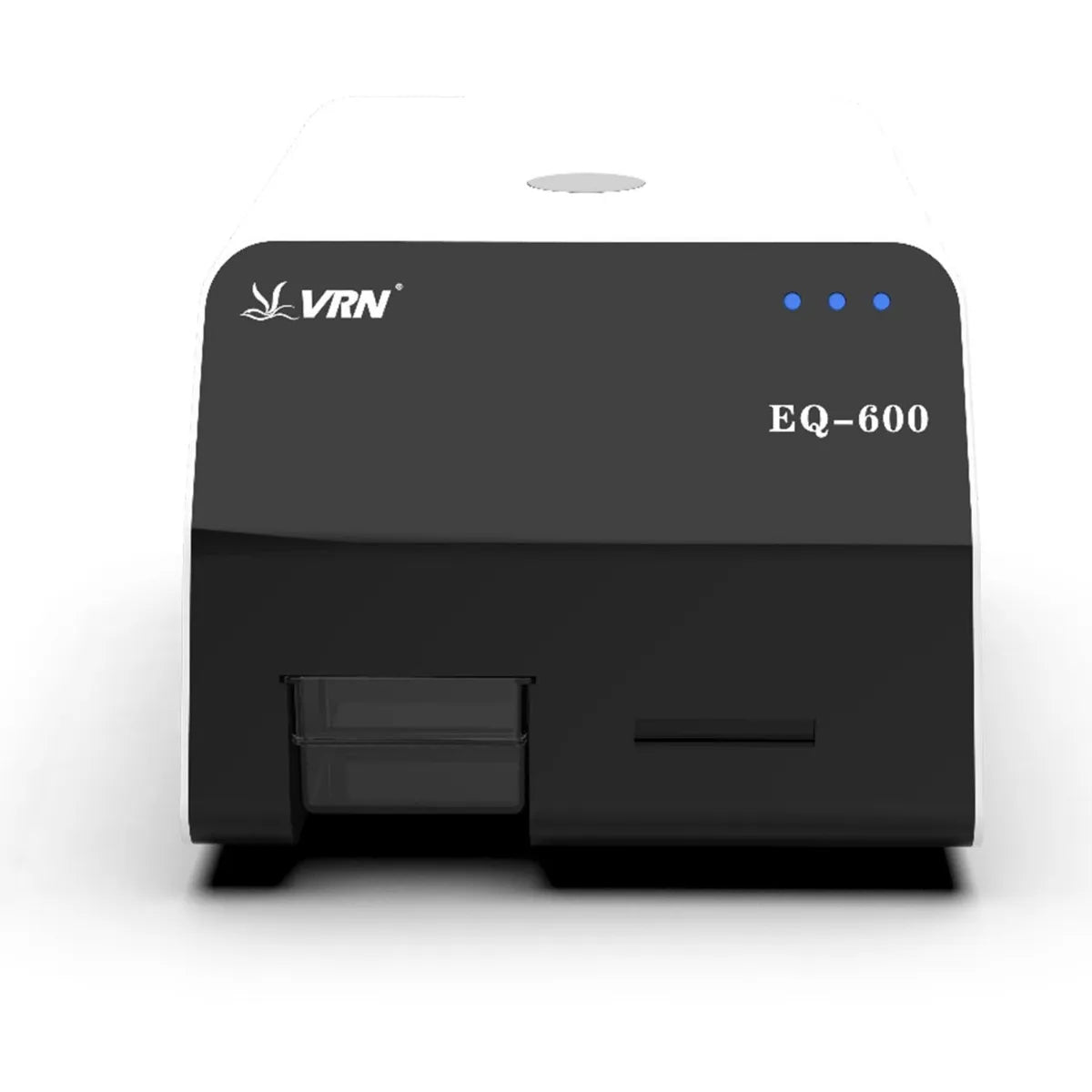

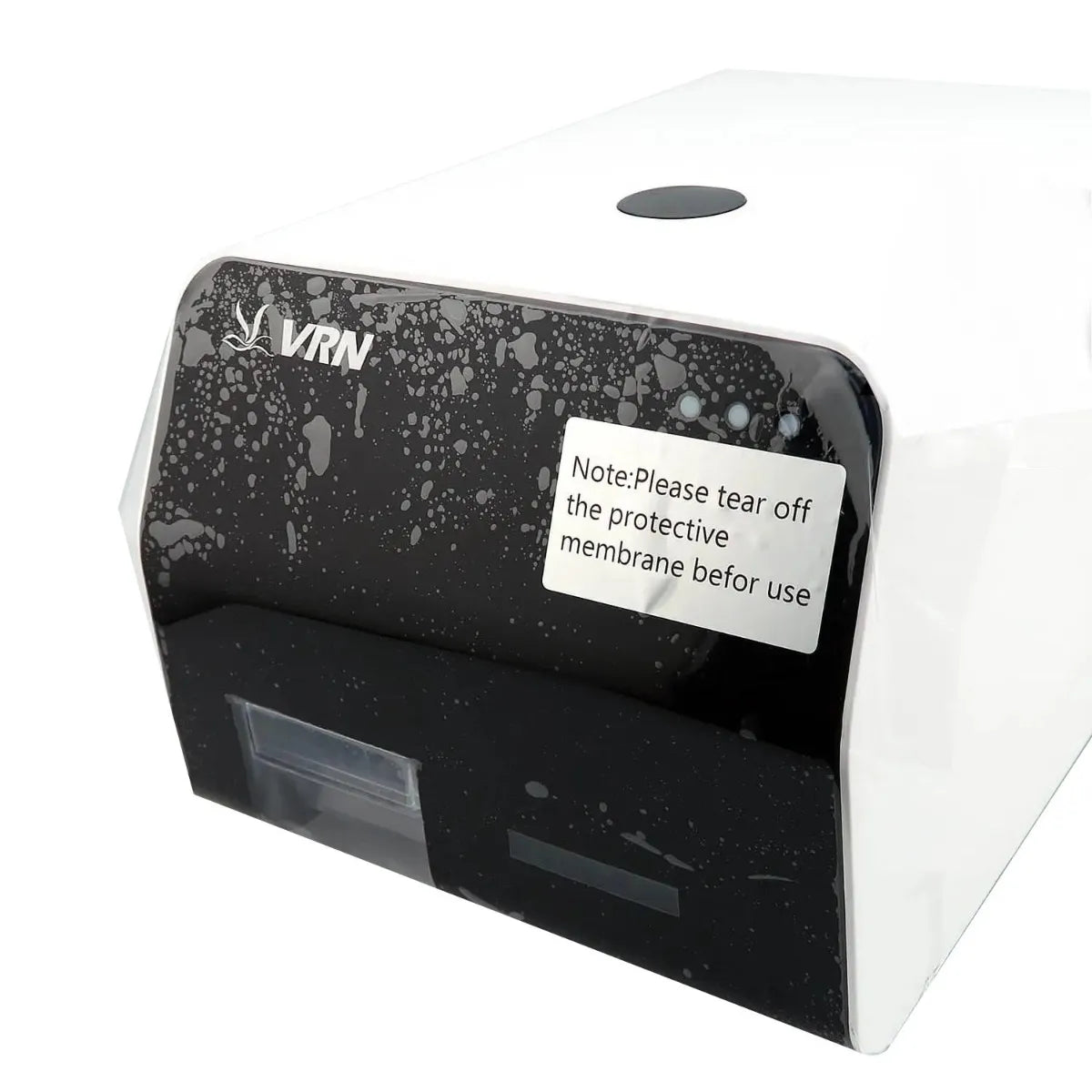

VRN Phosphor Plate scanner EQ-600

• Supports multiple image plate sizes (0, 1, 2, 3) catering to various diagnostic needs for children and adults.
• Utilizes APS CMOS detector technology for high-quality image capture and analysis.
• Compatible with Windows XP, Windows 7, Windows 8, and Windows 10 operating systems for versatile usage.
• Offers a selectable pixel size of 35µm for detailed and precise image scanning.

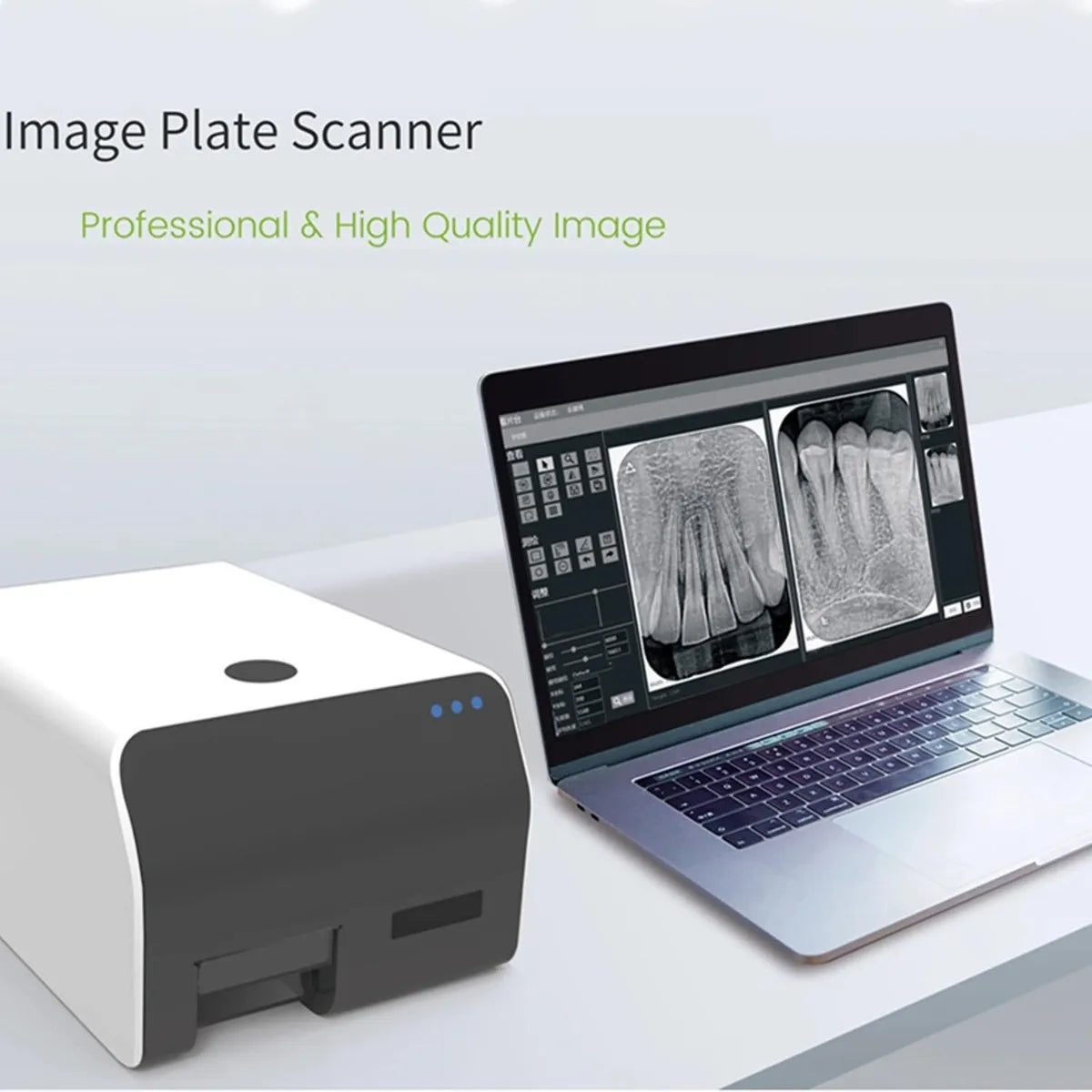

• Includes UT-Dental software for efficient image processing, enhancement, and analysis.
• Equipped with an embedded auto-eraser for automated erasing of image plates after scanning.
• Compact and lightweight design (305211182mm, 6 kg) for easy handling and portability in clinical settings.

• Supported IP Sizes: Size 0: 22x31mm <br> Size 1: 24x40mm <br> Size 2: 31x41mm <br> Size 3: 27x54mm
• System Configuration: Windows XP, Windows 7, Windows 8, Windows 10
• Plate Sizes Included: 0, 1, 2, 3 (Suitable for children and adults)
• Selectable Pixel Size: 35µm
• Detector Technology: APS CMOS
• Software: UT-Dental
• Active Area: 32*54mm
• Mechanical Size: 34*55mm
• Readout Time: 15 seconds
• Data Capture: 16-Bits (65,536 grey levels)
• Eraser: Embedded (auto)
• Power: 100-240V(AC) 50/60Hz 1.5A
• Working Temperature: 10 to 40°C
• Storage Temperature: -25 to +60°C
• Humidity (non-condensing): 10 to 93% R.H.

• 1 x Main Unit
• 1 x Usb flash drive
• 1 x power adaptor
• 1 x Power line
• 1 x Usb cable
• 1 x Intraoral image plate (2#)
• 1 x protecting bag 2#
• 1 X Instruction manual

Here are the directions for using the VRN Phosphor Plate Scanner EQ-600:

Preparation:

• Ensure the scanner is placed on a stable surface near a power source.
• Connect the scanner to your computer using the provided USB cable.

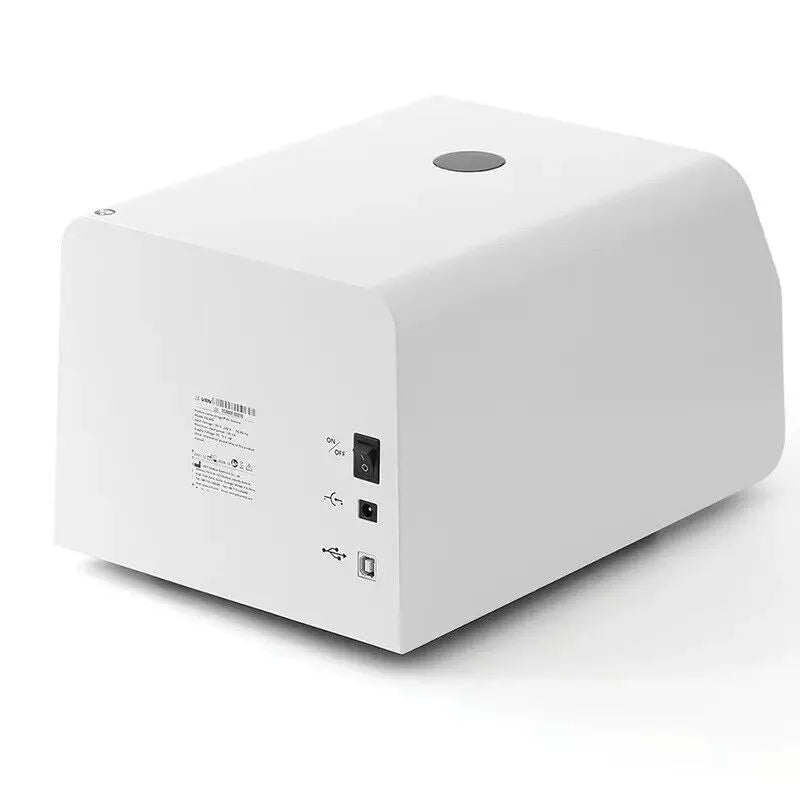

• Turn on the power switch located on the rear panel of the scanner.
• Install the necessary software on your computer following the manufacturer's instructions.

Loading Image Plates:

• Open the image plate tray located at the front of the scanner.
• Place the image plate (size 0, 1, 2, or 3) with the photosensitive surface facing up.

Scanning Process:

• Launch the scanning program on your computer.
• Follow the software's instructions to select the desired scanning parameters (e.g., pixel size, resolution).
• Start the scanning process, and the scanner will read the latent image information from the image plate.

Image Processing:

• Once the scanning is complete, the software will process the scanned image.
• Use the software's tools to enhance, analyze, or annotate the image as needed.
• Save the processed image to your computer or a connected storage device.

Erasing Image Plates:

• After scanning, the scanner will automatically erase the image plate, making it ready for reuse.
• Ensure the image plate tray is empty before starting a new scanning session.

Shutdown:

• After use, turn off the power switch on the rear panel of the scanner.
• Safely disconnect the USB cable from both the scanner and the computer.

Maintenance:

• Regularly clean the scanner's exterior with a soft, dry cloth to remove dust and debris.
• Avoid exposing the scanner to extreme temperatures, moisture, or direct sunlight.

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question : What plate sizes does the scanner support?
Answer: The scanner supports multiple plate sizes, including 0, 1, 2, and 3, catering to various diagnostic needs for both children and adults.

Question : What is the pixel size selection range of the scanner?
Answer: The scanner offers a selectable pixel size of 35µm, ensuring detailed and precise image scanning.

Question : Which operating systems are compatible with the scanner?
Answer: The scanner is compatible with Windows XP, Windows 7, Windows 8, and Windows 10 operating systems, providing versatile usage options.

Question : Does the scanner come with software for image processing?
Answer: Yes, the scanner includes UT-Dental software for efficient image processing, enhancement, and analysis.

Question : How does the automated eraser function work?
Answer: The scanner features an embedded auto-eraser, which automatically erases image plates after scanning, eliminating the need for manual intervention.

Question : What is the readout time of the scanner?
Answer: The scanner has a quick readout time of 15 seconds, enhancing productivity during scanning sessions.

Question : What is the weight and dimensions of the scanner?
Answer: The scanner has a compact and lightweight design, weighing 6 kg and measuring 305211182mm, making it portable and suitable for clinical settings.

Question : Can the scanner be connected to a computer?
Answer: Yes, the scanner can be connected to a computer via USB 2.0 high-speed or Ethernet for data transfer and control.

Question : What is the power requirement for the scanner?
Answer: The scanner requires a power supply of 100-240V(AC) 50/60Hz 1.5A for operation.
