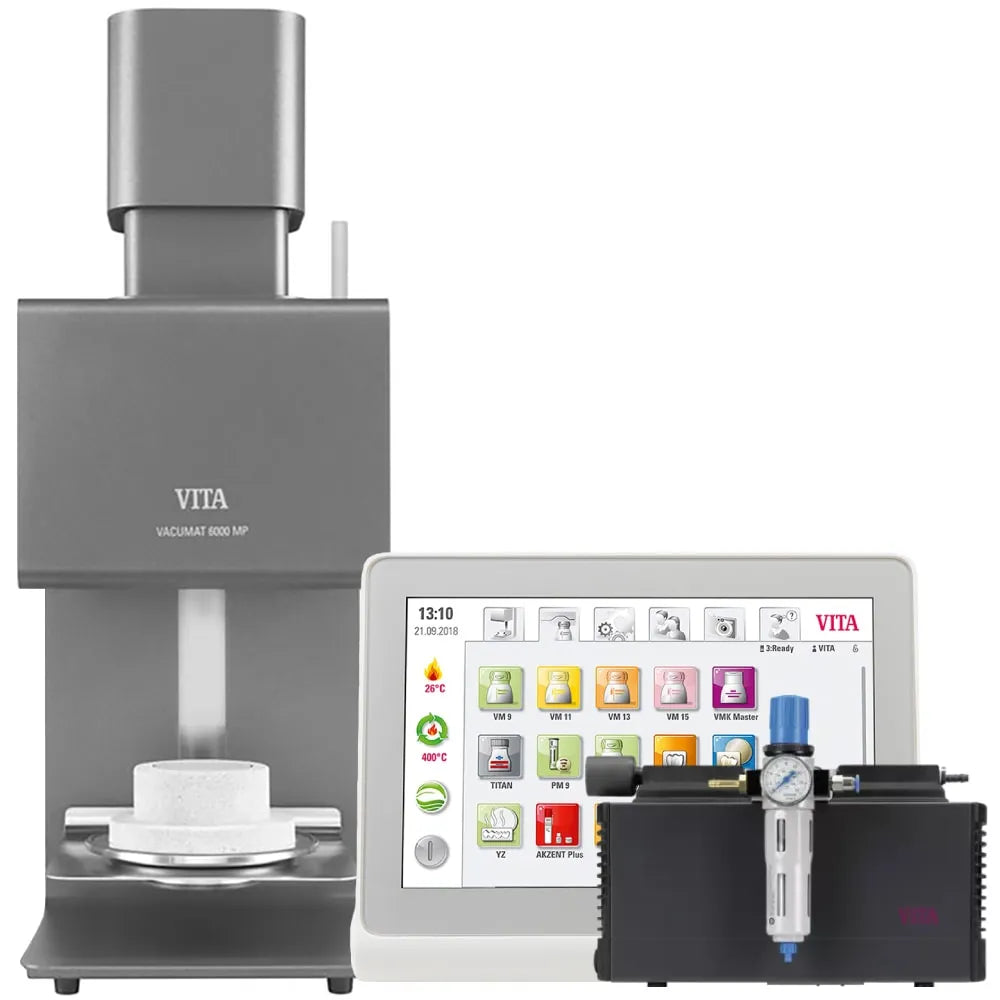

Vita Vacumat 6000MP Dental Ceramic Firing & Pressing Furnace

• Automatic prevention of condensation in the firing chamber (VITA AntiCon)
• Automatic temperature adjustment to +/-1 °C every time a program is started (VITA AutoAdjust)
• An automatic cleaning function (VITA SpecialClean)
• VITA CPress ceramic press technology developed by VITA that offers fault-free operation
• Automatic press path monitoring as well as automatic detection byVITA PressControl of the pressing pellets used
• Controlled fast cooling and energy-saving night mode (VITA Energy Efficiency)

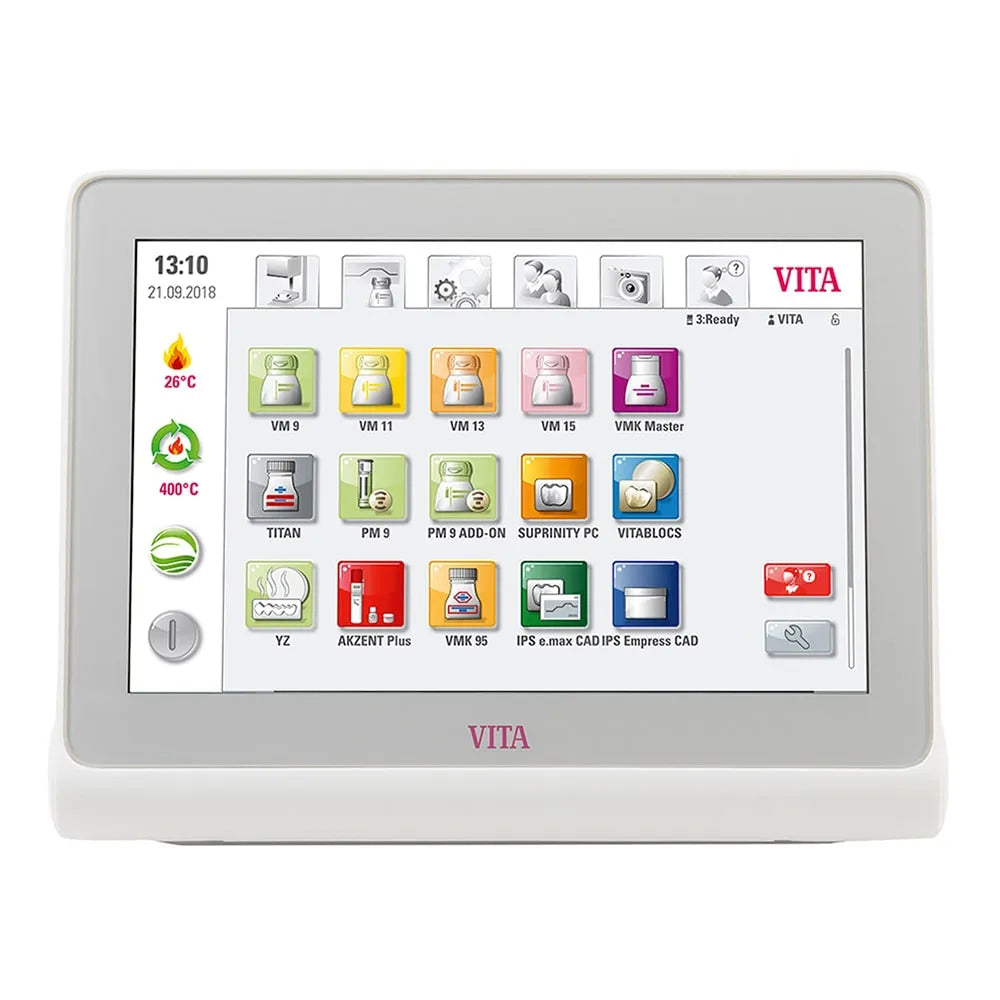

• Operate up to four furnaces using just a single VITA vPad control unit
• Use the VITA MultiPump to supply up to four furnaces with just a single vacuum pump – a simply unique system, patented by VITA
• Reduce your energy bills by up to 70 % with VITA Energy Efficiency

Dimensions / weights

• Width: 230 mm
• Depth: 370 mm
• Height: 630 mm
• Housing, weight: lacquered steel 18.7 kg, stainless steel 20.1 kg.
• Effective dimensions of the firing chamber: diameter: 90 mm, height: 55 mm
• Firing chamber temperature: max. 1200°C

Electrical data

• Electrical connection: 230 V AC, 50 Hz or 100/110 V AC, 50/60 Hz
• Power consumption: max. 1500 W

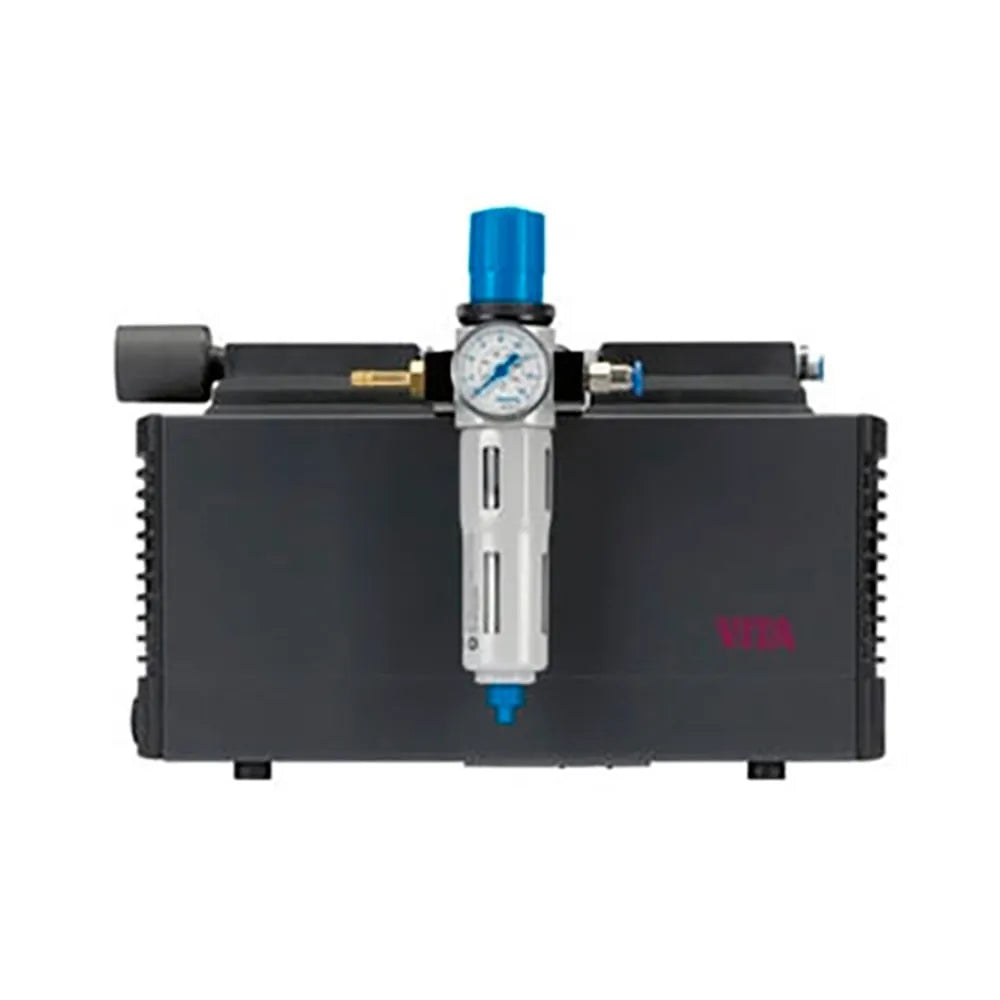

Vacuum pump

• Electrical connection: 230 V, 50/60 Hz or 100/110 V, 50/60 Hz
• Power consumption: max. 200 W
• Final vacuum: < 960 mbar
• Dimensions: 320 x 110 x 220 mm
• Weight: approx. 6.4 kg

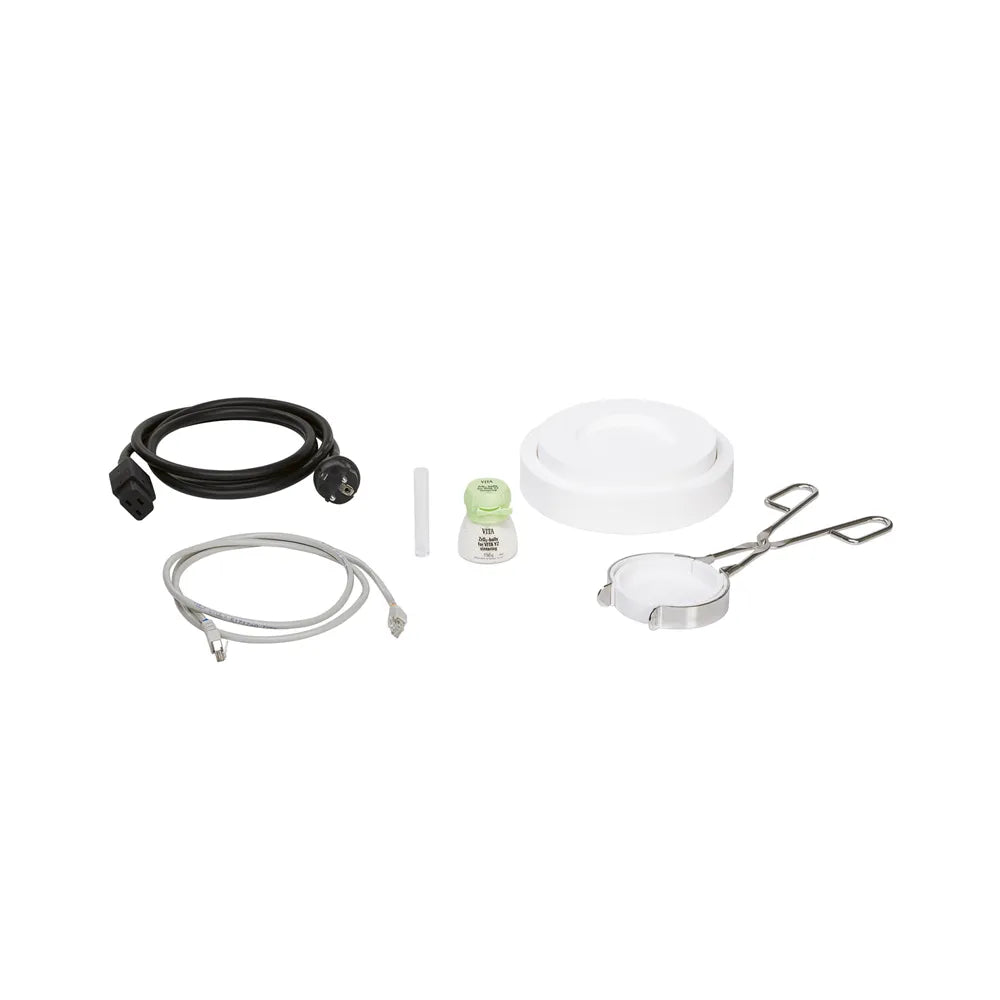

• 1 x VACUMAT 6000 MP furnace
• 1 x Firing base
• 1 x Universal-Press firing base
• 1 x Universal-Press insertion disc
• 1 x Plug-in status display
• 1 x Cable for mains power connection
• 1 x Furnace tweezer
• 2 x Packages of firing trays G
• 1 x Cable for the control unit
• 1 x Pressure regulator for attachment to the vacuum pump
• 1 x Pressure tube, vacuum tube

Installation:

• Place the device in a dry, heated room.
• Ensure a minimum distance of 25 cm from the nearest wall.
• Let the device acclimate for 30 minutes if the temperature is below 15°C.

Safety Precautions:

• Read and understand the operating manual thoroughly.
• Never use the device with unauthorized power sources or materials.
• Operate only as described in the manual to avoid damage and risks.

Ambient Conditions:

• Use indoors within 2°C to 40°C temperature range.
• Maintain a relative humidity of 80% at 31°C.
• Ensure the device is not placed in direct sunlight.

Electrical Requirements:

• Connect to 230V AC, 50 Hz power supply or 100/110V AC, 50/60 Hz.
• Maximum power consumption is 1500W.

Vacuum Pump:

• Connect the vacuum pump to 230V, 50/60 Hz or 100/110V, 50/60 Hz.
• Set the pressure output to a maximum of 5 bar.

Status Display:

• Green indicates standby mode.
• Blue means a program is active.
• Red signifies an error.

Cleaning:

• Before cleaning, unplug the device.
• Clean the casing with a damp cloth, avoiding detergents or flammable liquids.

Insulation Handling:

• When working with insulation materials, wear protective gear.
• Use a dust vacuum system or a FFP2 respirator.
• Rinse dust from skin with cold water after handling.

Safety Functions:

• Familiarize yourself with the safety and monitoring features.
• Ensure fans are operational to prevent overheating.
• Be aware of power failure protection in case of mains voltage interruptions.

CE Mark:

• The CE mark confirms compliance with essential European directives.

• Country of Origin: Vita
• Manufacturer: Germany

Question: What is the maximum temperature the firing chamber can reach?
Answer: The firing chamber can reach a maximum temperature of 1200°C.

Question: What materials are used in its construction?
Answer: The furnace is constructed with a quartz/Kanthal firing muffle, high-quality insulating materials within the firing chamber, and a platinum/rhodium-platinum temperature sensor for superior performance.

Question: What is the Vita Vacumat 6000MP Dental Ceramic Firing & Pressing Furnace?
Answer: The Vita Vacumat 6000MP is a cutting-edge dental ceramic furnace designed for precise firing and pressing of dental ceramics.
