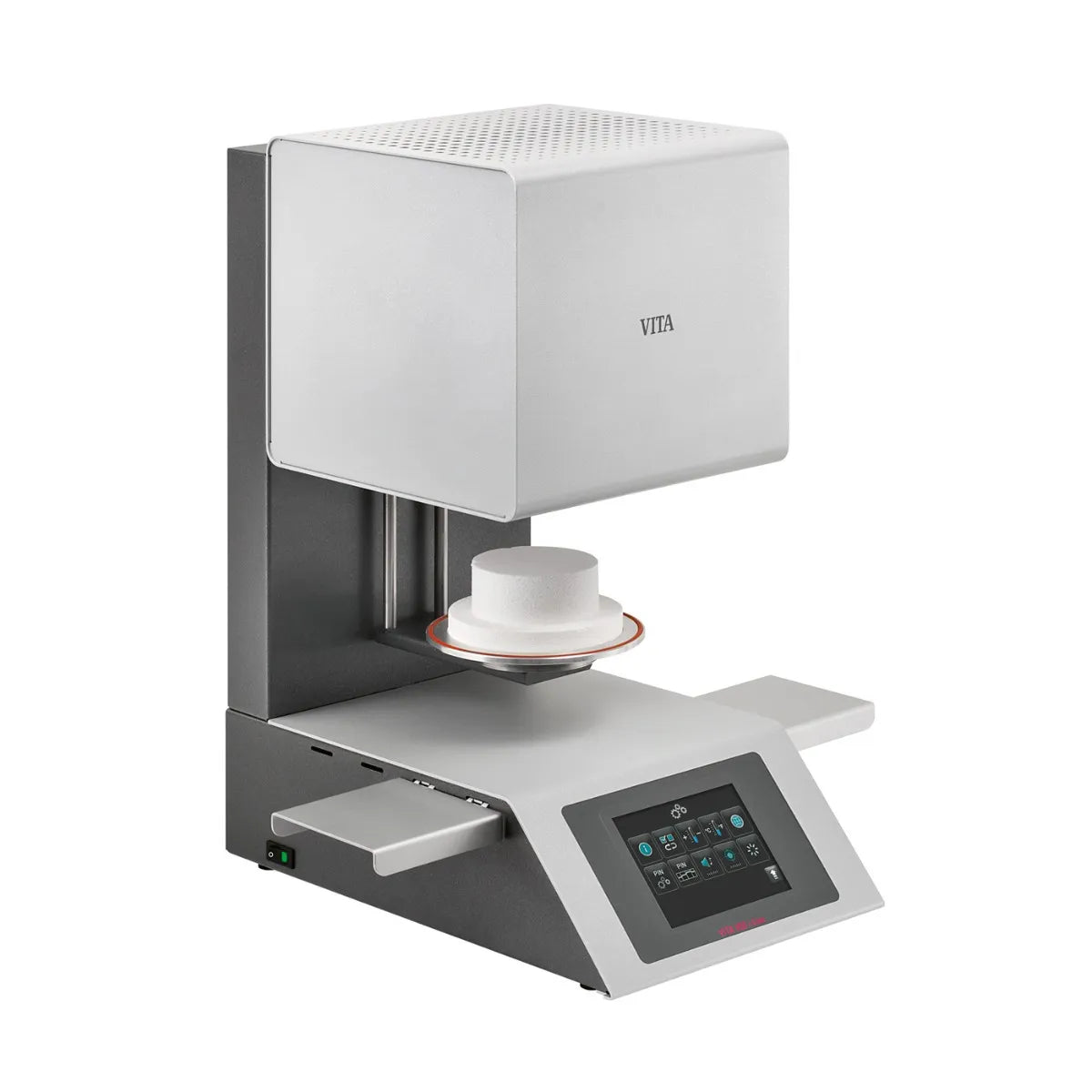

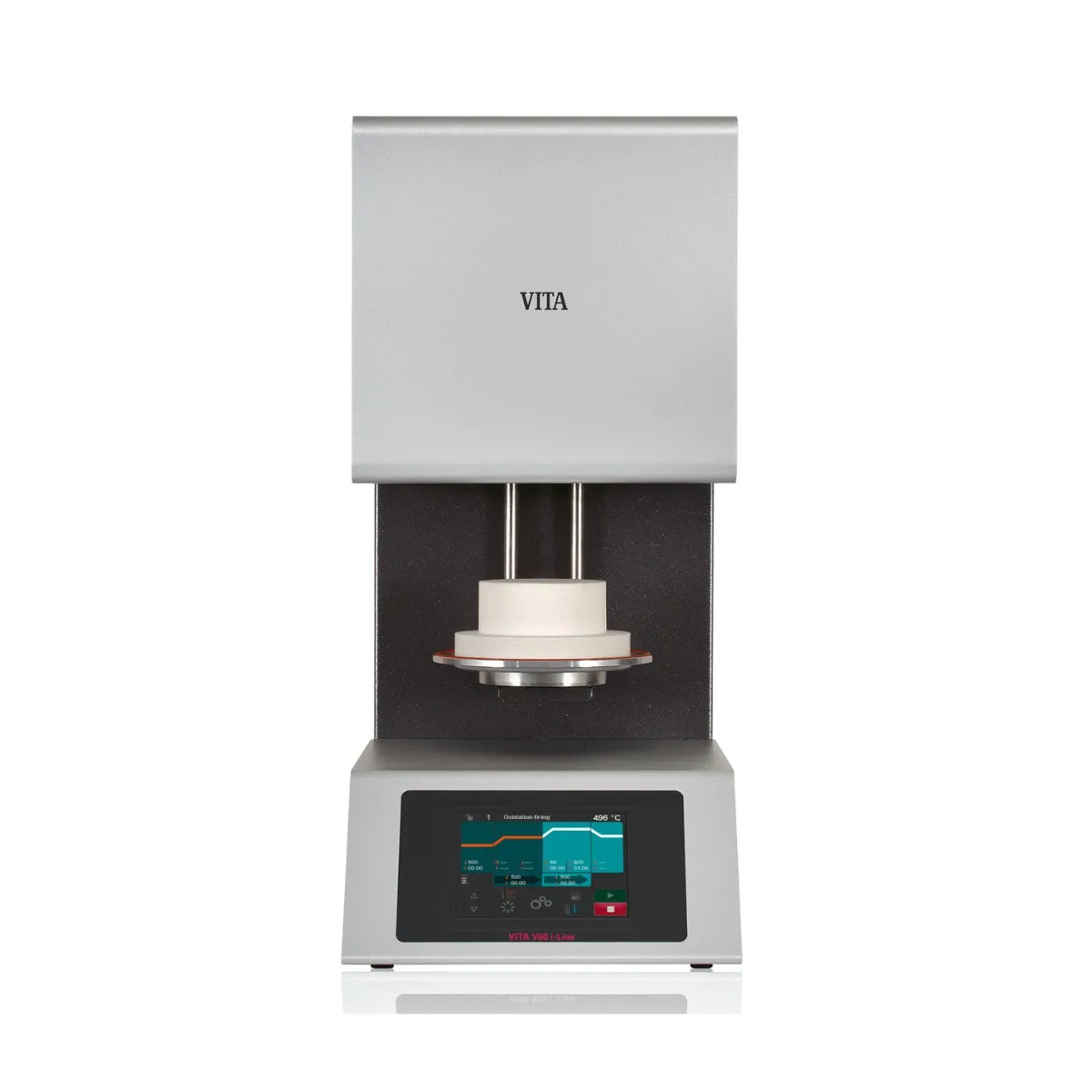

VITA V60 i-Line Porcelain Furnace

• Fully automatic and microprocessor-controlled for precise ceramic firing processes.
• Maximum temperature accuracy of ± 2°C ensures optimal firing results.
• Convenient operation saves time with modest space requirements.

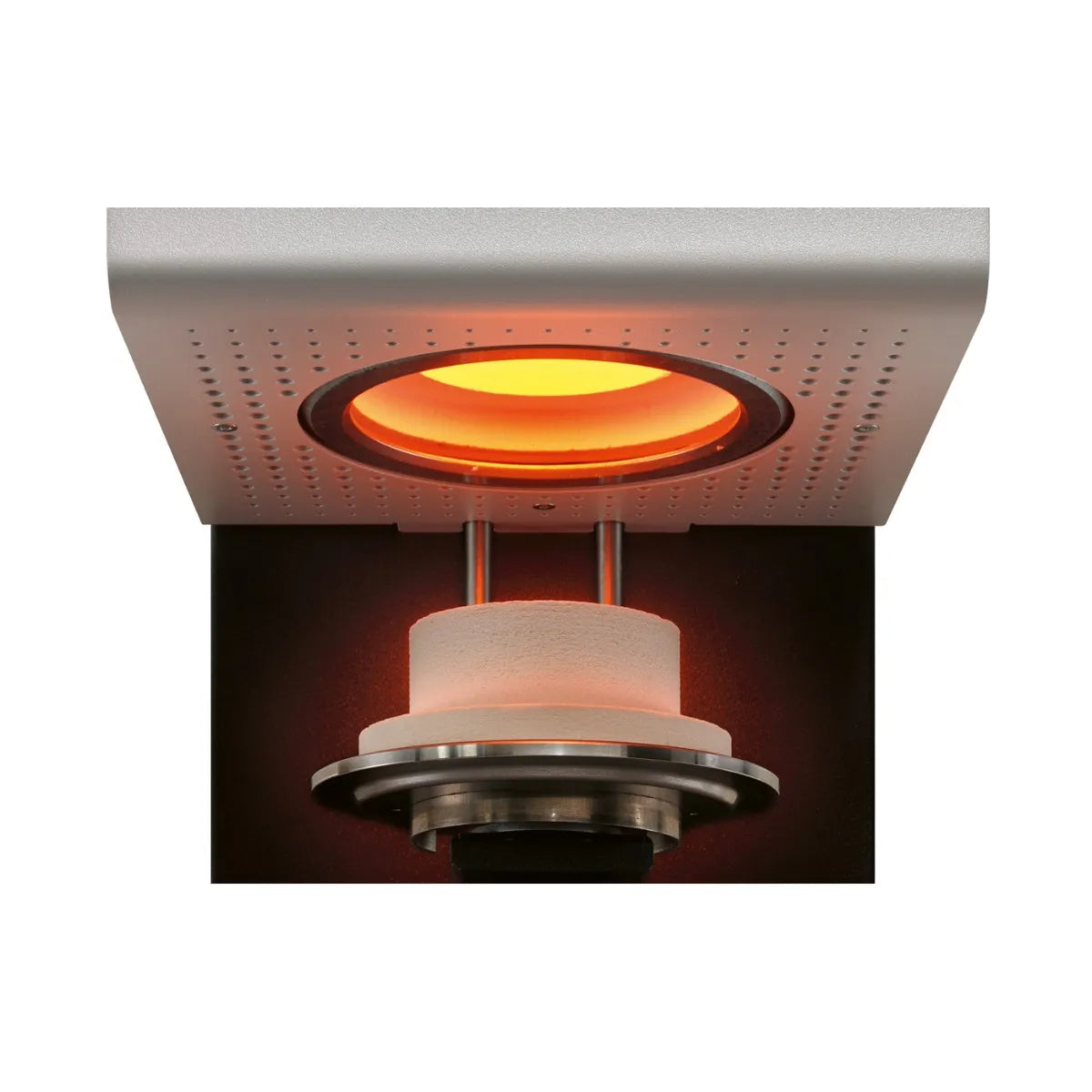

• Firing chamber fitted with high-quality insulation material for reliable performance.
• Quartz firing muffle ensures consistent and uniform heating.
• Temperature sensor with platinum/rhodium-platinum for precise temperature control.
• Automatic temperature calibration for accuracy in firing.
• Designed in compliance with international safety standards for secure operation.

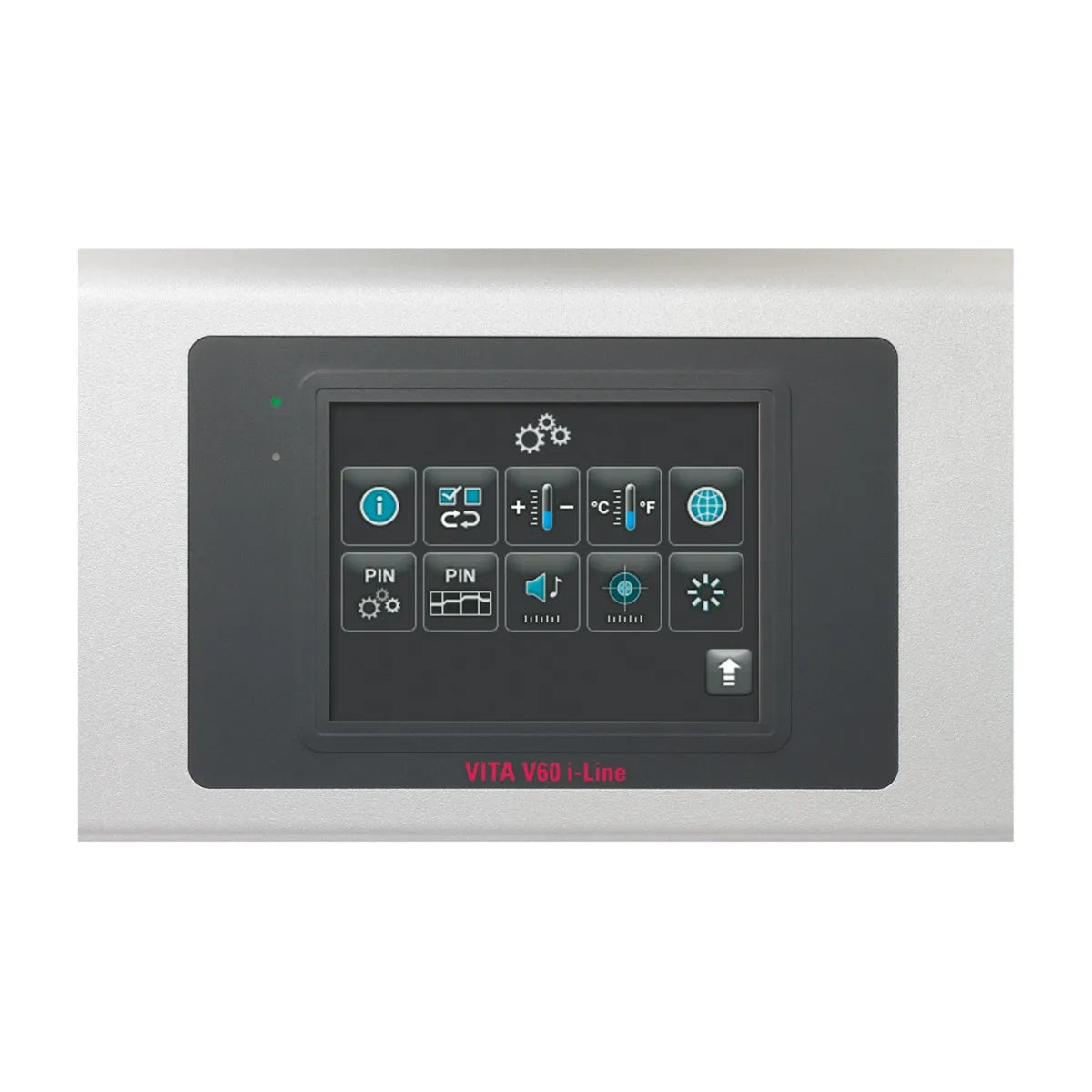

• Intuitive touchscreen interface for easy program selection and operation.

• Maximum Temperature Accuracy:  ± 2°C
• Operation: Fully automatic, microprocessor-controlled
• Firing Chamber Dimensions: Diameter: 90mm, Height: 55mm
• Firing Chamber Temperature: Max. 1200°C
• Electrical Connection (Furnace): 230V, 50/60 Hz or 110V, 50/60 Hz
• Power Consumption (Furnace): Max. 1500W
• Electrical Connection (Vacuum Pump): 230V, 50/60 Hz or 100/110V, 50/60 Hz
• Power Consumption (Vacuum Pump): Max. 200W
• End Vacuum (Vacuum Pump): < 960 mbar
• Dimensions (Furnace): Width: 260mm, Depth: 420mm, Height: 570mm
• Dimensions (Vacuum Pump): 320 x 110 x 220 mm
• Intended Use: Dental ceramic firing processes
• Prohibited Modes of Operation: Use of hazardous substances, modified equipment
• Permitted Modes of Operation: Follow user manual, intended use only
• Relative Humidity: 80% at 40°C
• Ambient Temperature Range: -10°C to 40°C
• Max. Altitude: 3800 m
• Voltage Fluctuations: ± 10% of rated voltage

• 1 X furnace VITA V60 i-Line
• 1 X Firing socket
• 1 X Power supply cable
• 1 X Operating manual
• 1 X Connection cable for the vacuum pump
• 1 X Vacuum tube
• 2 X Firing object storage trays at the side

Installation:

• Place the device in a dry, heated room with at least 25cm of space from the closest wall.
• Allow the device to stand at room temperature for approximately 30 minutes if it's below 15°C.
• Ensure it's on a heat-resistant surface, away from direct sunlight, flammable objects, and in a way that allows easy access to the main switch and power supply cable.

Start-Up:

• Before starting, ensure the firing socket is attached.
• Connect the vacuum pump using the electrical and tube connections.
• Connect the device to the mains power supply using the provided cable.
• Switch on the device using the main switch. The lift moves to the lower position.
• Clean the lift plate and lift plate gasket if needed.

Selecting a Program:

• The furnace comes pre-programmed with firing settings for VITA ceramic materials.
• Select a program by entering the program number or pressing the program name or material button.

Firing Process:

• Once the program is selected, the furnace will automatically execute the firing process.

Switching to Standby:

• Press the standby button. The lift will retract into the firing chamber, and the chamber will heat to the standby temperature.
• It will be ready for firing once the standby temperature is maintained for five minutes.

Switching Off:

• When not in use, retract the lift into the firing chamber and switch off the device using the main switch.
• This protects the insulation and prevents moisture absorption.

Cleaning and Maintenance:

• Always unplug the device before cleaning.
• Regularly clean the casing with a damp cloth. Do not use detergents or flammable liquids.
• The inside of the firing chamber does not need cleaning.
• Perform a cleaning firing every 100 operating hours to remove any contamination from the chamber.

Safety Precautions:

• Never start the device without the firing socket attached.
• Avoid reaching into the open firing chamber when the device is connected.
• Be cautious of electrically live or hot parts to prevent burns or electric shock.

• Country of Origin: Vita
• Manufacturer: Germany

Question: What safety precautions should I take when working with the firing chamber insulation
Answer: When working with the firing chamber or replacing the firing muffle, wear long-sleeved protective clothing, safety goggles, and protective gloves. Use a dust vacuum system or wear a FFP 2 respirator to minimize exposure to fiber dust.

Question:How do I clean the VITA V60 i-Line Porcelain Furnace?
Answer: Always unplug the device before cleaning. It is not necessary to clean the inside of the firing chamber. Clean the casing at regular intervals with a damp cloth. Do not use detergents or flammable liquids during cleaning.

Question: What are the safety features of the VITA V60 i-Line Porcelain Furnace?
Answer: The furnace is equipped with safety and monitoring features including temperature sensor monitoring, temperature monitoring, vacuum monitoring, power failure protection, and an obstruction sensor.

Question: Are there any prohibited modes of operation for this furnace?
Answer: Yes, using power sources, products, or equipment that are subject to legislation governing hazardous substances or that affect the health of operating personnel in any way is prohibited.

Question: What is the intended use of the VITA V60 i-Line Porcelain Furnace?
Answer: The VITA V60 i-Line is a fully automatic and microprocessor-controlled firing unit designed for all dental ceramic firing processes.

Question: What is the maximum temperature accuracy of the VITA V60 i-Line?
Answer: The VITA V60 i-Line Porcelain Furnace has a maximum temperature accuracy of ± 2°C, ensuring precise and consistent firing results.
