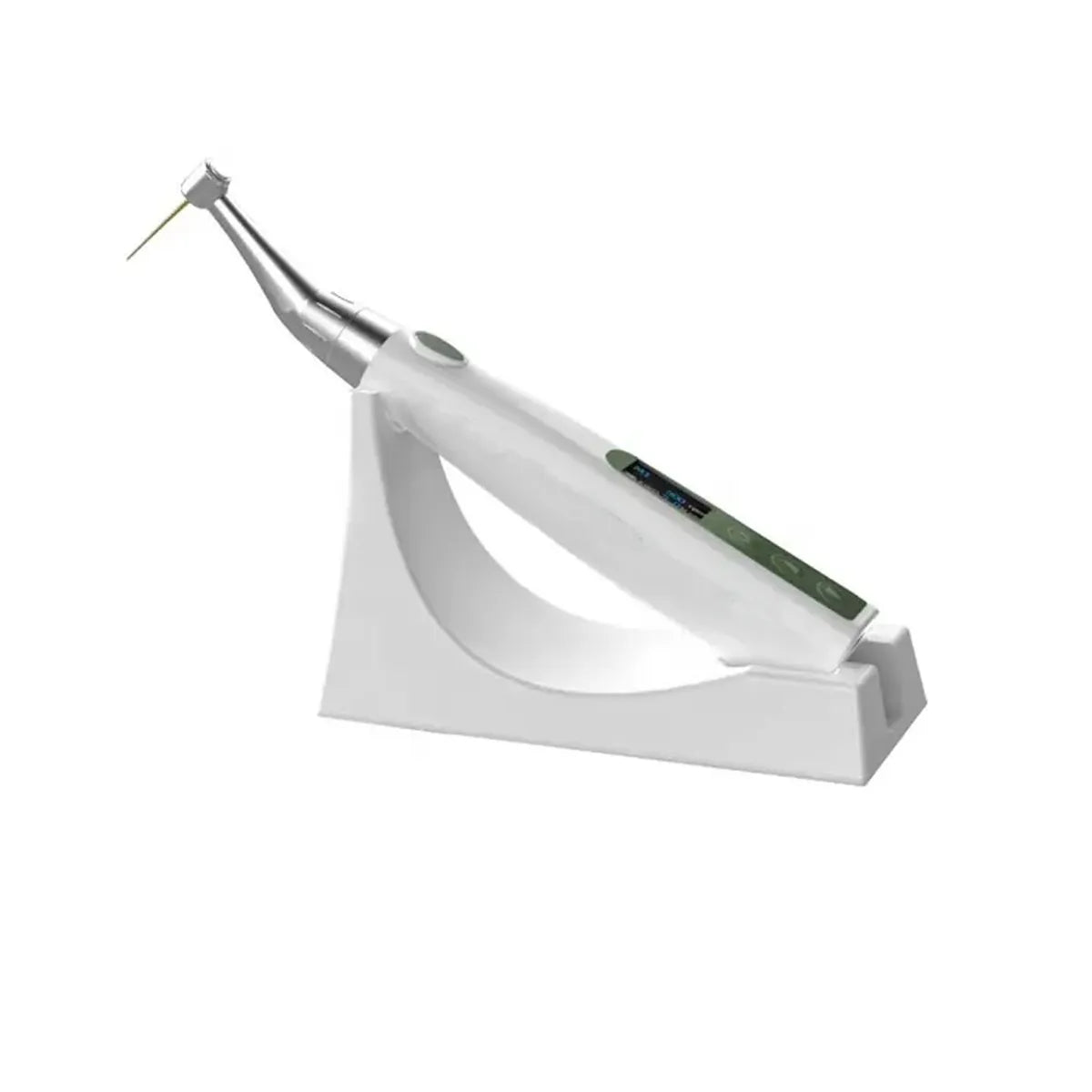

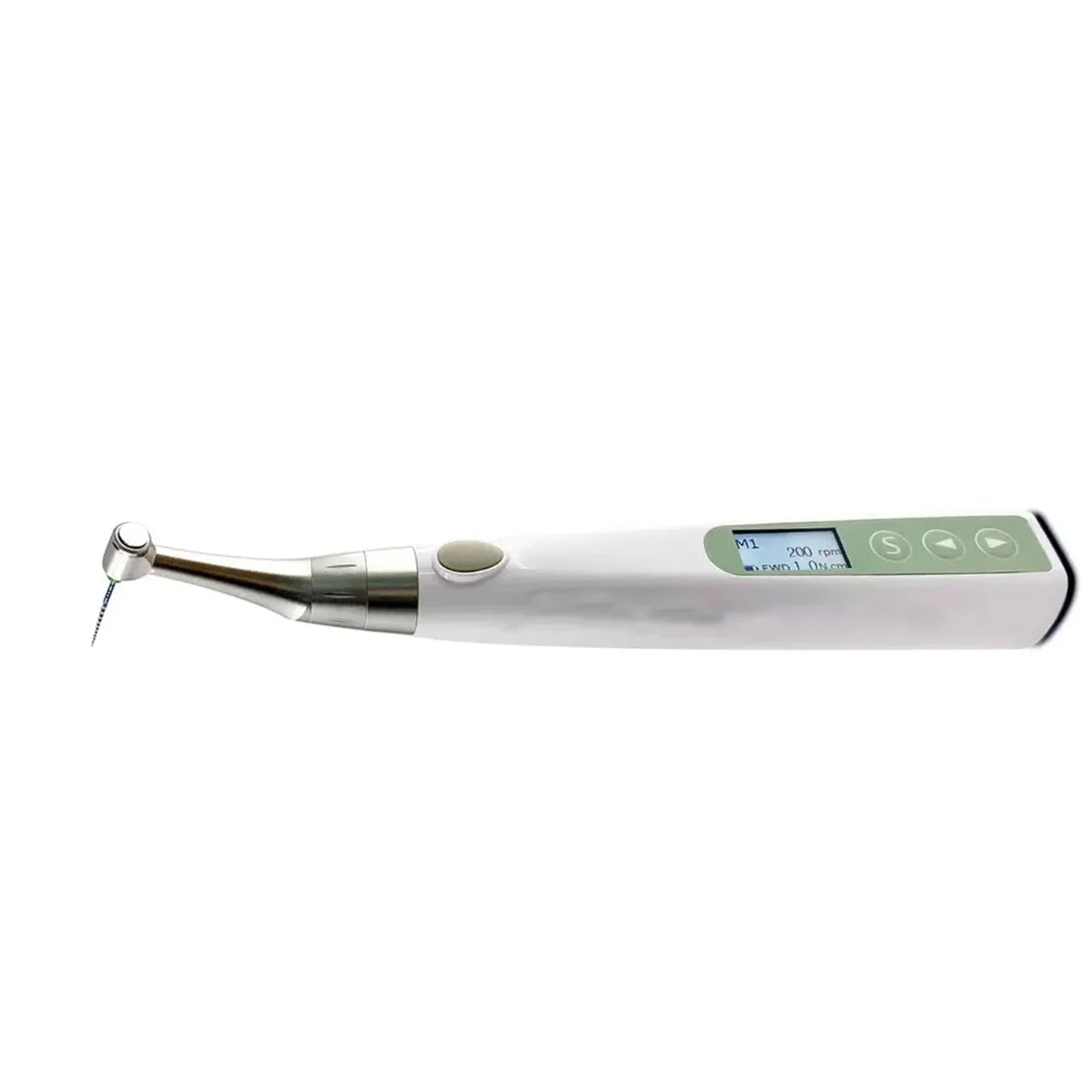

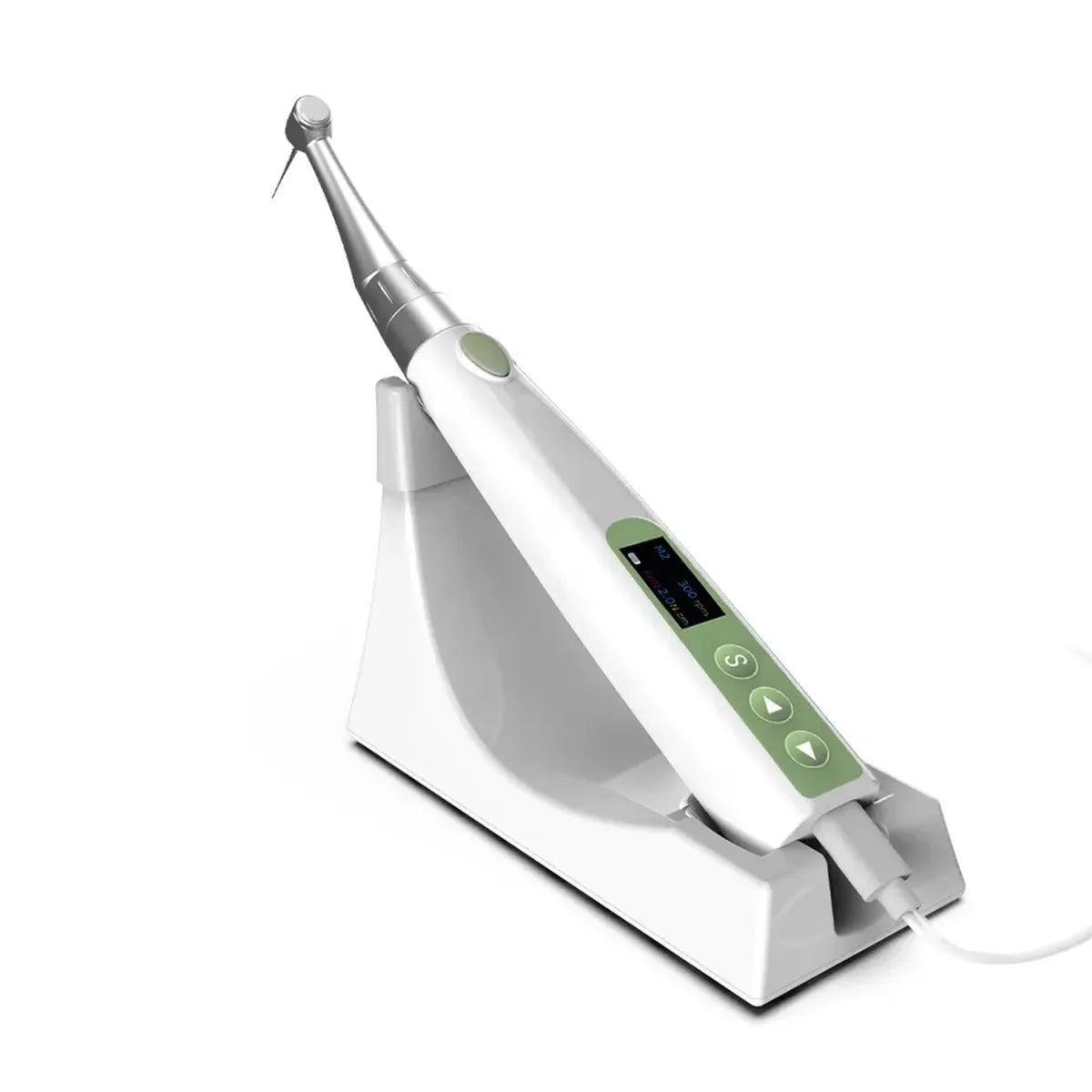

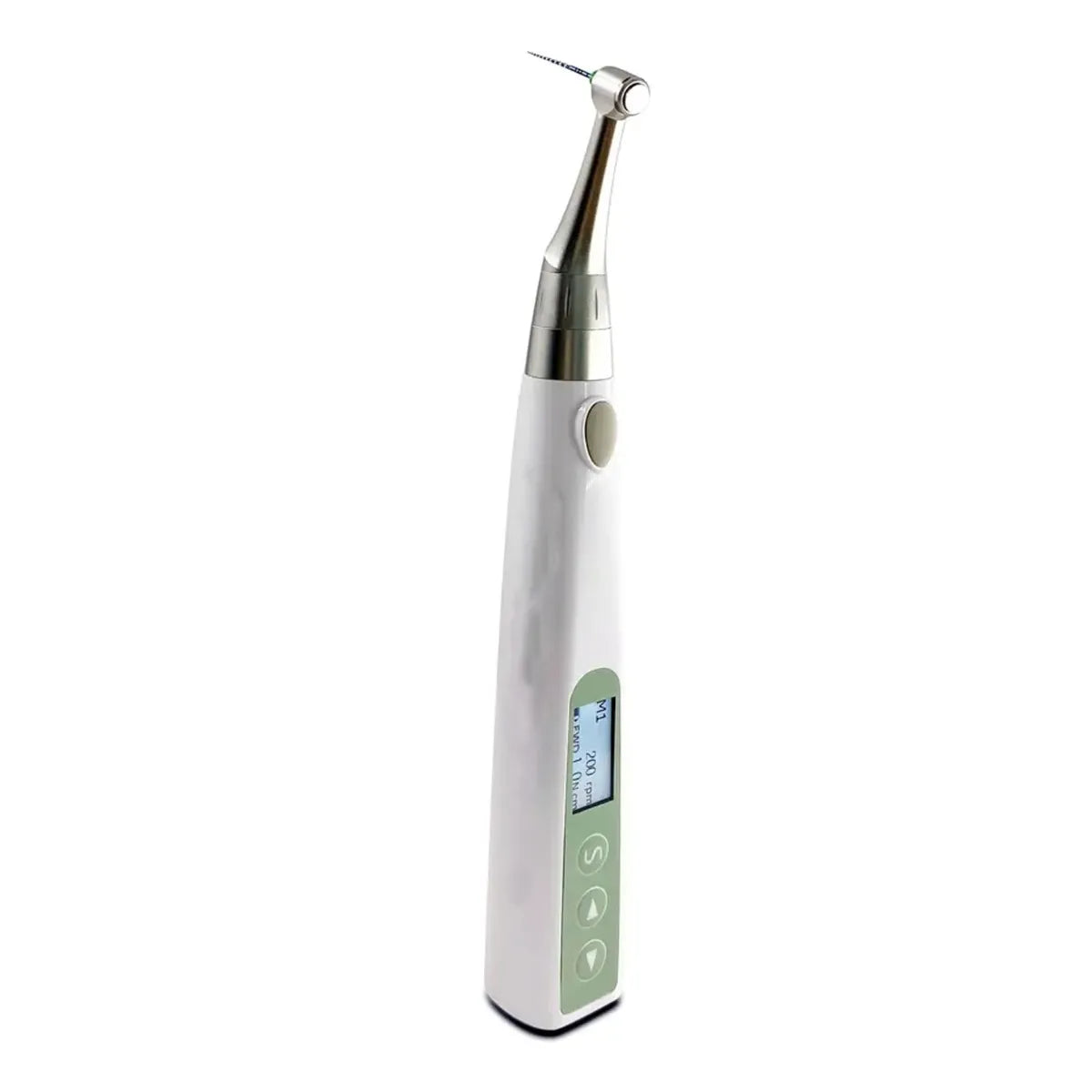

V-Motor Cordless Endomotor

• Customizable Speed and Torque: Adjust speed (120rpm - 1000rpm) and torque (0.6N.cm - 4.0N.cm) for different procedures.
• Contra-Angle Compatibility: Works with both rotary and reciprocating instruments.
• Ergonomic Design: Compact and lightweight for extended comfortable use.
• Long-lasting Battery: Lithium-ion battery (2000mAh) ensures extended operation.
• Charging Indicator: Lightning bolt during charging, full battery icon when charged.
• Intuitive Interface: User-friendly screen displays key information.
• Multiple Operation Modes: Clockwise, counterclockwise, and reciprocating movements.
• Push-Button File Insertion: Contra-angle's mechanism simplifies file insertion and locking.
• Safety Standards: IPX 0 protection rating for clinical settings.
• Versatile File Compatibility: Accommodates files of lengths 11mm to 31mm.
• Easy Maintenance: Accessories can be cleaned and maintained per guidelines.

• Model: V-MOTOR
• Dimensions: Approx. 205mm X 185mm X 70mm
• Weight: Approx. 680g (+10%)
• Power Supply: Lithium ion battery: LCR18500 3.7V, 2000mAh (+10%)
• Contra-angle: Compatible with rotary and reciprocating instruments Equipped with a 2.35 mm shaft
• Contra-angle Dimension:Conforming to ISO 1797-1:2011, Type 1 , Files length 11-31mm
• Charger Supply: AC100-240V, 50/60Hz
• Charger Power Input: 5VA
• Degree of Protection: IPX 0
• Applied Part: B
• Speed Range: 120rpm - 1000rpm
• Torque Range: 0.6N.cm - 4.0N.cm
• Operation Range: Forward (Clockwise rotation), Reverse (Counter clockwise rotation), Reciprocation angles

• 1 x Handpiece
• 1 x Handpiece base
• 1 x Adapter
• 1 x Spray Nozzle
• 1 x Contra-angle
• 1 x Silicon Sleeves
• 1 x Data transfer cable
• 1 x User manual

Charging:

• Connect the adapter cable to the handpiece power connector on the device.
• Plug the other end of the adapter cable into a power outlet.
• When the device is charging, a lightning bolt icon will appear on the screen, and the battery icon will be green and flashing slowly.
• Charging typically takes about 4 hours, but the duration may vary based on the residual battery power and battery state.
• Once charging is complete, the battery icon will display as fully charged.

Battery Status:

• If the battery power is very low, a message prompting you to charge the device will appear.
• A gray battery icon with different levels (25%, 50%, 75%, 100%) indicates the remaining battery power.

Contra-Angle Connection:

• Ensure the device is turned off.
• Connect the contra-angle properly to the handpiece by aligning the connectors and gently inserting the contra-angle.

File Insertion:

• Hold down the push button on the contra-angle.
• Carefully insert the endodontic file into the contra-angle's shaft.
• Turn the file back and forth gently until it is securely positioned.
• Release the push button to lock the file into the contra-angle.

Operation Modes:

• The V-MOTOR offers forward (clockwise rotation), reverse (counterclockwise rotation), and reciprocating movement modes.
• Select the desired mode based on the treatment requirements.

Speed and Torque Adjustment:

• Use the speed control buttons to adjust the rotational speed of the instrument within the specified range (120rpm - 1000rpm).
• Utilize the torque control settings to adjust the torque range (0.6N.cm - 4.0N.cm) as needed for the procedure.

Procedure Execution:

• With the contra-angle properly attached and the file securely in place, power on the device by pressing the button marked "O."
• Gently maneuver the device according to the treatment plan, taking advantage of the selected operation mode, speed, and torque settings.

Cleaning and Maintenance:

• After use, power off the device.
• Disconnect the contra-angle from the handpiece.
• Clean the contra-angle and handpiece according to the manufacturer's instructions.
• Store the device and accessories in a clean and dry environment.

• Manufacturer/Importer warranty of 1 Year warranty for main unit and 6 months warranty for contra-angle and other accessories as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question : How do I ensure the longevity of the lithium-ion battery in V-Motor Cordless Endomotor?
Answer: Charge the V-Motor with the provided adapter, indicated by a lightning bolt during charging. The full battery icon confirms a charged state, ensuring prolonged operation.

Question : Is the V-Motor Cordless Endomotor compatible with both rotary and reciprocating instruments?
Answer: Yes, the V-Motor is designed to work seamlessly with both rotary and reciprocating instruments, providing versatility in instrument choice.

Question : How do I adjust the speed and torque settings for different procedures in V-Motor Cordless Endomotor?
Answer: Use the intuitive interface to customize speed (120rpm - 1000rpm) and torque (0.6N.cm - 4.0N.cm) for precise control during various endodontic procedures.
