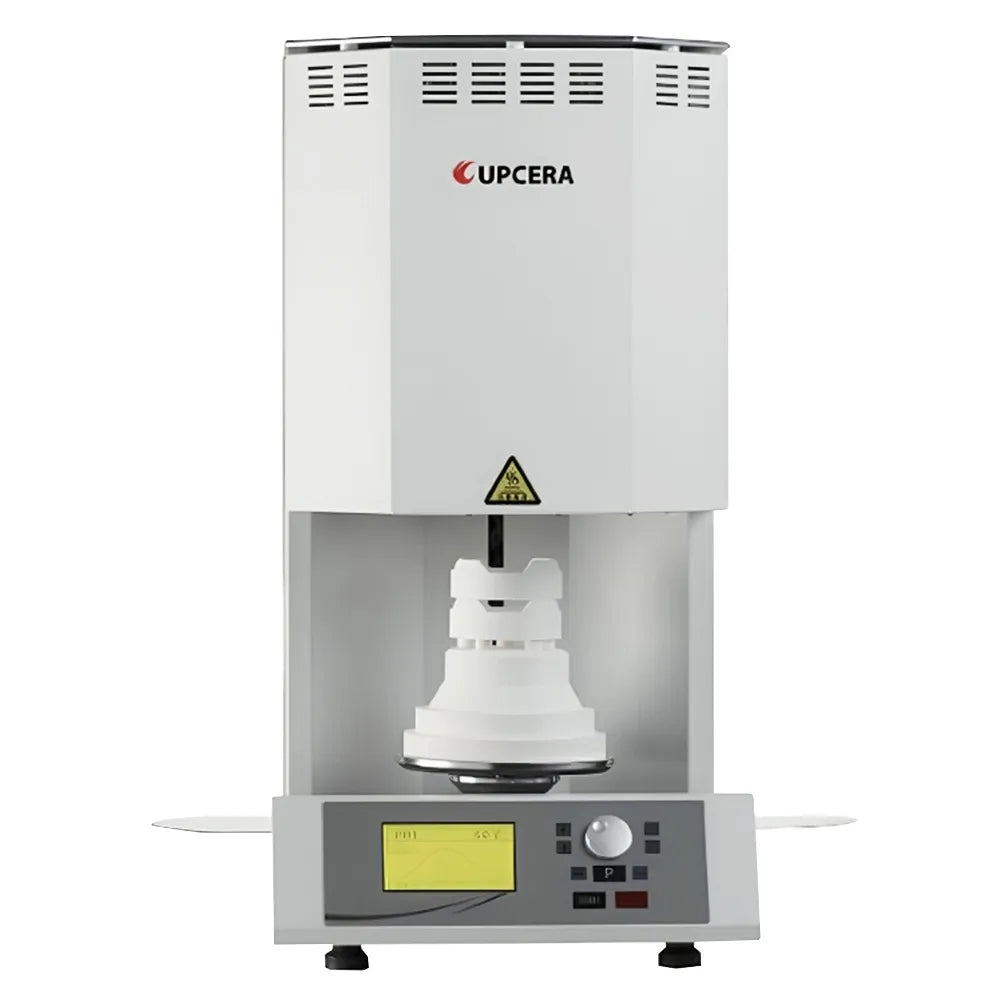

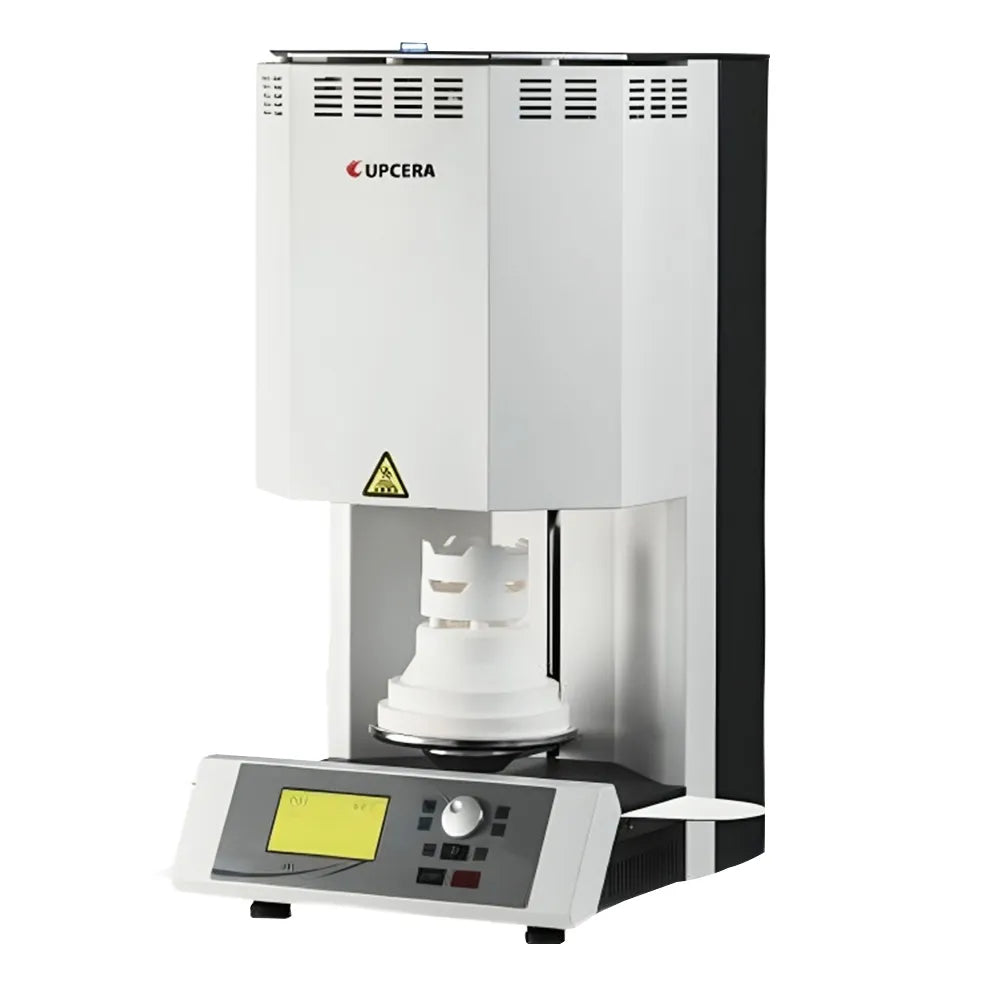

Upcera GT1 Zirconia Sintering Furnace

• Silicon Carbide (SiC) Heating Element: Utilizes a SiC heating element, preventing zirconia contamination during fast sintering cycles.
• LCD Display: Features an LCD display for real-time monitoring of furnace voltage, current, and temperature, enhancing efficiency and stability.
• Fast Sintering: Offers fast sintering cycles with firing temperatures reaching up to 1550℃, ensuring quick and efficient processing.
• 18 Built-in Sintering Programs: Provides versatility with 18 pre-set sintering programs, each equipped with 5 stages, catering to various zirconia sintering needs.
• Customizable Firing Programs: Enables customization of firing programs to meet specific requirements for different zirconia materials and restoration types.
• Efficient Monitoring: Allows real-time monitoring of crucial parameters, ensuring precise control over the sintering process.
• Versatile Applications: Suitable for a wide range of zirconia-based dental restorations, including crowns, bridges, and other prosthetics.
• High-Quality Heating Element: Incorporates a high-quality heating element for uniform and reliable sintering cycles.
• Innovative Technology: Integrates innovative technology to enhance the efficiency and performance of the sintering process.

• Dimensions: 42x46.5x80cm
• Net Weight: 44kg
• Rated Voltage: 220V+/-10%
• Rated Power: 2.5KW
• Max Working Temperature: 1550℃
• Protection Level: IP21
• Fast Fuse: -500V/32A
• Fuse: ➀:2X-380V/16A ➁: -250V/0.5A ➂: 250V/1A
• Heating Rate: 2-30 ℃

• 1 x GT1 Zirconia Sintering furnace

Power On:

• Turn on the Zirconia Sintering Furnace using the designated power switch.

LCD Display Navigation:

• Familiarize yourself with the LCD display and controls.
• Input specific sintering parameters based on the type of zirconia material and restoration type.

Load Zirconia Restorations:

• Place the zirconia restorations on the sintering platform, ensuring proper arrangement.

Select Sintering Program:

• Choose the appropriate sintering program based on the type of zirconia material and the desired outcomes.

Monitor Real-Time Parameters:

• Keep an eye on the LCD display for real-time monitoring of furnace voltage, current, and temperature during the sintering process.

Customization (If Required):

• If needed, customize the sintering program stages to meet specific requirements.

Initiate Sintering Process:

• Start the sintering process, allowing the furnace to follow the selected program for efficient sintering.

Monitor Efficiency:

• Observe the fast sintering cycles and efficiency of the furnace in reaching temperatures up to 1550℃.

Complete Sintering Cycle:

• Wait for the sintering cycle to complete, ensuring that the zirconia restorations have undergone optimal processing.

Unload Finished Restorations:

• Once the sintering process is complete, carefully unload the finished zirconia restorations from the platform.

Shutdown:

• Power off the Zirconia Sintering Furnace following the recommended shutdown procedure.

• Country of Origin: Made in PRC
• Manufacturer: Upcera
