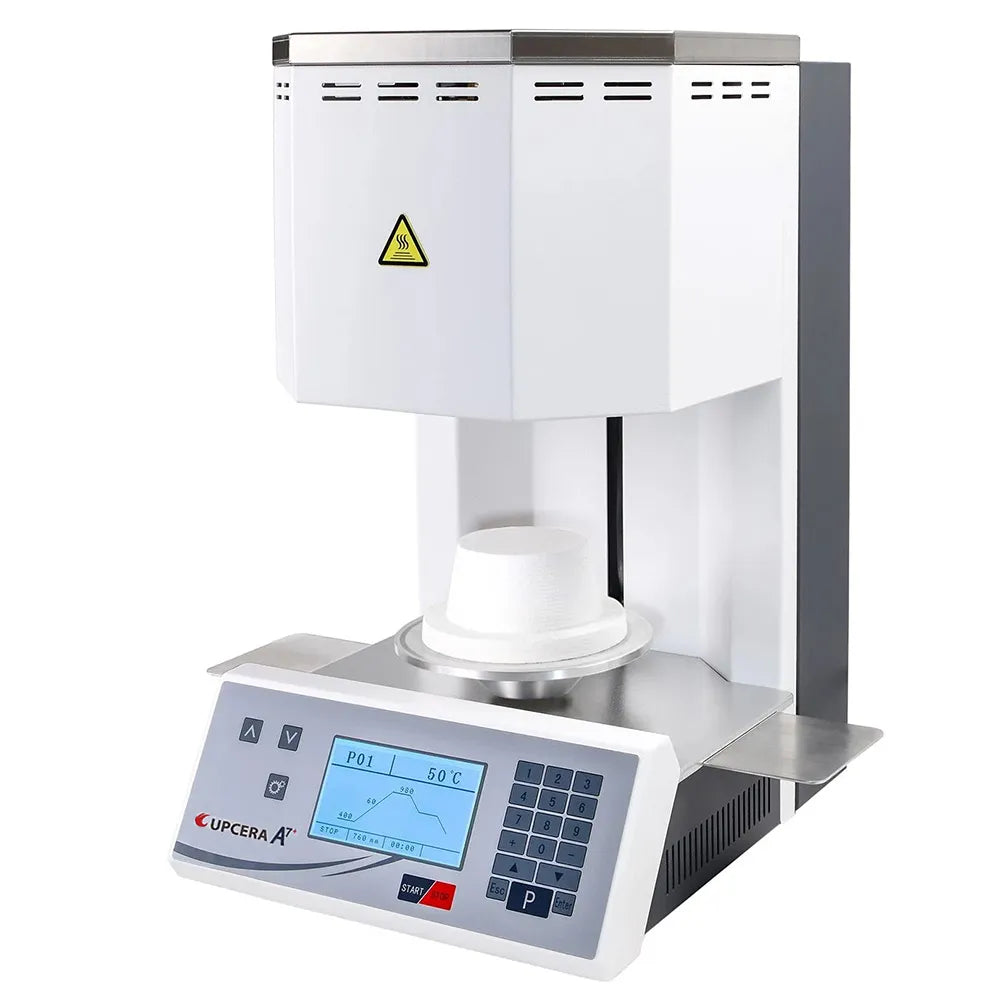

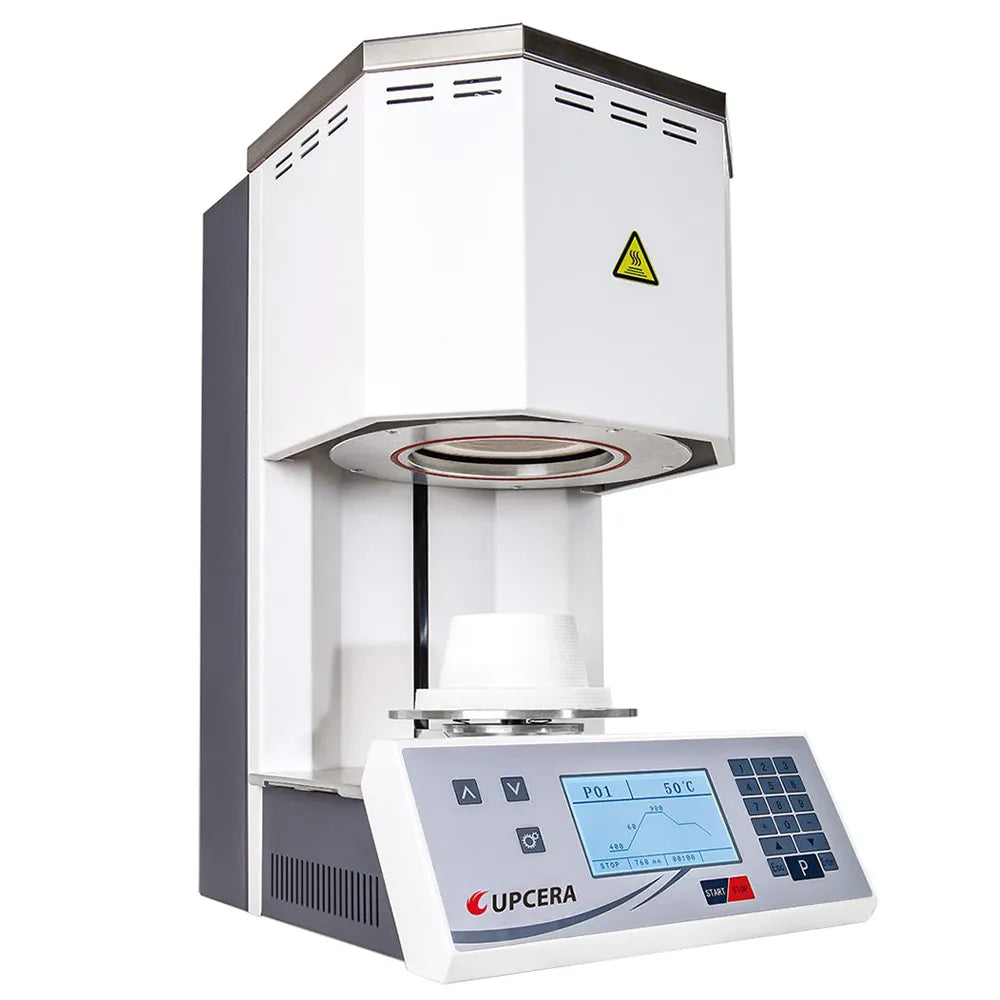

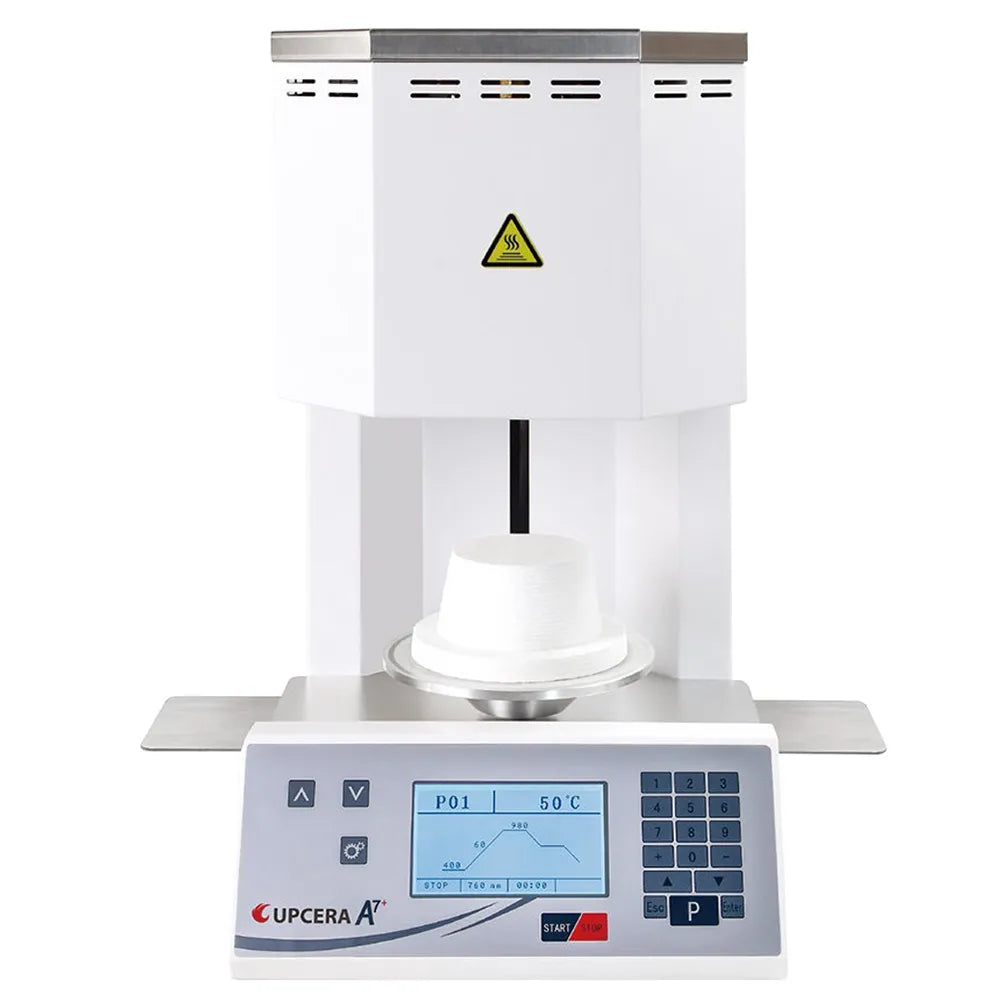

Upcera A7+ Porcelain Furnace

• Dimensions: 33*42*56cm
• Weight: 26.5kg
• Voltage: 220V 50Hz ± 10%
• Heating Rate: 10-100℃
• Maximum Input Voltage: 1200w+350w
• Maximum Working Temperature: 1150℃
• Ultimate Vacuum Degree: <35mmhg
• Constant Temperature Time: 00:30-30:00min
• Chamber Available Sizes: 85x55 (mm)
• Waterproof Level: IPX1
• Fuse: Fuse 1: 3.0A Fuse 2: 8.0A

• Dimensions: 33*42*56cm
• Weight: 26.5kg
• Voltage: 220V 50Hz ± 10%
• Heating Rate: 10-100℃
• Maximum Input Voltage: 1200w+350w
• Maximum Working Temperature: 1150℃
• Ultimate Vacuum Degree: <35mmhg
• Constant Temperature Time: 00:30-30:00min
• Chamber Available Sizes: 85x55 (mm)
• Waterproof Level: IPX1
• Fuse: Fuse 1: 3.0A Fuse 2: 8.0A

• 1 x A7+ Porcelain Furnace

Power On:

• Turn on the porcelain furnace using the designated power switch.

User Interface Navigation:

• Familiarize yourself with the user interface and controls.
• Input specific firing parameters based on the type of dental ceramics being processed.

Load the Ceramics:

• Place the dental ceramics on the firing platform, ensuring proper arrangement.

Select Firing Program:

• Choose the appropriate firing program based on the type of dental ceramics and the desired outcomes.

Activate Vacuum Technology:

• If applicable, activate the integrated vacuum technology to enhance sintering outcomes.

Automatic Platform Lift Mode:

• Utilize the automatic platform lift mode for efficient loading and unloading.

Initiate Firing Process:

• Start the firing process, allowing the furnace to follow the selected program for sintering.

Temperature Compensation:

• Monitor the temperature compensation feature to ensure consistent and accurate results.

Vacuum Testing, Cleaning, and Drying:

• Follow the furnace's procedures for vacuum testing, cleaning, and drying as part of maintenance.

Built-in Error Warning:

• Pay attention to the built-in error warning system for any potential issues during the process.

Unload Finished Ceramics:

• Once the firing process is complete, carefully unload the finished dental ceramics from the platform.

Shutdown:

• Power off the porcelain furnace following the recommended shutdown procedure.

Country of Origin: Made in PRC

Manufacturer: Upcera

• No Manufacturer/Importer warranty as applicable for this product
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Please click here to know about our return policy &a how warranty is covered at Oralkart

Question: What is the primary use of the Upcera A7+ Porcelain Furnace?
Answer: The A7+ is designed for precise firing of dental ceramics, ensuring optimal sintering for various dental restorations like crowns and bridges.

Question: Can the A7+ accommodate special sintering demands?
Answer: Yes, the furnace features a 2-stage program to meet special sintering demands, enhancing its versatility.

Question: How does the double-layer metal protection system benefit the furnace?
Answer: The double-layer metal protection ensures chamber integrity, providing robust protection during the firing process.
