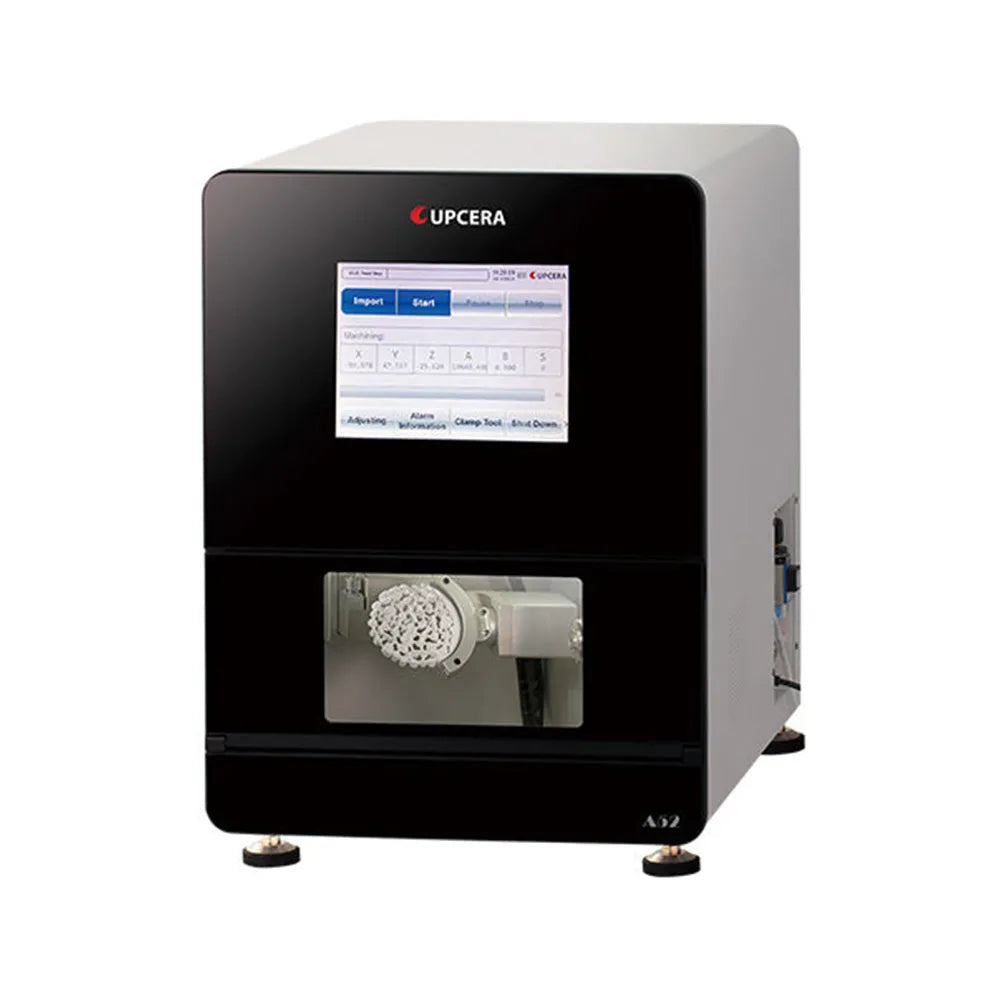

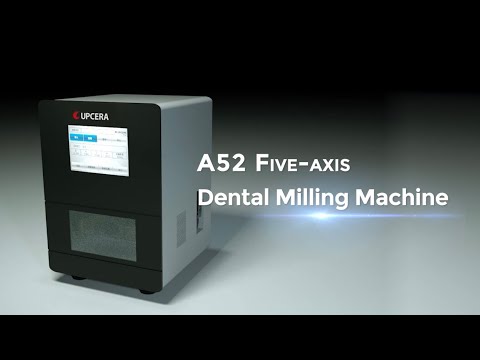

Upcera A52 5-Axis Dry Milling Powerhouse

• High-Performance Aluminum Alloy Housing: Crafted with aircraft-grade aluminum alloy for a durable and reliable milling machine.
• Fully Enclosed Milling Chamber: Offers outstanding sealing and dustproof capabilities, ensuring a clean and controlled milling environment.
• Integrated PC with 12-Inch Touchscreen: Streamlines operation with a user-friendly interface for convenient control and monitoring.

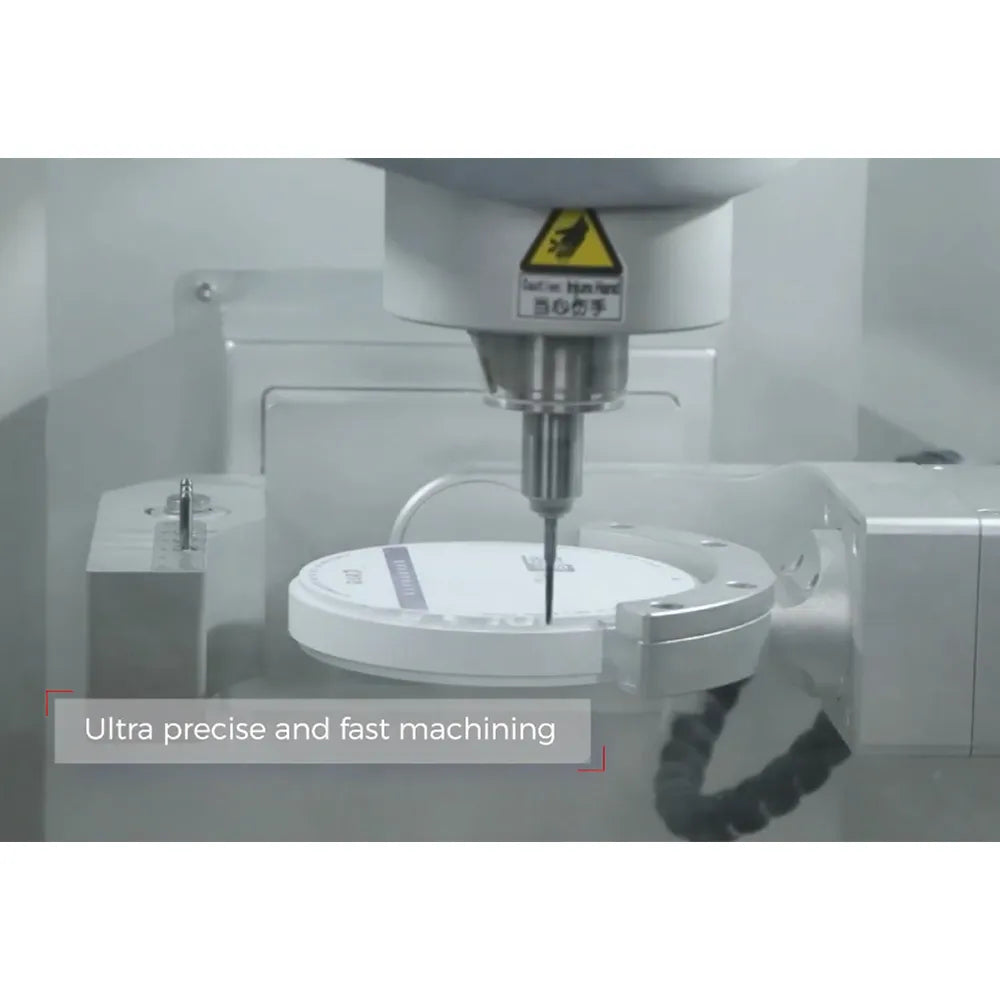

• Servo Motor and Ball Screw Precision: Equipped with a servo motor and ball screw, achieving high precision with accuracy within 0.01 mm.

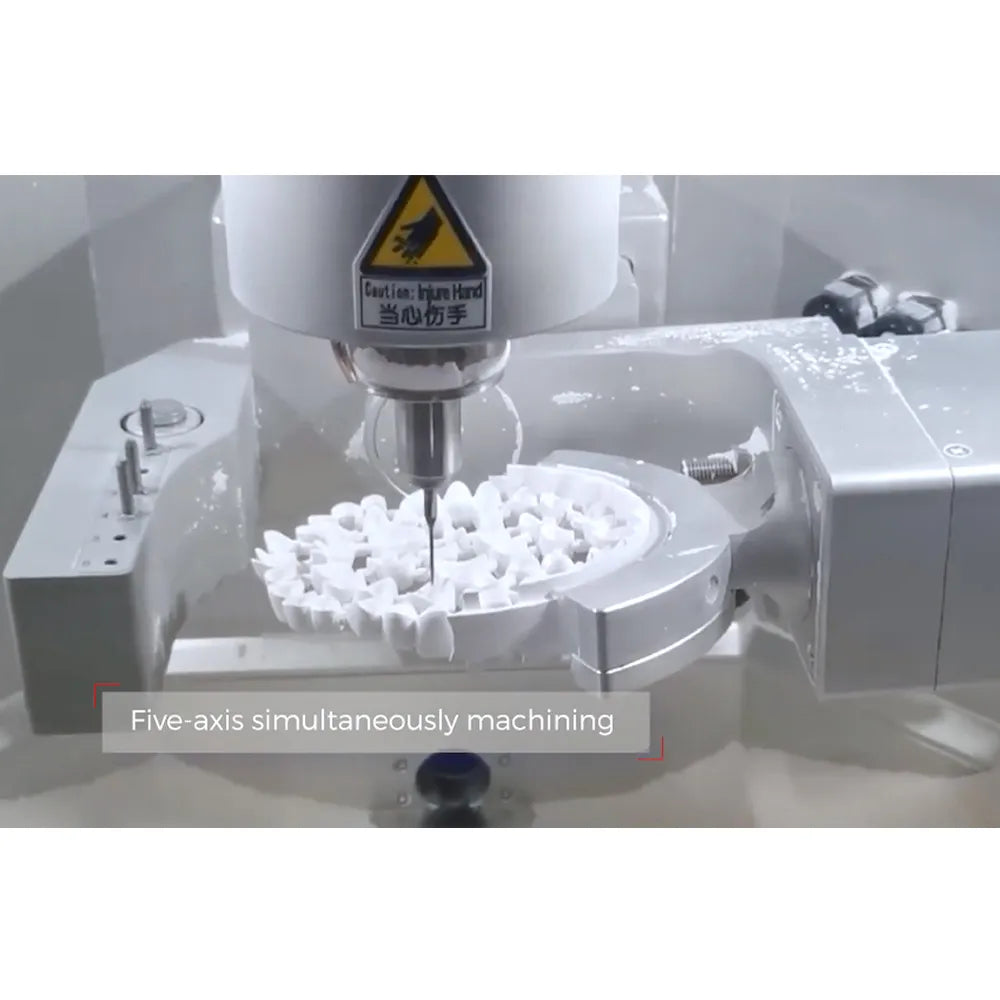

• 5-Axis Simultaneous Milling: Enables multi-dimensional detailing, allowing for intricate and precise milling for various dental restorations.
• Up to 90° Large Angle for Buccal Side Cutting: Enhances versatility by offering a large cutting angle for buccal side milling applications.
• Automatic Tool Changer: Facilitates efficient workflow by automatically changing tools during the milling process.
• Tool Setter Detection: Includes a tool setter detection feature, further optimizing the milling process for accuracy and efficiency.

• Dimensions: 55x49x74cm
• Weight: 110kg
• Voltage: 220V 50Hz ; 110V 60Hz
• Power: 1.0kw
• Compatible Compressed Air: 0.5-0.8 MPa
• Spindle Speed: 80, 000rpm
• Tilt Angle: A axis: ±360°, B axis: -35°/+95°
• Precision: <0.01mm
• Number of Bur: 12
• Cooling Type: Air cooling
• Materials: Zirconia, Wax, PEEK, PMMA (Φ98.5mm, thinkness of 10mm-30mm）
• Milling Speed: Zirconia, PEEK, PMMA (10 minutes/pc), Wax (3 minutes/pc), Framework (45 minutes/pc)
• Application: Coping, full contour crown, bridge, inlay, onlay, veneer, post-core crown, telescopic crown, customized abutment crown, overstructure, PEEK framework

• 1 x A52 Dry Milling Machine

Machine Setup:

• Place the milling machine on a stable surface.
• Ensure that the machine is properly connected to the power source.

Power On:

• Turn on the milling machine using the designated power switch.

Interface Navigation:

• Utilize the integrated PC with a 12-inch touchscreen for navigation.
• Familiarize yourself with the user interface and controls.

Material Loading:

• Securely load the milling material into the machine's milling chamber.
• Ensure proper placement for accurate milling.

Tool Selection:

• Choose the appropriate milling tool based on the specific dental restoration design and material.

Software Setup:

• Use the touchscreen interface to input milling parameters, including restoration specifications and milling paths.

Calibration:

• For calibration to ensure accurate milling.
• Calibration may involve tool and spindle alignment.

Safety Checks:

• Verify that the milling chamber is fully enclosed for dustproofing.
• Check safety features and emergency stop mechanisms.

Test Run:

• Before milling the actual restoration, run a test program to check for any issues and confirm accurate setup.

Initiate Milling Process:

• Once satisfied with the test results, initiate the milling process.
• Monitor the machine for smooth operation.

Automatic Tool Change:

• Allow the machine to perform automatic tool changes during the milling process.

Tool Setter Detection:

• Utilize the tool setter detection feature to optimize tool performance and milling accuracy.

Quality Check:

• After milling is complete, inspect the milled restoration for accuracy and quality.

Shutdown:

• Power off the milling machine following the recommended shutdown procedure.

• Country of Origin: Made in PRC
• Manufacturer: Upcera

• No Manufacturer/Importer warranty as applicable for this product
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Orallkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Please click here to know about our return policy &a how warranty is covered at Oralkart

Question: What is the primary use of the Upcera A52 5-Axis Dry Milling Machine?
Answer: The A52 is designed for precision milling in dental laboratories, creating various dental restorations like crowns and bridges.

Question: How do I navigate the touchscreen interface?
Answer: Use the 12-inch touchscreen for intuitive navigation; refer to the user manual for specific instructions.

Question: What is the purpose of tool setter detection?
Answer: Tool setter detection optimizes tool performance, contributing to precise and accurate milling.

Question: How durable is the aluminum alloy housing?
Answer: The A52's housing is crafted with high-performance aircraft-grade aluminum alloy for durability and reliability.
