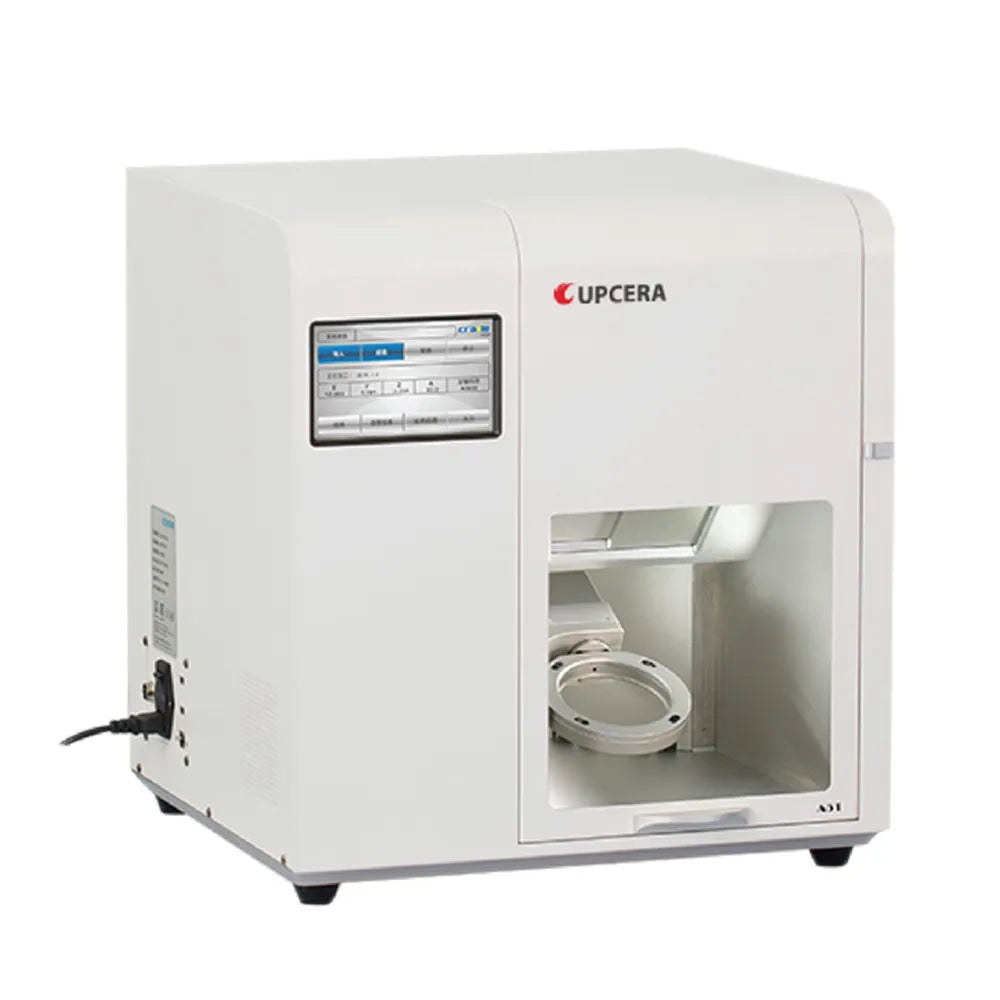

Upcera A51 5-Axis Dry Milling Machine

• Versatile Disk Holder: Large round disk holder capable of holding materials ranging from 100mm to 98mm, providing versatility in dental milling.
• Automated Tool Selection: Automatic tool selection and changing capabilities streamline the milling process, optimizing efficiency for dental technicians.
• User-Friendly Interface: Simple and elegant user interface designed for easy operation, enhancing user experience in dental restoration production.
• Safety Protocols: Power-off and low air-pressure protection features ensure a secure milling environment, prioritizing safety during operation.
• Quality Mechanical and Electrical Components: Equipped with top-rated mechanical and electrical parts, ensuring reliability and consistent performance in dental milling applications.
• Durable Construction: Machine housing made from high-performance cast steel and aviation aluminum alloy, providing durability and structural integrity.
• Precision Milling: Capable of achieving precision milling for dental restorations, meeting the high standards required in dental laboratories.
• Efficient Workflow: Designed to enhance workflow efficiency, reducing processing time and increasing productivity in dental restoration production.
• Adaptability: Adaptable to various dental materials, allowing for a wide range of applications in dental milling processes.
• Cutting-Edge Technology: Incorporates cutting-edge technology to meet the demands of modern dental laboratories, ensuring high-quality and accurate results.

• Dimensions: 53x47x56cm
• Weight: 110kg
• Voltage: 220V 50HZ; 110v 60Hz
• Power: 1.0KW
• Compatible Compressed: 0.5-0.8 MPa
• Spindle Speed: 80,000rpm
• Precision: < 0.01mm
• Number of Bur: 6 (2mm, 1mm, 0.6mm, 0.3mm)
• Cooling Type: Air Cooling
• Materials: Zirconia, PMMA, Wax, PEEK
• Application: Coping, full contour, bridges, inlay, veneer, post-core crown, onlay, PEEK framework
• Milling Speed: Zirconia, PEEK, PMMA (10 minutes/pc), Wax (3 minutes/pc), Framework (45 minutes/pc)

• 1 x A51 Dry Milling Machine

• Machine Preparation: Ensure the milling machine is placed on a stable surface. Check that all necessary tools, materials, and milling blanks are available.
• Power On: Turn on the milling machine using the designated power switch. Allow the machine to go through the startup sequence.
• User Interface: Navigate the simple and elegant user interface. Familiarize yourself with the controls and settings presented on the interface.
• Material Loading: Securely load the milling blank into the designated holder or chuck. Ensure proper positioning for accurate milling.
• Tool Selection: Choose the appropriate milling tool based on the dental restoration design and the material being used.
• Software Setup: Utilize the machine's software interface to input the required parameters. This may include restoration specifications, milling paths, and other relevant settings.
• Safety Checks: Verify that the power-off and low air-pressure protection features are functional. This ensures safety during the milling process.
• Test Run: Before milling the actual restoration, run a test program to check for any issues and confirm that the setup is accurate.
• Initiate Milling Process: Once satisfied with the test results, initiate the milling process using the two-button machining start. Monitor the machine for smooth operation.
• Quality Check: After the milling is complete, inspect the milled restoration for accuracy and quality. Make any necessary adjustments if needed.
• Post-Milling Steps: Clean the milling machine and tools thoroughly after use.
• Power Off: Power off the milling machine following the recommended shutdown procedure.

• Country of Origin: Made in PRC
• Manufacturer: Upcera

• No Manufacturer/Importer warranty as applicable for this product
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Please click here to know about our return policy &a how warranty is covered at Oralkart

Question: What is the primary use of the Upcera A51 5-Axis Dry Milling Machine?
Answer: The Upcera A51 is designed for precision milling in dental laboratories, creating various dental restorations like crowns and bridges.|17 Feb 202400

Question: Are there safety measures during operation?
Answer: Yes, the machine incorporates power-off and low air-pressure protection for secure milling procedures.

Question: How durable is the machine construction?Answer: The machine housing is crafted from high-performance cast steel and aviation aluminum alloy, ensuring durability and longevity.

Question: Does the A51 offer precision milling for complex designs?
Answer: Yes, the advanced 5-axis capability allows for precise milling of intricate and detailed dental designs.
