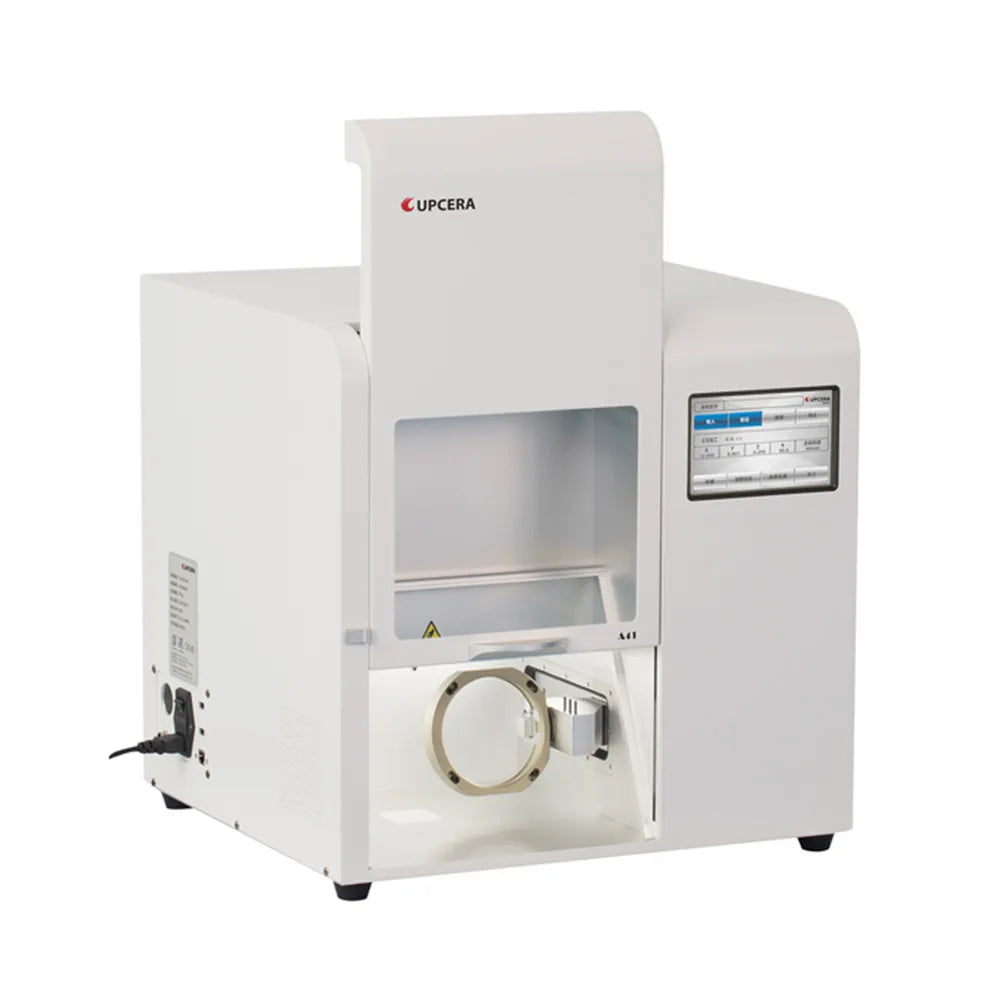

Upcera A41 4-Axis Dry Milling Machine

• Touch Screen Operation: User-friendly touch screen interface for intuitive and efficient machine control.
• Tremendous Stability and High Accuracy: Offers exceptional stability and high precision in dental milling processes, ensuring consistent and reliable results.
• 24/7 Non-Stop Machining: Capable of continuous operation, allowing for 24/7 non-stop machining for enhanced productivity.
• Low Pressure Protection: Incorporates low-pressure protection mechanisms to safeguard both the milling process and the machine.
• Top-Class Mechanical High Accuracy: Features top-tier mechanical components to deliver high accuracy in dental restoration milling.
• High-Performance Cast Steel: Crafted with high-performance cast steel for durability, longevity, and robust performance.
• Versatile Disk Holder: Large round disk holder capable of holding materials ranging from 100mm to 98mm, providing versatility in dental milling.
• Automated Tool Selection: Automatic tool selection and changing capabilities streamline the milling process, optimizing efficiency for dental technicians.
• User-Friendly Interface: Simple and elegant user interface designed for easy operation, enhancing user experience in dental restoration production.
• Safety Protocols: Power-off and low air-pressure protection features ensure a secure milling environment, prioritizing safety during operation.
• Quality Mechanical and Electrical Components: Equipped with top-rated mechanical and electrical parts, ensuring reliability and consistent performance in dental milling applications.
• Durable Construction: Machine housing made from high-performance cast steel and aviation aluminum alloy, providing durability and structural integrity.
• Precision Milling: Capable of achieving precision milling for dental restorations, meeting the high standards required in dental laboratories.
• Efficient Workflow: Designed to enhance workflow efficiency, reducing processing time and increasing productivity in dental restoration production.
• Adaptability: Adaptable to various dental materials, allowing for a wide range of applications in dental milling processes.
• Cutting-Edge Technology: Incorporates cutting-edge technology to meet the demands of modern dental laboratories, ensuring high-quality and accurate results.

• Dimensions: 54x49x53cm
• Weight: 85kg
• Voltage: 220V 50Hz ; 110V 60Hz (Optional)
• Power: 1.0KW
• Compatible Compressed: 0.5-0.8 MPa
• Spindle Speed: 60,000 rpm
• Precision: < 0.01mm
• Number of Bur: 4 (2mm, 1mm, 0.6mm, 0.3mm)
• Cooling Type: Air Cooling
• Materials: Zirconia, PMMA, Wax, PEEK
• Application: Coping, full contour, bridges, inlay, veneer, post-core crown, onlay, PEEK framework
• Milling Speed: Zirconia, PEEK, PMMA (10 minutes/pc), W

• 1 x A41 Dry Milling Machine

• Preparation: Ensure the machine is in a clean and organized environment. Confirm that all necessary materials, tools, and milling blanks are available.
• Power On: Turn on the milling machine and follow the manufacturer's instructions for the startup procedure.
• Material Loading: Load the milling blank into the designated holder or chuck securely. Make sure it is properly positioned for accurate milling.
• Tool Selection: Choose the appropriate milling tool based on the specific dental restoration design and material being used.
• Software Setup: Use the machine's software interface to input the required parameters, including restoration specifications, milling paths, and any other relevant settings.
• Calibration: Calibrate the machine according to the manufacturer's guidelines to ensure accurate milling.
• Run Test: Before milling the actual restoration, run a test program to check for any issues and confirm that the setup is accurate.
• Initiate Milling Process: Once satisfied with the test results, initiate the milling process. Monitor the machine during this phase to ensure smooth operation.
• Quality Check: After the milling is complete, inspect the milled restoration for accuracy and quality. Make any necessary adjustments if needed.
• Post-Milling Steps: Clean the milling machine and tools thoroughly after use. Follow the manufacturer's guidelines for proper maintenance and storage.
• Shutdown: Power off the milling machine following the recommended shutdown procedure.

• Country of Origin: Made in PRC
• Manufacturer: Upcera

• No Manufacturer/Importer warranty as applicable for this product
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product
• oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Please click here to know about our return policy &a how warranty is covered at Dentalkart

Question: Can I mill different types of dental restorations with this machine?
Answer: Yes, the machine is versatile and can mill various dental restorations, including crowns, bridges, and abutments.

Question: What safety features does the machine have?
Answer: The Upcera A41 incorporates low-pressure protection mechanisms to safeguard the milling process and machine components.

Question: What materials can be milled using the Upcera A41?
Answer: The machine is designed to mill various dental materials such as Zirconia, PMMA, Resin, and Wax.
