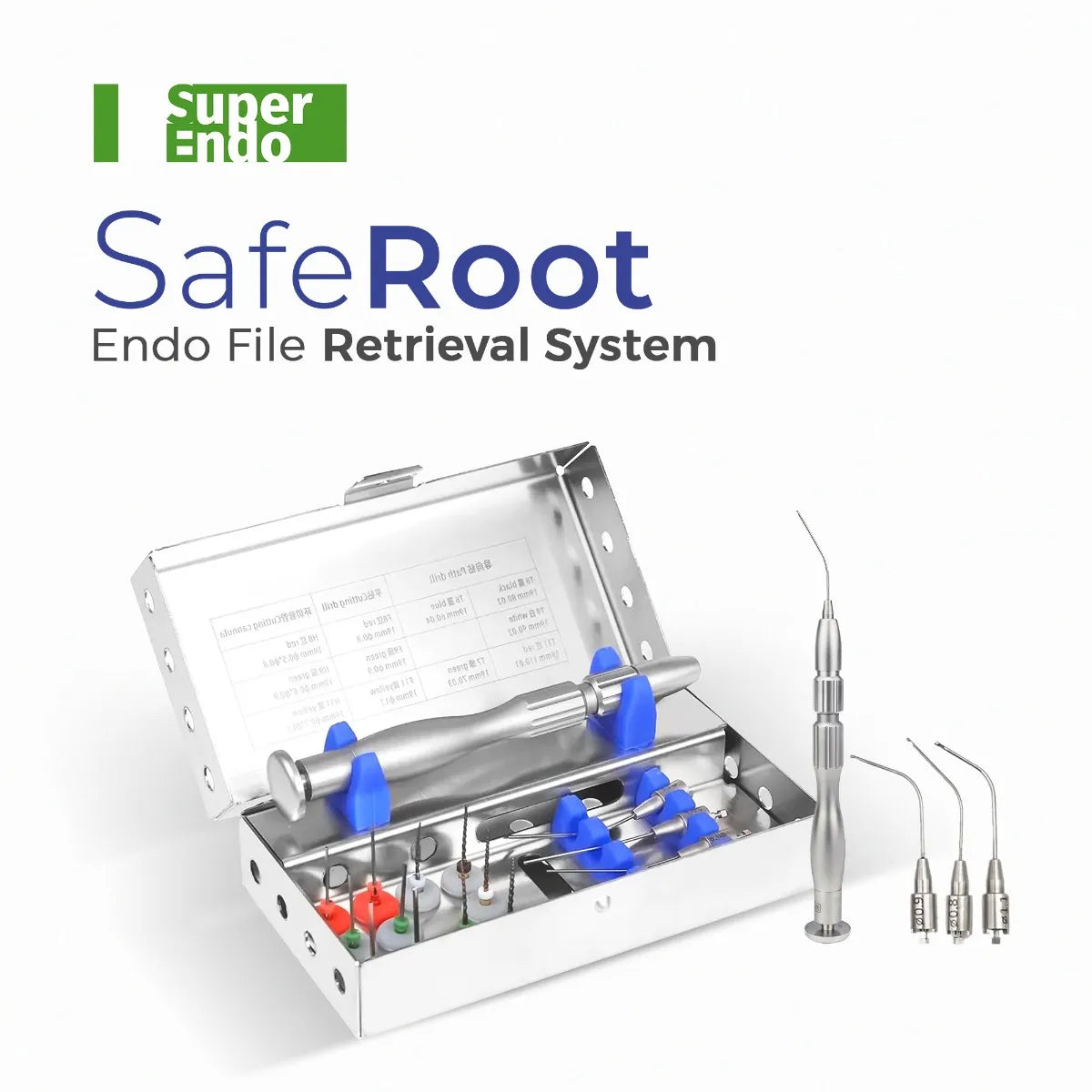

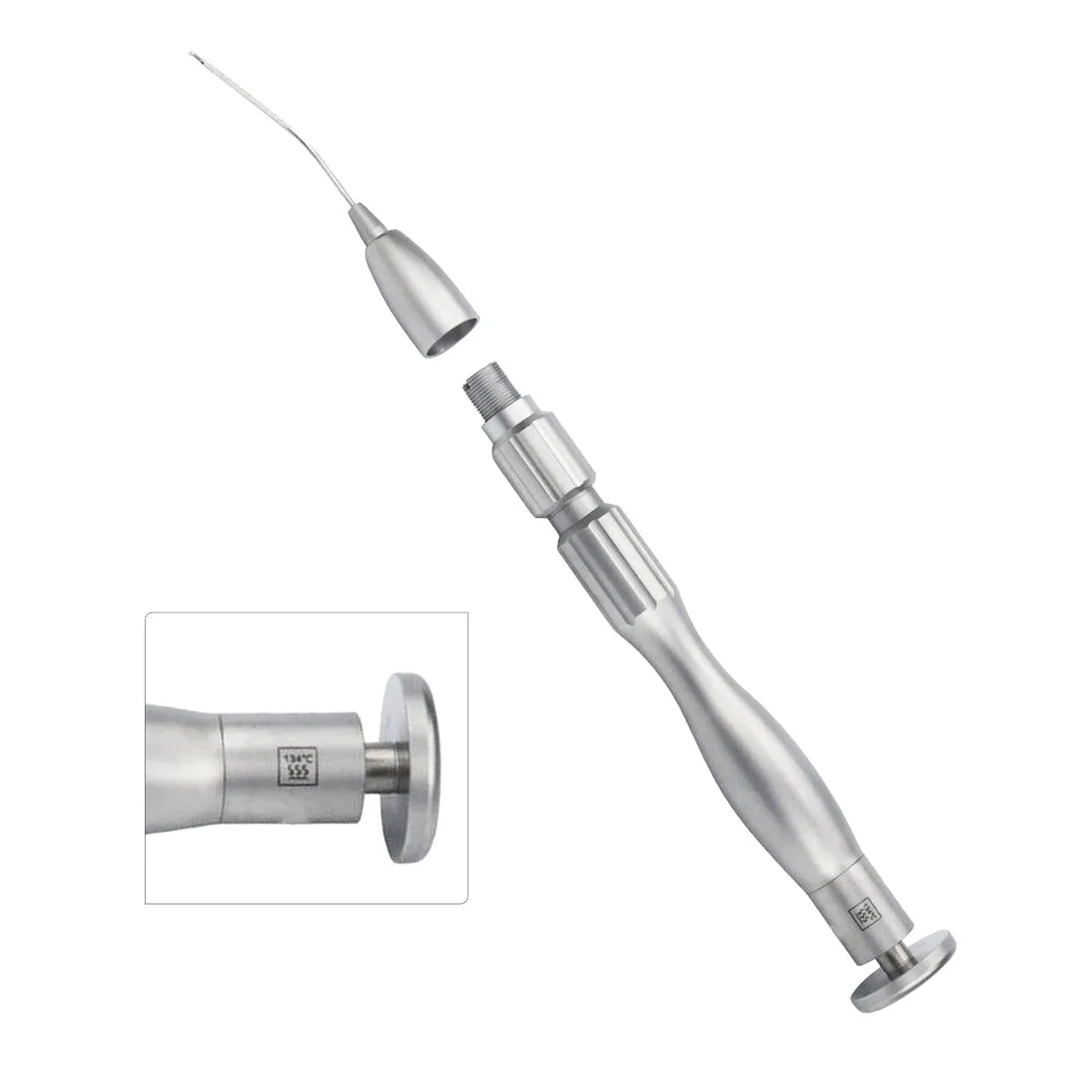

SuperEndo SafeRoot Endo File Retrieval System

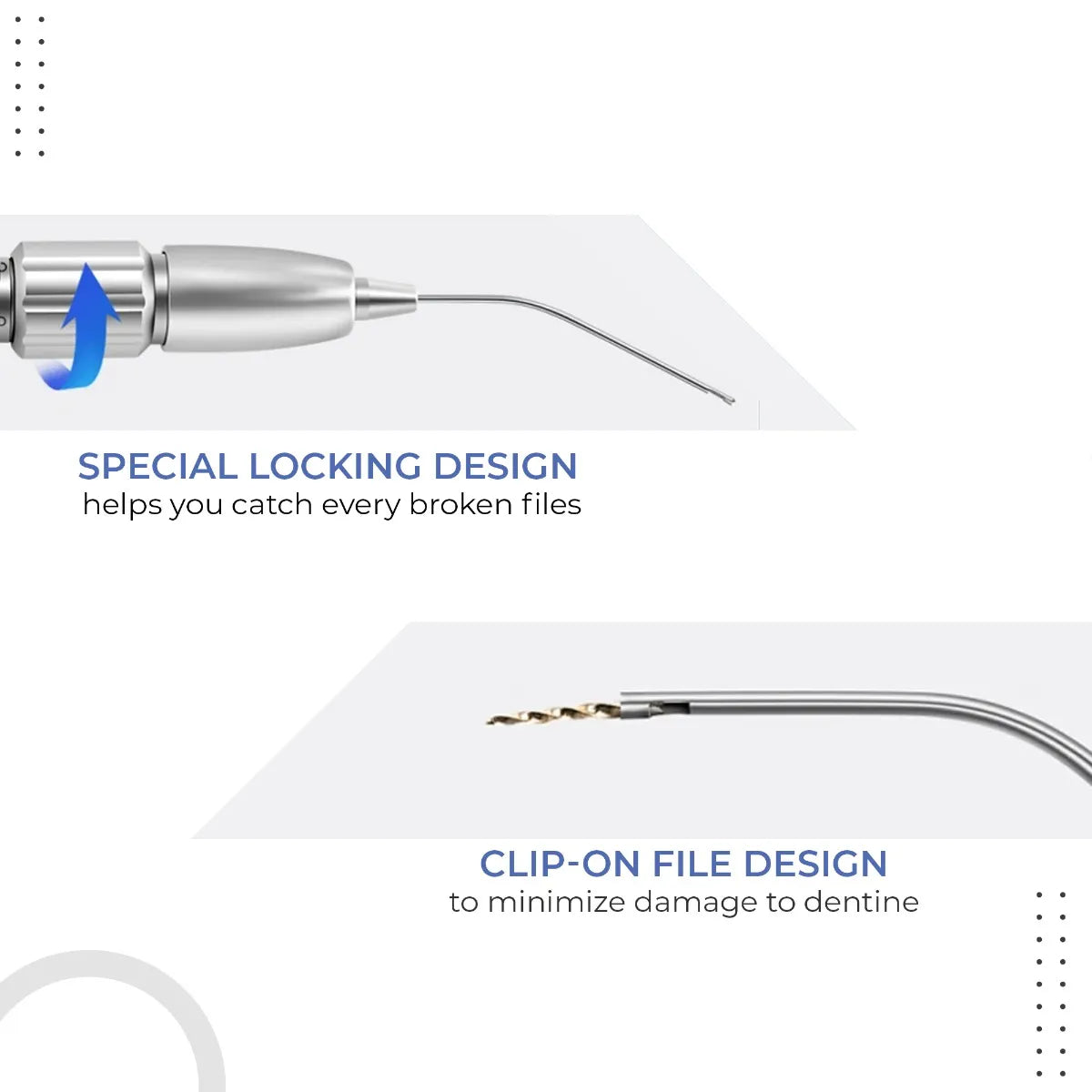

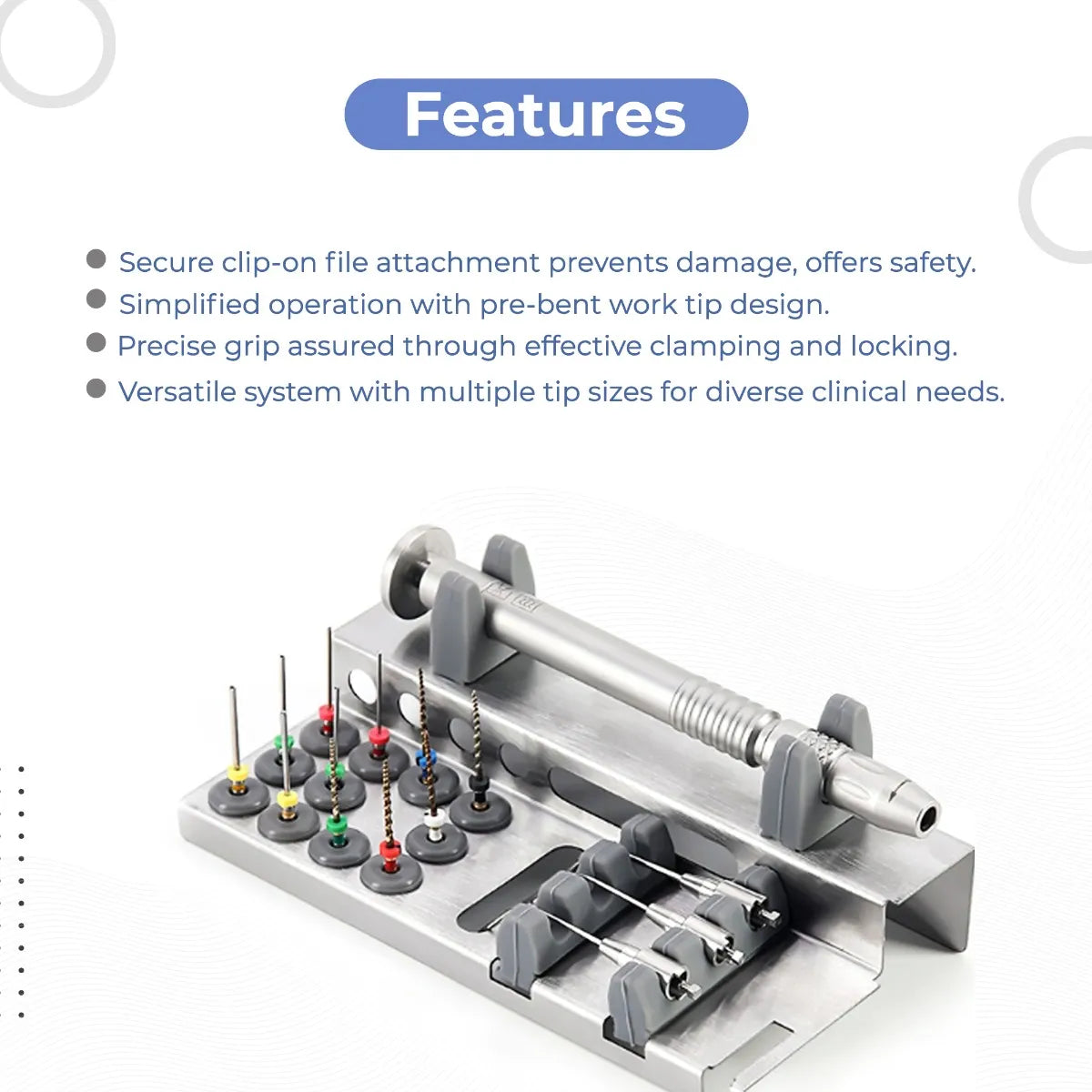

• Clip-On File Attachment: This system utilizes a clip-on file mechanism, minimizing the potential for damage to teeth and providing a secure grip on broken files for safe removal.

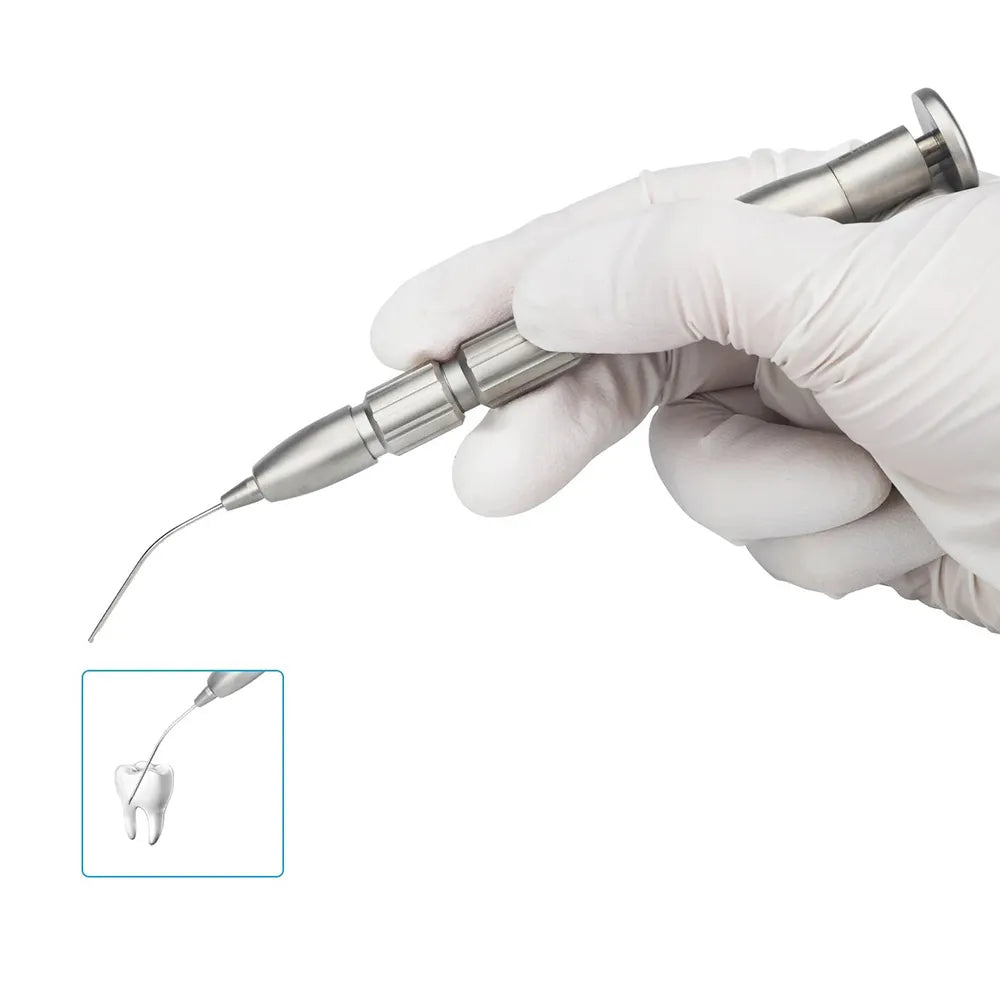

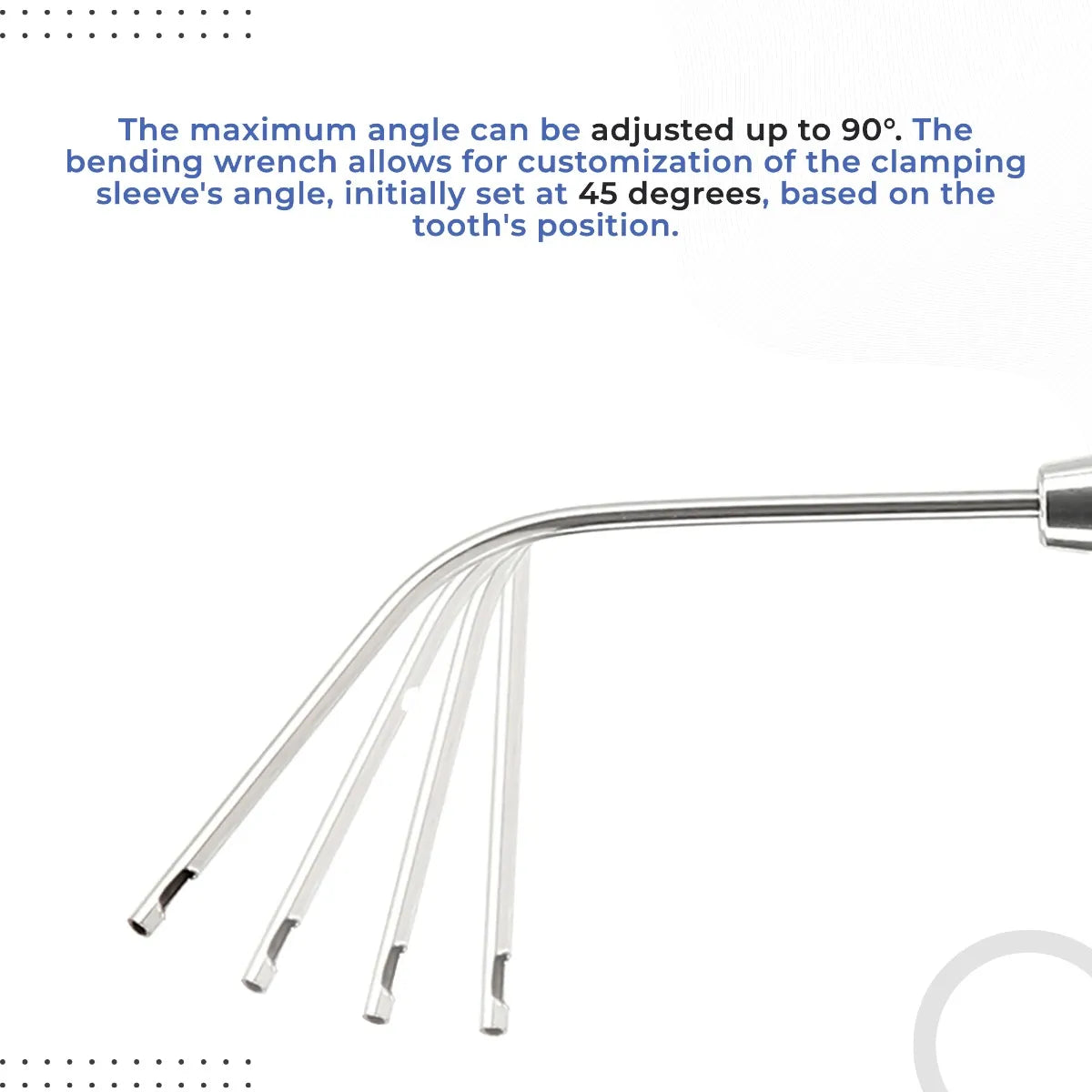

• Pre-Bent Work Tip: The pre-bent design of the working tip simplifies the operation process, making it more accessible and efficient.
• Effective Clamping and Locking: The clamping and locking mechanism is designed to ensure a secure grip on the broken file, enhancing precision during removal.
• Corrosion-Resistant Stainless Steel: The device is constructed with stainless steel, providing excellent corrosion resistance and ensuring durability over time.

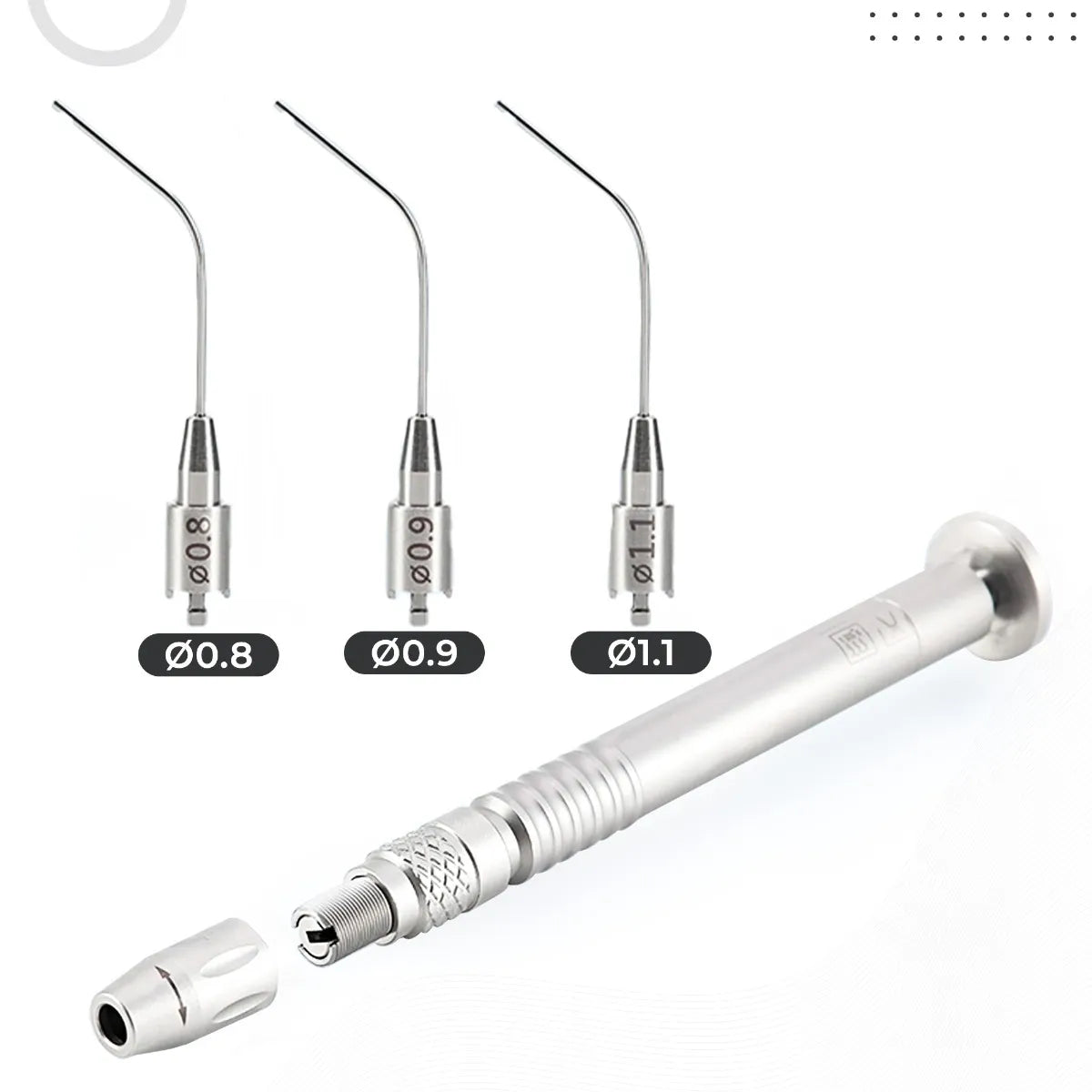

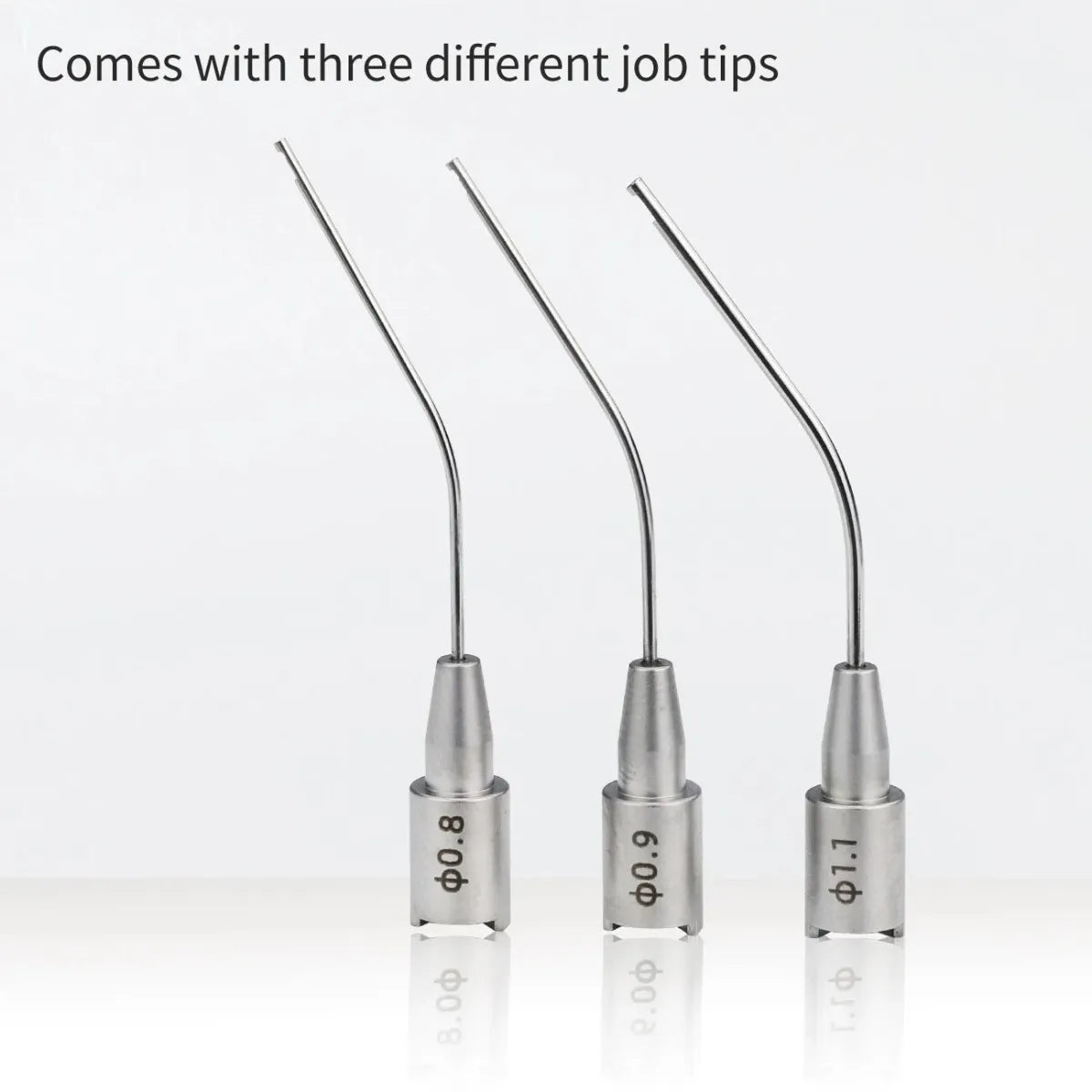

• Versatile with Multiple Tips: Equipped with three different sizes of working tips, this system can meet various clinical needs, allowing for flexibility and adaptability in different cases.

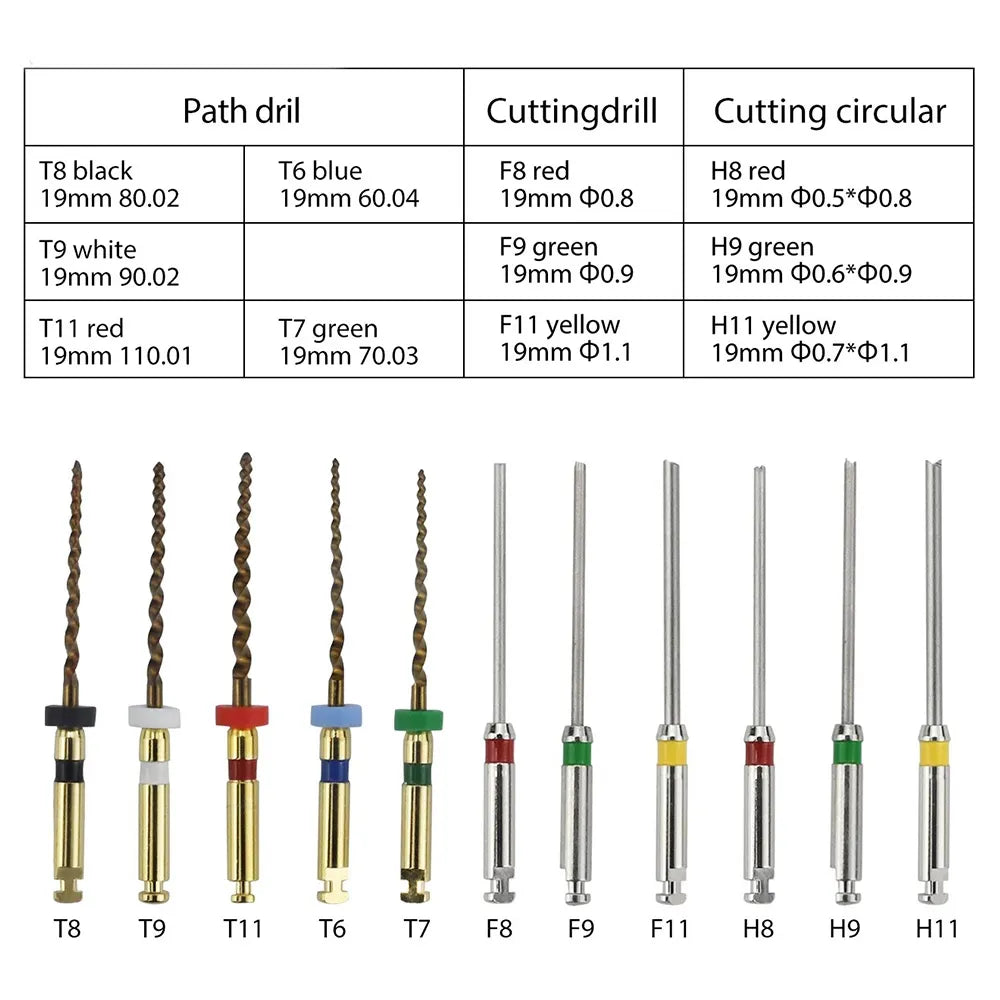

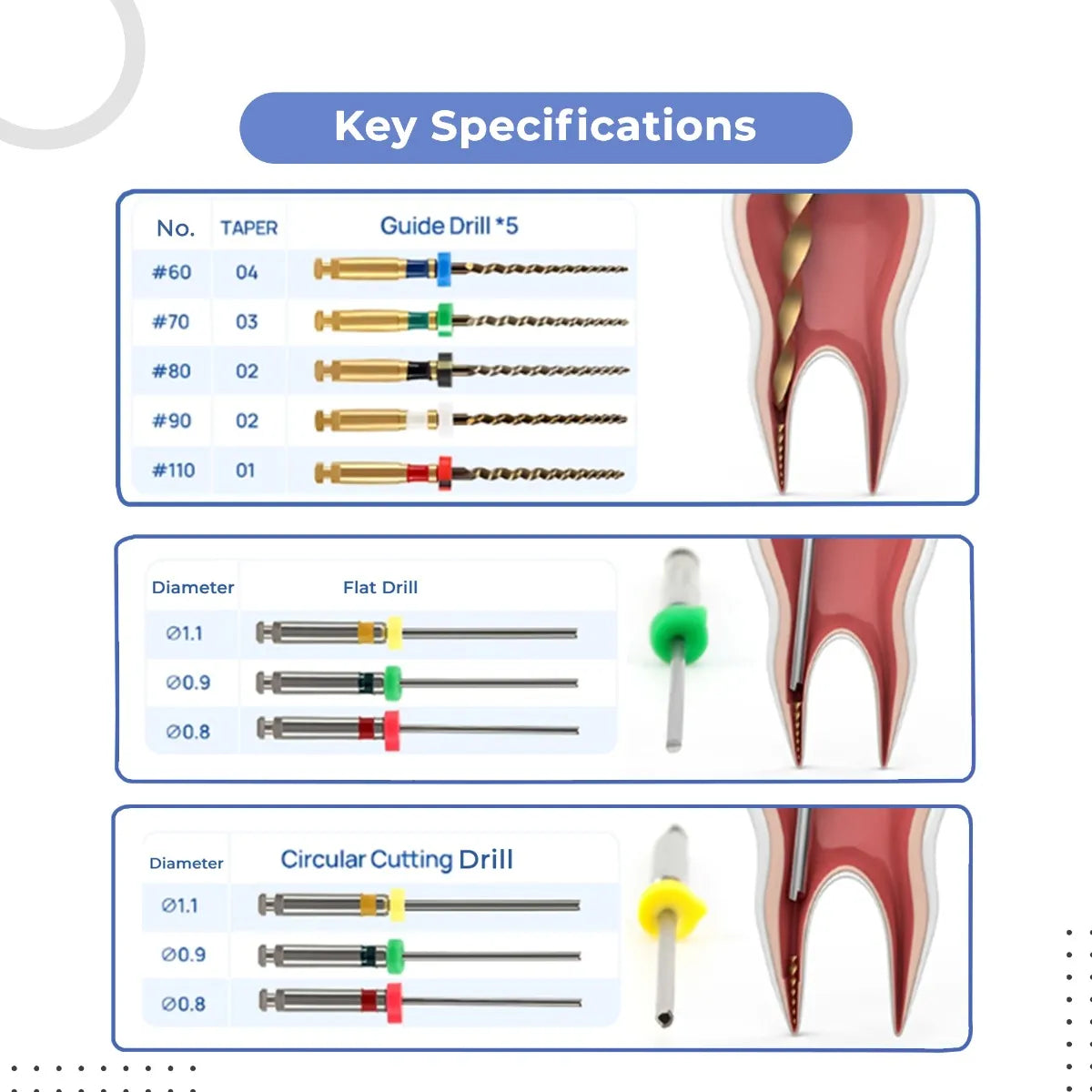

• GUIDE DRILL:
• NumberTaper #604% #703% #802% #902% #1101%
• FLAT DRILL: Diameter: ⌀1.1, ⌀0.9, ⌀0.8
• Circular Cutting Drill: Diameter: ⌀1.1, ⌀0.9, ⌀0.8

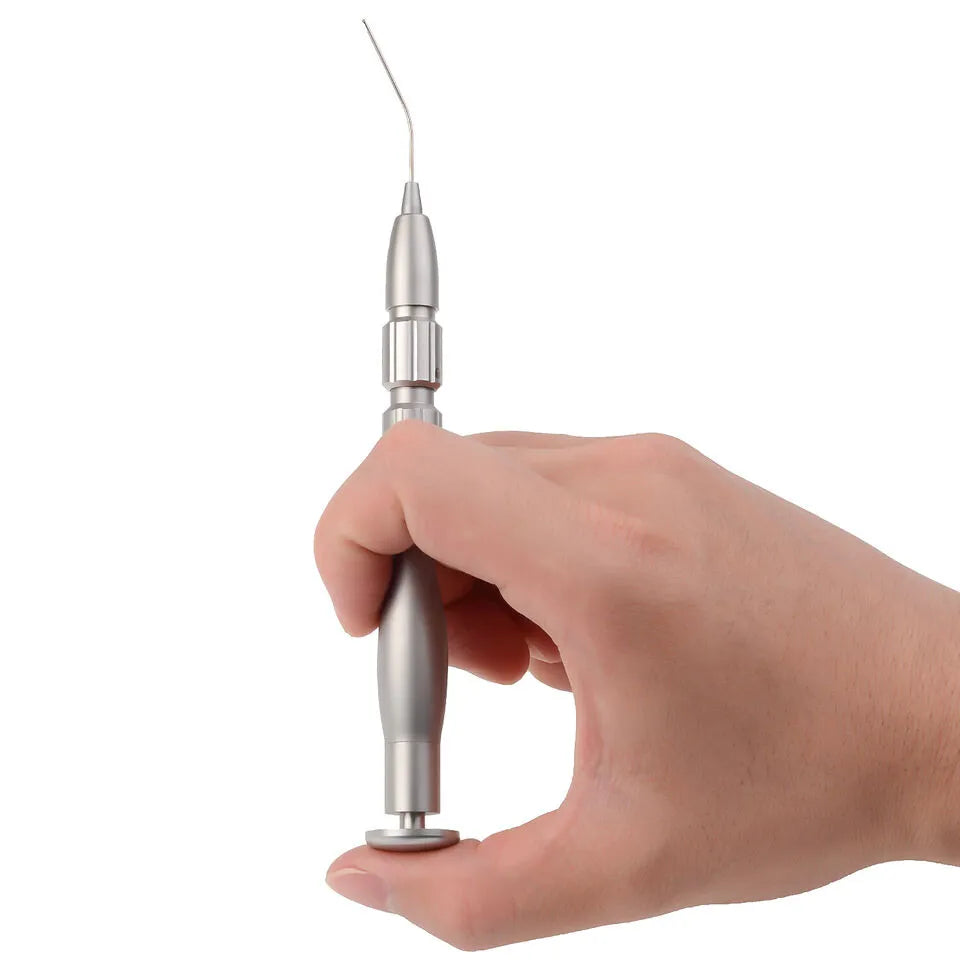

• Total Length of Handle : 12cm

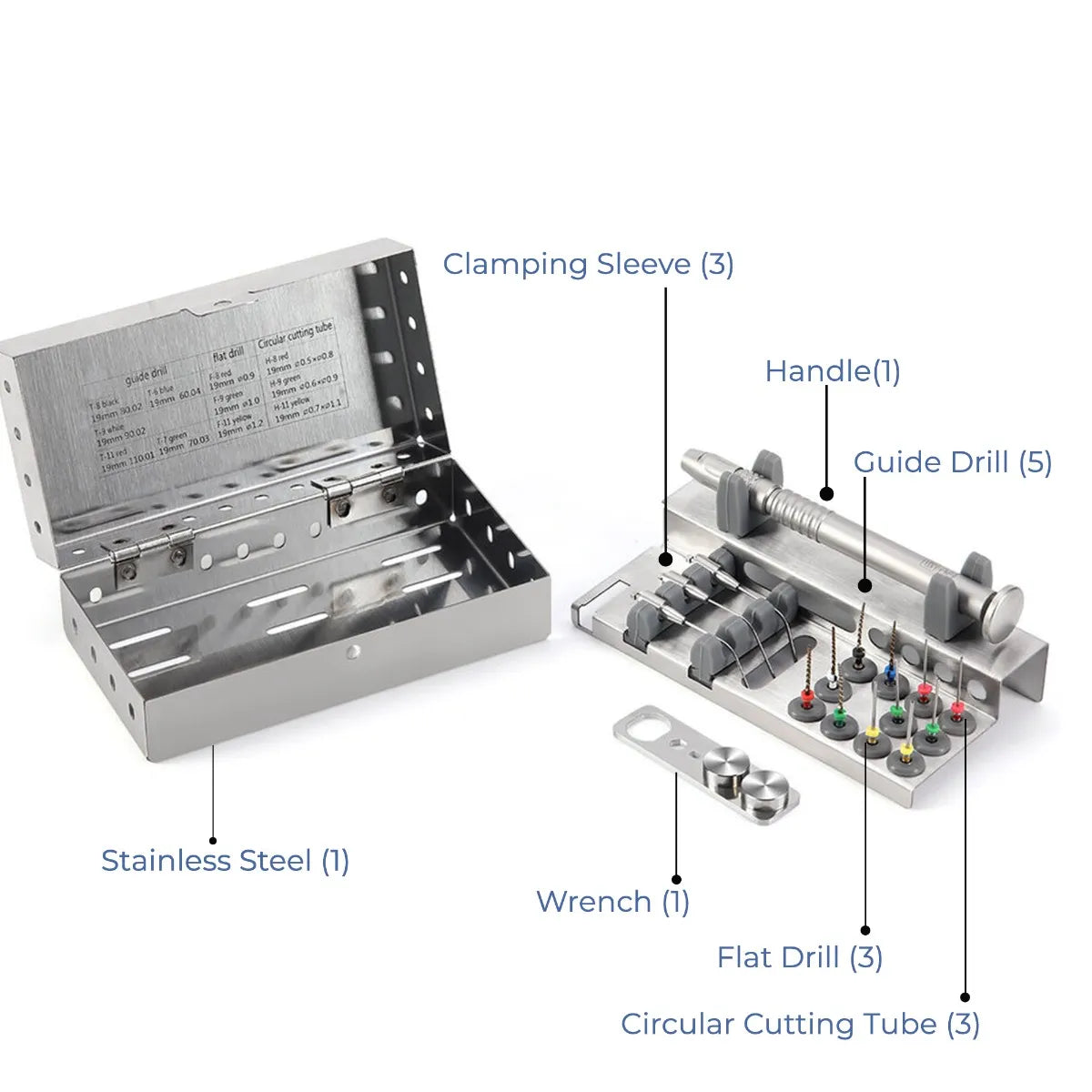

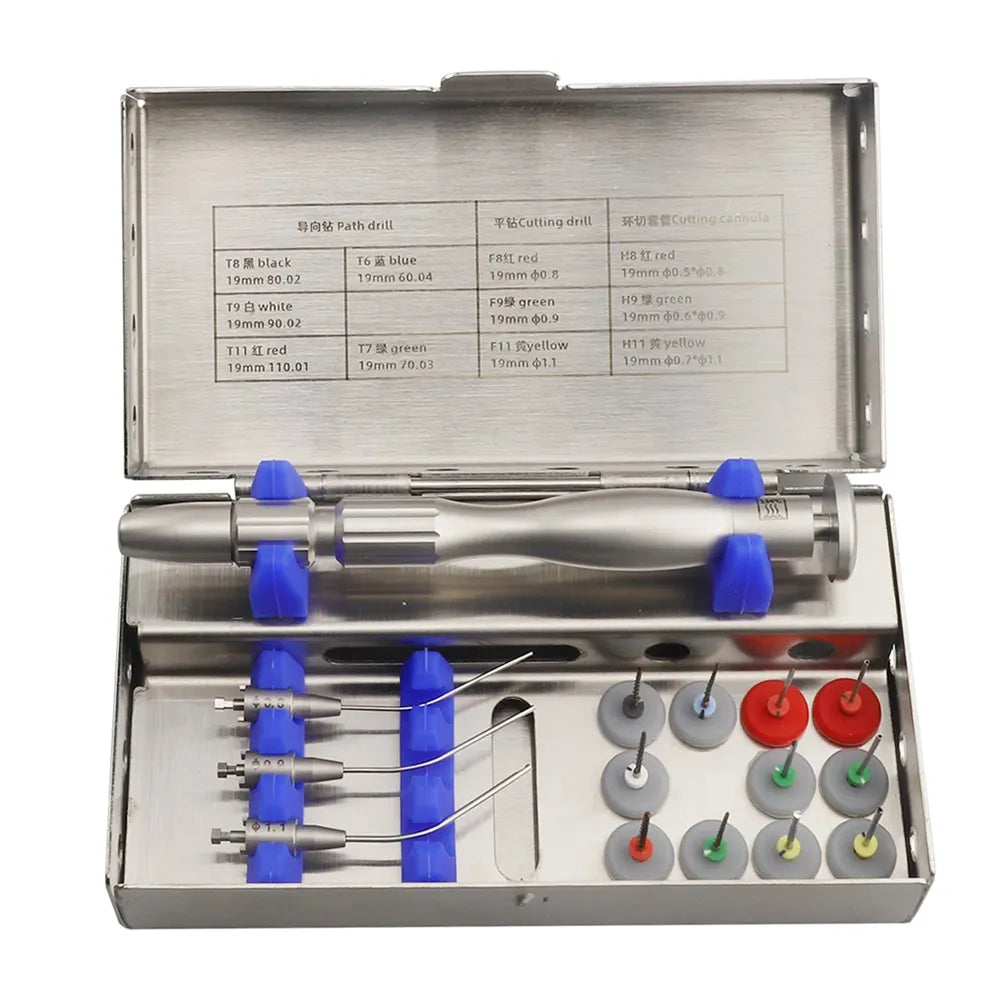

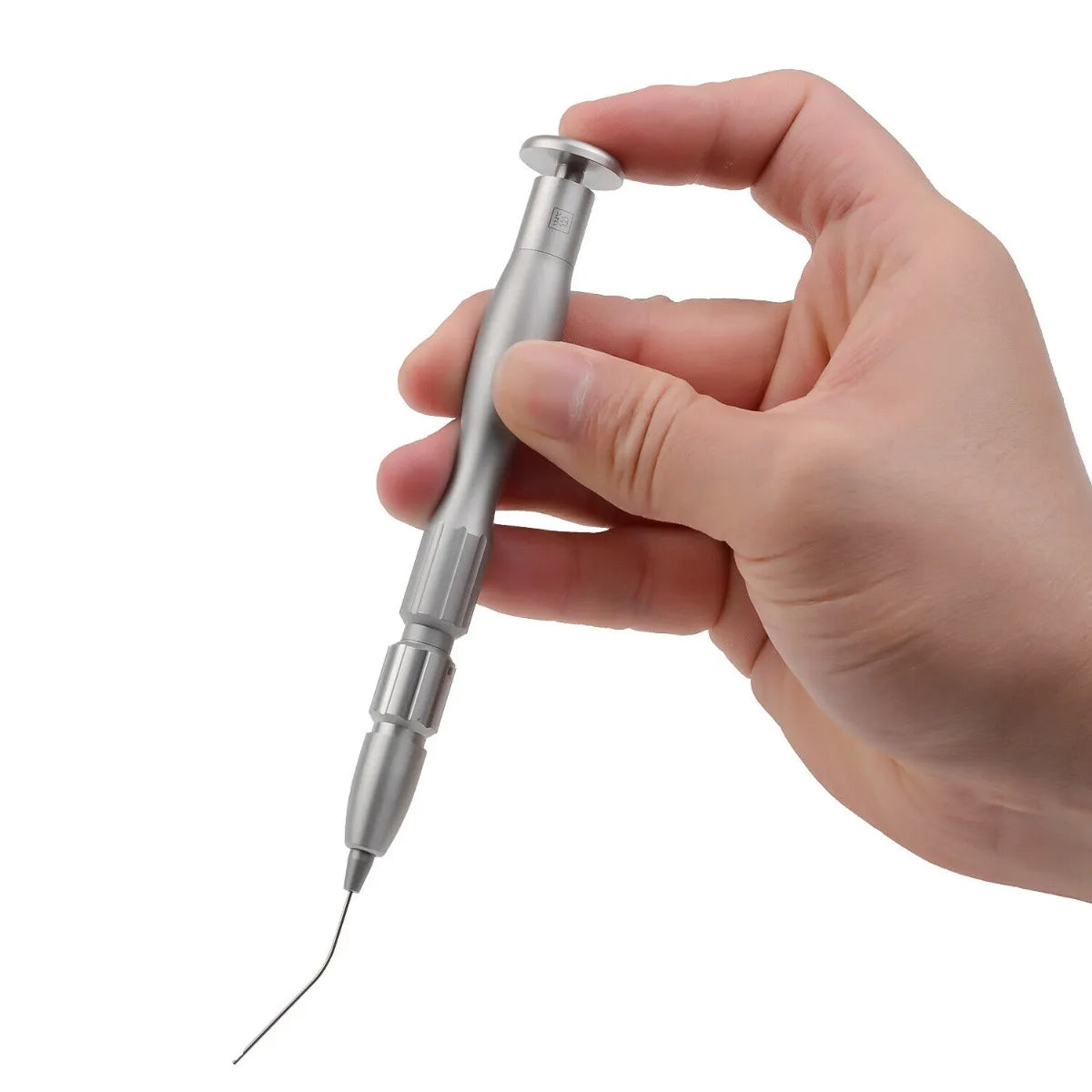

• 1 x Handpiece

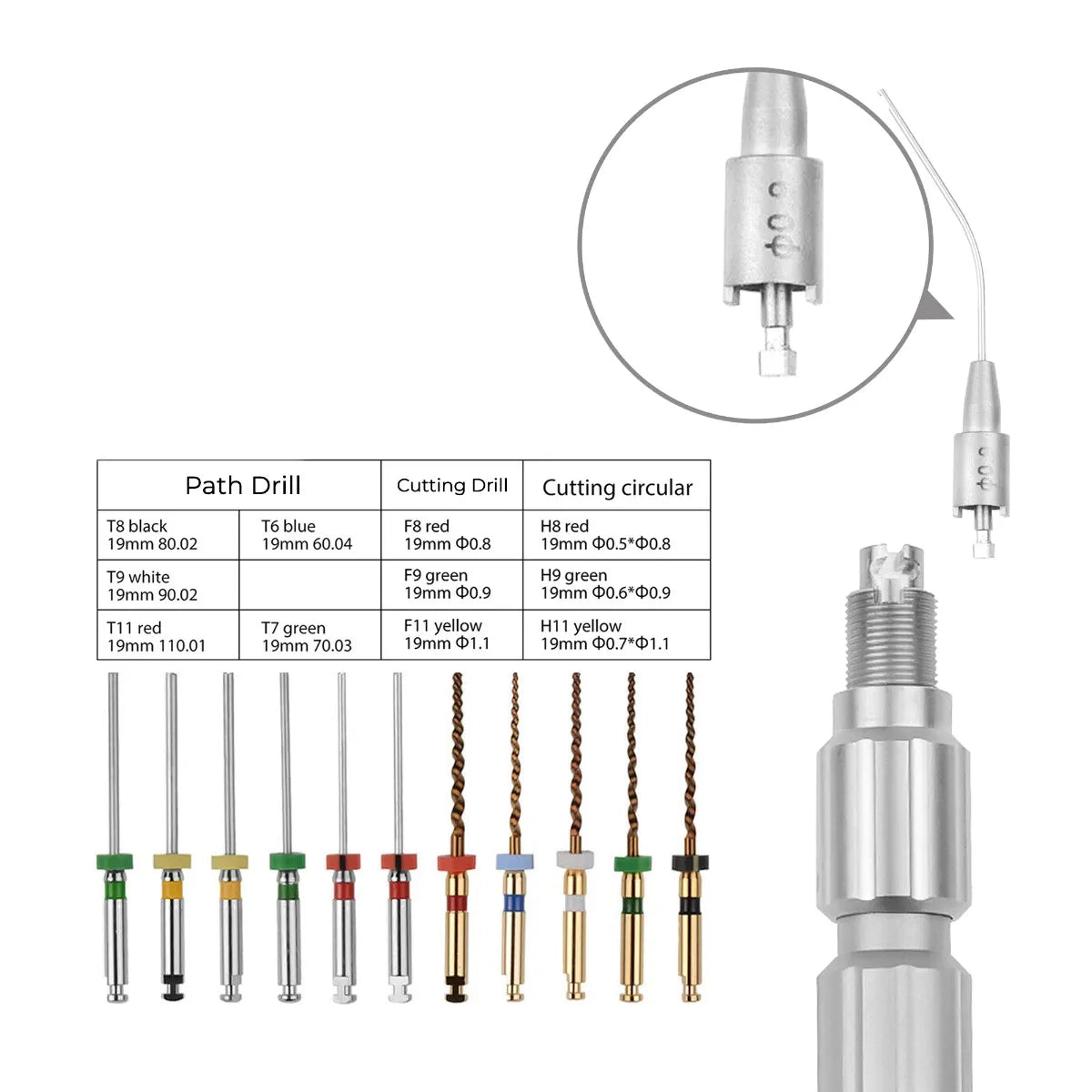

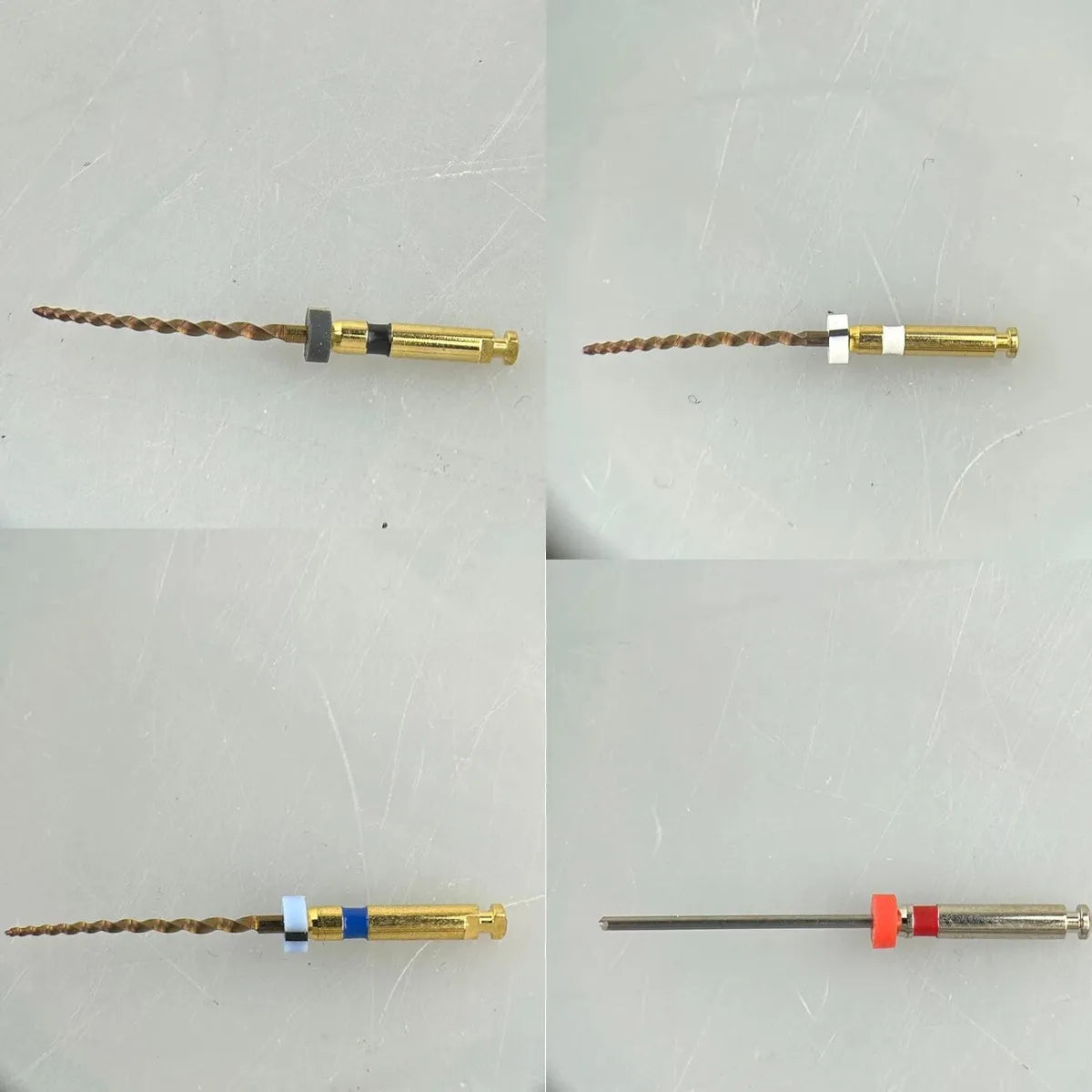

• 5 x Niti Path Drills
• 3 x Cutting Drill

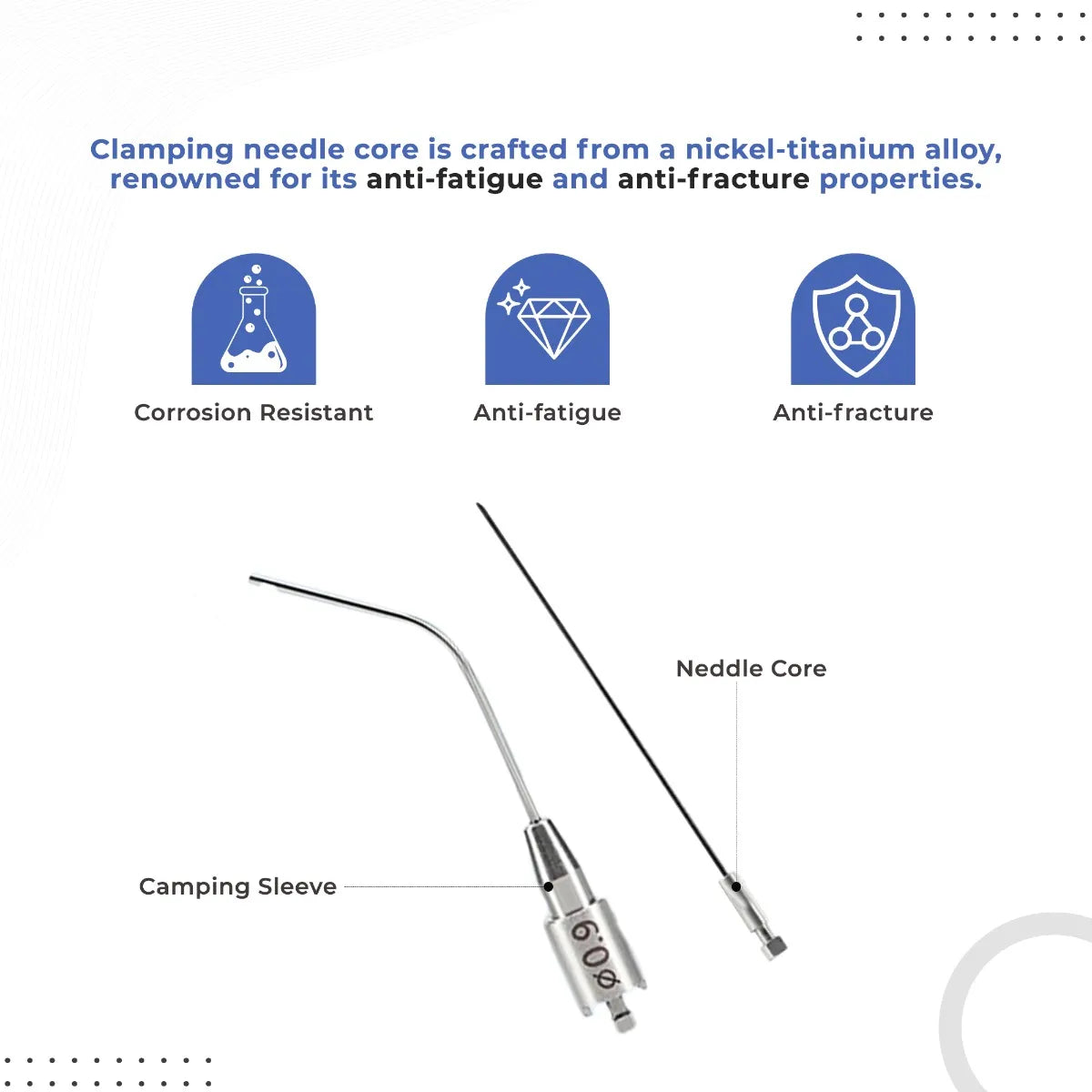

• 3 x Needle Core
• 3 x Needle Cannula
• 3 x Cutting Cannula
• 1 x Instruction Manual

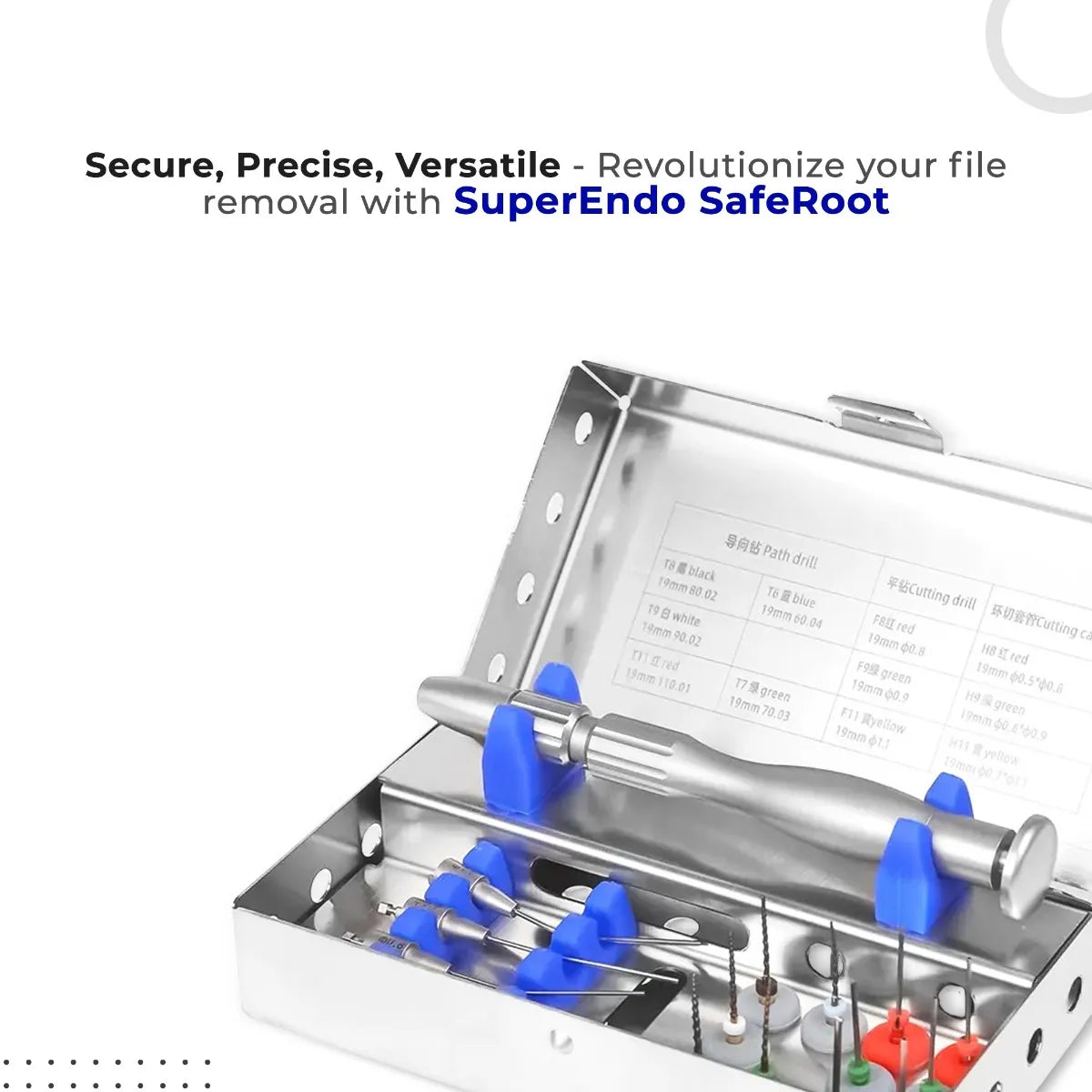

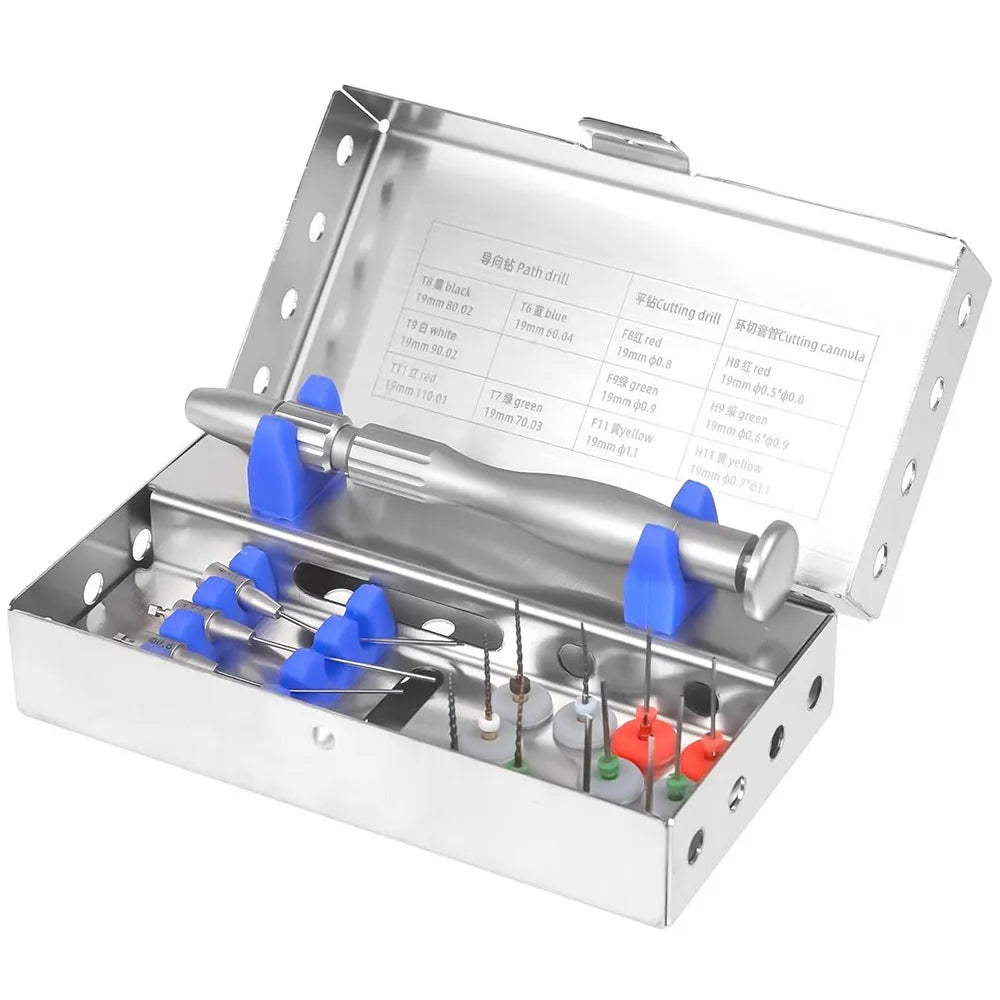

• 1 x Sterilization Box

• Use the G-drill to remove the dentin until the tip of the G-drill is close to or touches the section of the broken file.
• Continue to remove the dentin channel using a path drill of the appropriate size(80, 90, 110 sizes)
• After incising the dentin, depending on the size of the section of the broken file, select a cutting drill of the appropriate size and grind the filing channel at low reverse speed (recommended speed 150 rpm)
• Remove the dentin around the broken file by reversing the cutting cannula at low speed until the file is exposed by 2-3 mm. In the case of curved root canals where the cutting cannula cannot penetrate deeply, the dentin around the broken filing can be removed by using a path drill (size 60-70) at low speed and positive rotation until the file is exposed by 2-3 mm.

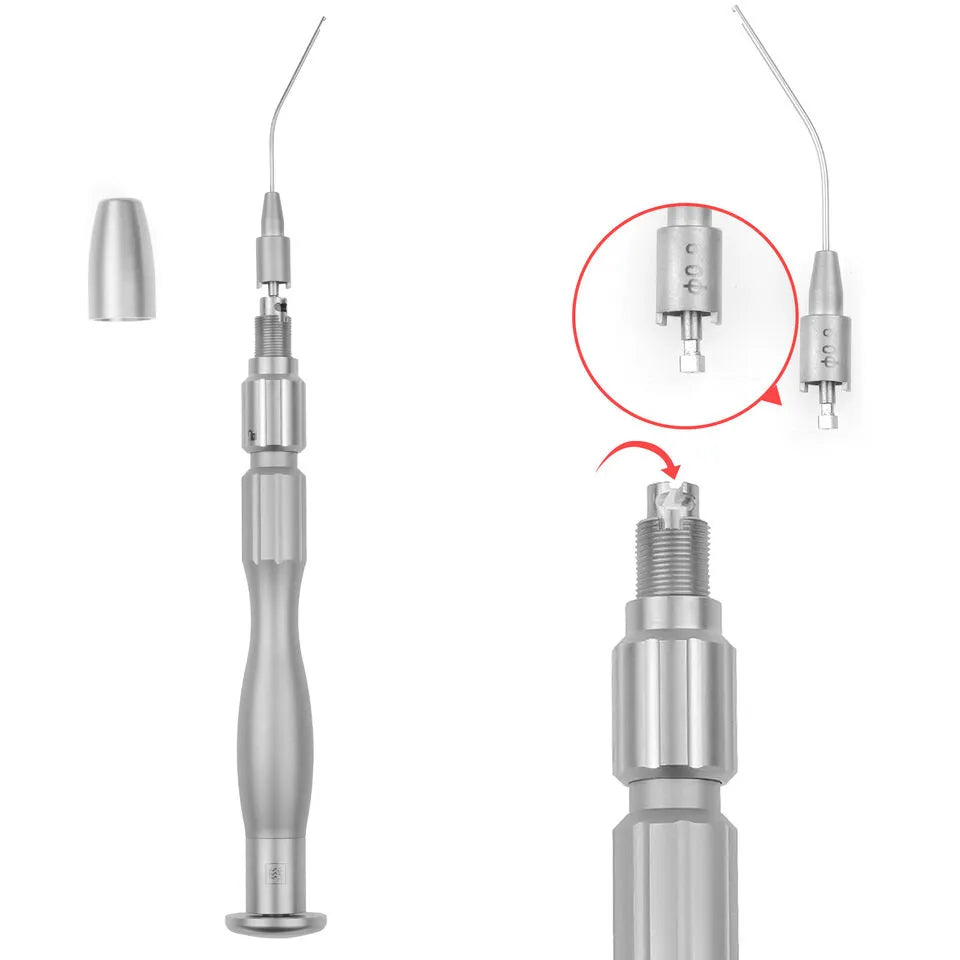

• Fitting a suitable size of the needle cannula.
• Clamp the broken file with a cannula window .

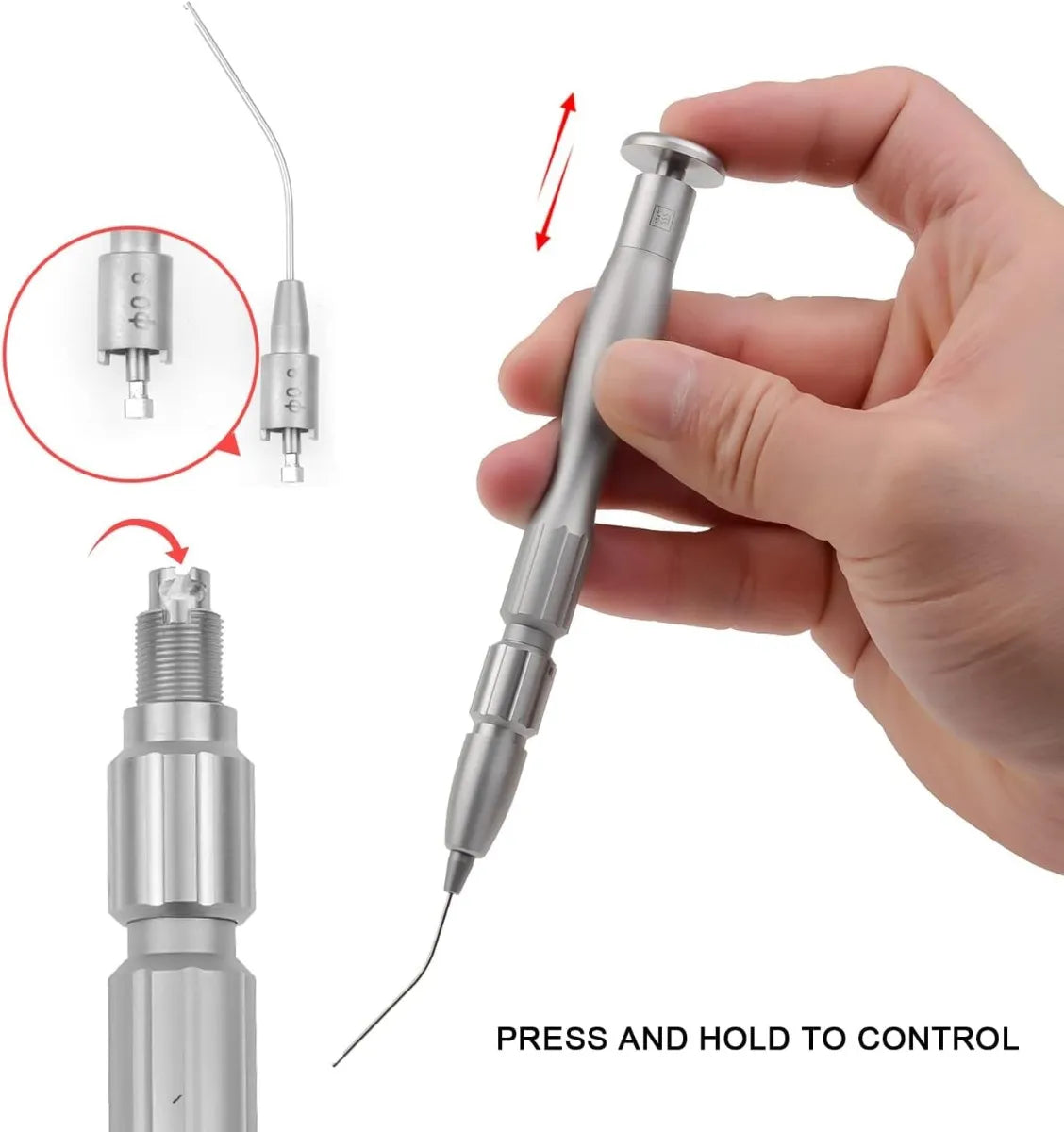

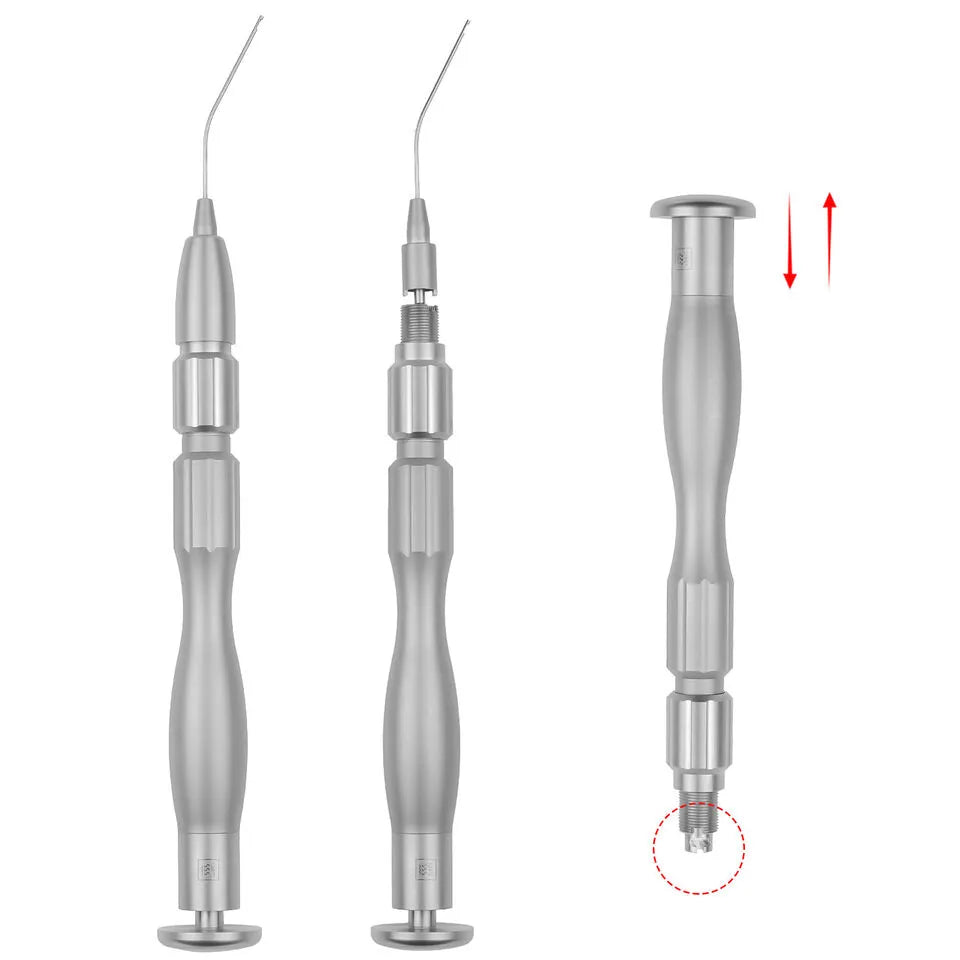

• Pushing the push cap forward so that the needle cannula clamps the broken file (as in step 2 of the diagram, taking care to press it into place)

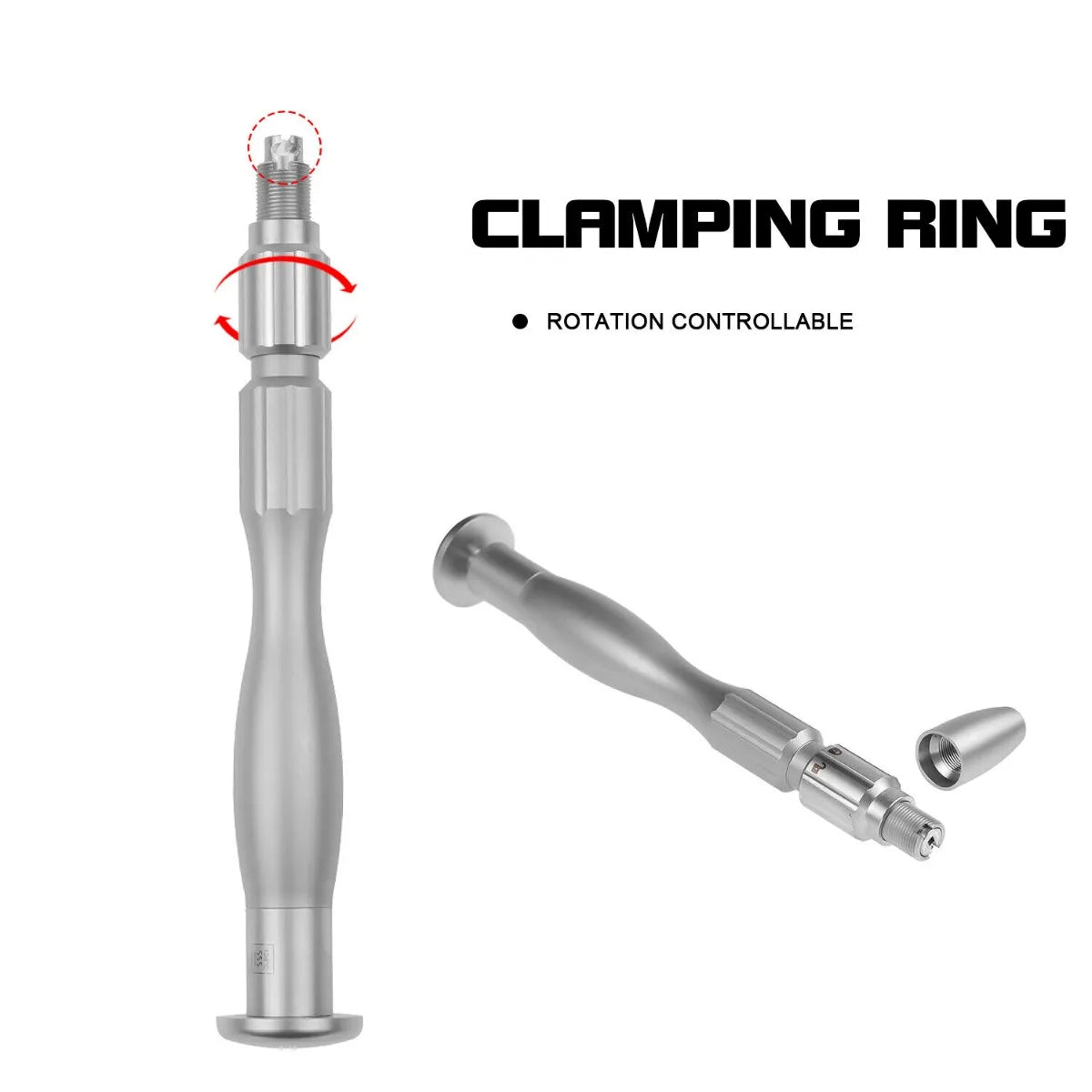

• The clamping ring can be turned in the direction shown by the arrow to tighten the needle cannula and then (taking care to tighten it) press the pushing cap firmly to pull out the broken file (as shown in step 3).

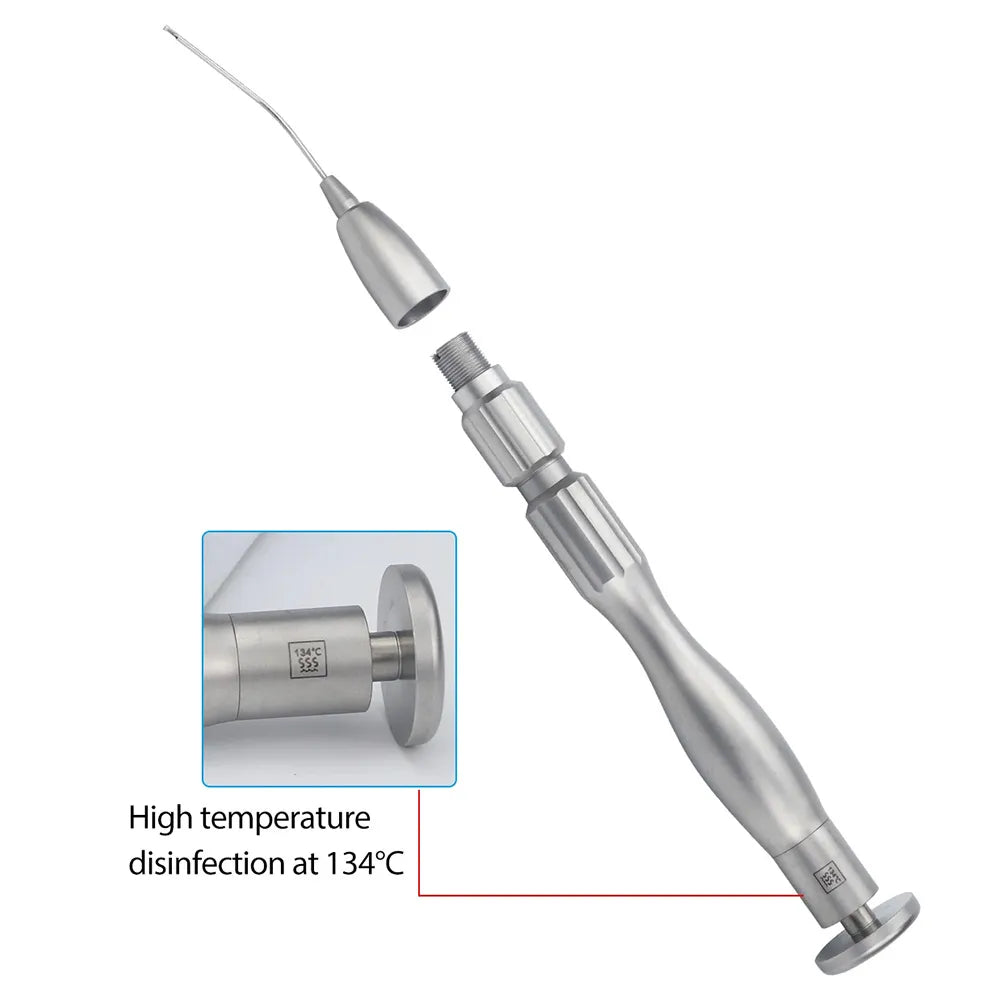

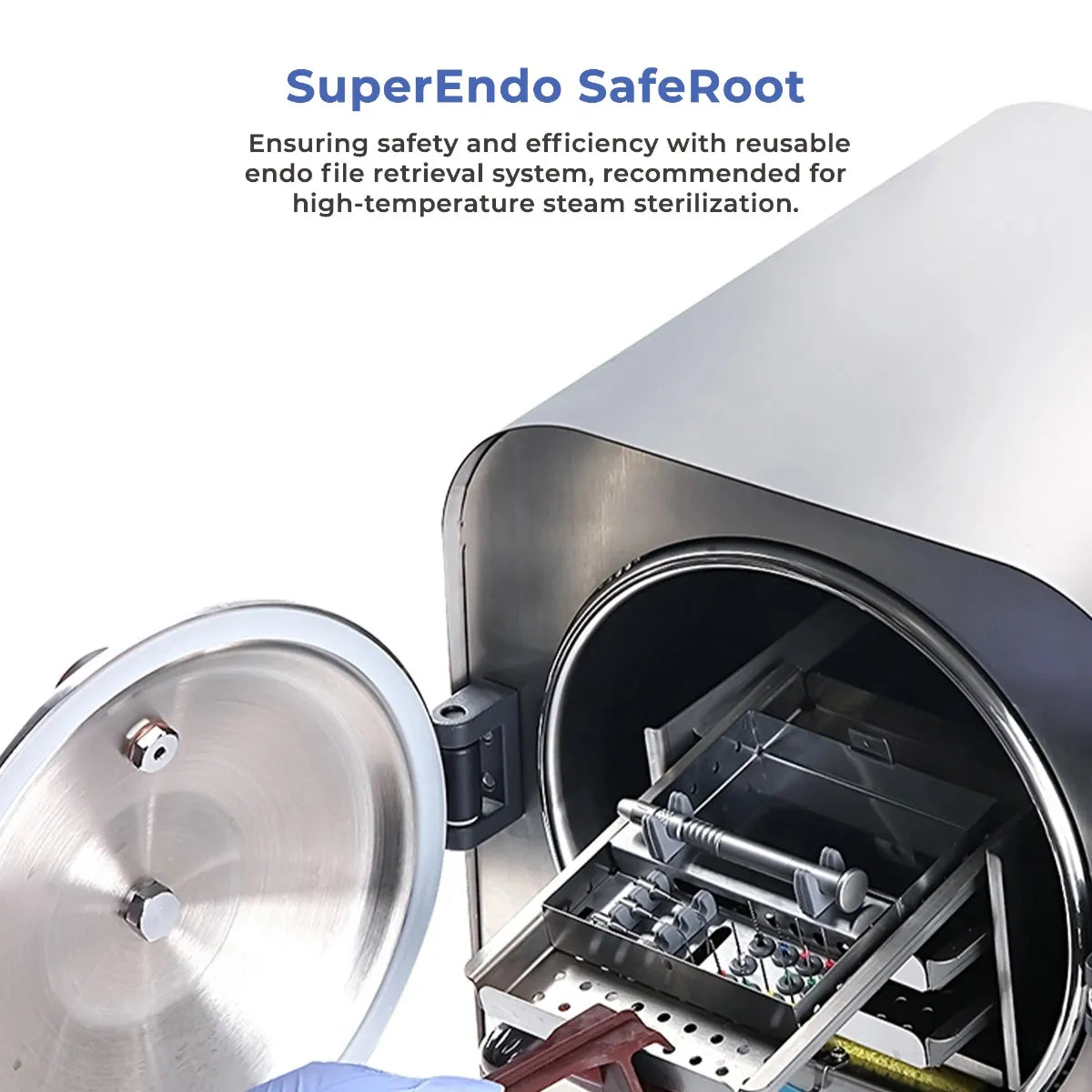

• Sterilise after use.

• Country of Origin : Made in PRC

• Warranty is not applicable for this product.

Question: Can it be sterilized with the box?
Answer: Yes, the SuperEndo SafeRoot Endo File Retrieval System can be sterilized with its box. The box is specifically designed for this purpose, ensuring that the endo files are effectively sterilized while being safely contained. This feature enhances both convenience and safety, allowing for efficient infection control and maintaining the high standards required for dental practice.

Question: Can we use this without using endo microscope?

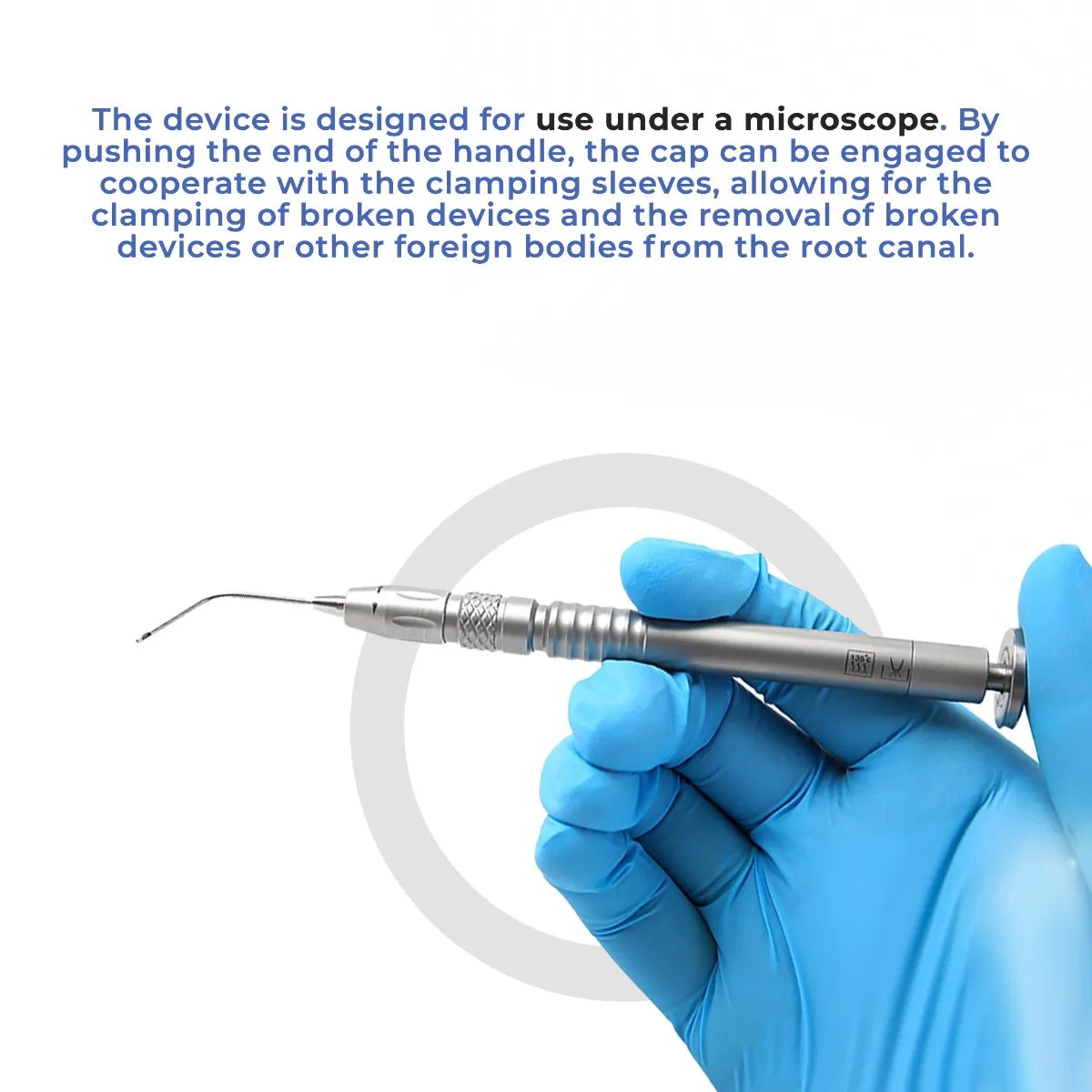

Answer: While the SuperEndo SafeRoot Endo File Retrieval System can be used without an endo microscope, it's optimal to perform broken file retrieval under microscope guidance for enhanced precision and effectiveness.

Question: What is the torque and rpm for guide drills?
Answer: The torque for guide drills in the SuperEndo SafeRoot Endo File Retrieval System is 3 Ncm, and the speed is 350 RPM. These specifications ensure precise and controlled shaping, facilitating safe and effective retrieval of endodontic files when needed.

Question: Do you provide drill refills?
Answer: No, drill refills for the SuperEndo SafeRoot Endo File Retrieval System are not available.

Question: Please explain how to use this pen? Where do we attach ? Or can we use the tip in ultrasonic woodpecker scaler?
Answer: The SuperEndo SafeRoot Endo File Retrieval System is a precise tool for endodontic procedures. Start by using the G-drill and path drill to expose the broken file. Utilize an appropriate cutting drill to grind the filing channel, then remove surrounding dentin until the file is exposed by 2-3 mm. Choose a suitable needle cannula size, clamp the broken file, and tighten the clamping ring. Press the push cap firmly to extract the broken file. This system's clip-on attachment, pre-bent work tip, and effective clamping ensure safe and efficient file removal. Crafted from corrosion-resistant stainless steel, it offers durability and versatility with multiple tips for various clinical needs. File retrieval is achieved best by utilizing microscope. Tips provided in the packaging are not meant to be attached to the ultrasonic scalers. Files and cannula are meant to be attached to the endomotor.

Question: What is the Endo File Removal System used for?
Answer: The Endo File Removal System is used to remove broken endodontic files and foreign objects from the root canal during dental procedures.

Question: Is the Endo File Removal System reusable?
Answer: Yes, it is reusable. However, it should be properly sterilized after each use.

Question: Can this system be used for curved root canals?
Answer: Yes, the system can be used in curved root canals. The clamping ring can be adjusted to accommodate different angles and positions.

Question: Does the system minimize damage to teeth?
Answer: Yes, the clip-on file and pre-bent work tips are designed to minimize damage to teeth during the removal process.
