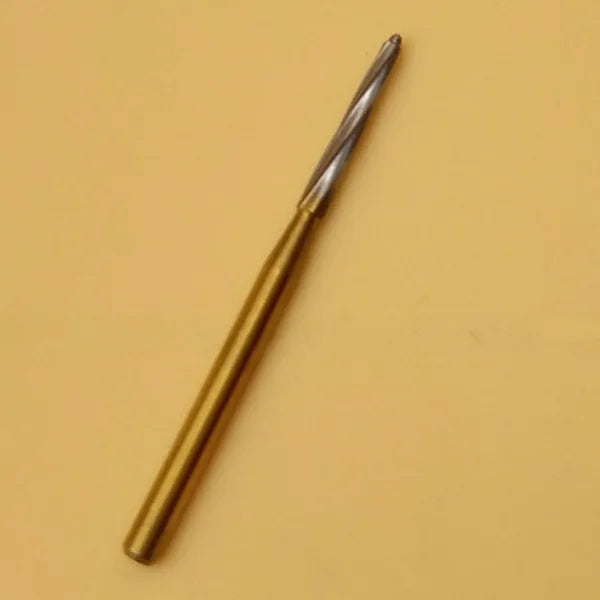

SuperEndo Endo-Z Tungsten Carbide Burs

• The Endo-Z’s long tapered configuration allows easy access to the canal orifices and funnel shaping of the chamber walls.
• It’s six specially designed tungsten-carbide spiral blades cut cleanly while lifting debris coronally along it’s flutes.
• Non-cutting tip prevents damage to the chamber floor or walls.
• Fast and efficient cutting
• Non-heating
• Sturdy built

• Shank Material : Tungsten Carbide by Titanium Layer
• Working head material: Tungsten carbide
• Head Diameter : Φ1.4mm
• Overall Length: 25mm
• Autoclavable upto 134°C

• 1 x Endo-Z Tungsten Carbide Bur

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece at the required working speed before applying the instrument to the treated area.
• Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
• Activate water spray during the entire treatment (minimum 50 mL/min).
• Regulate water flow in case of water excess or shortage.
• It is recommended to use a dental dam.
• Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
• Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
• It is recommended to wear gloves and safety glasses.

• Country of Origin : Made in PRC

• Manufacturer/Importer has No Warranty is applicable for this product.
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Oralkart will assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or has not tampered as the case may be.

Question: Can these burs be autoclaved?
Answer: Yes, these burs can be autoclaved and the burs can be reused thereafter.

Question: What is the use of this bur?
Answer: The lateral cutting edges of Endo-Z burs are used to flare, flatten, and refine the internal axial walls.

Question: What should I do to prevent instrument fracture ?
Answer: Avoid jamming or levering actions when rotating, as this increases the risk of instrument breakage. Never exceed the specified maximum speed. Avoid applying forces greater than the recommended values, as this could cause damage to the instrument and the treated area. Always Check for possible damages; dispose of oxidized, blunt and eccentric instruments.

Question: When to dispose these Endo-Z Tungsten Burs ?
Answer: Check for possible damages; dispose of oxidized, blunt and eccentric instruments.
