Sun B-Class Autoclave with Printer

• Euro Class B high volume tabletop sterilizers, with 3 pulsating vacuum. Vacuum up to -0.9Bar (-0.09Mpa) Suitable to sterilize wrap, unwrap, solid porous, hollow device
• Equipped with advanced 16-bit microprocessor, easy and precise
• Double door locking system, more secure with auto door system
• With B & D test and vacuum test procedures for penetration testing
• New design for steam generates ensure effective and stable sterilizing
• Precise digital display shows time, pressure, temperature and other dates clearly
• Alarming system for both clean water lacking and waste water surplus
• LED Display, easy operation, stainless steel water tank, high density bacteria filter
• Euro Class B high volume tabletop sterilizers, with 3 pulsating vacuum. Vacuum up to -0.9Bar (-0.09Mpa) Suitable to sterilize wrap, unwrap, solid porous, hollow device

Sun B-Class Autoclave with Printeris a state-of-the-art sterilization solution designed for dental and medical settings. Boasting automatic sterilization, drying, and temperature control functions, it ensures thorough decontamination. The adjustable sterilization time caters to various needs. Equipped with a dual-door locking system, it prioritizes safety, while the monitoring system enhances control. With a built-in printer for documentation, it complies with sterilization standards. The compact design and user-friendly LED display make it suitable for dental practices. Overall, this autoclave offers a reliable, efficient, and convenient solution for maintaining a sterile environment in healthcare settings.

TECHNICAL SPECIFICATIONS:

Model No.SUNII-23-AInner Chamber249*450Voltage220/110vPower2000wSterilization Cycle Time35-60 MinsVolume23LWater RequiredDistilled WaterUnit Size640*445*395Packing Size768*565*490Weight53kg

• Sterilization Method: Pressure steam
• Sterilization scale: All kinds of virus,bacteria,prion.
• Sterilization Temperature: 121Centi degree, 134Centi degree,user-defined
• Sterilization time: 121C- 20 minutes, 134C - 4 minutes,user-defined (user-defined time)
• Sterilization result: 100% completed sterilization
• Intended use: All wrapped or non-wrapped, solid, hollow load products type A and porous products
• Inner Micro-Printer
• CEME or ULKA Valve & Pump
• The Jet type of Steam Generator
• Imported Double Head Vacuum Pump
• Chamber punched by #304 Stainless Steel

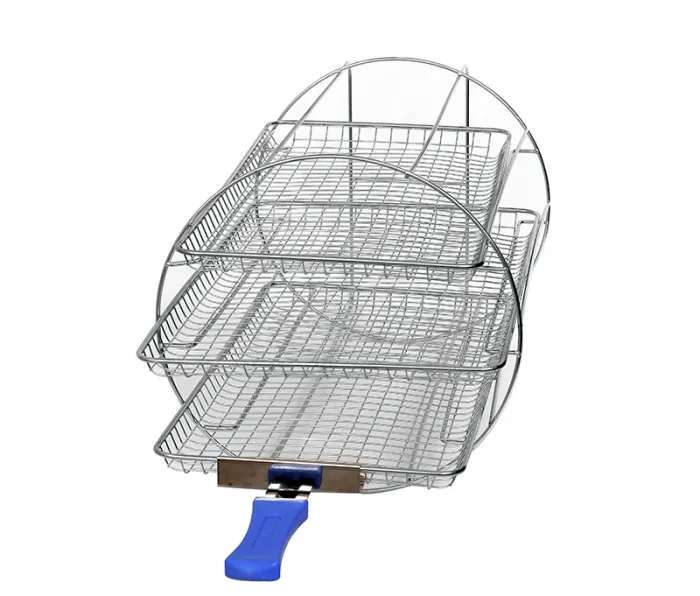

• 1 Complete unit of Autoclave with internal sterilization basket

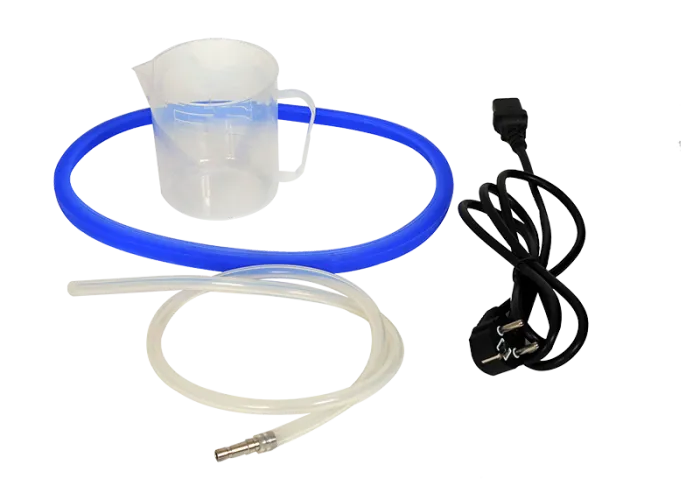

• 1 x Adapter
• Necessary tubings

Preparation:

• Ensure the autoclave is properly connected to a power source.
• Check that the water reservoir is filled with distilled water.
• Verify that the door seals and gaskets are in good condition.

Loading:

• Carefully load dental or medical instruments into the sterilization chamber.
• Ensure proper spacing between items to allow for effective sterilization.
• Avoid overloading the chamber to maintain optimal sterilization conditions.

Setting Parameters:

• Turn on the autoclave and access the control panel or digital interface.
• Set the desired sterilization parameters, including temperature, time, and any specific requirements for your instruments.

Initiate Sterilization Cycle:

• Close the autoclave door securely.
• Start the sterilization cycle using the control panel or digital interface.
