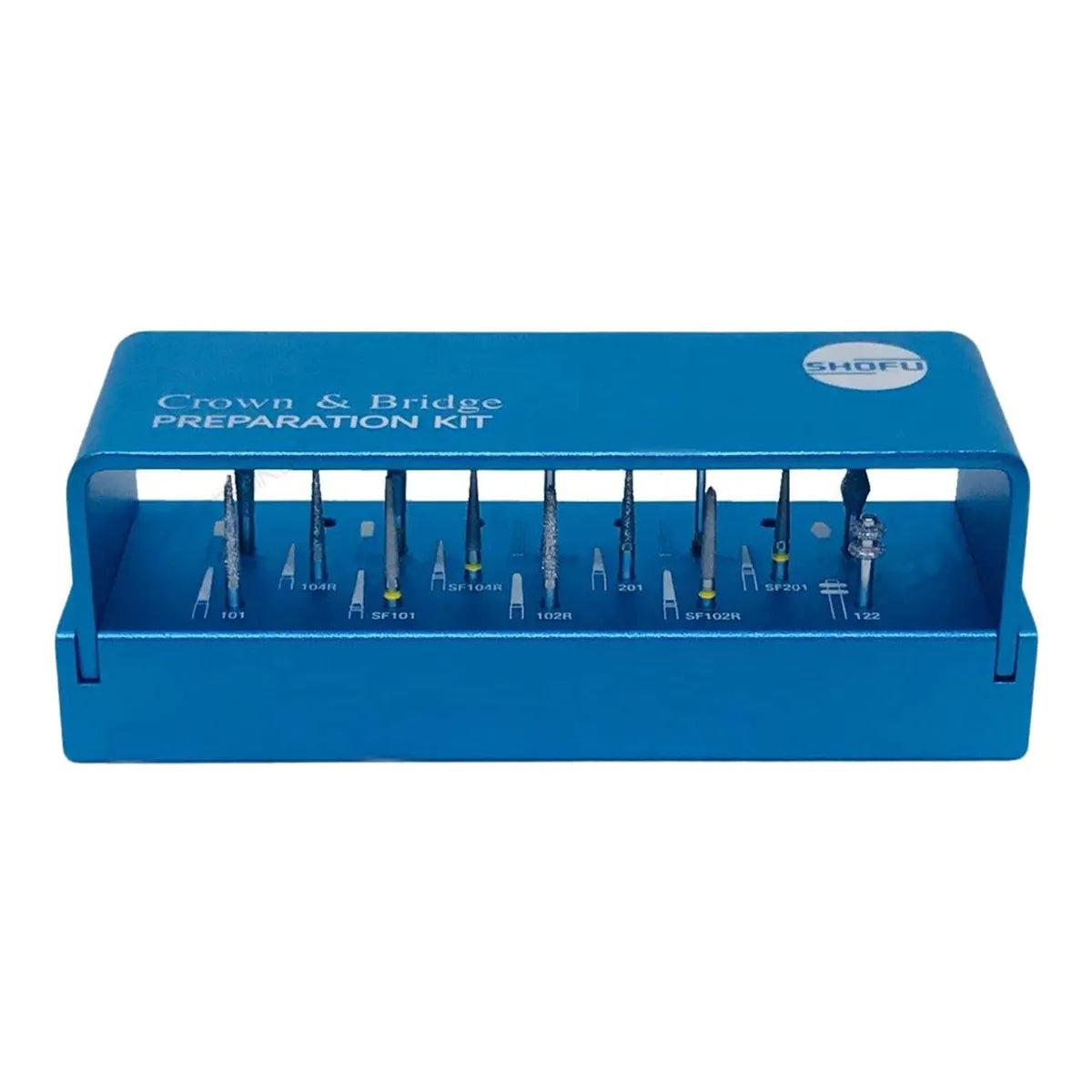

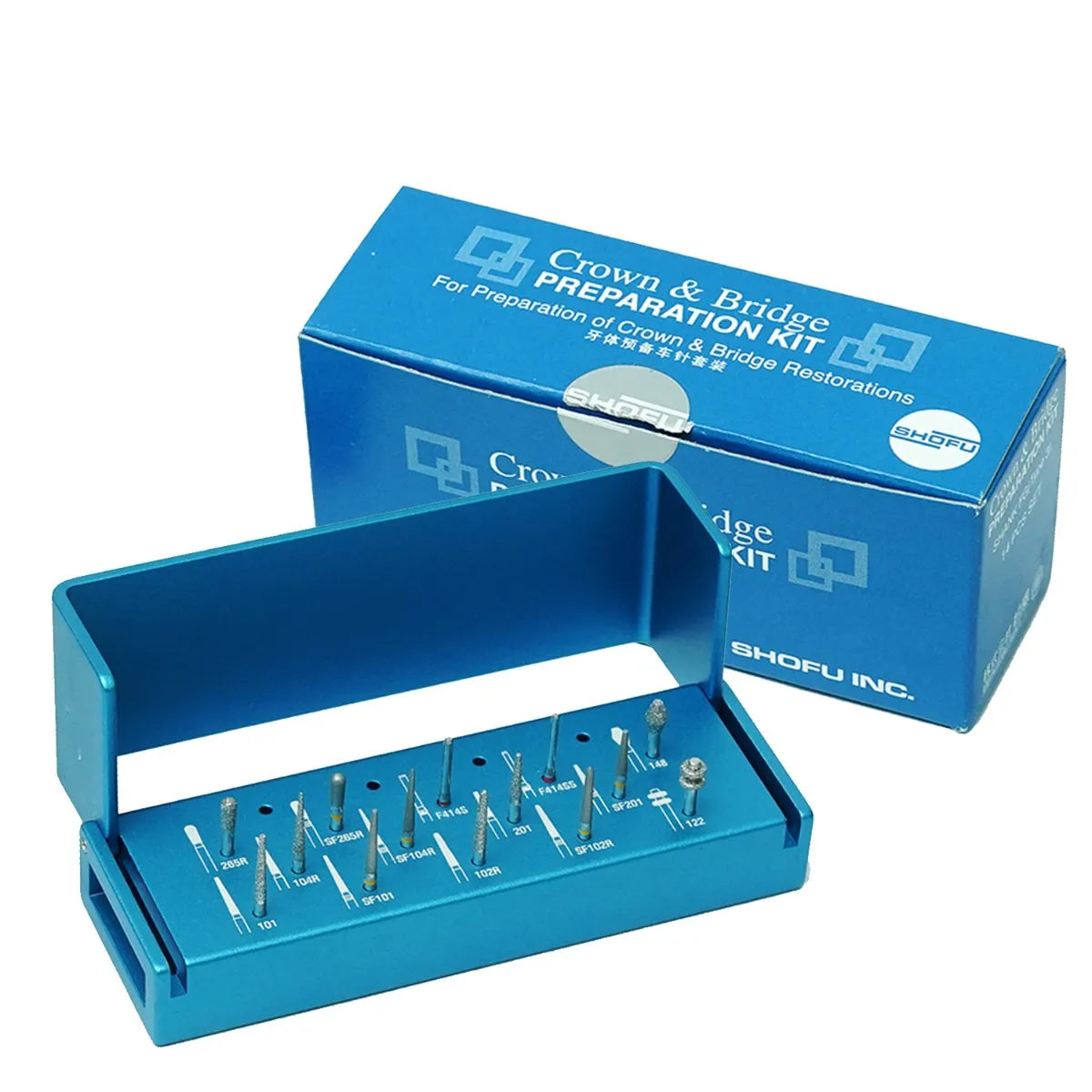

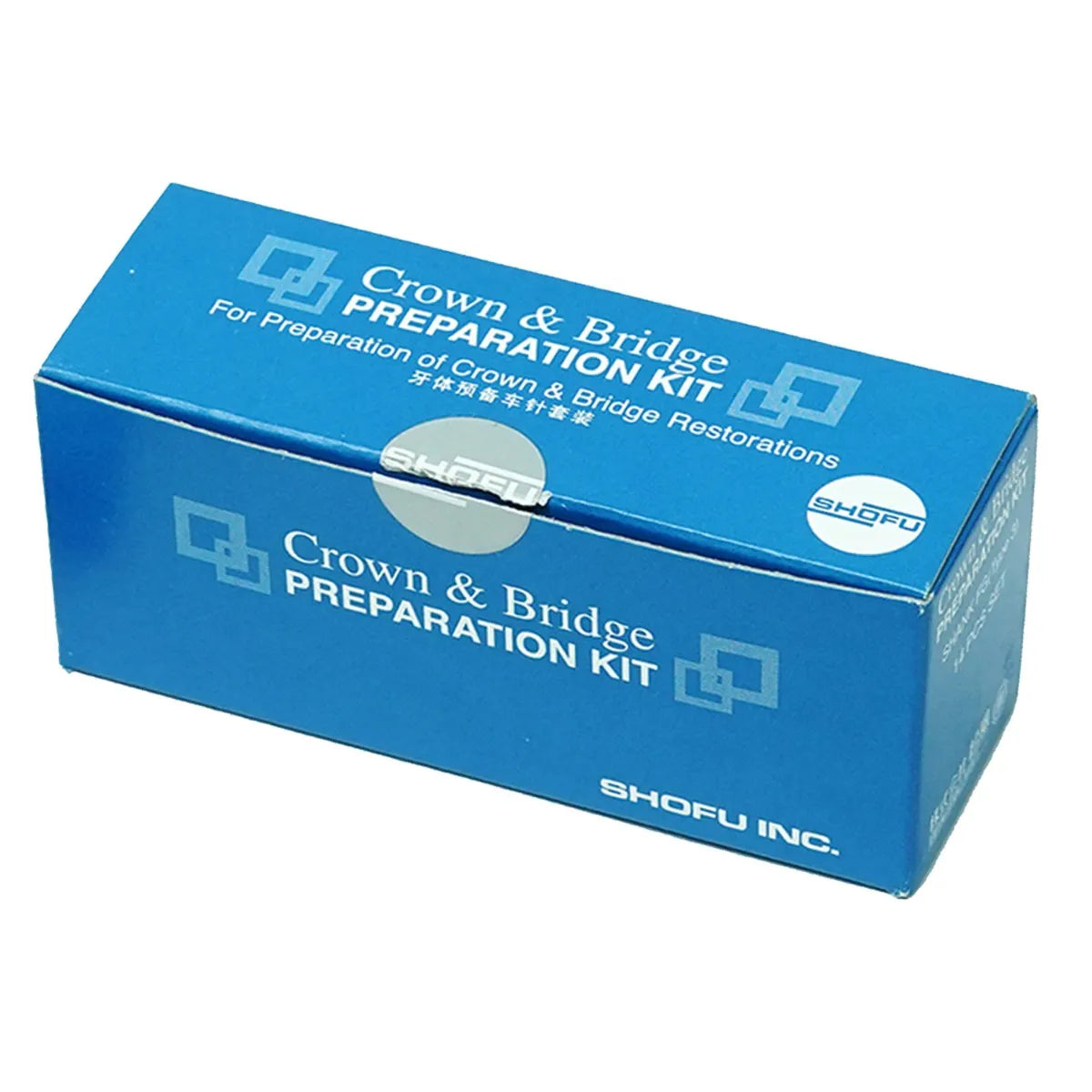

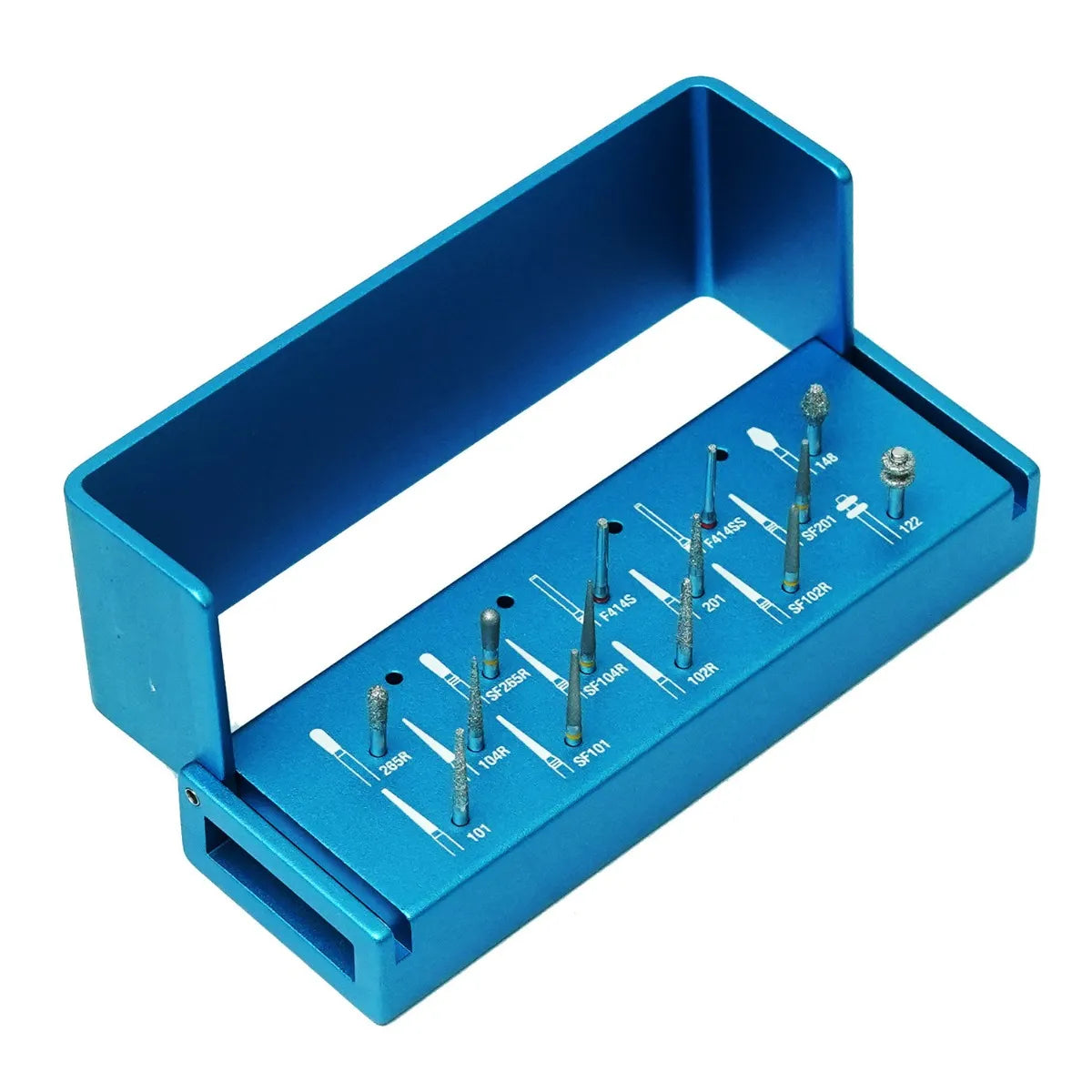

Shofu Crown & Bridge Preparation Burs Kit

• Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
• 2 special "Tissue-Protective End-Cutting Burs" for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
• These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
• 14 kinds of specially selected FG Diamond Points in 3 different grits.
  - Regular (No marking on shank)
  - Fine (Red band on shank)
  - SuperFine (Yellow band on shank)

TAPERED FLAT ENDED DIAMOND POINTS

• Regular Grit - #201,#101
• SuperFine Grit - #SF210, SF101

TAPERED ROUND ENDED DIAMOND POINTS

• Regular Grit    - #102R
• SuperFine Grit   - #SF102R

 TAPERED ELLIPSE

• Regular Grit    - #104R
• SuperFine Grit - #SF104R

 TISSUE PROTECTIVE END-CUTTING

• Fine Grit- #F414SS,F414S

 ROUND INVERTED CONE

• Regular Grit - #265R,#SF265R

 DOUBLE CONE

• Regular Grit - #148

 DEPTH CUTTING DIAMOND POINTS

• Regular Grit - #122

Maximum recommended speed for the burs:

Less than 450,000 rpm:201, SF201
Less than 300,000 rpm:101, 102R, 104R, 265R, F102R, F414SS, F414S, SF101, SF104R, SF265R
Less than 160,000 rpm:148
Less than 120,000 rpm:122

• 1 x Kit of 14 burs (Diamond Points FG in 3 different grits - Regular, Fine , Superfine)
• Regular grit: 201, 101, 102R, 104R, 265R, 148 , 122
• Fine grit: F102R, F414SS, F414S
• Superfine grit: SF201, SF101, SF104R, SF265R

• Use the depth cutting diamond points to create precise depth orientation grooves.
• Use the tapered flat-ended diamond points for reduction of buccal surface for PFM crowns and on buccal and lingual surfaces of all ceramic crowns.
• Use the tapered round-ended diamond points for crown & bridge preparation with a heavy chamfer.
• Use the tapered ellipse diamond points for crown & bridge preparation with a light chamfer and for finishing restorative materials.
• Use the round inverted cone diamond points for palatal/lingual reduction.
• Use the double cone diamond points for occlusal reduction during crown & bridge preparation.
• Use the Tissue-Protective End-Cutting Burs for shoulder preparation and finishing under the gingival margins without injuring the soft tissue. Take care to avoid applying too much pressure and causing tissue trauma.

• Country of Origin: Japan
• Manufacturer: Shofu

Question: What are Tissue-Protective End-Cutting Burs and why are they important?
Answer: Tissue-Protective End-Cutting Burs are burs designed to finish under gingival margins without injuring the soft tissue. They are important because they allow for precise and safe tooth preparation without causing damage to the surrounding tissues.

Question: How do I sterilize the aluminium bur block included in the kit?
Answer: The aluminium bur block is autoclavable.

Question: What precautions should I take when using the Tissue-Protective End-Cutting Burs?Answer: When using the Tissue-Protective End-Cutting Burs, it is important to take care to avoid injuring the soft tissue. Use a light touch and be mindful of the location of the bur tip.

Question: Are the diamond points compatible with any type of dental handpiece?
Answer: The Crown & Bridge Preparation kit is designed to be used with high-speed handpieces.

Question: Can the Crown & Bridge Preparation kit be used for preparation of implant abutments?Answer: The Crown & Bridge Preparation kit is typically used for preparation of natural teeth and not recommended for preparation of implant abutment.
