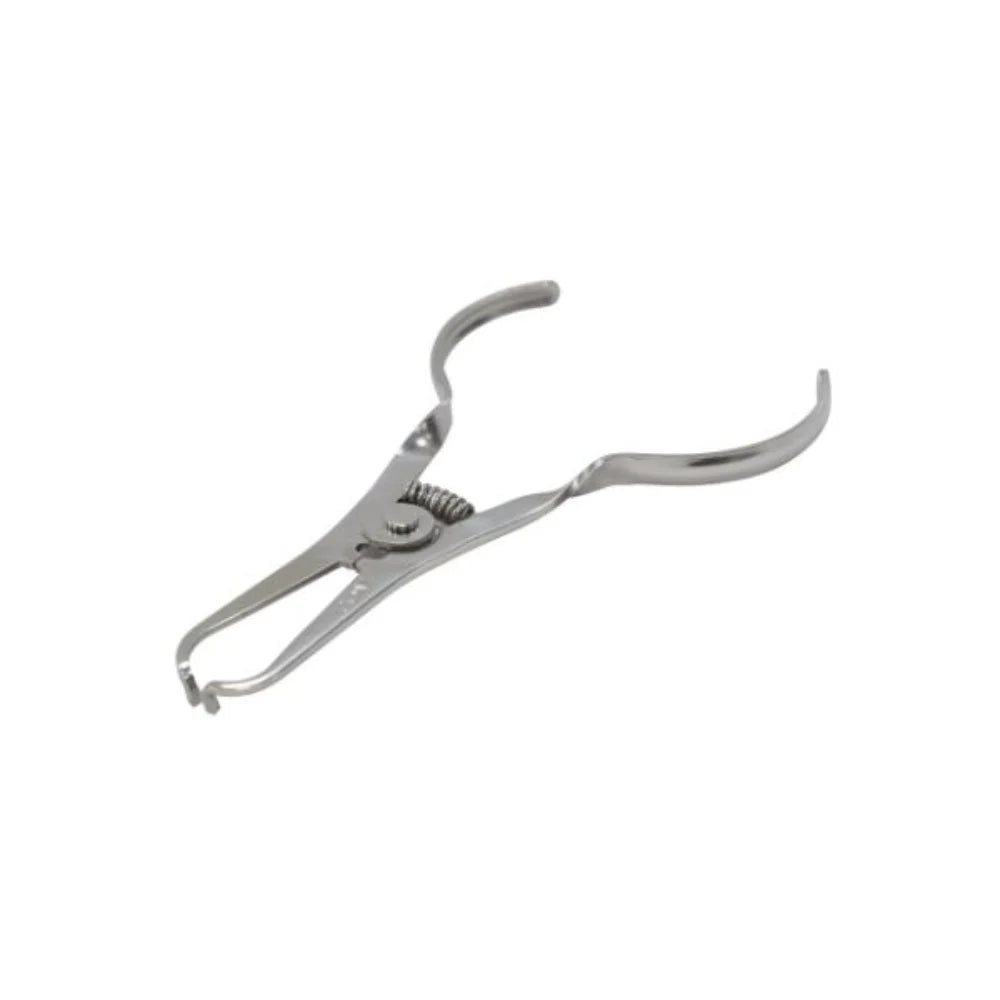

Septodont TDV Unimatrix Pliers (3020020)

• - Accurately and safely handle
• - Stainless steel
• - Comfortable and easy to use
• - Accurate and safe handling of Unimatrix R rings as well as Elastic Wedges.
• - The anatomical shape of the tip prevents slippage of the rings and wedges.
•  Unimatrix Plier for Unimatrix R ringsand Elastic Wedges
• - The Unimatrix Pliers is an instrument developed for an accurate and safe handling of Unimatrix R rings, as well as Elastic Wedges.

  - The Unimatrix Pliers is an instrument designed to accurately and safely handle the Unimatrix system clamp and Elastic Wedges.
• - Unimatrix is ​​a preformed sectional matrix system suitable for Class II composite resin restorations, consisting of metal dies and clamps for their fixation.
• - TDV Elastic Wedges are intended for general use in restorative procedures using matrices, with the mechanical function of adapting the matrix and / or retracting adjacent teeth.

Composition:

• - Stainless steel.

1 Unimatrix Plier

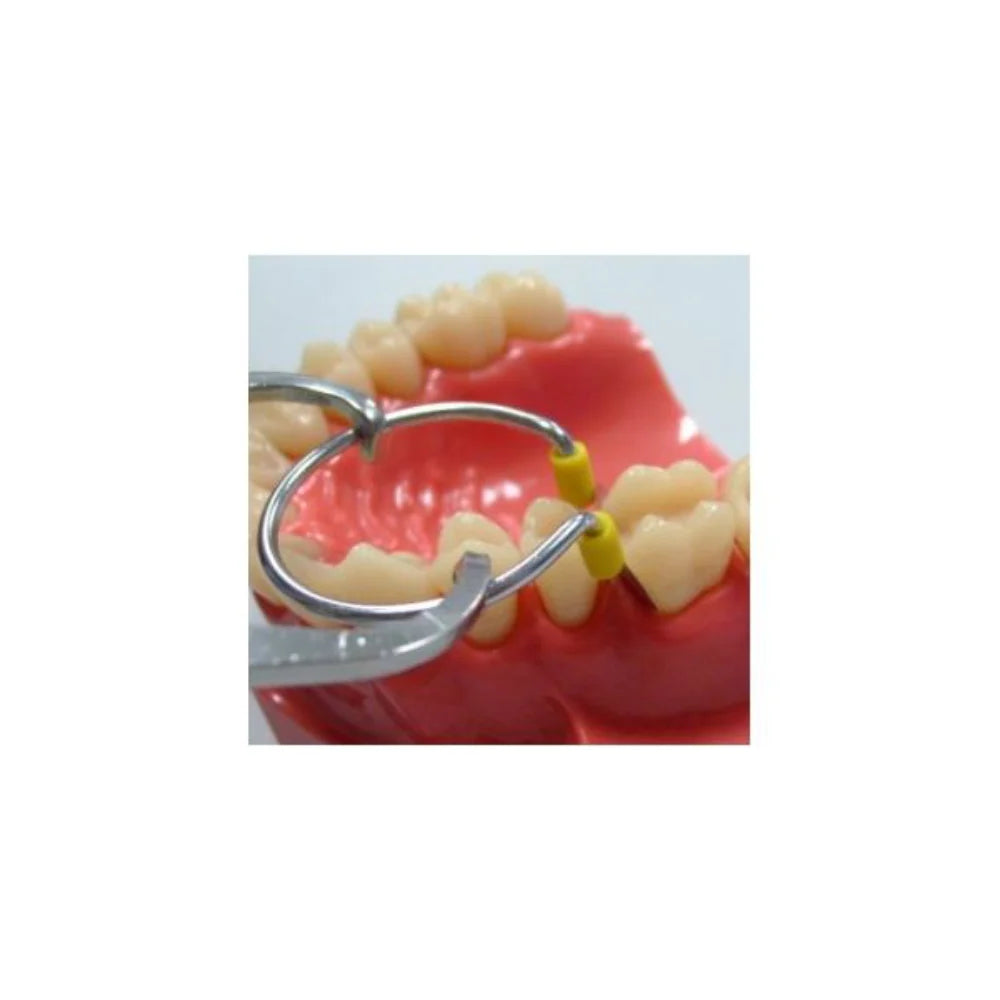

• - Unimatrix Rings: Place the Unimatrix ring in the jaws of the Unimatrix Pliers.
• - Compress the pliers until the desired ring opening is obtained. Place the ring in the desired position and slowly open the Unimatrix Pliers.
• - Remove the pliers from the mouth.

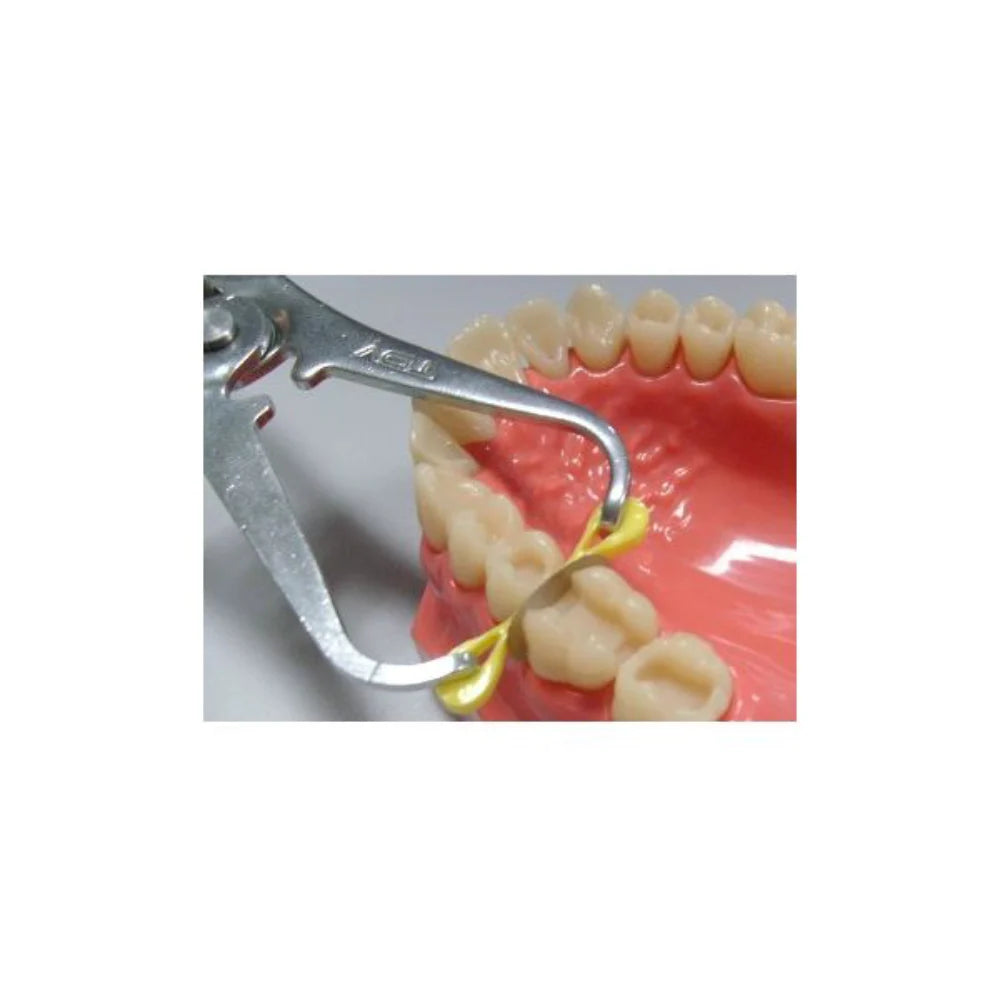

• - Elastic Wedges: Select the wedge suitable for the procedure and fit it in the pliers jaws. Compress the pliers until the required thickness of the wedge is obtained.
• - Place the wedge in the desired position and slowly open the Unimatrix Pliers.
• - Remove the pliers from the mouth.
• - When finished, pull the wedge by one of its edges and cut it in the middle, removing resulting parts from the patient's mouth.

Physical principle of operation:

• - Compressing the pliers handles opens the jaws.
• - This movement opens the ring or stretches the wedge, enabling its installation.

 Sterilization:

• - Sterilizable by autoclave (126ºC, 147 kPa, 16min).
• - Before sterilization, proceed with the cleaning using water and enzymatic detergent.

 Applied Standards:

• - The Unimatrix Pliers are resistant to corrosion, as ISO 13402 Standard.

 Storing

• - To be stored in a dry place, sheltered from sunlight.
