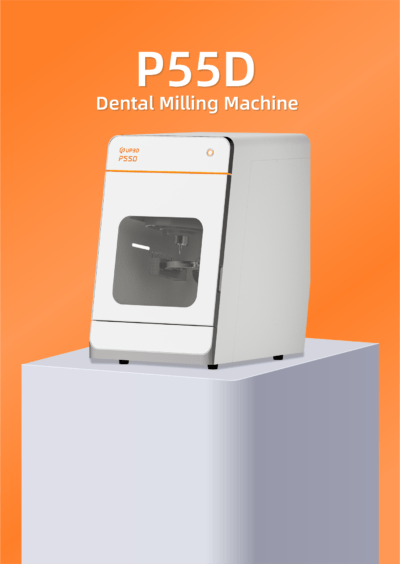

P55D- Dental Milling Machine

P55D- Easier Smarter and More Effective Ways to Fit in with Your Lab

• Plug & Play Compressor Free
• Silicone Dust Shield 98% Dust Protection Efficiency
• Smart Servo System Milling Quitely
• Dental Materials Multiple Applications
• C Clamp 90° Milling
• Lonizer – Highly Efficient Removal of Resin Debris
• Auto Tool Changer Stable Milling
• Easy for using Remote Control
• Lonizer – Highly Efficient Removal of Resin Debris

Net Contents:

• Main Unit (Milling Machine)
• Pressure Regulating Filter
• Power Cable
• Burs 7
• Hexagon Wrench
• Wax & Network Cable
• Calibration Disc
• Fixture Screw
• USB Drive & Dongle
• T- Type Torque

Product Parameters

UP3D 5-Axis Milling Machine

Model- P53
Dimension- 718*443*628 (mm)
Weight- 87kg
Input Voltage- AC 200~240V 50~60Hz
Maximum Power- 1.1KW
Spindle Power- 0.35KW at max
Axis Quantity- 5-Axis simultaneous motion
Milling Range- X/Y/Z:167/206/104mm A:±30° B:±360°
Milling Mode- Dry milling
Max Rotation Speed- 30,000 rpm
Max Feed Rate- 3000 mm/min
Tools Quantity- 11
Tools Changing Method- Automatic (Air pressure >0.5MPa)
Spindle Cooling- Air cooling with compression air (Air pressure 0.25~0.35MPa)
Milling Materials- Zirconia, Wax, PMMA, PEEK and soft materials
Milling Time- Coping: Zirconia-10min Wax- 4.5min | Crown: Zirconia-13min Wax-5.5min
Tools Diameter- 2 + 1 + 0.6 (Φ4 calibration bur)
Disc Specification- Round disc with Φ98, 30mm max for thickness
Spindle Clamping Diameter- Φ4.0mm
Cam Supported- UPCAM and Millbox
Data Transmission- Network interface

Net Qty. 1 Unit

Country of Origin: China
Manufactured by: Shenzhen UP3D Technology Co., Ltd
