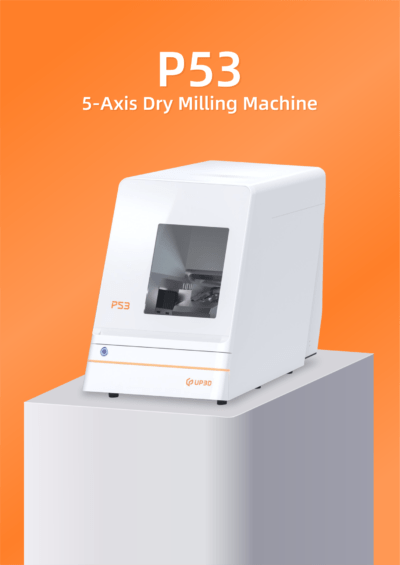

P53- 5 Axis Dry Milling Machine

P53- Easier Smarter and More Effective Ways to Fit in with Your Lab

Automation

• Automatic Calibration
• Automatic tool changer
• Automatic Calculation of tools lifetime

LED Milling Progress
Display the milling progress of P53 can reduce personnel inspection time & improve efficiency

Maximizing Your Efficiency- P53- 5-axis milling machine
A 5-axis milling machine developed by UP3D, has intelligent features such as automatic calibration, monitoring of burs life, and automatic renewal, the P53 digitizes & scales up traditional processing methods.

90° Milling
It is convenient for the embrasure processing of the anterior teeth, making the finished teeth closer to the designed teeth, and the shape is more nature and complete.

Net Contents:

• Main Unit ( Milling Machine)
• Pressure Regulating Filter
• Power Cable
• Burs 7
• Hexagon Wrench
• Wax & Network Cable
• Calibration Disc
• Fixture Screw
• USB Drive & Dongle
• T- Type Torque

Product Parameters

UP3D 5-Axis Milling Machine

Model- P53
Dimension- 718*443*628 (mm)
Weight- 87kg
Input Voltage- AC 200~240V 50~60Hz
Maximum Power- 1.1KW
Spindle Power- 0.35KW at max
Axis Quantity- 5-Axis simultaneous motion
Milling Range- X/Y/Z:167/206/104mm A:±30° B:±360°
Milling Mode- Dry milling
Max Rotation Speed- 30,000 rpm
Max Feed Rate- 3000 mm/min
Tools Quantity- 11
Tools Changing Method- Automatic (Air pressure >0.5MPa)
Spindle Cooling- Air cooling with compression air (Air pressure 0.25~0.35MPa)
Milling Materials- Zirconia, Wax, PMMA, PEEK and soft materials
Milling Time- Coping: Zirconia-10min Wax- 4.5min | Crown: Zirconia-13min Wax-5.5min
Tools Diameter- 2 + 1 + 0.6 (Φ4 calibration bur)
Disc Specification- Round disc with Φ98, 30mm max for thickness
Spindle Clamping Diameter- Φ4.0mm
Cam Supported- UPCAM and Millbox
Data Transmission- Network interface

Net Qty. 1 Unit

Country of Origin: China
Manufactured by: Shenzhen UP3D Technology Co., Ltd
