ORO

ORO Dental Loupes

Rs. 7,999.00

~~Rs. 12,000.00~~ Rs. 7,999.00

Sale Sold out

Model & Magnification LED HEADLIGHT & BATTERY 2.5 Magnification LED HEADLIGHT & BATTERY 3.5 Magnification LEATHER HEADBAND 2.5 Magnification LEATHER HEADBAND 3.5 Magnification

Quantity

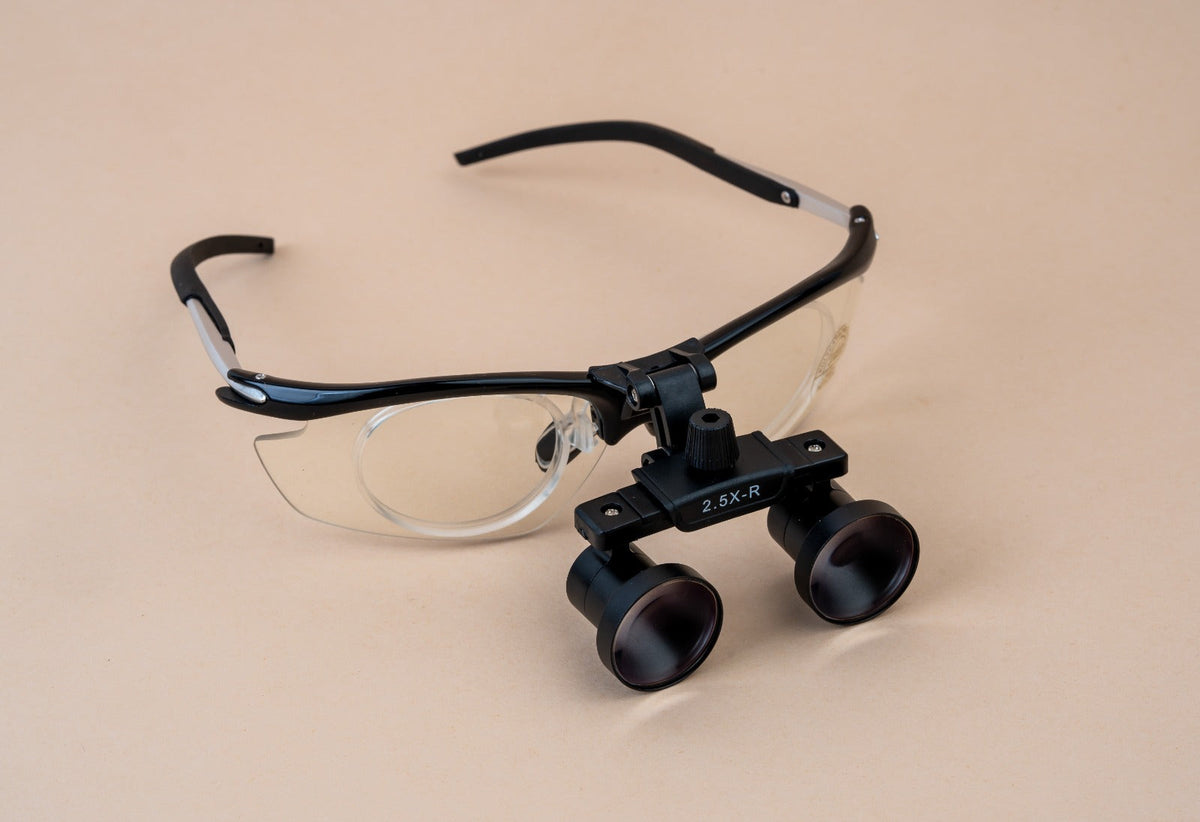

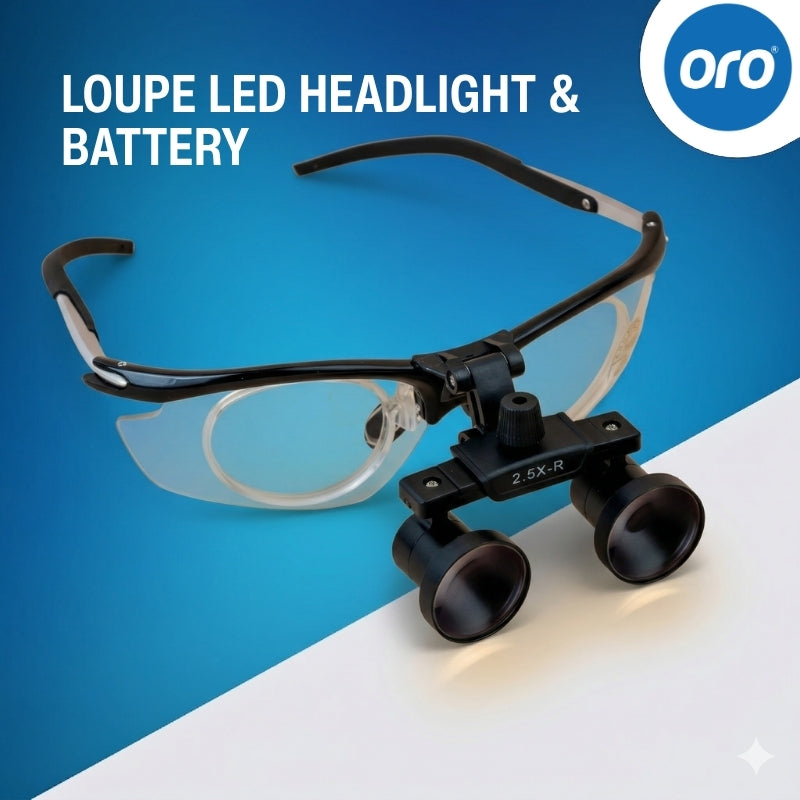

ORO Dental Loupes are designed for maximum comfort and optical clarity during long dental and surgical procedures, offering excellent resolution with a wide and deep field of view. The lightweight design, adjustable hinge system, and customizable pupil distance ensure an ergonomic, fatigue-free fit.

Suitable for clinicians with prescription glasses, they feature an ultra-bright focused LED headlight powered by a long-lasting, rechargeable lithium battery pack. For enhanced stability, the optional ergonomic leather headband provides adjustable height and width knobs with soft, removable cushions and a sliding optics mount for optimal positioning.

Key Highlights:

Lightweight and ergonomic construction reducing neck and back strain
High-intensity focused LED illumination for shadow-free visibility
Independent Pupillary Distance (PD) adjustment for personalized convergence
Available with portable frame or premium adjustable leather headband
Fully compatible to wear over standard prescription glasses
Standard 420 mm clinical working distance

Features

Lightweight and Ergonomic Design: Engineered to minimize facial pressure and cervical strain during lengthy clinical procedures.

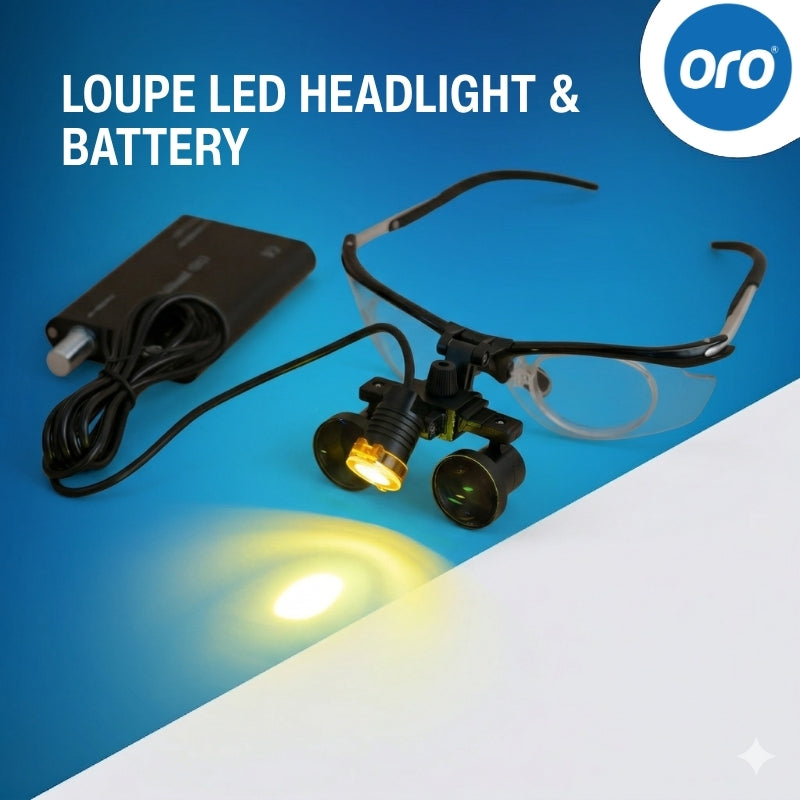

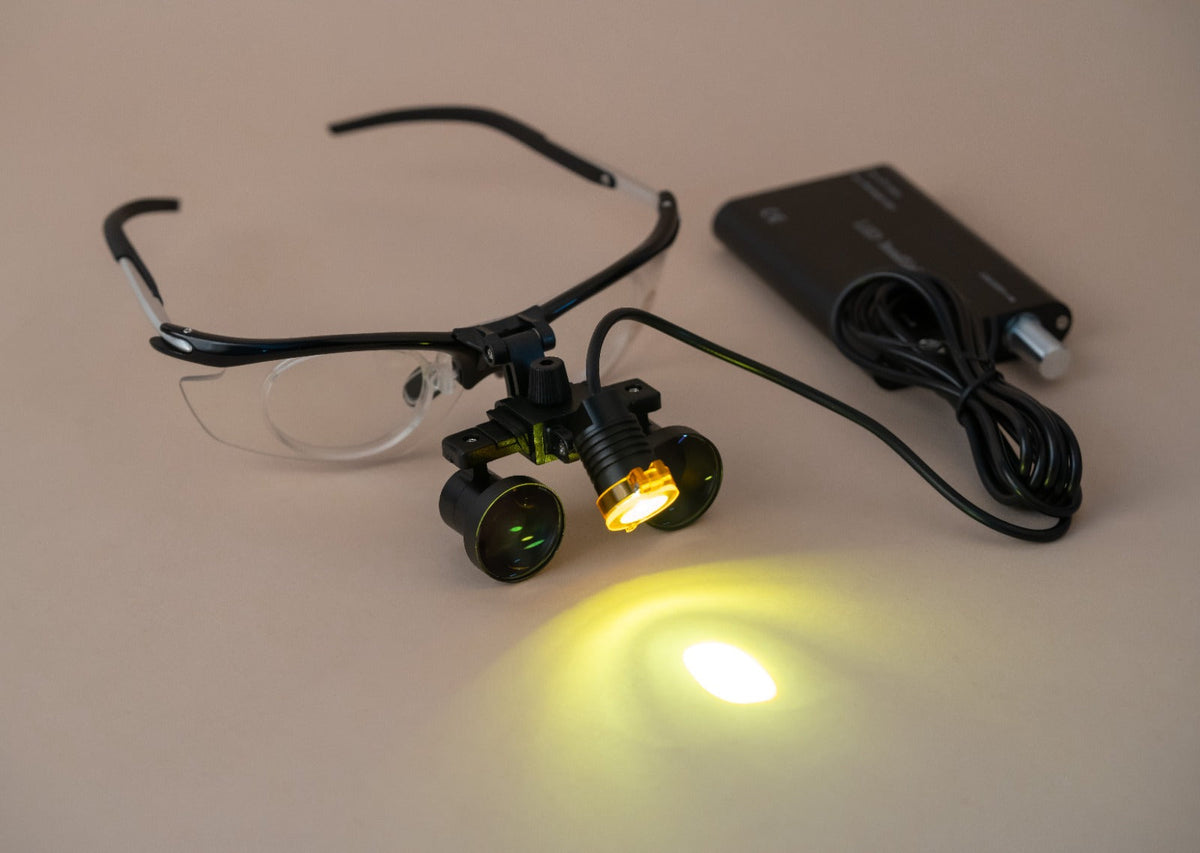

High-Intensity Focused LED Headlight: Delivers bright, concentrated, shadow-free illumination directly into the oral cavity.
Multi-Coated Optical Glass: Provides sharp, high-resolution magnification with an expansive field of view and deep depth of field.
Adjustable Pupillary Distance (PD): Dual independent adjustment knobs ensure precise optical convergence matching your unique vision.
Premium Leather Headband (Optional): Lightweight headband featuring independent width and height adjustment dials with soft removable cushions.
Sliding Optics Mount: Allows easy flip-up and angular positioning of the loupe barrels.
Prescription Glasses Compatible: Can be worn comfortably over prescription eyewear or fitted with optical inserts.

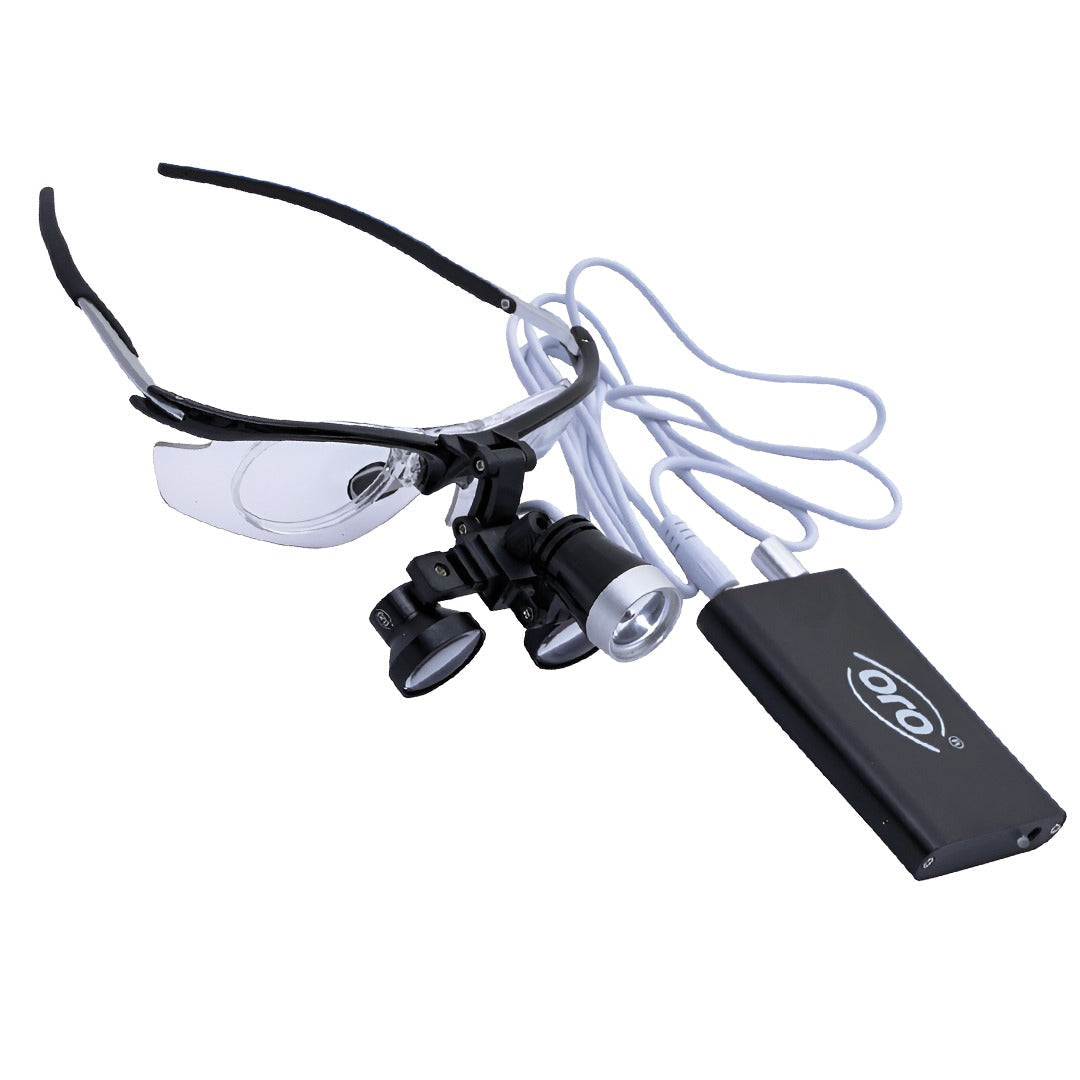

Rechargeable Lithium Battery: Compact clip-on battery unit offering continuous power with adjustable intensity dial.

Description

Specification

Brand: ORO
Model: ORO Binocular Dental Loupes
Magnification Options: 2.5x / 3.5x
Working Distance / Focal Length: 420 mm
Field of View: 100 mm - 110 mm
Depth of Field: 90 mm
Mounting Options: Lightweight Frame / Adjustable Leather Headband
Lighting: High-Intensity 3W LED Headlight
Battery: Rechargeable Lithium-ion Battery Pack
Battery Runtime: Approx. 4 - 5 Hours continuous operation
Glasses Compatibility: Wearable over prescription glasses

Packaging

1 x ORO Binocular Dental Loupes (Selected Model & Magnification)
1 x Portable LED Headlight Unit
1 x Rechargeable Lithium Battery Pack with Clip
1 x Power Charging Cable / Adapter
1 x Retaining Headband / Strap
1 x Precision Screwdriver for Adjustments
1 x Optical Microfiber Cleaning Cloth
1 x Protective Storage Case & Instruction Manual

Direction to use

Put on the loupe frame or adjust the leather headband dials until seated securely and comfortably on your head.
Attach the LED headlight onto the central bridge bracket of the frame or headband.
Loosen the pupillary distance (PD) adjustment knobs on top of each optical barrel.
Position yourself at your standard working distance (~420 mm) from the oral cavity or model.
Look through the optics and rotate the independent PD knobs until the two images merge into a single crisp circular field of view.
Tighten the PD screws firmly to lock your alignment in place.
Connect the headlight power cable to the battery pack, switch on the LED, and adjust the brightness dial to your preferred intensity.
