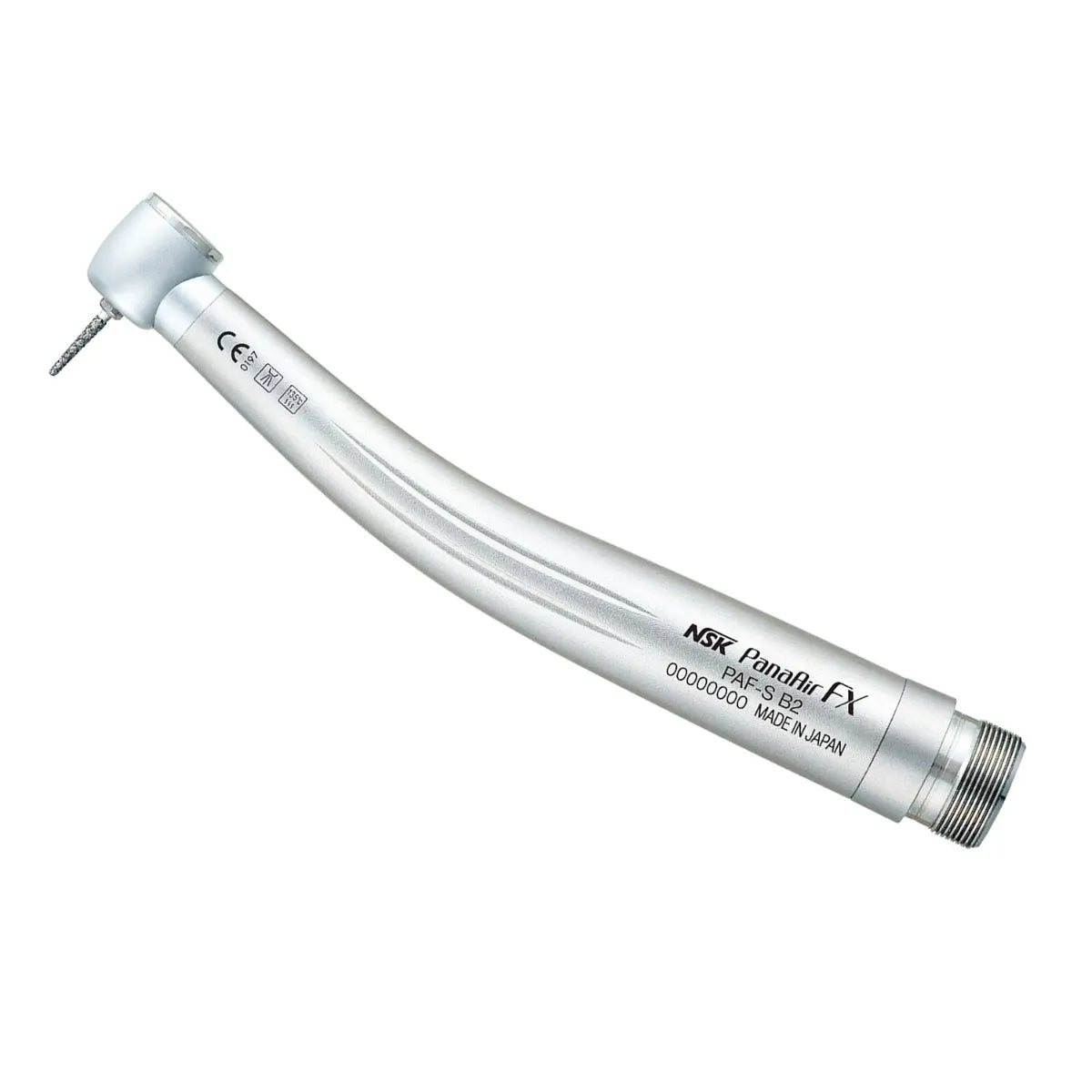

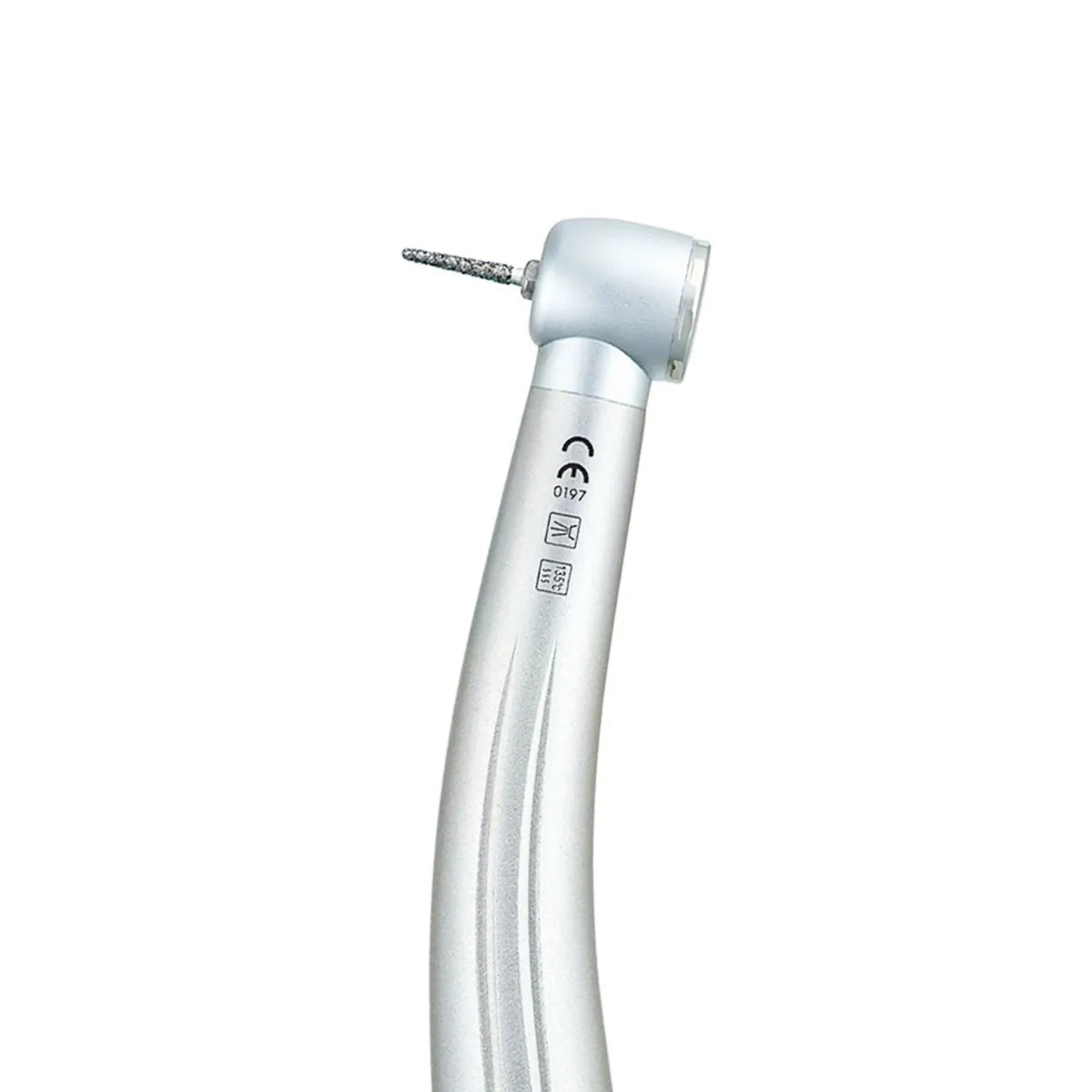

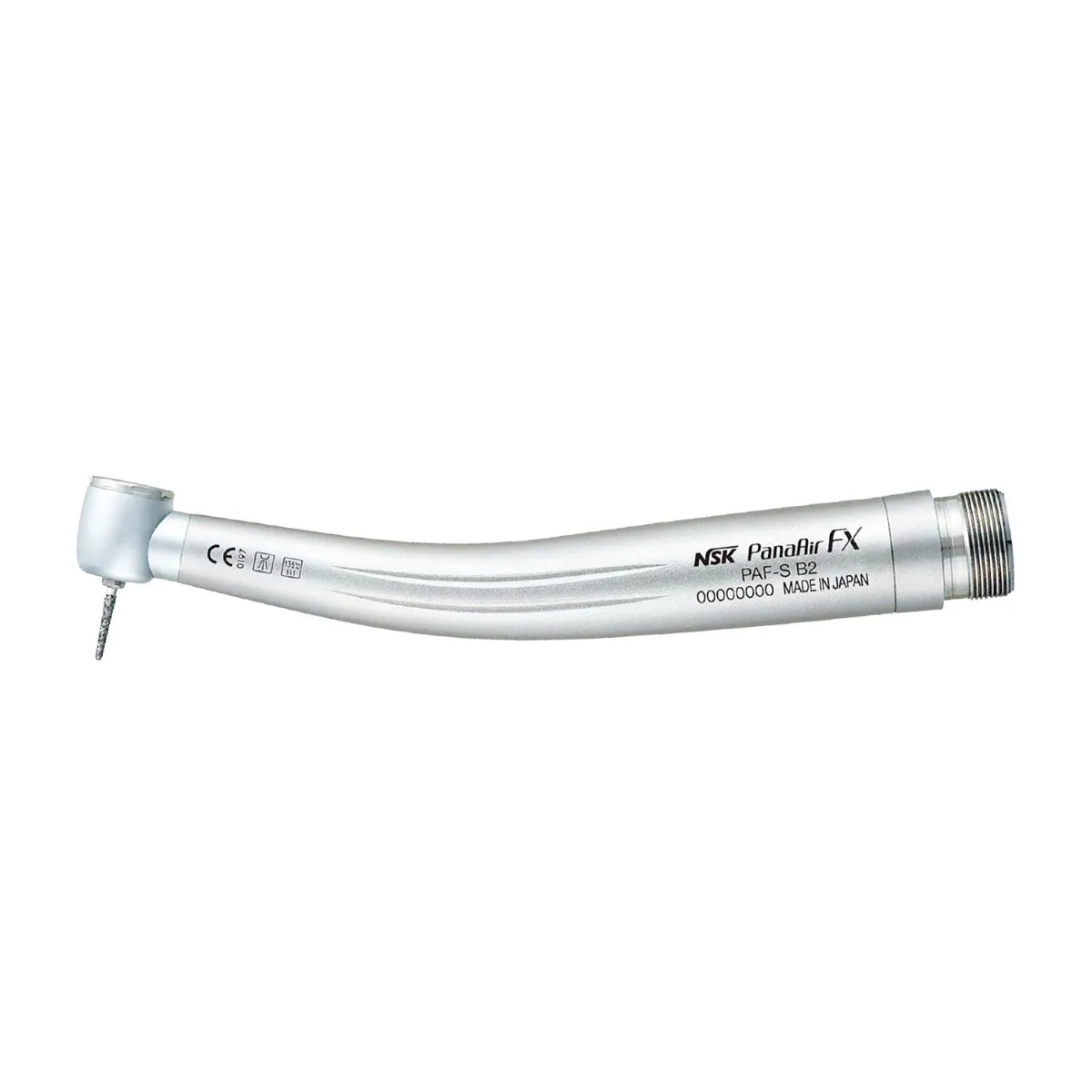

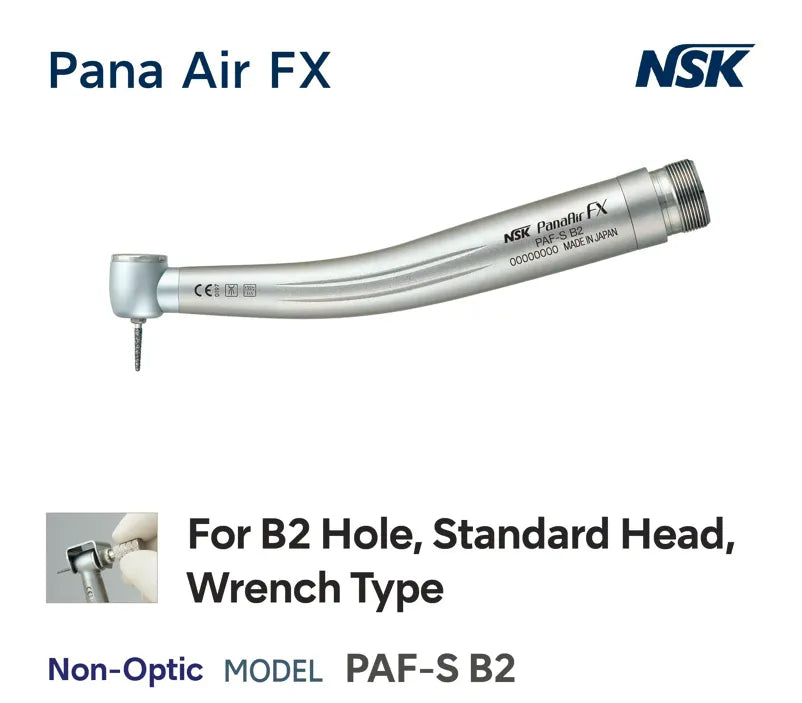

NSK Pana Air FX Handpiece PAF - SB2

• Stainless steel body for durability and corrosion resistance.
• Ceramic bearings for smooth operation and extended lifespan.
• Single spray system for effective cooling and irrigation.
• Wrench type chuck for easy bur changes.
• Non-LED design for cost-effectiveness.
• Inbuilt anti-retraction valve for infection control.
• Autoclavable up to 134°C for proper sterilization.

• Rotation Speed: 350,000 - 450,000 min-1
• Bur Type: ISO 1797-1 Ø1.59 - 1.60mm Standard Bur
• Chuck Type: Screw Type/Wrench
• Chucking Length: 10.2mm
• Max. Bur Length: 21mm
• Max. Working Part Diameter: Ø2mm
• Drive Air Pressure: 0.20 - 0.25MPa (2.0 - 2.5kgf/cm2
• Air Consumption: ≤55 NL/min (0.25MPa)
• Water Pressure: 0.05 - 0.20MPa (0.5 - 2.0kgf/cm2

1 x Airotor Handpiece

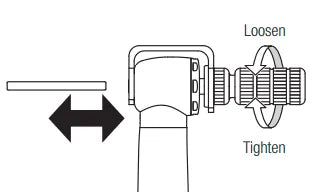

To Insert the Bur

• Pull back the knurled knob then mount the Chuck Wrench onto the handpiece head.
• Push the knob into the head then turn the knob about 1/4 turn counter clockwise.
• Insert the bur into the chuck and turn the knob about 1/4 turn clockwise until it stops.
• Remove the Chuck Wrench from the head by pulling back the knurled knob and releasing the wrench.

• Ensure that the bur is secure by gently pulling and pushing the bur.

To Remove the Bur

• To remove the bur, push the knob into the head then turn the knob about 1/4 turn counter anti-clockwise.


Sterilization:

• Sterilize the product by autoclave sterilization.
• Remove the bur after each patient and sterilize as noted below.
• Insert into an autoclave pouch. Seal the pouch.
• Autoclavable under the conditions : Autoclave for more than 20 min. at 121°C, or 15 min. at 132°C, or 3 min. at 134°C.
• The handpiece should remain in the autoclave pouch until required for use.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 6 Months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR ).
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Are the NSK Pana Air FX Handpiece PAF - SB2 and PAF-SU B2 the same model?
Answer: No, the NSK Pana Air FX Handpiece PAF - SB2 and PAF-SU B2 are not the same. The PAF-SB2 features a standard head airotor with a screw-type chuck, while the PAF-SU B2 is equipped with a push-button type chuck. These differences cater to varying preferences in dental practice, enhancing versatility in clinical applications.

Question: Is the NSK Pana Air FX Handpiece PAF - SB2 a 2-hole or 4-hole model?
Answer: The NSK Pana Air FX Handpiece PAF - SB2 is a Borden 2-hole airotor handpiece. This design facilitates efficient air and water supply during dental procedures, ensuring optimal performance and comfort for both the dentist and the patient.

Question: What are the main features of the PanaAir FX dental handpiece?

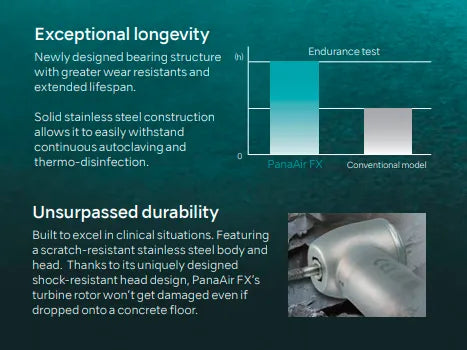

Answer: The PanaAir FX dental handpiece offers increased endurance and power, easy handling, maximum visibility of the operating field, and the ability to reach all areas of the oral cavity. It is built with a scratch-resistant stainless steel body and head for durability and features a shock-resistant head design to protect the turbine rotor from damage.

Question: What is the Clean Head System in the PanaAir FX handpiece?
Answer: The Clean Head System is a patented mechanism in the PanaAir FX handpiece that automatically prevents the entry of oral fluids and other contaminants into the handpiece head. This helps prolong the life of the bearings and ensures the handpiece remains clean and hygienic.

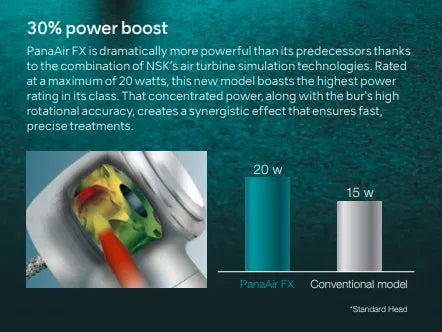

Question: How does the PanaAir FX achieve a 30% power boost compared to previous models?
Answer: The PanaAir FX utilizes NSK's air turbine simulation technologies, which contribute to its increased power. With a maximum power rating of 20 watts, it delivers fast and precise treatments, thanks to the combination of concentrated power and high rotational accuracy.

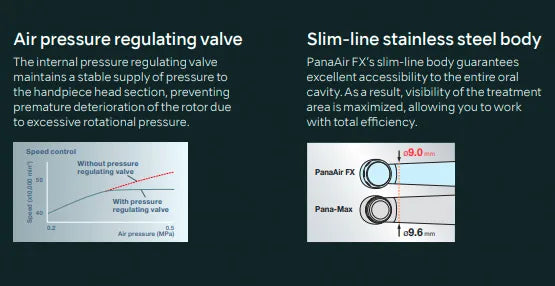

Question: What is the role of the air pressure regulating valve in the PanaAir FX handpiece?Answer: The internal air pressure regulating valve in the PanaAir FX maintains a stable supply of pressure to the handpiece head section. This helps prevent excessive rotational pressure, which could lead to premature deterioration of the rotor.
