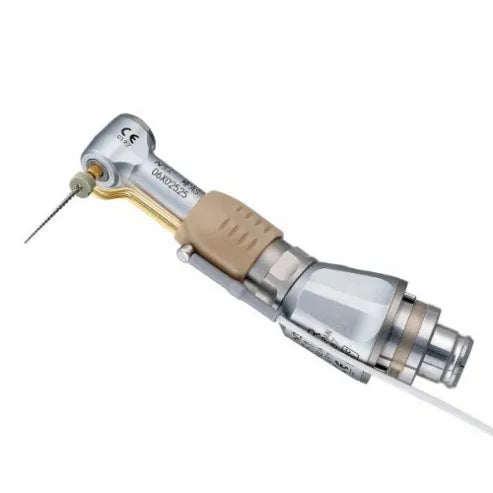

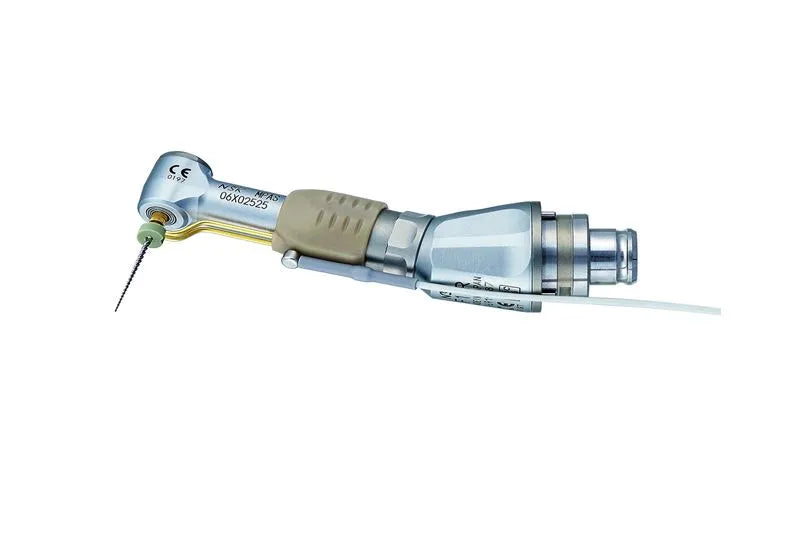

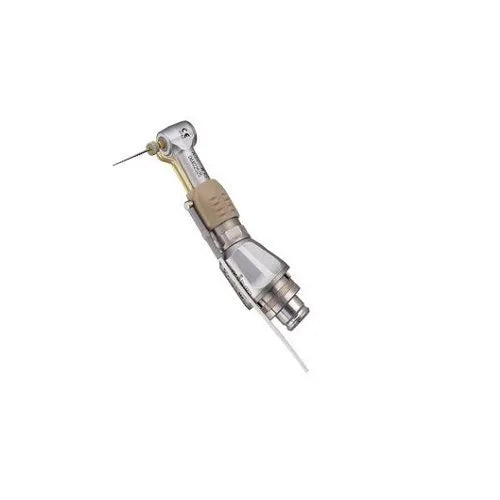

NSK MPAS F16R Handpiece

• Precision instrument for enhanced accuracy in root canal preparations.
• Compatible with Ø2.35 Ni-Ti files for optimal performance.
• Integration with Apex locator for precise.
• measurements.Built-in probe ring for seamless connection with the Apex locator.
• 16:1 gear ratio for enhanced control and accuracy.
  Push-button chuck mechanism for effortless file insertion and removal.
• 360° rotation for convenient maneuverability.

• Head:  Miniature Head
• For:  Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Short Shank)
• Gear Ratio: 16:1 Reduction

1 x Handpiece

To use the MPAS F16R Handpiece, follow these step-by-step instructions:

• Begin by removing the rubber cap on the backside of the motor handpiece body using a slotted bit screwdriver. This will expose the connection area.
• Insert the Connection Cord Clip into the exposed connection area. Ensure it is securely in place.
• Mount the Contra Angle Head to the motor handpiece. When removing or replacing the head, pull it out straightly without applying any angle or force.

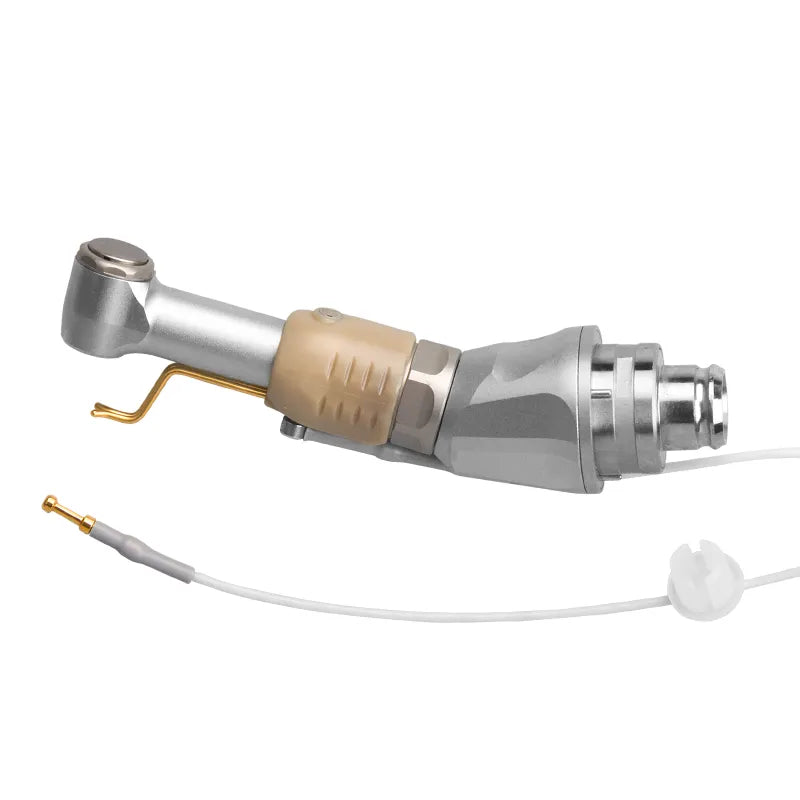

• Take the Connection Cord and insert it into the slit of the Connection Cord Clip. Adjust the tension of the Connection Cord between the head and the Connection Cord Clip to ensure it is not too slack.
  Connect the Contra Angle Head Connection Cord to the Clip of the Apex locator. Make sure the connection is secure.

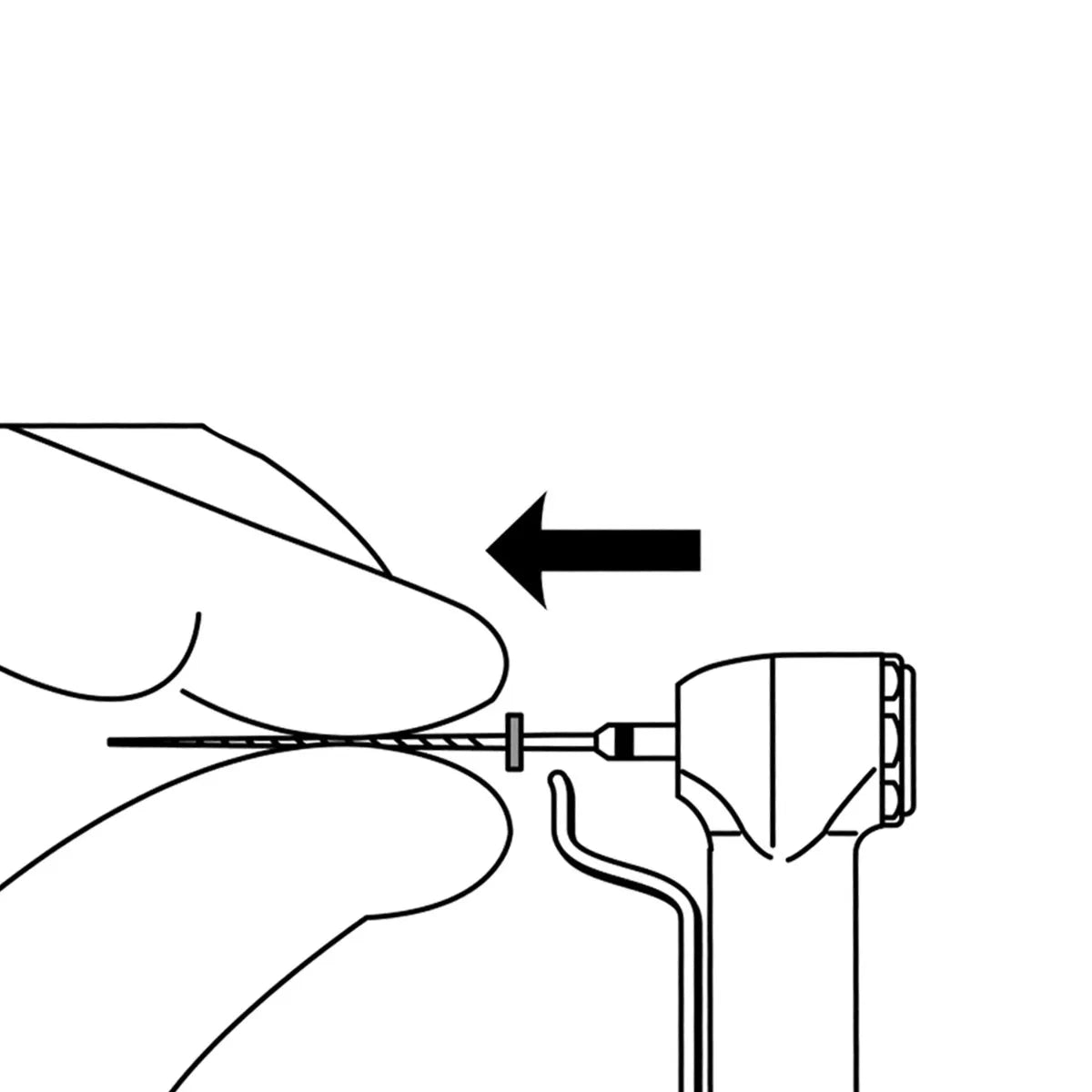

• Insert the Endodontic file into the head of the handpiece. Lightly turn the file until it engages with the latch mechanism. Then, push it inward to hear a click, indicating that it is securely in place.

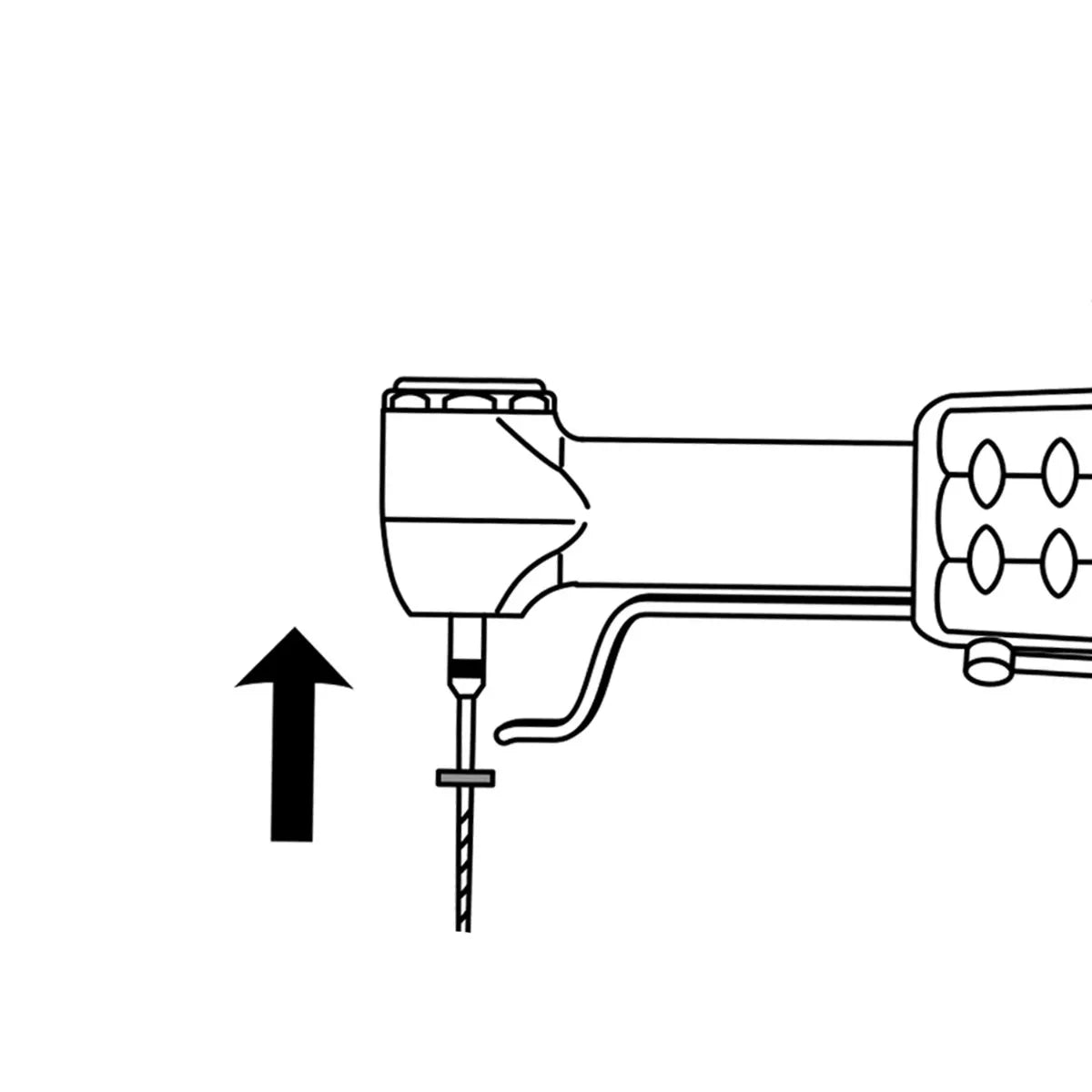

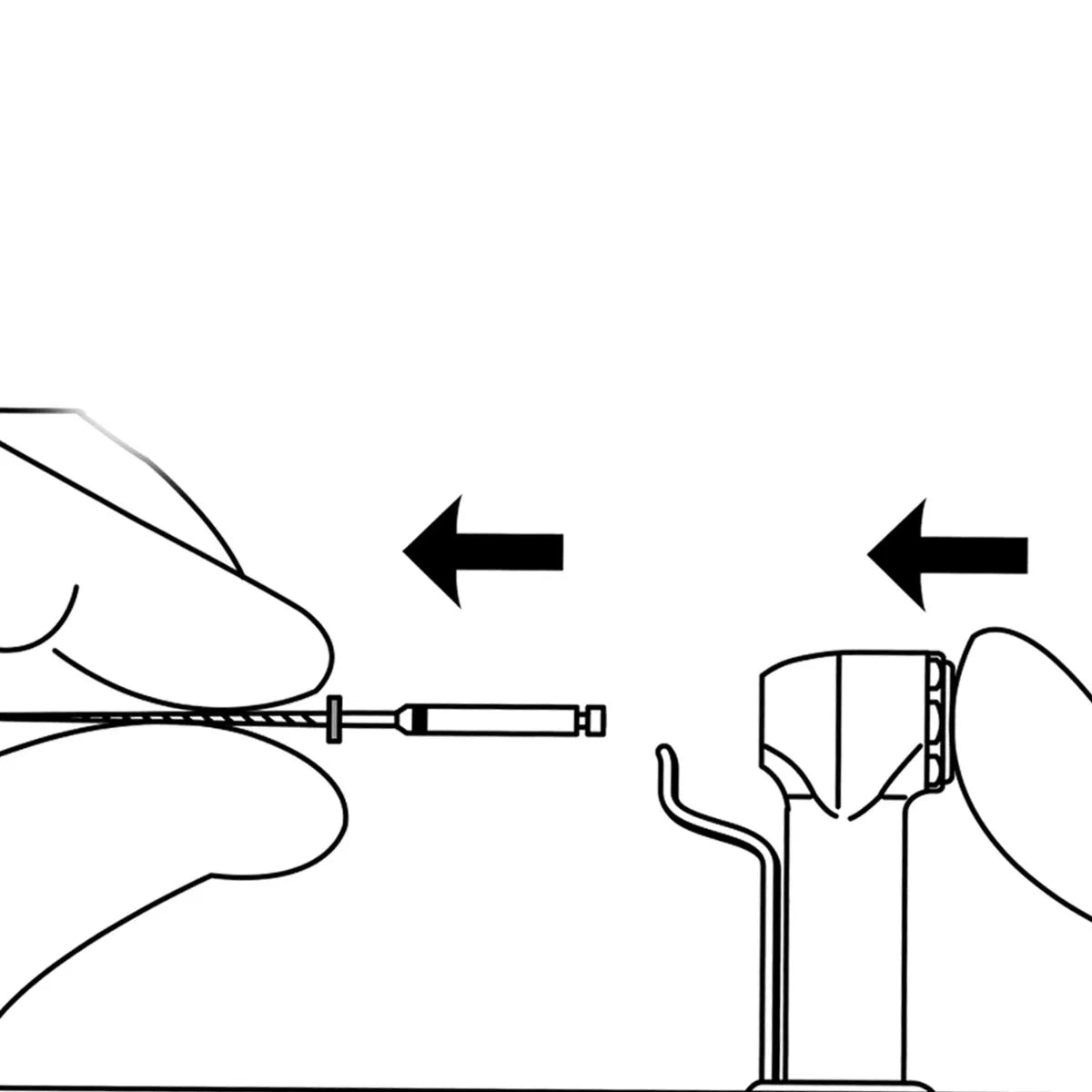

• When it's time to remove the file, push the push button on the handpiece with your thumb. This will release the file from the latch mechanism, allowing for easy removal.

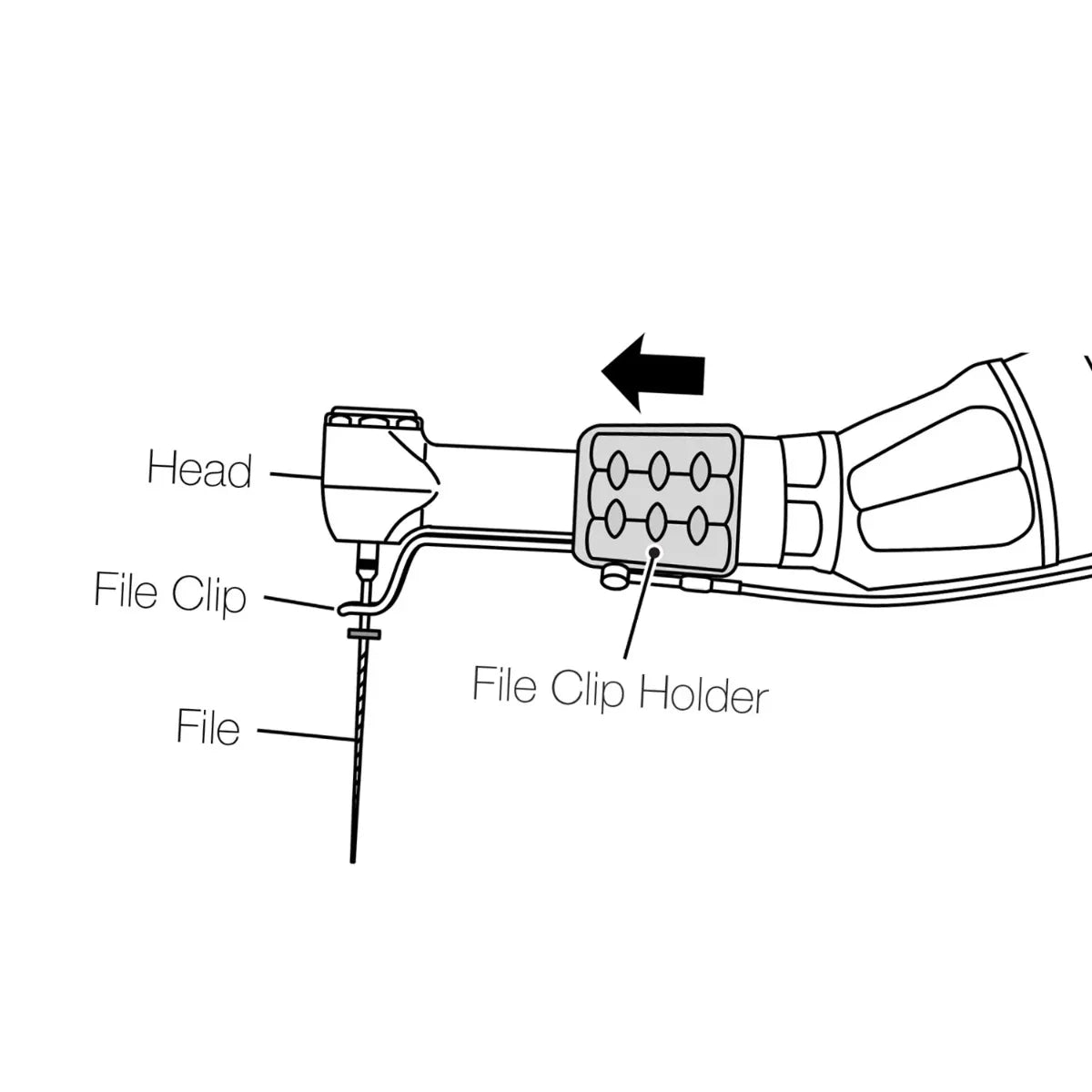

• If you need to mount a different Endodontic file to the Contra Angle Head, slide the File Clip Holder towards the head direction until it contacts the Endodontic file and File Clip. This ensures a secure fit.


To connect or disconnect the cord:

• To connect: Insert the Cord Mounting Pin at the end of the cord into the hole on the Motor Handpiece body. The cord should be at a right angle to the body. Rotate the cord 90˚ until it seats correctly.
• To disconnect: Move the cord back and rotate it in the opposite direction to release it from the Motor Handpiece body.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Compatible with NSK Endo-Mate DT?Answer: Yes, the NSK MPAS F16R Endomotor Handpiece, with its 16:1 gear ratio, is compatible with the NSK Endo-Mate DT.

Question: Is it compatible with X smart Dentsply motor ??
Answer: No, the NSK MPAS F16R Handpiece is not recommended to be used with the X-Smart Dentsply motor. Use the dedicated Dentsply X-Smart endomotor contra-angle handpiece with Dentsply X-Smart endomotor.

Question: What is the recommended file size for the MPAS F16R Handpiece?
Answer: The MPAS F16R Handpiece is specifically designed for use with Ni-Ti files measuring Ø2.35.

Question: Can the MPAS F16R Handpiece be used with an Apex locator?
Answer: Yes, the MPAS F16R Handpiece is compatible with an Apex locator, allowing for precise measurement and integration during root canal procedures.

Question: How does the built-in probe ring of the MPAS F16R Handpiece work with the Apex locator?Answer: The built-in probe ring seamlessly connects with the Apex locator, ensuring optimal functionality and precise measurements, particularly for short shank files.

Question: What is the gear ratio of the MPAS F16R Handpiece?
Answer: The MPAS F16R Handpiece features a gear ratio of 16:1 reduction, providing versatility in speed options and enhancing control and accuracy during root canal preparations.
