NSK Ipex II Apex Locator Complete Set

• High-precision root canal measurement generated by using SmartLogic.
• Auto-detects the apex accurately in any conditions, dry or wet.

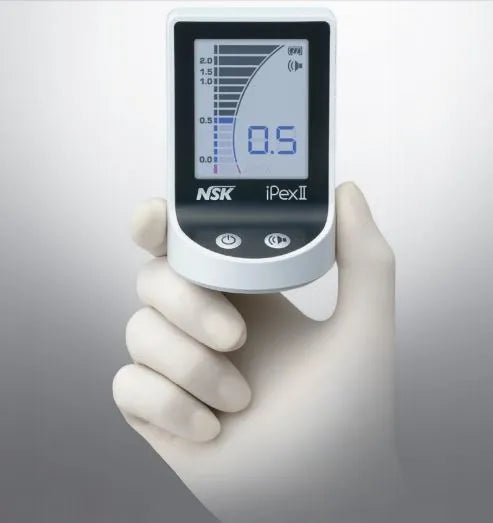

• A stylish and compact body requiring only a small space. Can be located on the dental equipment console.
• Three different alert sounds depending on the location of the file tip, ensuring precise procedures.

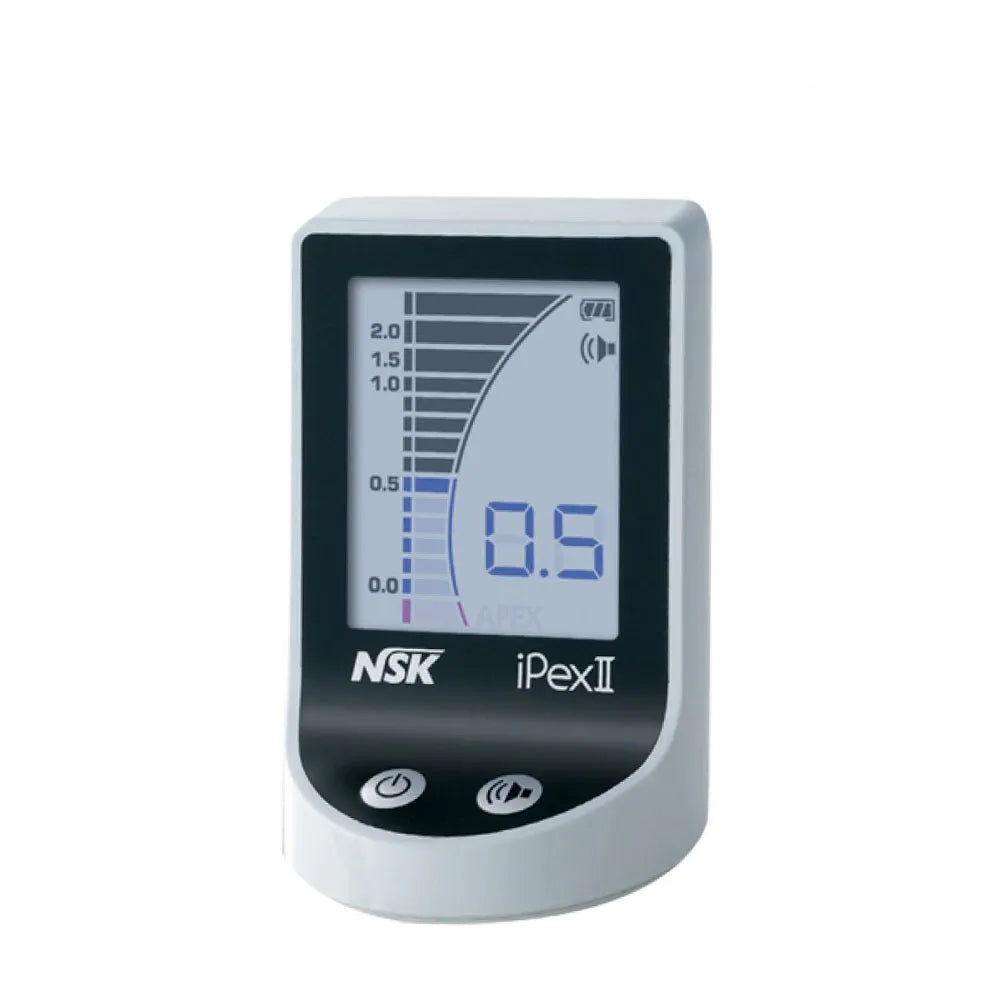

• A big 3 colour LCD panel with very low reflectivity, allows Clinicians to accurately & instantly monitor procedures.
• Energy saving & low operation cost.
• Great accuracy in wet or dry canal.
• The NSK iPex has multi-frequency measuring technology.
• User friendly interface.
• Large Hi-contrast LCD screen.
• Audible warning system.
• Auto power shut-off.

• Battery: Continuous operation for 60 hours
• Display: 3 color LED indicating of file movement inside the canal
• Power supply: For 1.5V AAA (LR03 or R03) batteries
• Continuous use Approx. 60 hours
• Dimensions: W60 x D60 x H86 (mm)
• Weight: 76g (unit without batteries)

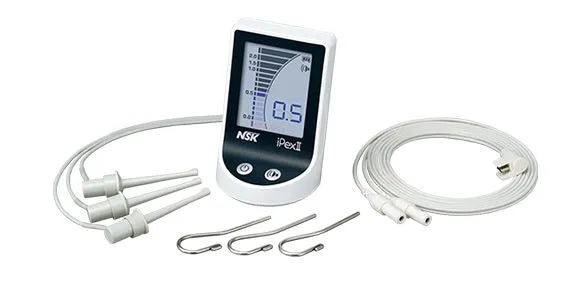

• 1 x Control unit
• 1 x iPex II Probe (1.8m)
• 3 x iPex II File Clip
• 3 x Lip Hook
• 3 x AAA manganese dry batteries
• 1 x iPex II Tester

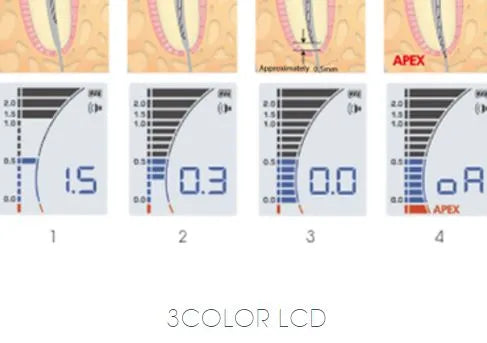

• Insert the file into the root canal.
• Monitor the progress using the bar graph displayed on the device.
• As the file approaches the root apex, the bar graph turns blue.
• Pay attention to the audio alert sound, which increases in pitch and tempo when entering the Zone of Precision.
• When the file reaches the minor apical diameter, the bar graph reads 0.0, and the alert sound changes to a continuous tone.
• Be cautious not to pass the apex; if the file goes beyond the apex, a fast and continuous alert sound is issued.
• Watch for the display of "APEX" in red and "OA" (Over Apex) in blue, indicating overextension.
• Adjust file position accordingly to ensure precise and accurate treatment.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR ).
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

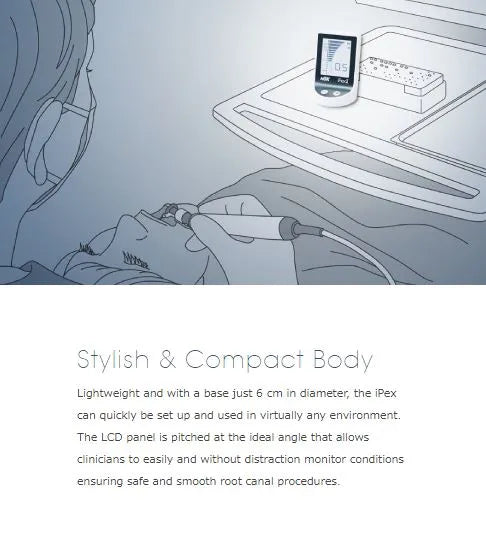

Question: What is the size of the iPex II apex locator?
Answer: The iPex II has a compact design with a diameter of just 6 cm.

Question: What does the blue bar graph indicate?Answer: The blue bar graph indicates that the file is entering the Zone of Precision as it approaches the root apex.

Question: How does the iPex II alert the user when the file reaches the apex?
Answer: The bar graph display reads 0.0, and the alert sound changes to a continuous tone when the file reaches the minor apical diameter.

Question: What happens if the file goes past the apex?
Answer: If the file goes past the apex, the iPex II issues a fast and continuous alert sound, while "APEX" is displayed in red and "OA" (Over Apex) is displayed in blue.

Question: Can the iPex II be used in wet or dry conditions?
Answer: Yes, the iPex II is designed to provide great accuracy in both wet and dry canals.

Question: How do I turn off the iPex II after use?Answer: Press the Power Key for approximately one second or longer to turn off the power. The device emits an alarm sound, and the LCD panel turns off.

Question: Does the iPex II have an adjustable alarm volume?
Answer: Yes, the Alarm Key allows you to adjust the alarm audio volume between OFF, Low, Medium, and High settings.

Question: Is the LCD panel easily viewable from an operating distance?
Answer: Yes, the iPex II's LCD panel has low reflectivity and is designed to be easily viewable from an operating distance, minimizing distractions.
