NSK Endomate TC2 Endo Motor

• Cordless & portable unit for easy operation.
• Slim Head and neck assure higher visibility.

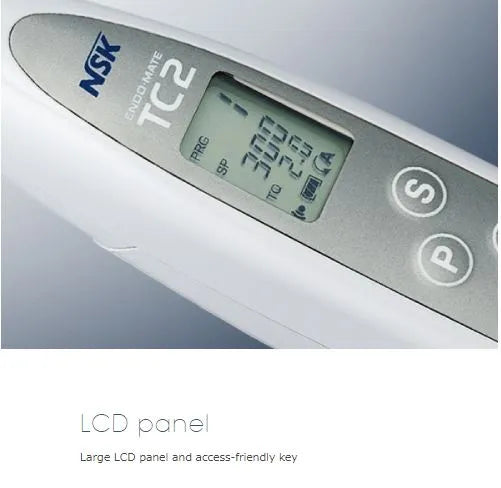

• Large LCD panel and access-friendly key.
• Lightweight, ergonomic design.
• Smart Auto Reverse & Alarm Function.
• 5 programs for different file systems.
• Last program settings can be memorized.
• 90 min. quick charge with a non-contact type charger.
• Light weight to prevent hand fatigue.
• Auto-reverse function for preservation of canal & anatomy.
• 5 programs for different file systems.

• Power Supply : AC 230 V 50/60 Hz
• Number of Programs : 5
• Maximum Torque : 3 Ncm (when using 16:1 head)
• Charge/Continuous use: 90 min / 1.2 h (depending on workload)
• Speed range : 100-2,250 min-1 (With 20:1, 16:1, 10:1, 4:1 geared heads)

Nsk Endo-Mate TC2 With MP-F16R Head:

• Motor Handpiece ( ENDO-MATE TC2 )
• MP-F16R Head
• Battery Charger
• Power Cord


Nsk Endo-Mate TC2 With MPAS-F16R Head:

• Motor Handpiece ( ENDO-MATE TC2 )
• MPAS-F16R Head
• Battery Charger
• Power Cord

• Power on the endomotor using the designated power button.
• Select the appropriate program for your specific endodontic rotary file system. The device offers five pre-set programs to accommodate different file systems.
• Attach the compatible rotary file to the handpiece securely. Ensure it is properly aligned and locked in place.
• Adjust the desired settings using the 5-key operation system and the large LCD display. This may include adjusting the speed, torque, and other parameters based on the requirements of the procedure.
• Before starting the root canal shaping, ensure that the file is properly positioned within the canal and that the handpiece is held in a comfortable grip.
• Begin the procedure by gently activating the motor.
• Gradually increase the speed and torque as needed, while closely monitoring the progress on the LCD display.
• Pay attention to the Auto Reverse and Alarm Functions. If the audible alarm sounds, it indicates that the file is nearing the preset torque level.
• Promptly unload the file before the Auto Reverse function is activated to prevent any complications.
• Throughout the procedure, maintain control over the handpiece and monitor the LCD display for any changes or notifications.
• After completing the root canal shaping, power off the endomotor and carefully detach the rotary file from the handpiece.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does this device integrate with apex locator?
Answer: No, The NSK Endomate TC2 Endo Motor does not integrate with an apex locator. It is a cordless endo motor equipped with smart features designed for precise root canal treatment.

Question: What is MPAS?
Answer: MPAS in the NSK Endomate TC2 Endo Motor refers to a specialized type of contra-angle handpiece. The MPAS head is equipped with a built-in attachment for seamless connection to an apex locator. This feature, denoted as Mini head, push button, apex locator, short shank files, enhances precision and convenience during endodontic procedures.

Question: Does the Endo-Mate TC2 have a reciprocation function?
Answer: No, the Endo-Mate TC2 does not have a reciprocation function. It operates using continuous rotation for root canal shaping.

Question: How many auto-reverse functions does the Endo-Mate TC2 have?
Answer: The Endo-Mate TC2 has three auto-reverse functions. These functions are designed to preserve canal anatomy and ensure proper biomechanical preparation of the canal.

Question: How long does it take for the Endo-Mate TC2 to fully charge?
Answer: The Endo-Mate TC2 features a quick charging system. It takes approximately 90 minutes to fully charge the device. This allows for efficient and timely use during dental procedures.

Question: How many programs are available in the Endo-Mate TC2?
Answer: The Endo-Mate TC2 offers five programs that can be selected based on different endodontic rotary file systems. These programs provide flexibility and customization options to suit specific treatment requirements.

Question: How does the Smart Auto Reverse & Alarm Function work?
Answer: The Smart Auto Reverse & Alarm Function of the Endo-Mate TC2 is a key safety feature. It monitors the load on the rotary file during operation. When the load approaches the preset torque level, an audible alarm is triggered to alert the clinician.
