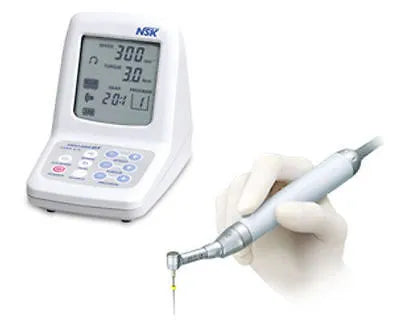

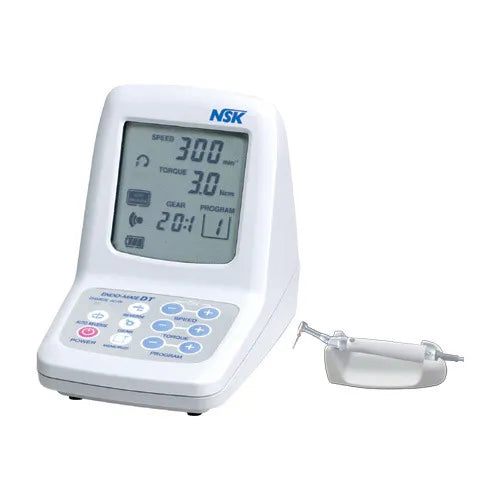

NSK Endo-Mate DT Endomotor

• Auto-reverse function
• Compact desktop unit

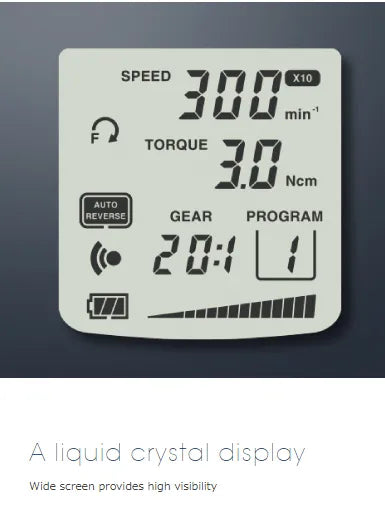

• Large LCD screen provides clear visibility

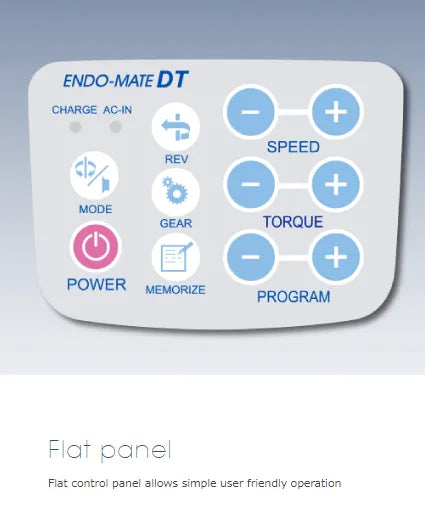

• Simple-to-operate Flat Control Panel
• Dual Power Source: AC or Battery Operation
• Slim and light handpiece
• 2-Way ON/OFF switch
• Number of Programs: 9

• Torque control from 0.3 to 3 Ncm
• Speed range: 140 - 550 min
• Dimensions : W92 x D148 x H124 (mm)
• Weight: Unit 456g/Motor handpiece & cord 92g
• Power Supply :- AC120V 60 Hz or 230V 50/60 Hz and Battery PacK

• 1 X Control Unit
• 1 X Motor And Cord
• 1 X Handpiece Stand
• 1 x Contra Angle Handpiece (16:1)
• 1 X AC Adaptor

• Power Connection: Ensure the device is turned off. Connect the AC adaptor to the control unit and confirm that the AC IN lamp lights up, indicating the power supply.
• Preset Memory: Program your desired speed and
  torque settings into the preset memory. This can be done by selecting the desired settings and pressing the MEMORIZE key. You can store up to 9 different settings.
• Power On/Off: To turn on the device, press and hold the POWER key for more than one second. Briefly pressing the POWER key again will stop the motor handpiece. For intermittent operation, keep the POWER key pressed while the handpiece is running and release it to stop.
• Speed and Torque Adjustment: Fine-tune the rotation speed using the SPEED key and adjust the torque limit value using the TORQUE key.
• Rotational Direction: Select the desired rotational
  direction by pressing the REVERSE key. Each press of the key alternates between forward rotation and reverse rotation.
• Auto Reverse Function: The AUTO REVERSE key allows you to activate the auto-reverse mode. Press the key to cycle between [AUTO REVERSE AUTO STOP] and [AUTO REVERSE OFF] modes.

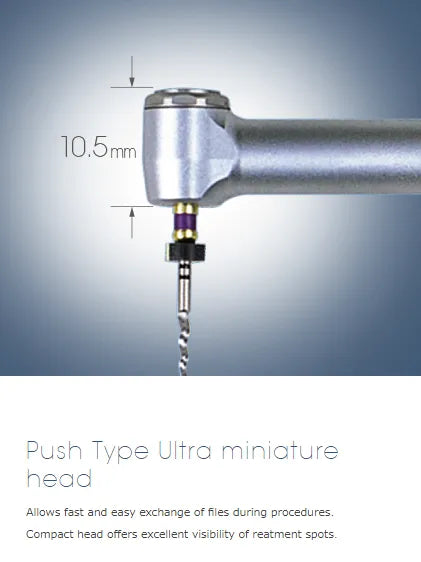

• Connecting Contra Angle Head: Align the positioning pins of the contra-angle head with the positioning slots of the motor handpiece. Insert the head until it clicks into place. To remove the
  head, pull it out axially.
• Mounting and Removing Files: Mounting the file
  involves inserting it into the chuck until it stops and lightly turning it until it engages with the latch mechanism. Push it inward to click. To remove the file, depress the push button and pull it out.
• Calibration: Calibration helps reduce fluctuation
  in rotation speed and torque. Lubricate the contra-angle head, turn off the power, connect the AC adaptor, and turn on the power. Simultaneously hold down both SPEED buttons for more than one second.
• Battery Refresh: Battery refresh helps resolve the
  "memory effect" in Ni-MH batteries. Turn off the power, connect the AC adaptor, and hold down the POWER key while pressing the REVERSE key.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 1 Year against manufacturing defect.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the model number of the contra-angle head?
Answer: The model number of the contra-angle head for the NSK Endo-Mate DT Endomotor is MP-F16R (16:1)

Question: What is the ENDO-MATE DT used for?Answer: The ENDO-MATE DT is an Endo Micromotor designed for use with Ni-Ti files from major suppliers. It is used in endodontic procedures to provide precise and controlled rotation of files during root canal treatments.

Question: How many speed and torque settings can be stored in the preset memory?
Answer: The preset memory of the ENDO-MATE DT can store up to 9 speed and torque settings. This allows for a quick and easy selection of the desired settings based on the specific requirements of the procedure.

Question: What power options are available for the ENDO-MATE DT?
Answer: The ENDO-MATE DT can be powered directly from a wall outlet or used with a rechargeable battery. This versatility allows for flexible power sources depending on the clinical setting and availability of power outlets.

Question: Is the LCD display of the ENDO-MATE DT Easy to Read?
Answer: Yes, the ENDO-MATE DT features a large LCD display that offers high visibility. This allows for instant recognition of the micromotor's status, including speed, torque, and other important information during procedures.

Question: Can the ENDO-MATE DT be calibrated?Answer: Yes, the ENDO-MATE DT can be calibrated to decrease fluctuation in rotation speed and torque.

Question: How can I stop the battery refresh process?
Answer: To stop the battery refresh process, hold down the POWER key for a while. Please note that during this process, the power does not turn on.
