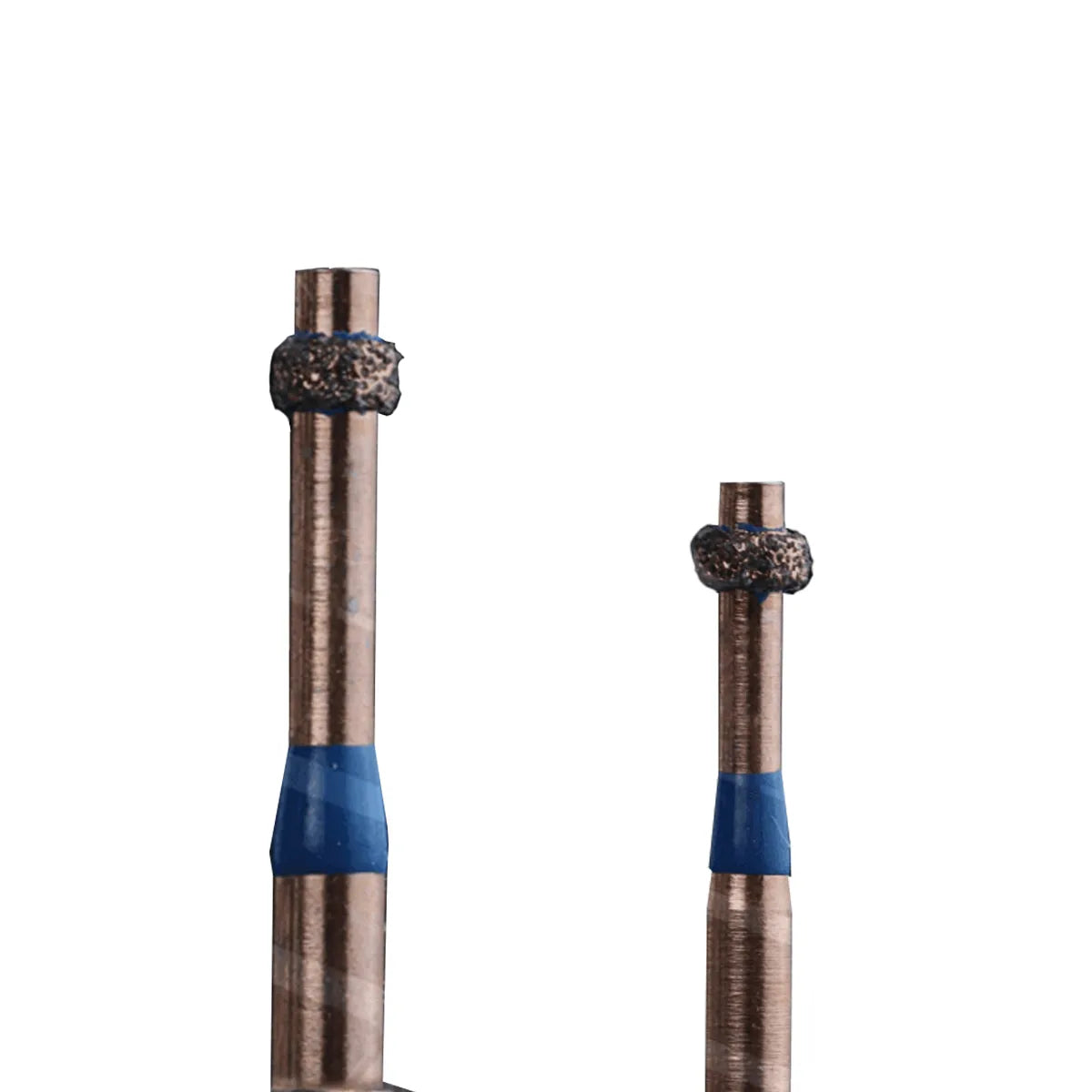

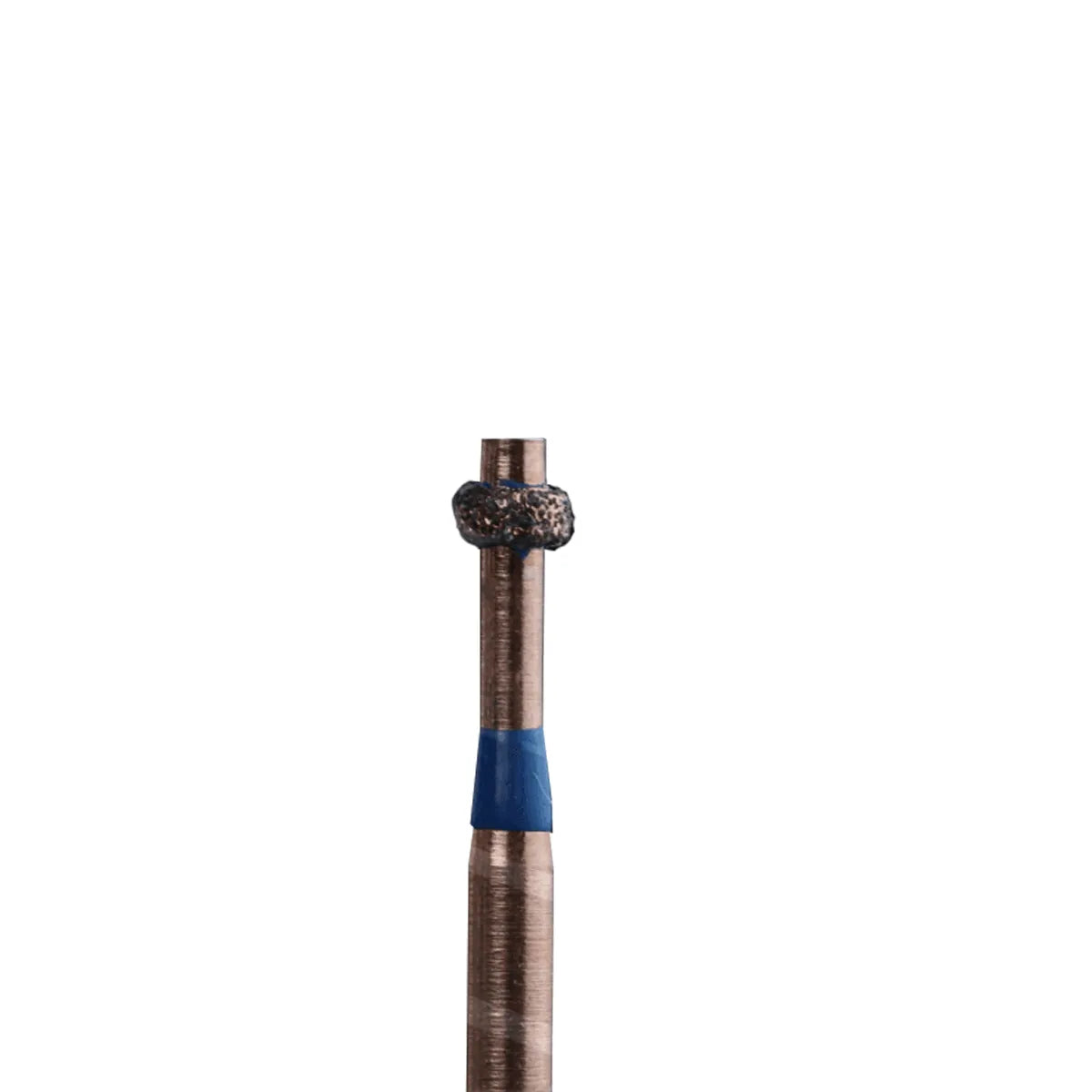

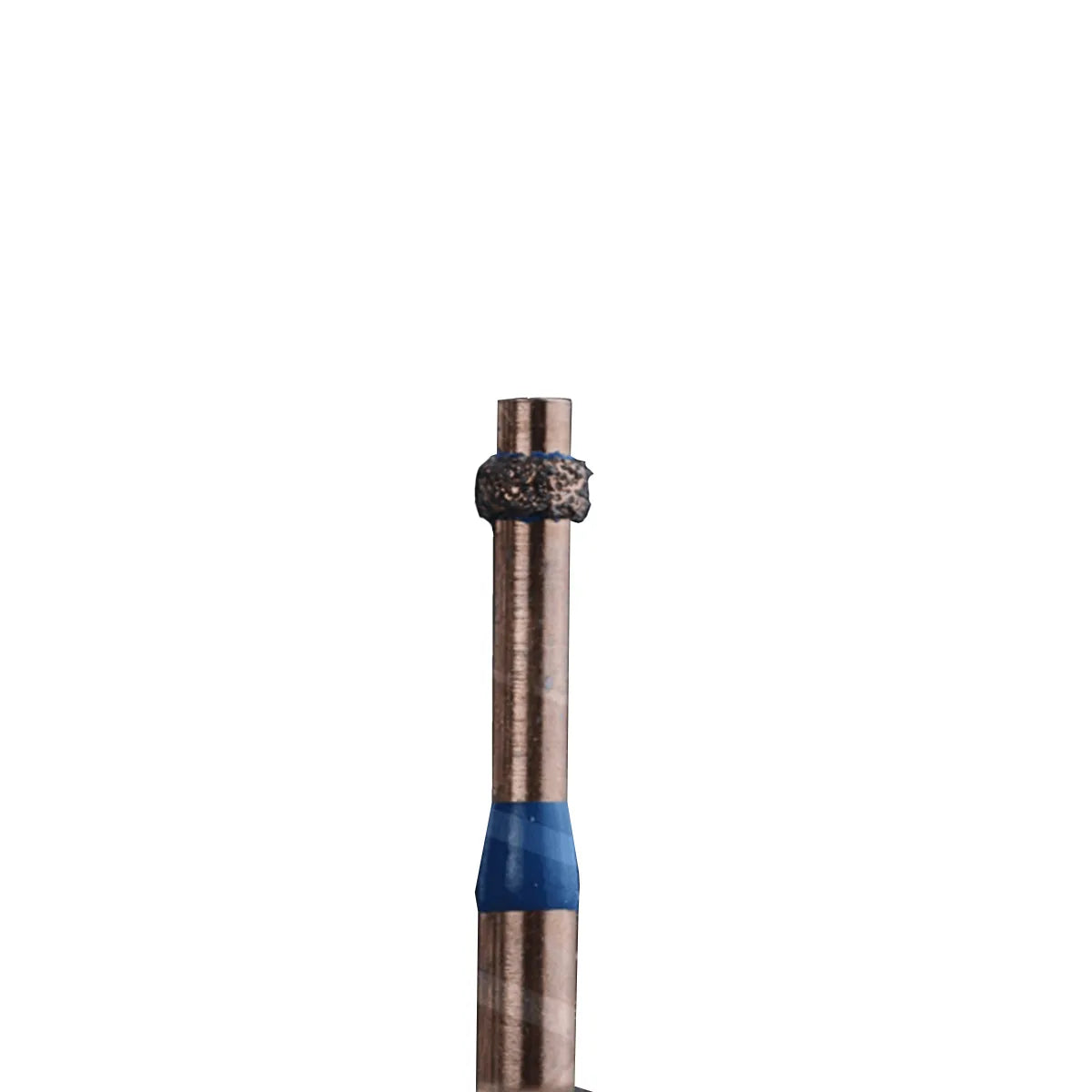

Mik Self-Limiting Depth Gauge FG Diamond Burs (Pack of 5)
Mik Self-Limiting Depth Gauge FG Diamond Burs (Pack of 5)
Couldn't load pickup availability
Mik Self-Limiting Depth Gauge FG Diamond Burs are specialized dental tools designed for precise tooth preparation. With a working diameter of 0.3 mm, these single-tier burs feature non-cutting shanks extending above and below the working surface. This unique design ensures the creation of depth grooves measuring 0.3 mm, irrespective of the tooth's labial curvature. Ideal for use in preparing teeth for laminate veneers, these burs offer consistent and controlled depth reduction, especially effective on the cervical aspect of the tooth where enamel is thin. Packaged in sets of five, they provide reliability and convenience for dental professionals performing intricate procedures requiring precise depth control.
PLV 0.3:-
- Single-tier, self-limiting depth gauge bur, 0.3mm diameter. Non-cutting shank ensures consistent 0.3mm depth grooves on any tooth curvature.
PLV 0.5:-
- PLV 0.5: Single-tier, self-limiting depth gauge bur, 0.5mm diameter. Non-cutting shank for consistent 0.5mm depth grooves on any tooth curvature.
Features
Features
- Single-tier design
- Self-limiting depth gauge
- Non-cutting shank extends above and below the working surface
- Ensures the creation of depth grooves measuring 0.5 mm
- Consistent depth regardless of tooth curvature
Description
Description
Specification
Specification
- Diamond-coated for precision cutting.
- Durable stainless steel construction.
- Rigorous quality control testing.
- Sterilization: Can withstand sterilization for hygiene.
Working Diameter:
- PLV 0.5 - 0.5mm
- PLV 0.3 - 0.3mm
Packaging
Packaging
- 1 x Single Tier, Depth Gauge Bur (PLV 0.3)
- 1 x Single Tier, Depth Gauge Bur (PLV 0.5)
Direction to use
Direction to use
- Ensure the bur is securely attached to the dental handpiece.
- Select the appropriate tooth for preparation.
- Position the bur against the tooth surface where depth grooves are required.
- Apply gentle pressure and activate the handpiece.
- Allow the bur to penetrate the enamel, creating depth grooves.
- Monitor the depth to ensure it reaches 0.5 mm.
- Once the desired depth is achieved, disengage the handpiece.
- Repeat the process as needed for additional depth grooves or other teeth.
- Exercise caution to avoid excessive pressure, which could lead to over-reduction of tooth structure.
- Dispose of the used bur properly after completing the procedure.
Additional info
Additional info
Warranty
Warranty
- Warranty is not applicable for this product.
Product Related Questions
Product Related Questions
Question: Is the PLV 0.5 bur disposable?
Answer: Yes, it is recommended to dispose of the bur after single use to maintain optimal performance and hygiene standards.
Question: How does the PLV 0.5 bur ensure accuracy?
Answer: It features a self-limiting depth gauge and a non-cutting shank design, ensuring consistent 0.5 mm depth grooves regardless of tooth curvature.
Question: What is the PLV 0.5 bur used for?Answer: The PLV 0.5 bur is used for creating precise depth grooves during tooth preparation for various dental procedures.
