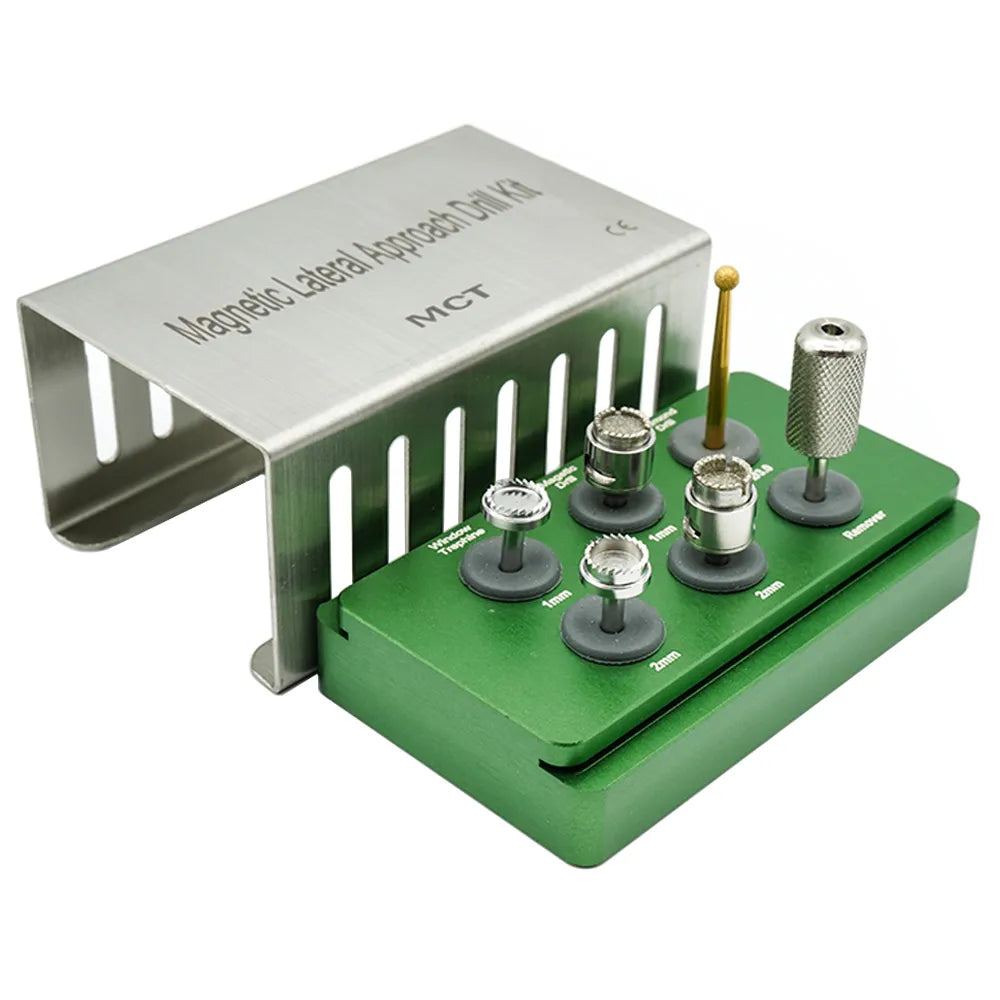

MCTBIO Magnetic Sinus Lateral Approach Kit (MLA-01)

Magnetic Intelligence Drills: Featuring patented
Magnetic Intelligence drills, the kit ensures secure and precise drilling into the maxillary bone without compromising the sinus membrane.

MASAI System: The kit incorporates the Magnetic
Sinus Artificial Intelligence (MASAI) system, offering advanced technology for clean and deep drilling into the maxillary bone while preventing damage to the surrounding sinus membranes.

Safety Cutoff Mechanism: The MASAI drills are
equipped with a unique magnetic safety system that executes a safe cutoff by separating the bit via magnetic forces, reducing the risk of sinus membrane damage.

Grooved Blade Design: The diamond MASAI drill's
grooved blade enhances cutting efficiency while preventing damage to the sinus membrane, ensuring a safe and controlled drilling process.

Rim for Sinus Penetration Prevention: The MASAI
drill features a rim designed to prevent sinus penetration after the bone has been punctured, adding an extra layer of safety to the procedure.

Automatic Magnet Disengagement: The MASAI drill's special magnets automatically disengage once the drill passes through the bone, ceasing rotation and minimizing the risk of over-penetration.

Effective Sinus Lifts: Specifically designed for
the lateral approach, this kit ensures effective and safe elevation of the sinus membrane, reducing the risk of complications associated with sinus lifts.

Optimal Membrane Protection: The kit's features and
design prioritize the protection of the sinus membrane, allowing for safe and controlled procedures with minimal risk.

Innovative Technology: Representing a pinnacle of
innovation, the Magnetic Sinus Lateral Approach Kit by MCTBIO introduces cutting-edge technology to enhance precision, safety, and overall success in sinus lift procedures.

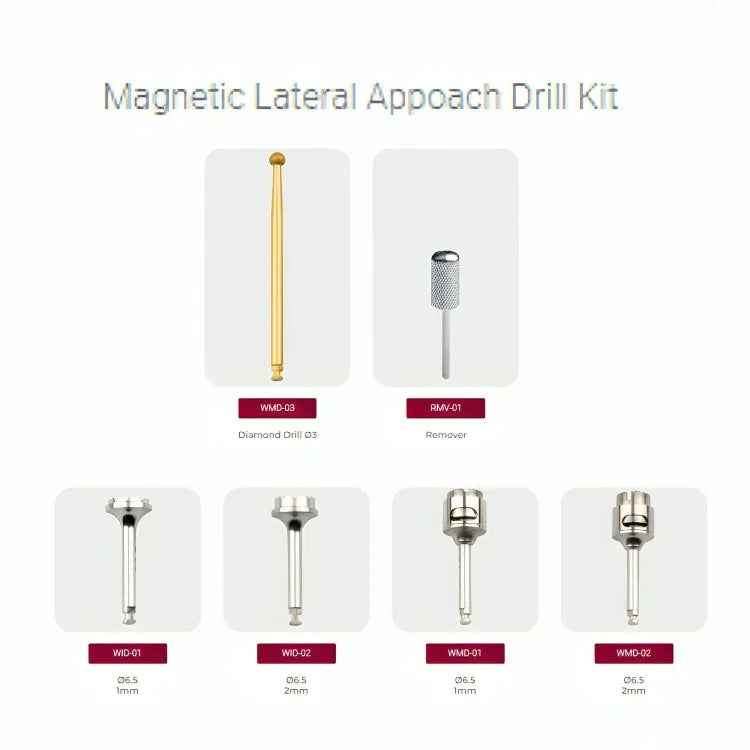

• Diamond Drill Diameter: ∅3
• Window Trephine/ Magnetic Drill Diameter: ∅6.5
• Window Trephine/ Magnetic Drill Length: 1mm, 2mm

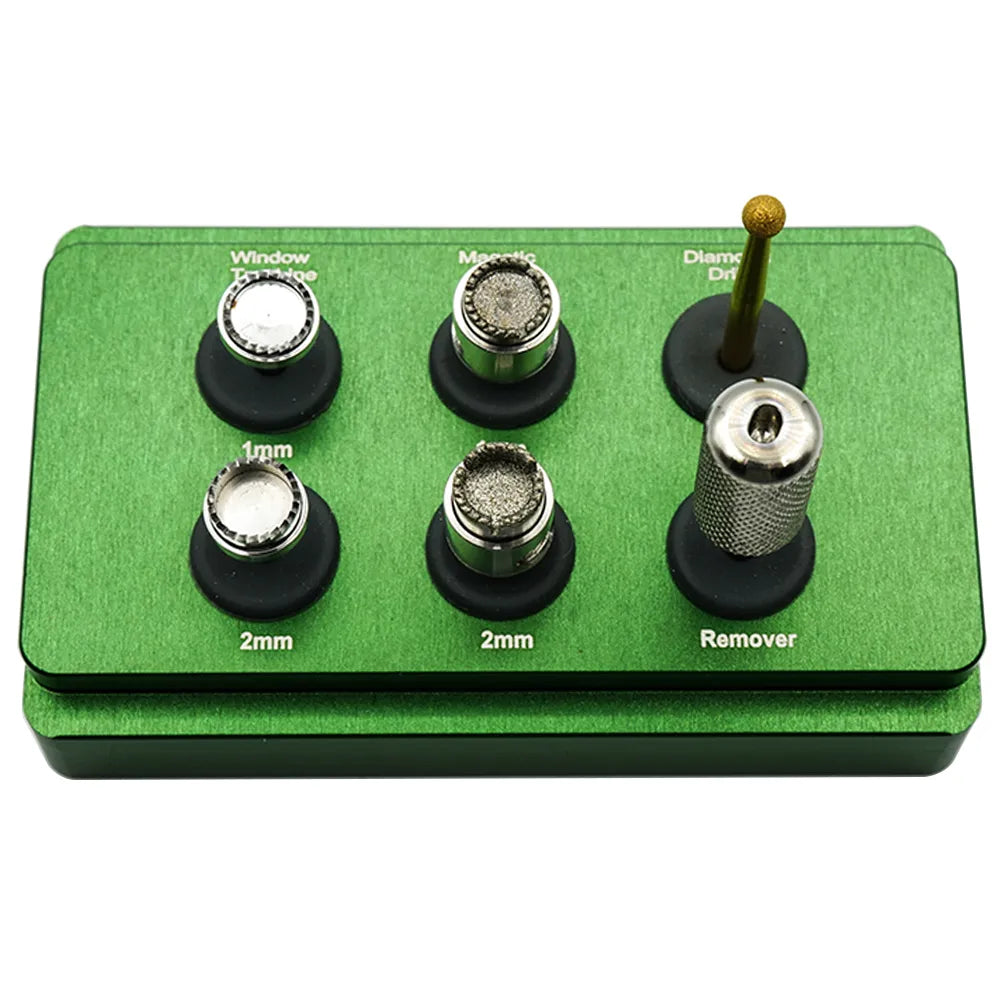

• 1 x Remover (to help separate parts of the magnetic drills)
• 1 x Diamond Drill
• 2 x Magnetic Drills
• 2 x Window Trephines

• Preparation:  Ensure proper sterilization of all
  kit components before use. Confirm the integrity and sharpness of the Magnetic Sinus Artificial Intelligence (MASAI) drills.
• Patient Assessment: Evaluate the patient's
  suitability for a lateral approach sinus lift. Confirm the need for sinus augmentation based on diagnostic imaging.
• Anesthesia: Administer local anesthesia to the patient to ensure comfort during the procedure.
• Incision and Flap Creation: Make an appropriate incision and create a flap to expose the surgical site, ensuring optimal visibility.
• Selection of MASAI Drill: Choose the appropriate MASAI drill based on the planned depth and diameter of the sinus lift.
• Drilling Process: Insert the selected MASAI drill
  into the lateral aspect of the maxillary bone. Apply gentle and controlled pressure to initiate drilling, taking care to prevent excessive force.
• Safety Cutoff Mechanism: Utilize the unique
  magnetic safety system by allowing the MASAI drill to separate once it passes through the bone. Confirm the safe cutoff by observing the automatic disengagement of the magnets.
• Grooved Blade Features: Leverage the grooved blade design of the MASAI drill for efficient cutting while minimizing the risk of sinus membrane damage.
• Rim Utilization: Use the rim of the MASAI drill to prevent sinus penetration after the bone has been punctured.
• Confirmation and Evaluation: Verify the successful
  completion of the lateral approach sinus lift. Evaluate the membrane elevation and overall procedure outcomes.
• Closure: Close the incision site with appropriate sutures, following standard closure techniques.
• Postoperative Care: Provide postoperative instructions to the patient for optimal healing. Schedule follow-up appointments as needed.
• Documentation: Document the details of the
  procedure, including the MASAI drill used, depths achieved, and any relevant information for the patient's records.

• Country of Origin: South Korea
• Manufacturer: Mctbio Co. Ltd.

3 months warranty against manufacturing defects.
