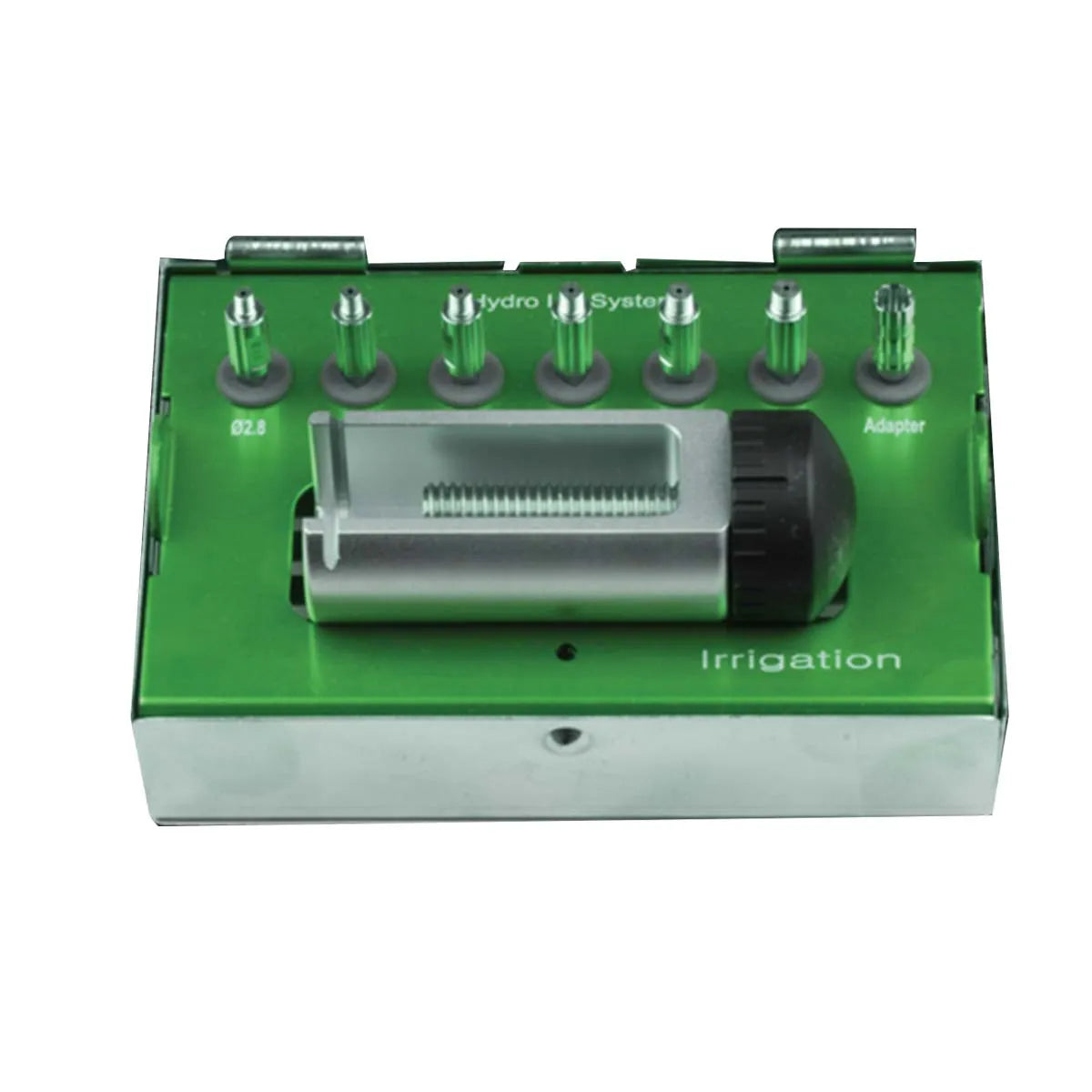

MCTBIO Hydraulic Sinus Lift Kit (WSL-01)

• Hydraulic pressure for gentle sinus elevation
• Versatile Aqua tips in various sizes
• Compatible with sinus elevation drills
• Sanitary disposable syringe for cleanliness
• Efficient crestal approach within 3mm
• Precise implantation of desired bone amount

• Sinus Membrane Elevation Method: Hydraulic Pressure

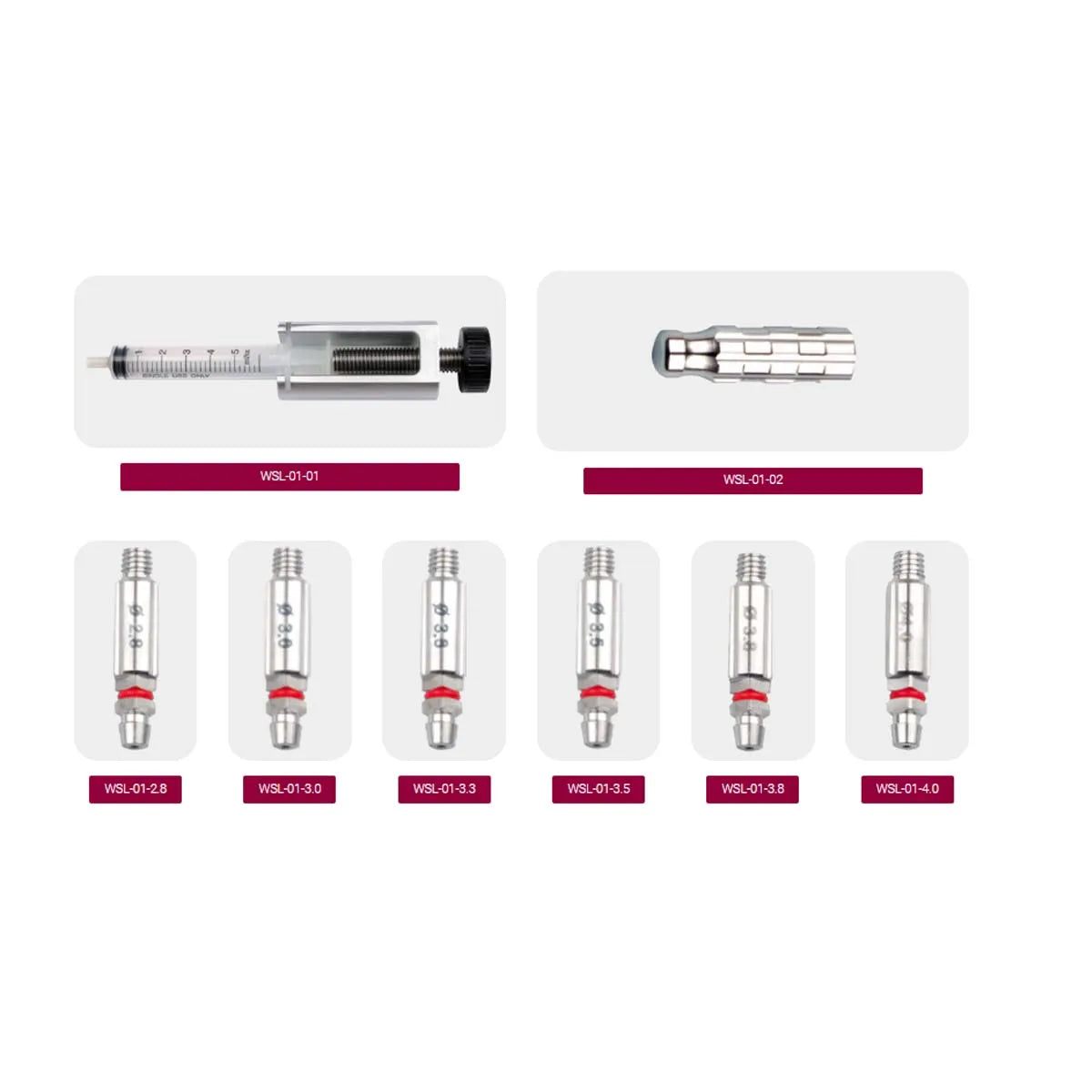

• Aqua Tip Sizes: 2.8, 3.0, 3.3, 3.5, 3.8, 4.0
• Compatibility: Sinus Elevation Drills
• Disposable Syringe: Yes (Sanitary Use)
• Time and Cost Efficiency: High

1 x Hydraulic Sinus Lift Kit

Prepare the Patient:

• Ensure proper patient assessment and consent.
• Review patient medical history and contraindications.

Setup and Sterilization:

• Sterilize the WSL-01 kit components according to standard protocols.
• Set up a sterile field with necessary tools and materials.

Select Aqua Tip Size:

• Choose the appropriate Aqua tip size (2.8, 3.0, 3.3, 3.5, 3.8, 4.0) based on the osteotomy site.

Connect Aqua Tip to Hydraulic System:

• Attach the selected Aqua tip securely to the hydraulic system.

Compatibility Check:

• Ensure compatibility with the chosen maxillary sinus elevation drill.

Disposable Syringe Preparation:

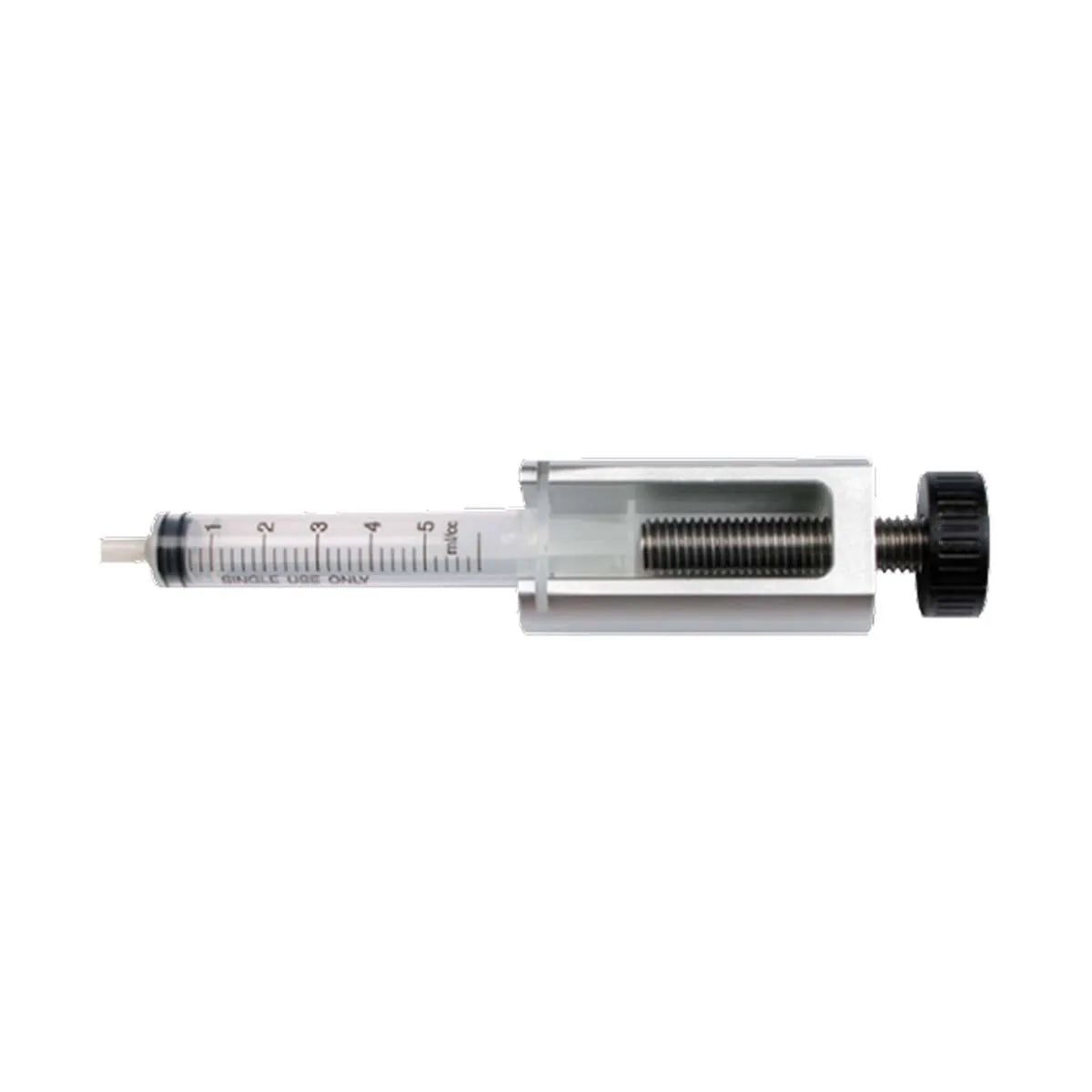

• Insert the disposable syringe into the MCTBIO Patented Aqua Syringe Holder.
• Secure it by turning the black knob until firmly in place.

Crestal Approach:

• Perform a crestal approach within 3mm of residual bone for time and cost efficiency.

Hydraulic Sinus Membrane Elevation:

• Gently push the syringe, maintaining continuous and steady pressure to lift the maxillary sinus membrane without tearing.

Monitor and Adjust:

• Monitor the membrane elevation progress and adjust pressure as needed.

Implantation:

• Once the desired membrane elevation is achieved, proceed with easy implantation of the required bone amount.

Post-Procedure:

• Follow post-procedure care protocols.
• Dispose of the used Aqua tip and syringe in accordance with biohazard waste guidelines.

Documentation:

• Document the procedure details, including Aqua tip size, pressure settings, and any notable observations.

• Manufacturer: Mctbio Co. Ltd.
• Country of Origin: South Korea

• 3 months warranty against manufacturing defects.

Question: What is the primary function of the WSL-01 kit?
Answer: The WSL-01 is designed for hydraulic sinus membrane elevation during dental procedures.

Question: How do I choose the right Aqua tip size?Answer: Select Aqua tip size based on the osteotomy site; options range from 2.8 to 4.0.

Question: Is the kit compatible with specific drills?Answer: Yes, the kit is compatible with a variety of maxillary sinus elevation drills.

Question: How does the disposable syringe contribute to hygiene?
Answer: The disposable syringe ensures a sanitary membrane elevation, promoting cleanliness during procedures.

Question: Can the WSL-01 perform crestal approaches efficiently?
Answer: Yes, the kit allows for crestal approaches within 3mm of residual bone, saving time and costs.

Question: What are the advantages of the hydraulic pressure system?
Answer: Hydraulic pressure offers a controlled lift without tearing, ensuring precision in membrane elevation.
