Mani Endo Access Diamond Burs

• Long-life diamond burs
• Quality control tested
• High precision with efficient cutting
• Fine-quality Diamond Burs
• Efficient cutting

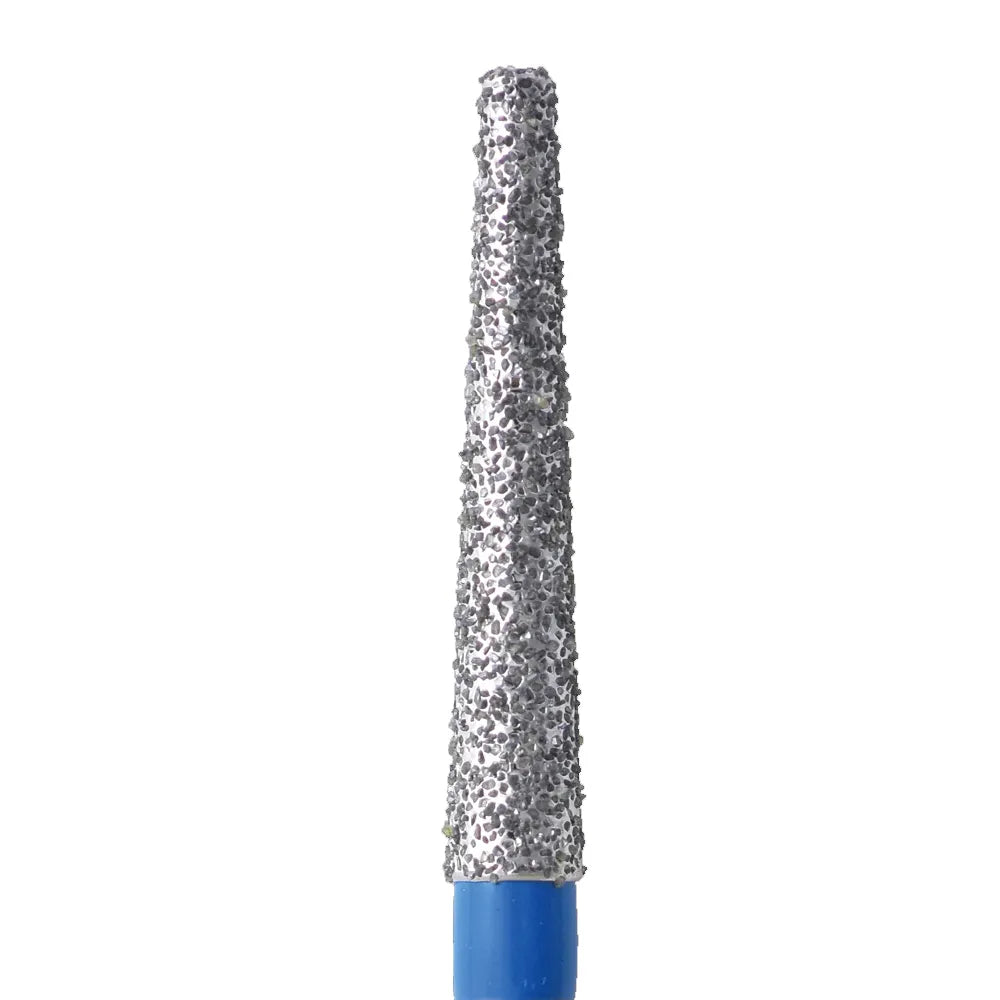

Mani Endo Access Diamond Burs is an endodontic bur used in endodontic access cavity preparation. The design of the bur is a combination of round and cone-shaped course diamond which allows access into the pulp chamber and preparation of the chamber walls, in one operation.

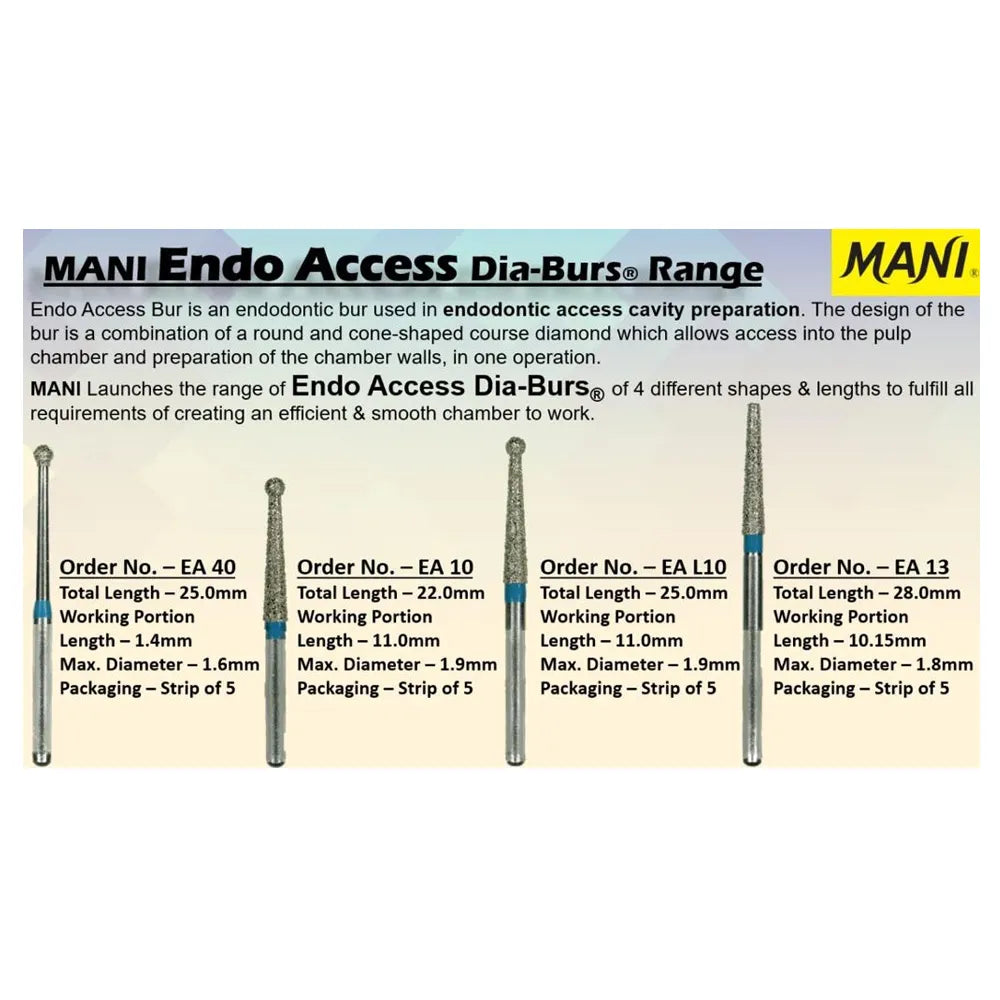

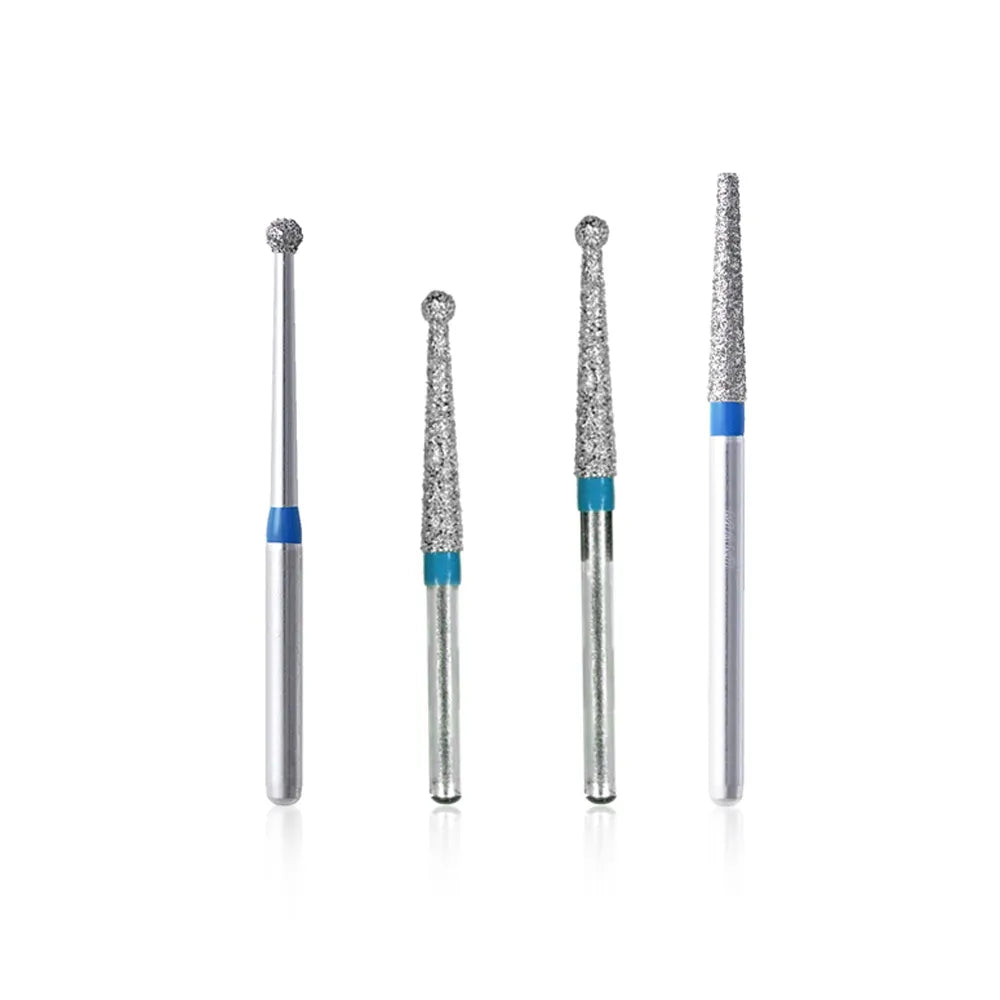

Mani Endo Access Diamond Burs come in 4 different shapes and lengths to fulfill all requirements of creating an efficient and smooth chamber to work.

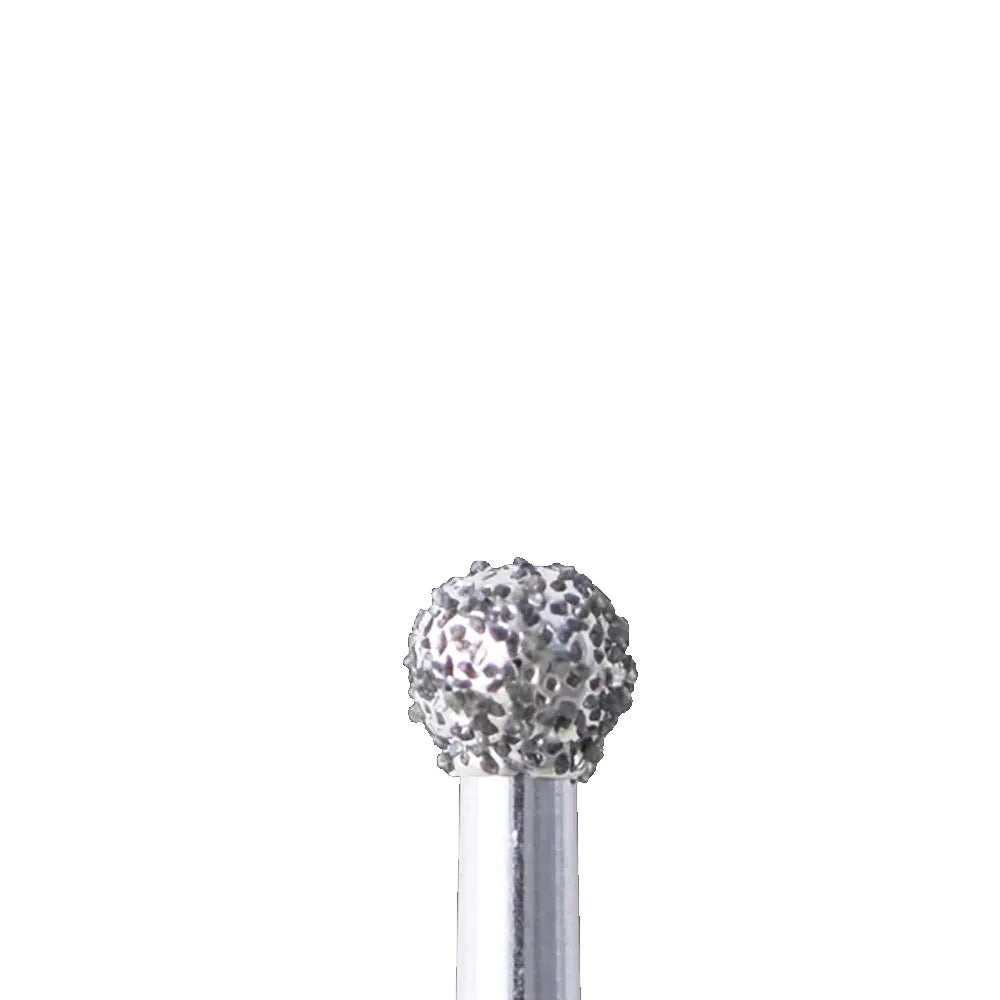

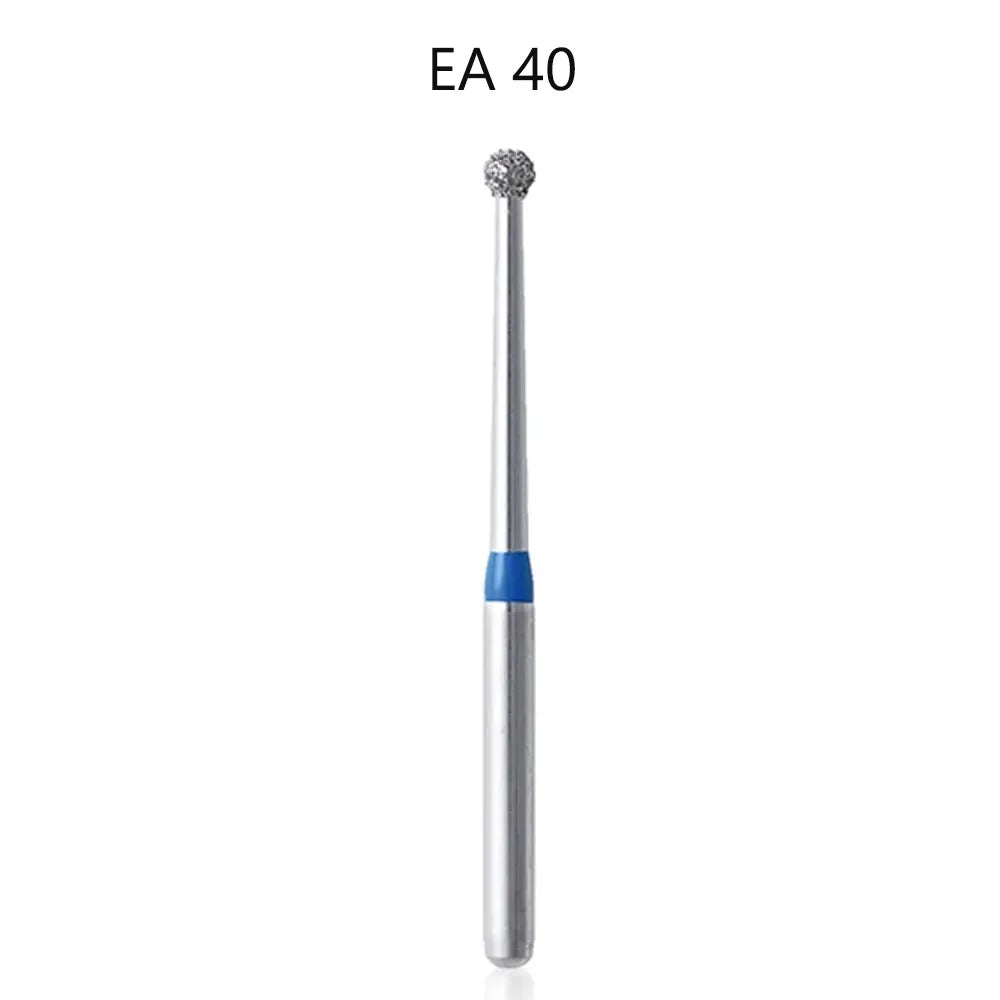

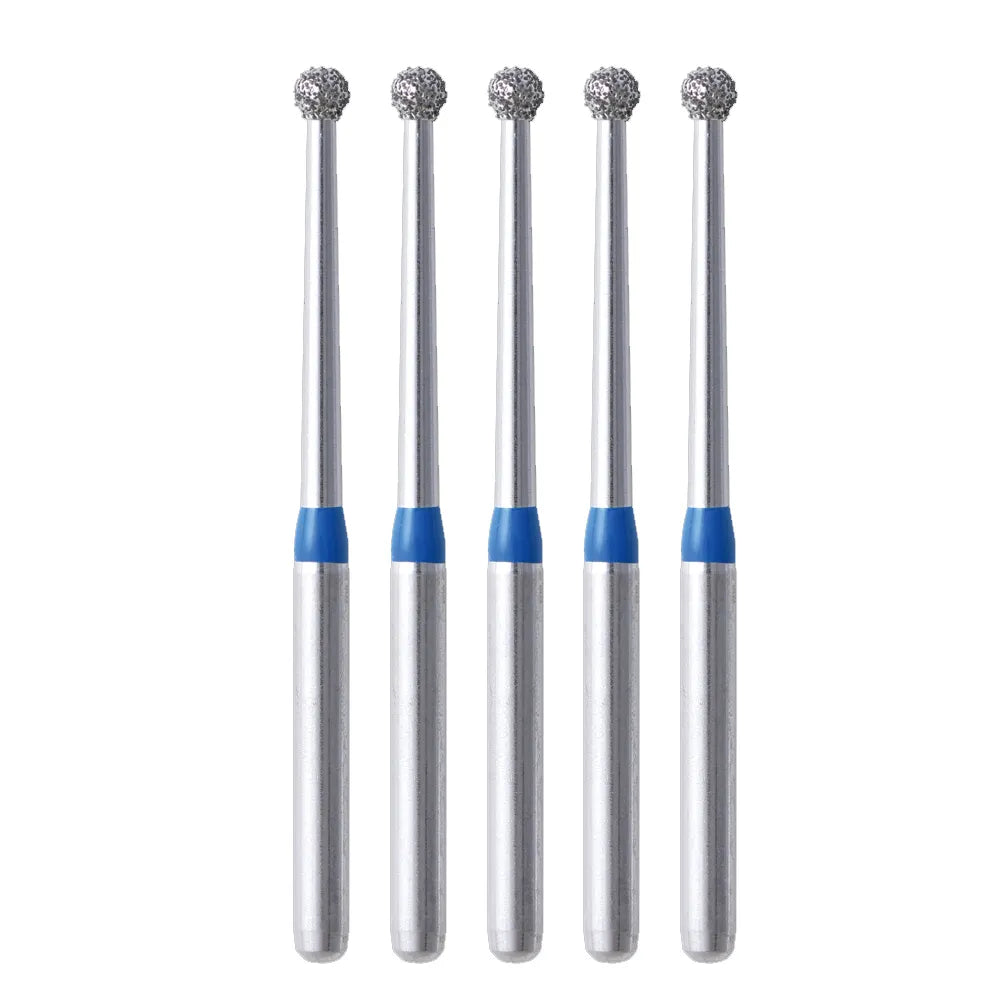

Bur EA 40

• Total Length – 25.00 mm
• Working Portion Length – 1.4 mm
• Max. Diameter – 1.6 mm

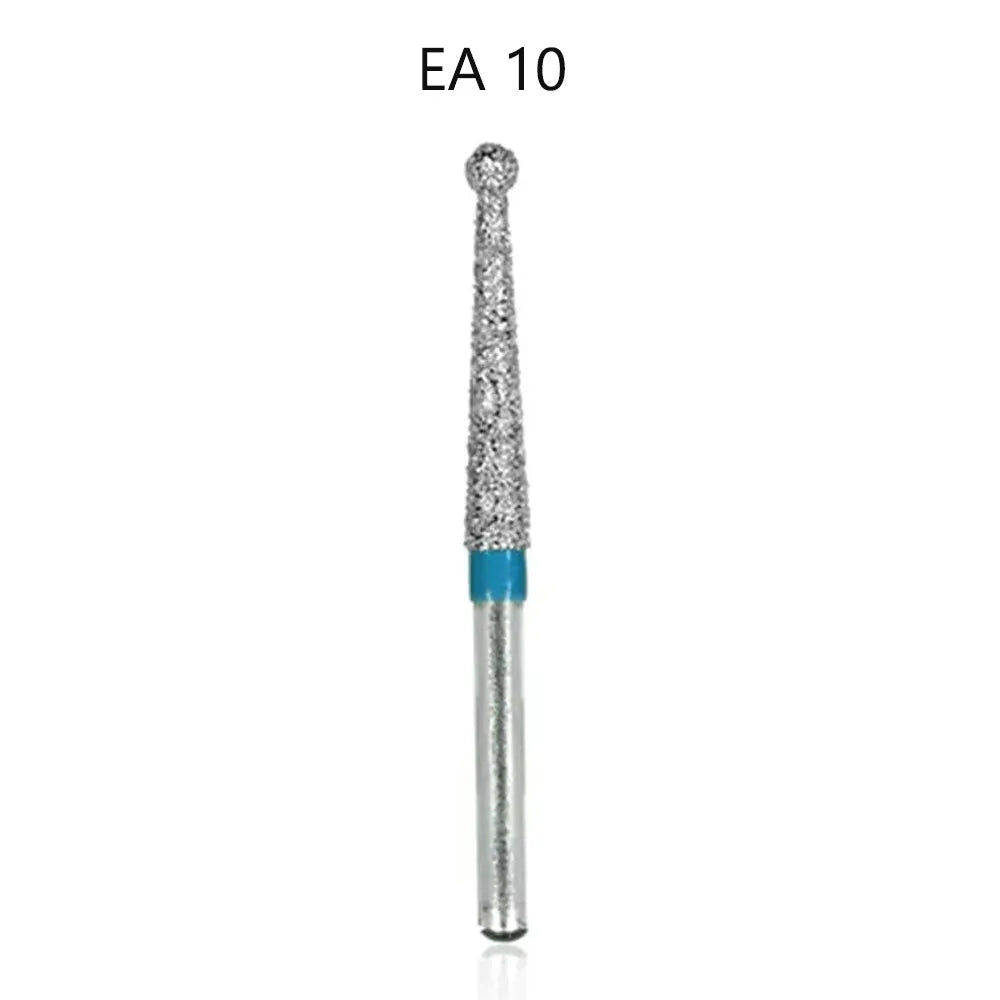

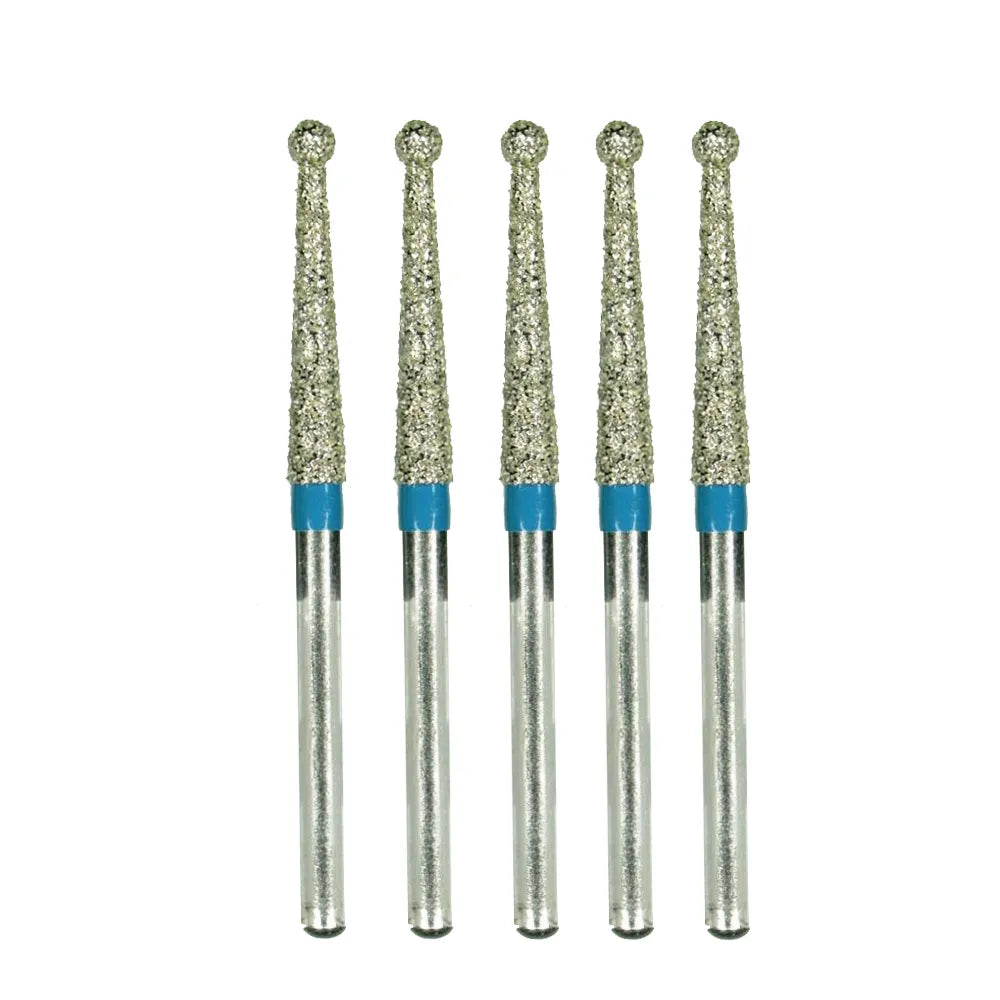

Bur EA 10

• Total Length – 22.00 mm
• Working Portion Length – 11 mm
• Max. Diameter – 1.9 mm

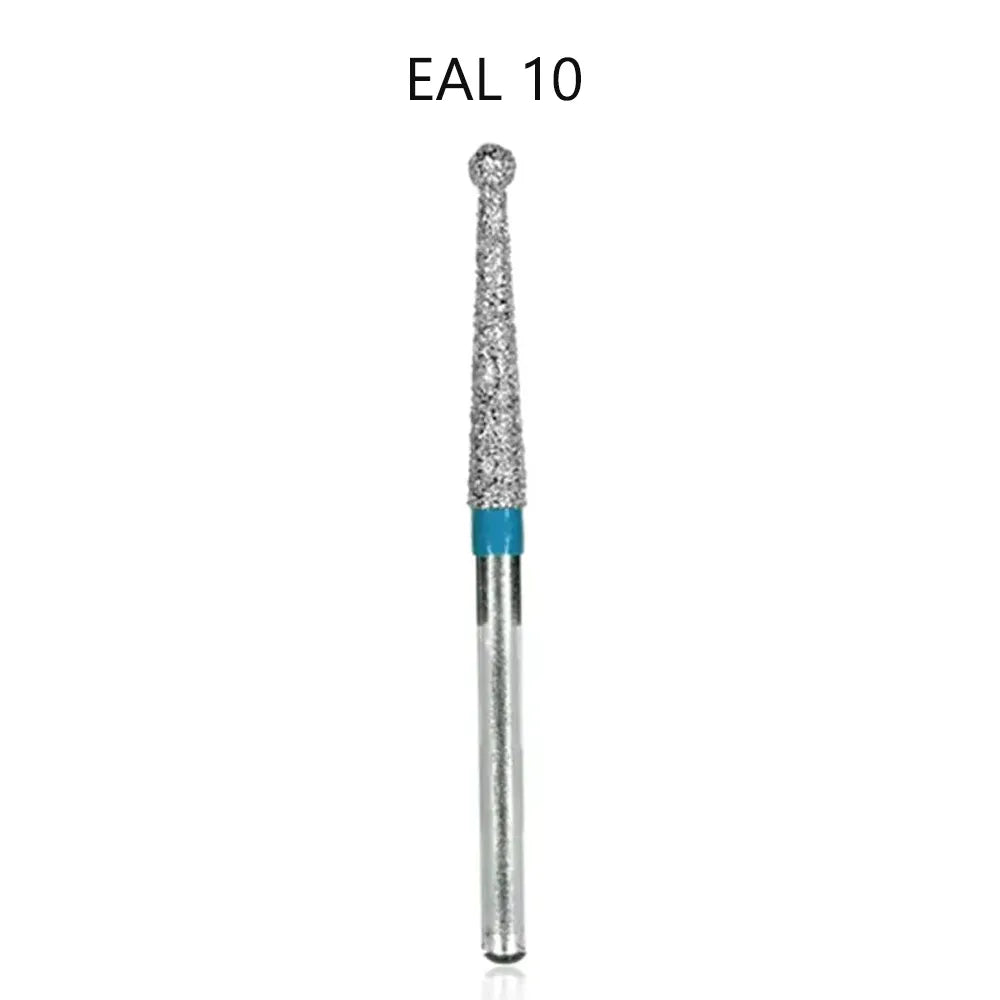

Bur EA L10

• Total Length – 25.00 mm
• Working Portion Length – 11 mm
• Max. Diameter – 1.9 mm

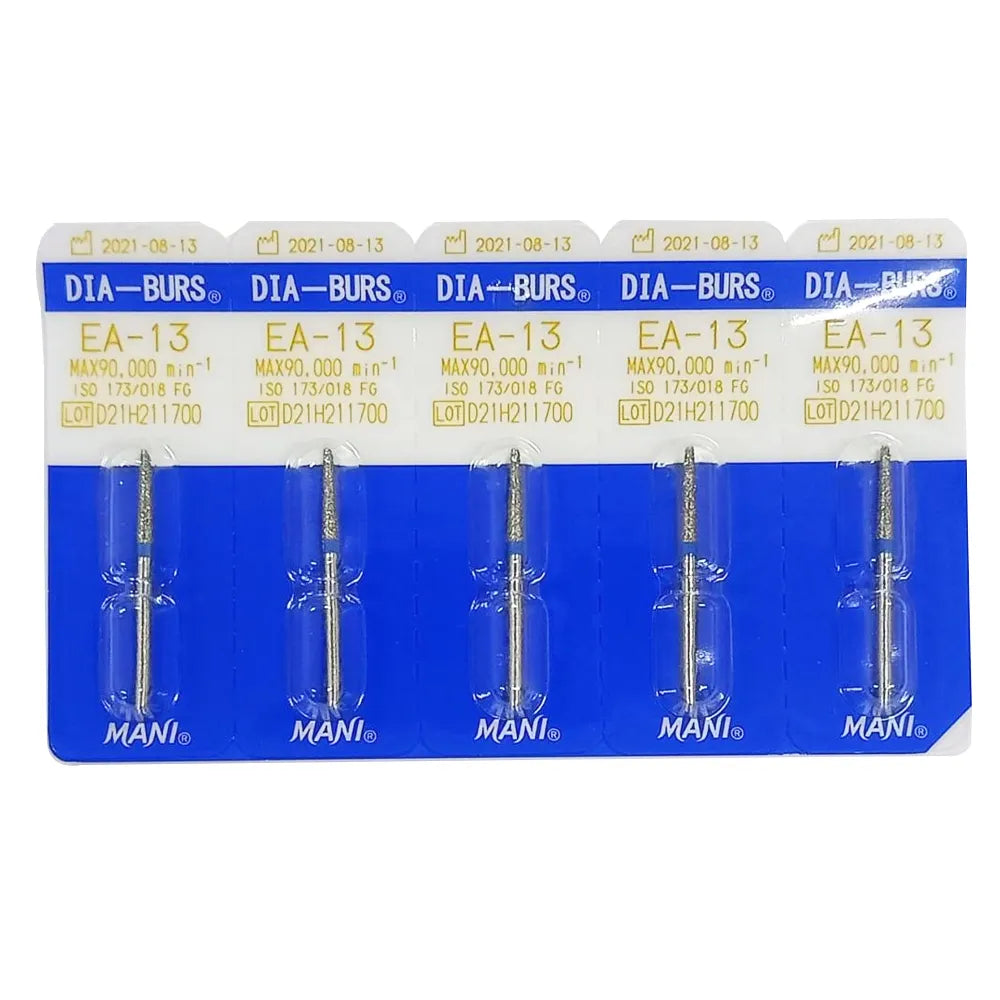

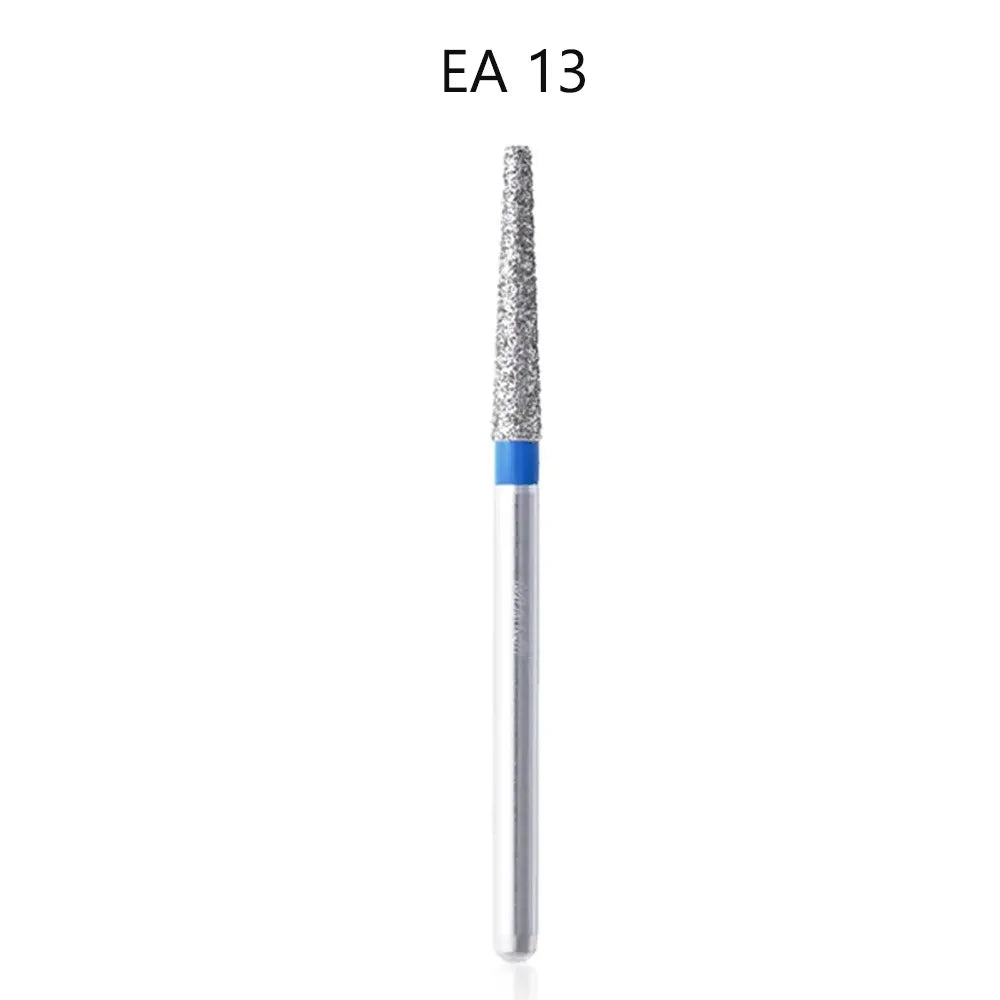

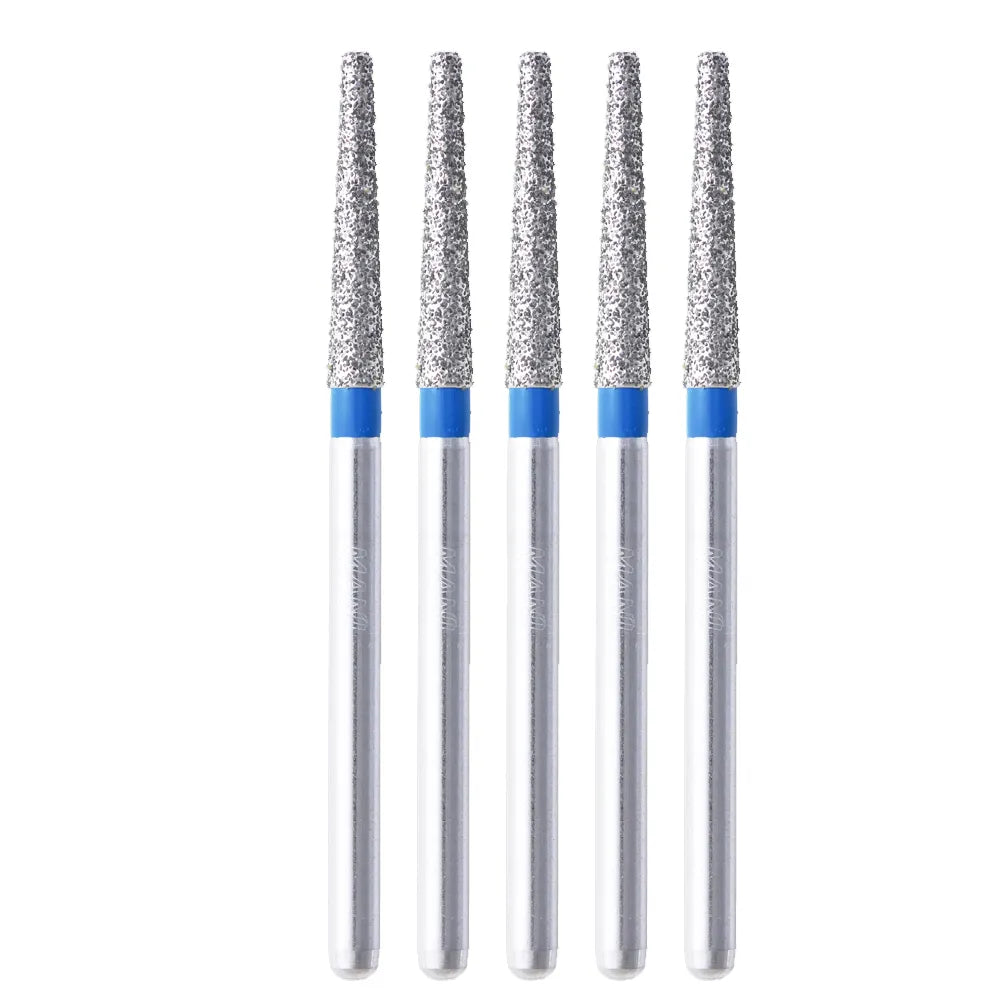

Bur EA 13

• Total Length – 28.00 mm
• Working Portion Length – 10.15 mm
• Max. Diameter – 1.8 mm

• Pack of 1 bur.

Prepare the Operative Field:

• Ensure the patient is comfortably positioned.
• Administer local anesthesia as needed for pain control.
• Isolate the tooth with a rubber dam to maintain a dry operating field.

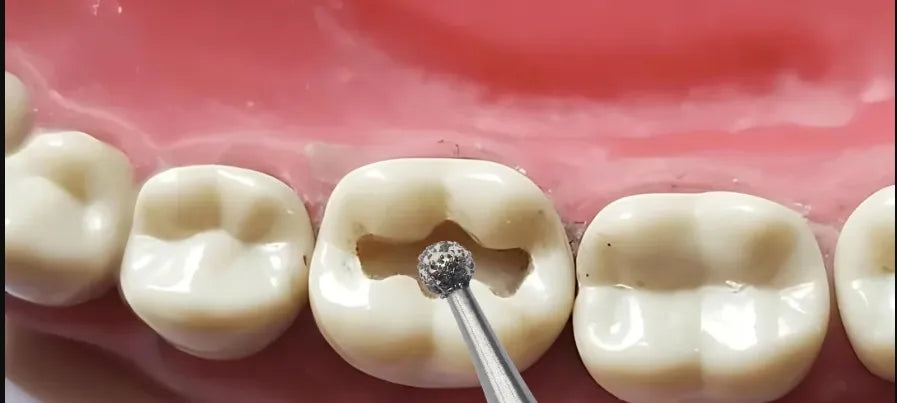

Access Cavity Preparation:

• Begin with a preliminary examination and assessment of the tooth.
• Use the selected Mani Endo Access Diamond Bur to initiate the access cavity preparation. The combination of round and cone-shaped coarse diamonds in these burs is designed for efficient cutting and preparation.
• Progressively shape the access cavity to provide proper visualization and access to the pulp chamber and root canals.

Irrigation and Cleaning:

• Throughout the procedure, use irrigation to flush out debris and cool the bur. This helps maintain a clear field of view and prevents overheating of the tooth.

Evaluate and Proceed:

• Once the access cavity is prepared, assess the cleanliness and accessibility to the pulp chamber and root canals.
• Proceed with the next steps of the root canal treatment, such as cleaning, shaping, and obturation.

Post-Operative Care:

• Provide appropriate post-operative instructions and consider the need for temporary or permanent restorations.

• Country of Origin: Made in Vietnam
• Manufacturer: Mani

• Warranty is not applicable for this product.

Question : Are Mani Endo Access Diamond Burs suitable for use in pediatric dentistry?
Answer: Yes, Mani Endo Access Diamond Burs can be used in pediatric dentistry.

Question : How can I choose the appropriate Mani Endo Access Diamond Bur for a specific procedure?
Answer: You can choose based on the type of tooth, the access required, or other specific factors.

Question : What is the working portion length of the Mani Endo Access Diamond Bur EA 10?
Answer: The working portion length of Mani Endo Access Diamond Bur EA 10 is 11 mm.

Question : What is the total length of the Mani Endo Access Diamond Bur EA 40?
Answer: The total length of Mani Endo Access Diamond Bur EA 40 is 25.00 mm.

Question : What are the key features of the Mani Endo Access Diamond Burs?
Answer: The key features include a combination of round and cone-shaped coarse diamond for efficient pulp chamber access and chamber wall preparation.

Question : How many different shapes and lengths do the Mani Endo Access Diamond Burs come in?Answer: The Mani Endo Access Diamond Burs come in 4 different shapes and lengths to fulfill various requirements.

Question : What is the Mani Endo Access Diamond Burs used for?
Answer: Mani Endo Access Diamond Burs are used for endodontic access cavity preparation.
