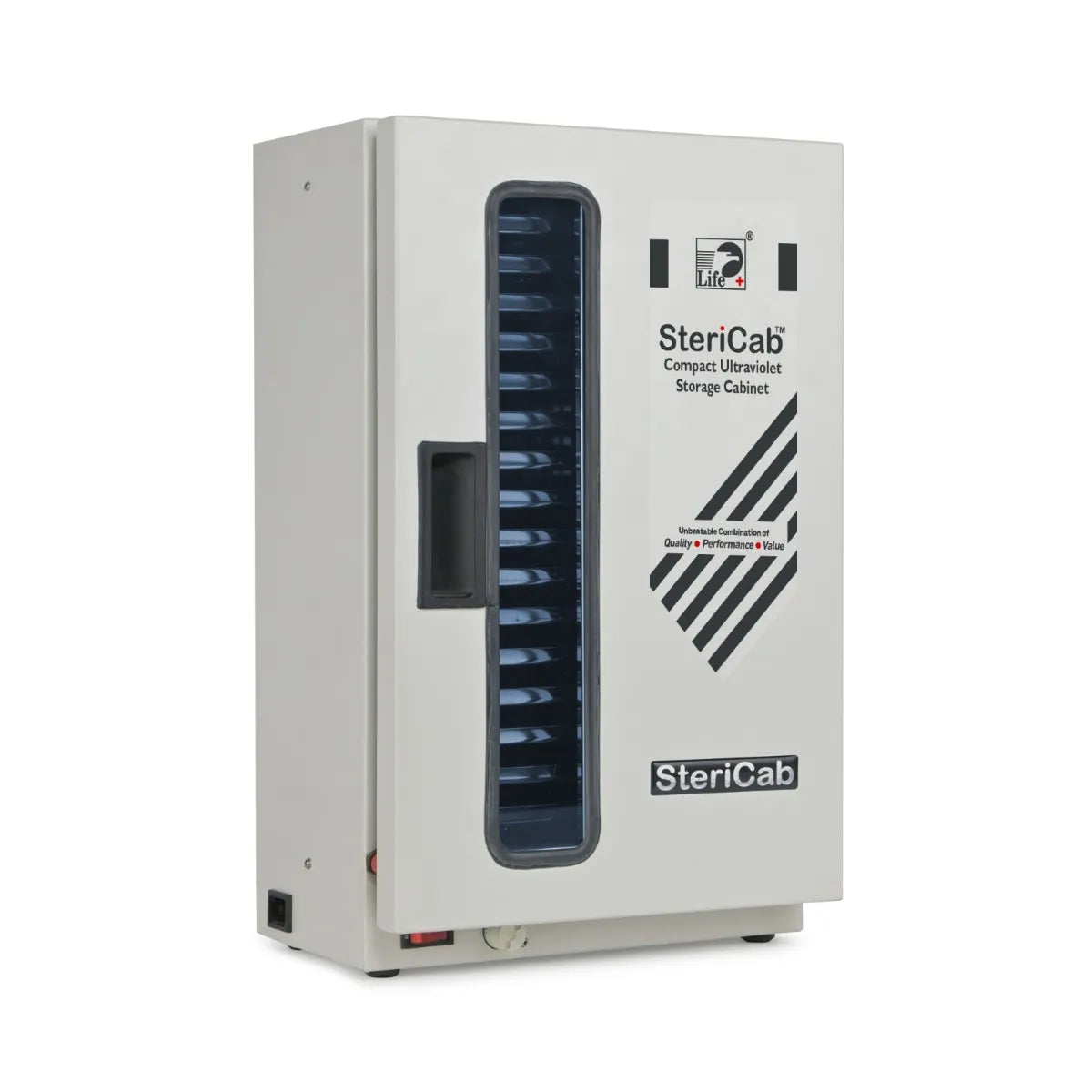

Life Steriware UV Chamber Without LED

• Rust-proof Construction: Fabricated with heavy gauge MS sheet and epoxy powder-coated finish for durability and resistance to rust.
• Effective Sterilization: Utilizes UV sterilization method with original Philips/Osram UV tubes, ensuring efficient germicidal effect.
• Reflective Inner Chamber: The inner chamber is made of rust-proof stainless steel with a bright mirror finish, enabling uniform reflection of UV rays for thorough sterilization.
• Tray Capacity Options: Available in various tray capacities (10/12/15/20/24/30), providing flexibility to accommodate different sterilization needs.
• Specialized Trays: Specially designed stainless steel die-pressed mirror finish compartment trays optimize space and organization of sterilized items.
• Safety Features: Equipped with a magnetic gasket on the door for secure sealing and a micro door switch to immediately cut off UV emission upon door opening, preventing accidental exposure.
• No LED Lights: Designed without LED lights for applications where lighting is not necessary or desired

• Outer Chamber Material: Heavy gauge MS (Mild Steel) sheet
• Finish: Epoxy powder-coated finish
• Tray Material: Stainless steel die-pressed mirror finish compartment trays
• Power Options: Operates with 220V, 50Hz power supply

• 1 x Life Steriware UV Chamber Without LED
• 17 x Stainless Steel Trays

Preparation:

• Place instruments or items to be sterilized on the stainless steel trays inside the chamber, arranging them to allow UV rays to reach all surfaces.

Closing the Door:

• Close the chamber door securely to activate the UV sterilization process.
• Verify that the magnetic gasket on the door creates a tight seal to prevent UV leakage.

Power Supply:

• Connect the SteriCab to a suitable 220V, 50Hz power supply.
• Ensure the power switch is in the OFF position before plugging in the device.

Power On:

• Turn on the power switch to initiate the emission of ultraviolet rays for sterilization.

Sterilization Time:

• Follow the recommended sterilization time based on the type and quantity of instruments. Refer to the product manual for specific recommendations.

Monitoring:

• Monitor the sterilization process. Some models may have indicators or lights to signify that the UV lamps are operational.

Opening the Door:

• After the sterilization cycle is complete, turn off the power switch.
• Allow a few moments for the UV lamps to power down completely before opening the chamber door slowly and cautiously.

Safety Precautions:

• Exercise caution when handling sterilized items, as they may be hot.
• Avoid direct exposure to UV rays. The micro door switch should have cut off the UV source when the door was opened, but still, exercise caution.

Cleaning and Storage:

• Regularly clean the chamber and trays to maintain hygiene.
• Store sterilized items appropriately, following standard storage procedures.

Question : Is UV tube light supplied with it?
Answer: Yes, the Life Steriware UV Chamber Without LED comes supplied with a UV tube light.
