Labodent Milling Instrument- Cross Cut Coarse

Labodent Milling Instrument- Cross Cut Coarse

Rs. 550.00
Rs. 1,840.00 Rs. 550.00
Sale Sold out

Types

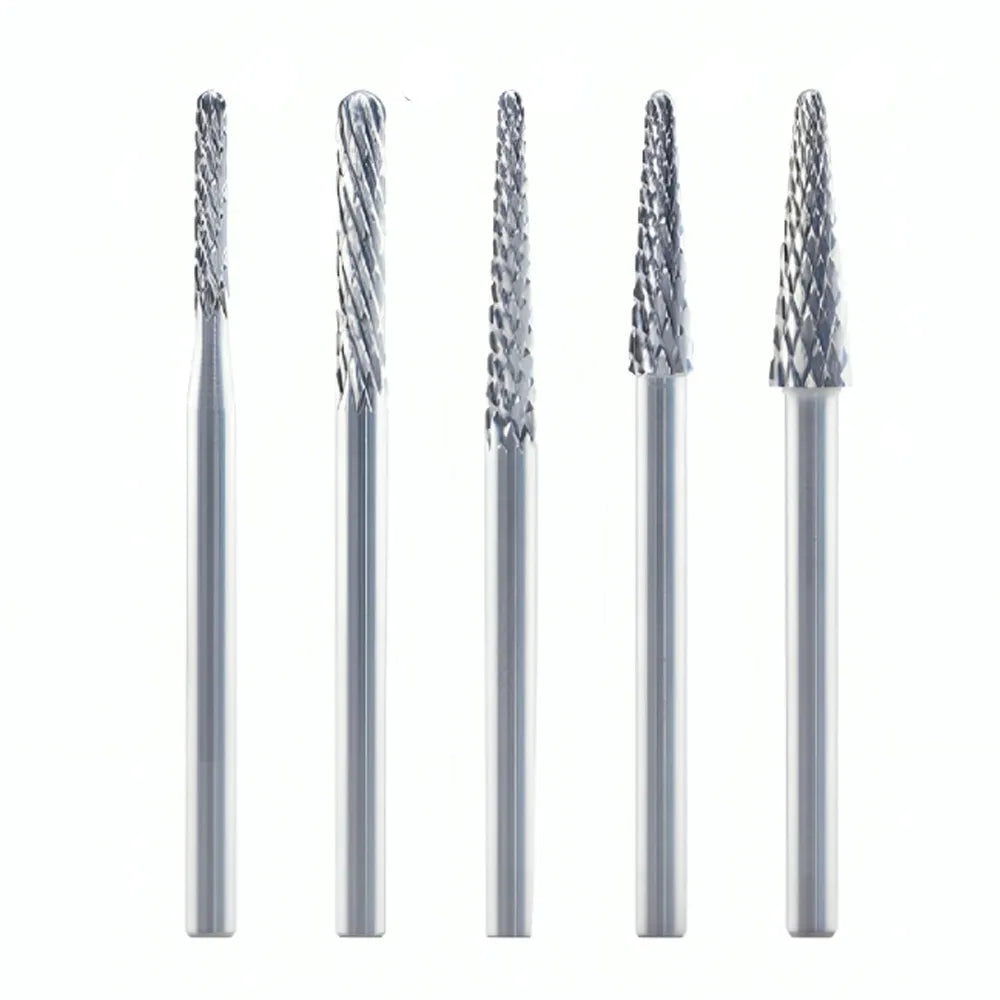

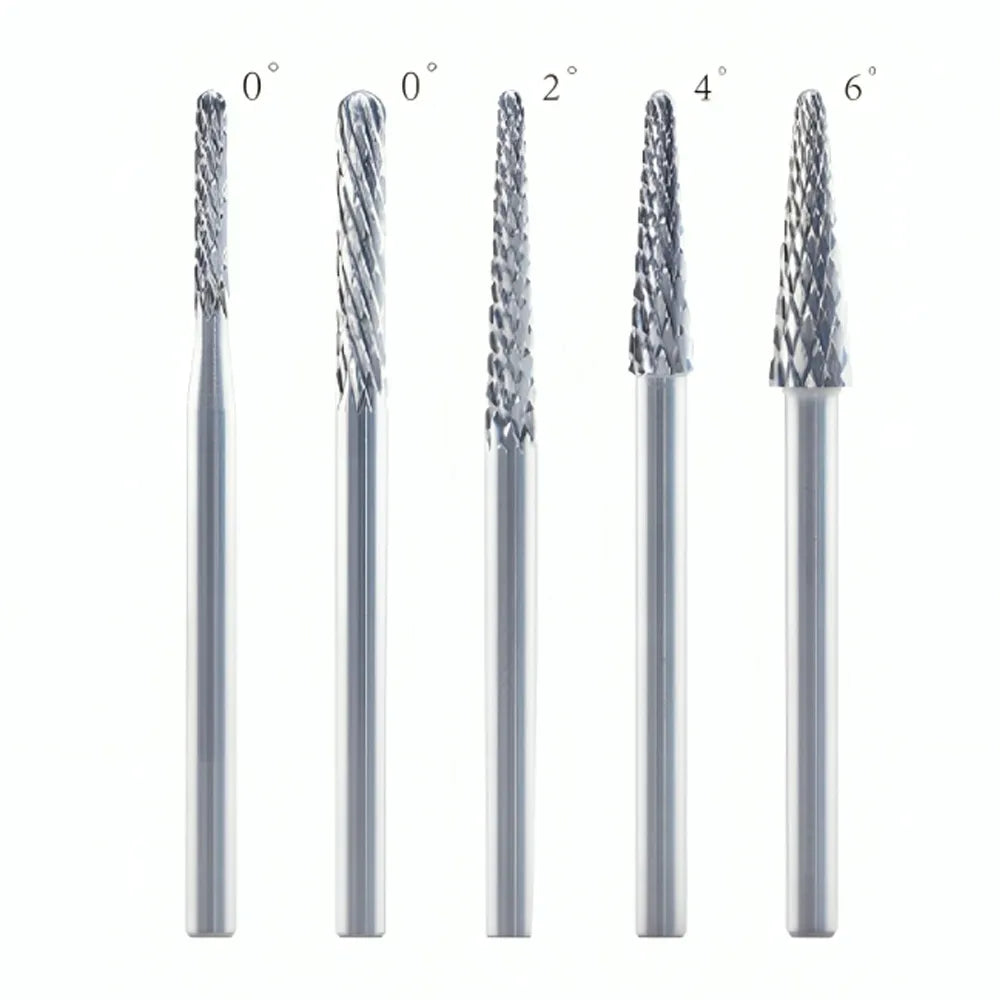

Labodent Milling Instruments, specifically the Cross Cut Coarse variants , are crafted from high-quality tungsten carbide, ensuring precision within ISO standards. These cutting-edge milling burs offer impeccable tolerance and boast an optimally coordinated geometry of the cutting blades, guaranteeing an extended service life and remarkable cutting capacity across a spectrum of materials. Whether working with precious or non-precious metals, as well as titanium, these milling instruments excel in versatility.

Designed with meticulous attention to detail, the Labodent Cross Cut Coarse Milling Instruments find their primary application in efficiently trimming the shoulder of tooth implants. This specific variant's coarse cross-cut design enhances its ability to tackle a wide range of dental materials with ease, delivering consistently reliable results. The instruments, labeled with unique identification numbers, exemplify Labodent's commitment to excellence in dental tools. Dental professionals can rely on these instruments to achieve precise and effective milling, contributing to the overall success and durability of dental prosthetics. In summary, Labodent's Cross Cut Coarse Milling Instruments stand as a testament to cutting-edge dental technology, combining longevity, precision, and versatility for optimal dental implant procedures.

Features

  • High-Quality Tungsten Carbide: Crafted from premium material for durability and precision.
  • ISO Conformity: Ensures strict adherence to international standards for reliable performance.
  • Coordinated Cutting Geometry: Optimal design for extended service life and enhanced cutting capacity.
  • Versatile Compatibility: Suitable for milling various materials, including precious metals and titanium.
  • Tooth Implant Application: Specifically designed for trimming the shoulder of dental implants.
  • Coarse Cross-Cut Design: Facilitates efficient material removal and supports versatile dental procedures.
  • Long-lasting Performance: Extra-long service life, minimizing the need for frequent replacements.

Description

Specification

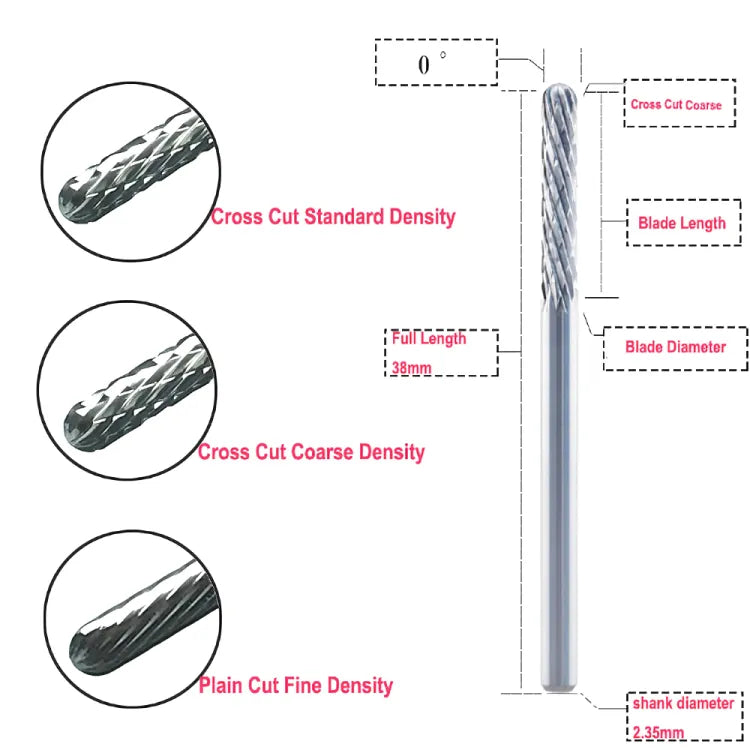

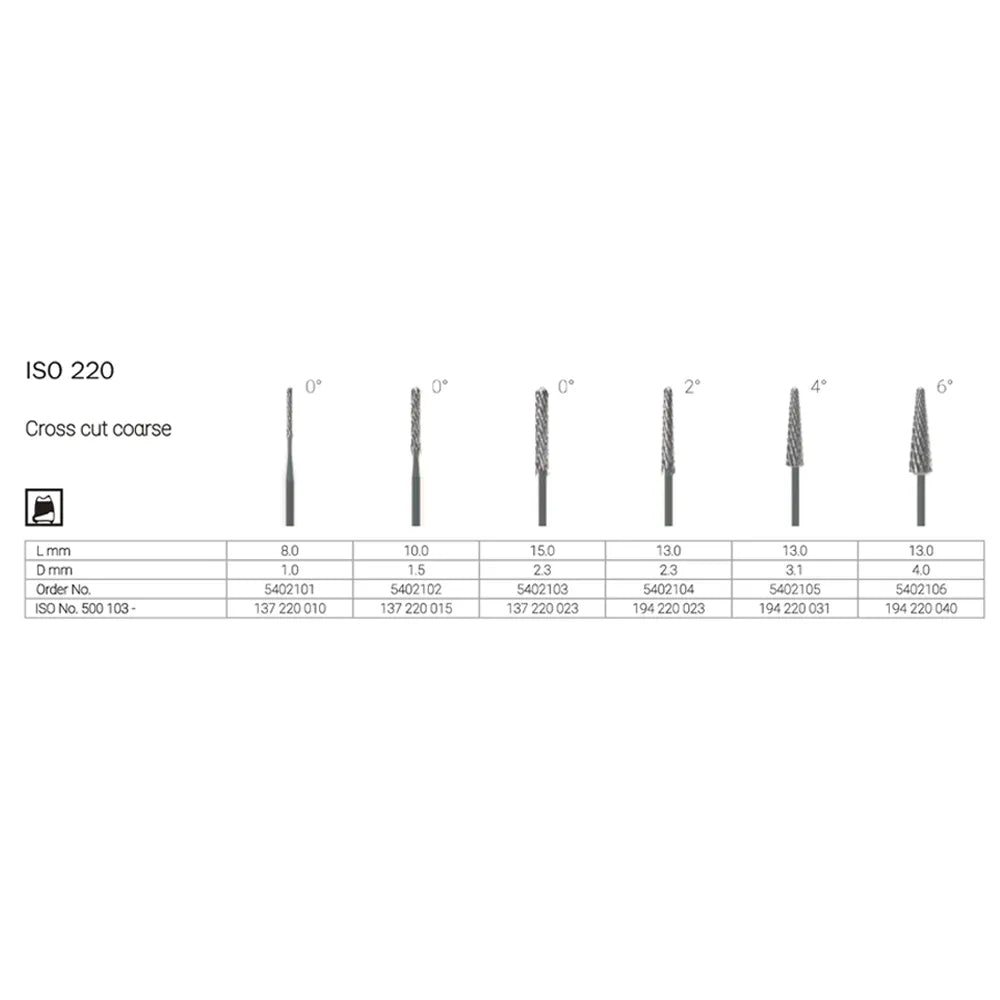

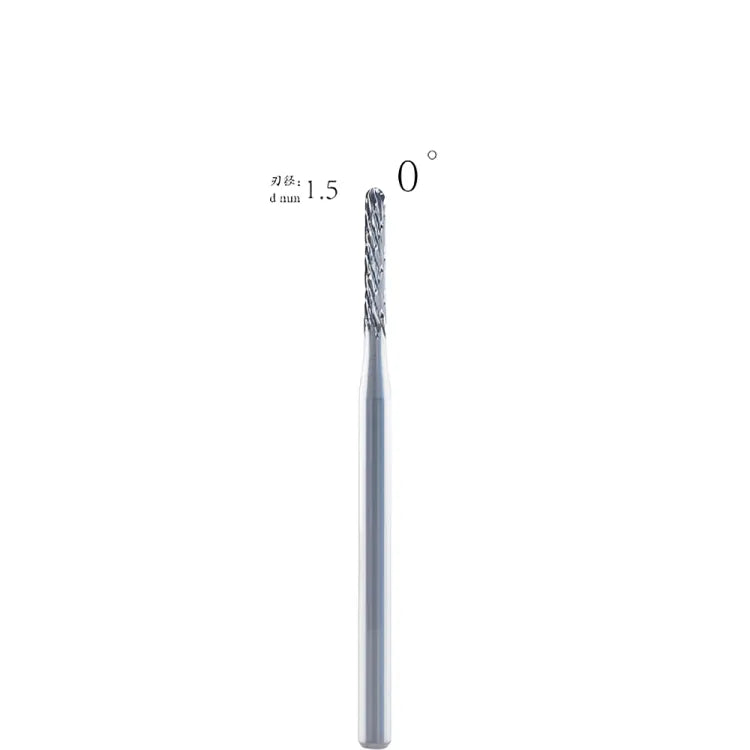

Labodent Milling Instrument- Crosss Cut Coarse (137.220.015)

  • Length-38mm
  • Diameter-1.5mm

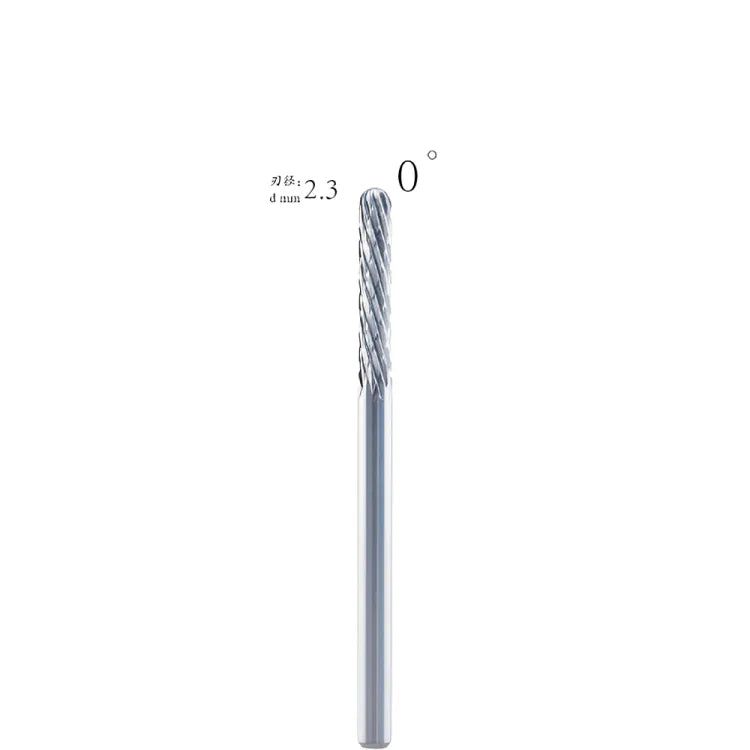

Labodent Milling Instrument- Crosss Cut Coarse (137.220.023)

  • Length-38mm
  • Diameter-2.3mm

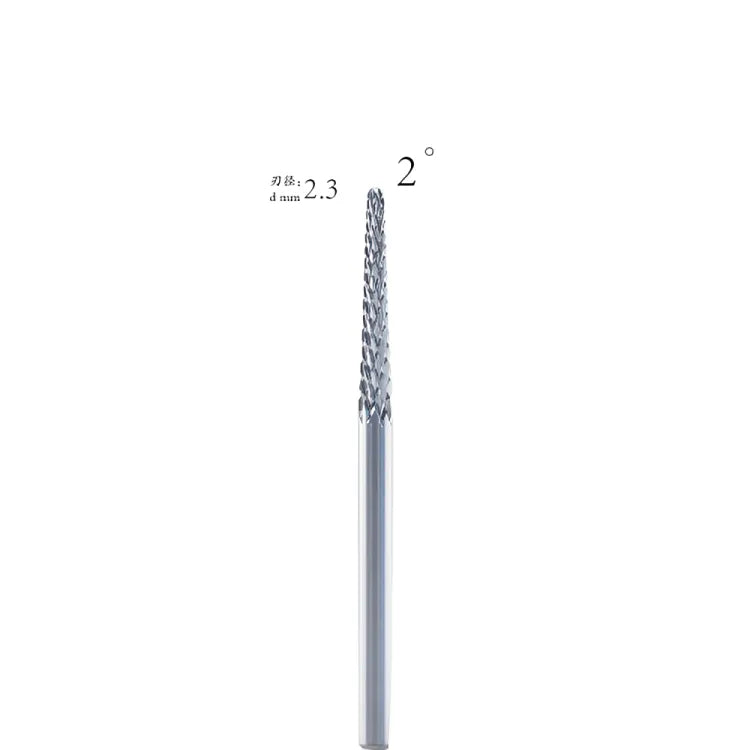

Labodent Milling Instrument- Crosss Cut Coarse (194.220.023)

  • Length-38mm
  • Diameter-2.3mm

Labodent Milling Instrument - Crosss Cut Coarse (194.220.031)

  • Length-38mm
  • Diameter-3.1mm

Packaging

  • 1 x Milling Instrument

Direction to use

Preparation:

  • Ensure the dental milling machine is clean and calibrated.
  • Verify the compatibility of the Cross Cut Coarse instrument with the specific dental material.

Loading:

  • Securely attach the Cross Cut Coarse Milling Instrument to the spindle of the milling machine.
  • Double-check for any damage or irregularities before use.

Setup:

  • Adjust milling parameters (speed, feed rate) based on the dental material being processed.
  • Confirm proper alignment and fixation of the workpiece.

Operation:

  • Activate the milling machine and initiate the milling process.
  • Monitor the cutting progress, ensuring precision and uniformity.

Cooling:

  • Implement a suitable cooling system to prevent overheating during prolonged use.
  • Follow recommended cooling intervals to maintain optimal cutting conditions.

Post-Milling Inspection:

  • Examine the milled surface for the desired finish and accuracy.
  • If necessary, refine the milling process or make adjustments for subsequent use.

Cleaning and Maintenance:

  • After use, detach the Cross Cut Coarse Instrument and clean it thoroughly.
  • Inspect for any wear or damage; replace if needed.
  • Store the instrument in a dry, designated area to prevent contamination.

Safety Precautions:

  • Wear appropriate personal protective equipment (PPE) during handling.
  • Adhere to safety guidelines provided by the milling machine and dental material manufacturers.

Additional info

  • Country of Origin: Made in PRC

Warranty

  • Warranty is not applicable for this product

Product Related Questions

Question: What is the significance of the ISO conformity in Labodent Milling Instrument?

Answer: ISO conformity ensures that the product meets international standards, guaranteeing precision and reliability in dental milling procedures.

Question: How do I clean and maintain the Cross Cut Coarse Instrument after use?

Answer: Detach the instrument, clean it thoroughly, inspect for wear or damage, and store it in a dry area to prevent contamination.

Question: Are there specific milling machine requirements for using this instrument?

Answer: Ensure that the dental milling machine is clean, calibrated, and suitable for use with Labodent Milling Instrument- Cross Cut Coarse.

Question: What materials is the Cross Cut Coarse Instrument compatible with?

Answer: It is compatible with a variety of materials, including precious metals, non-precious metals, and titanium.
