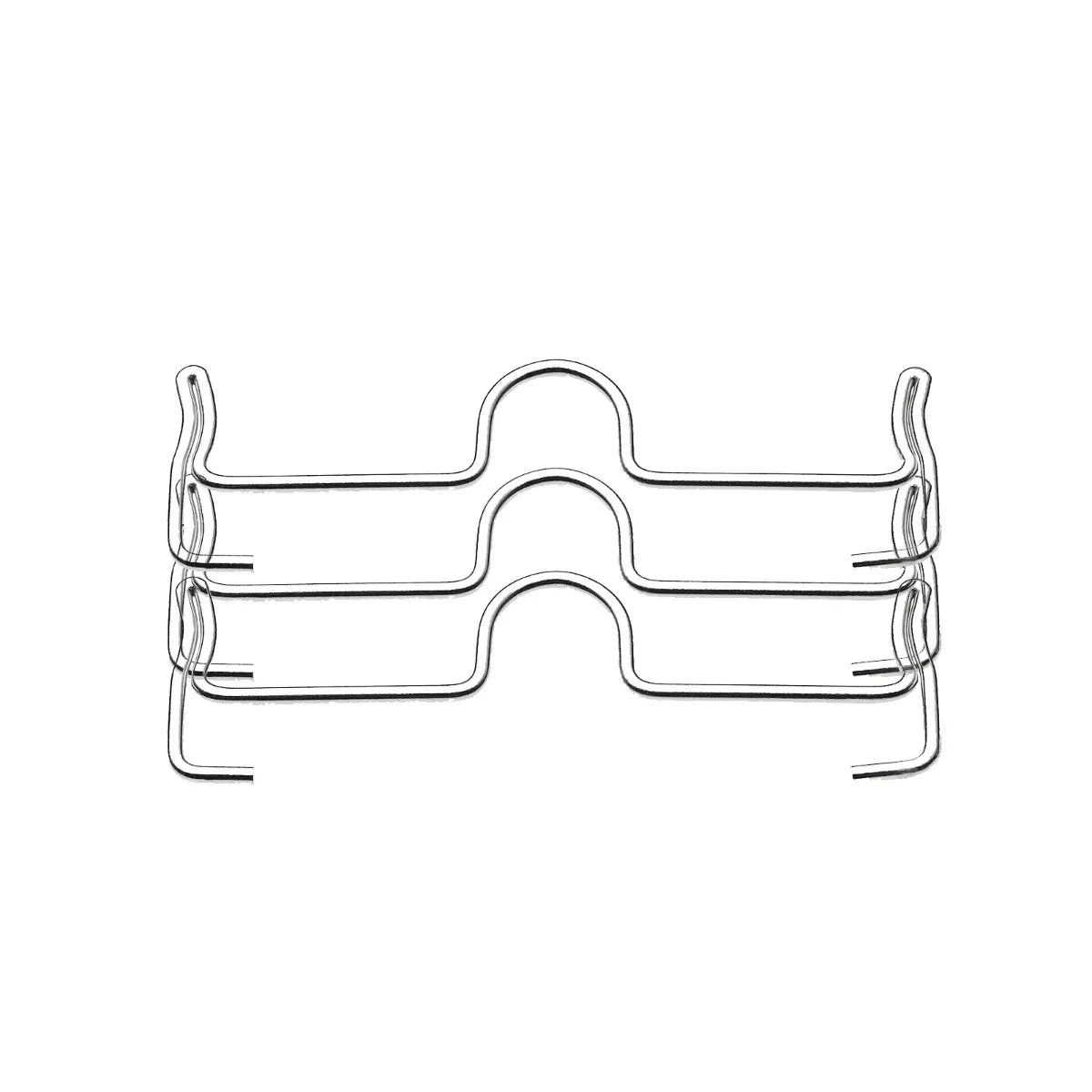

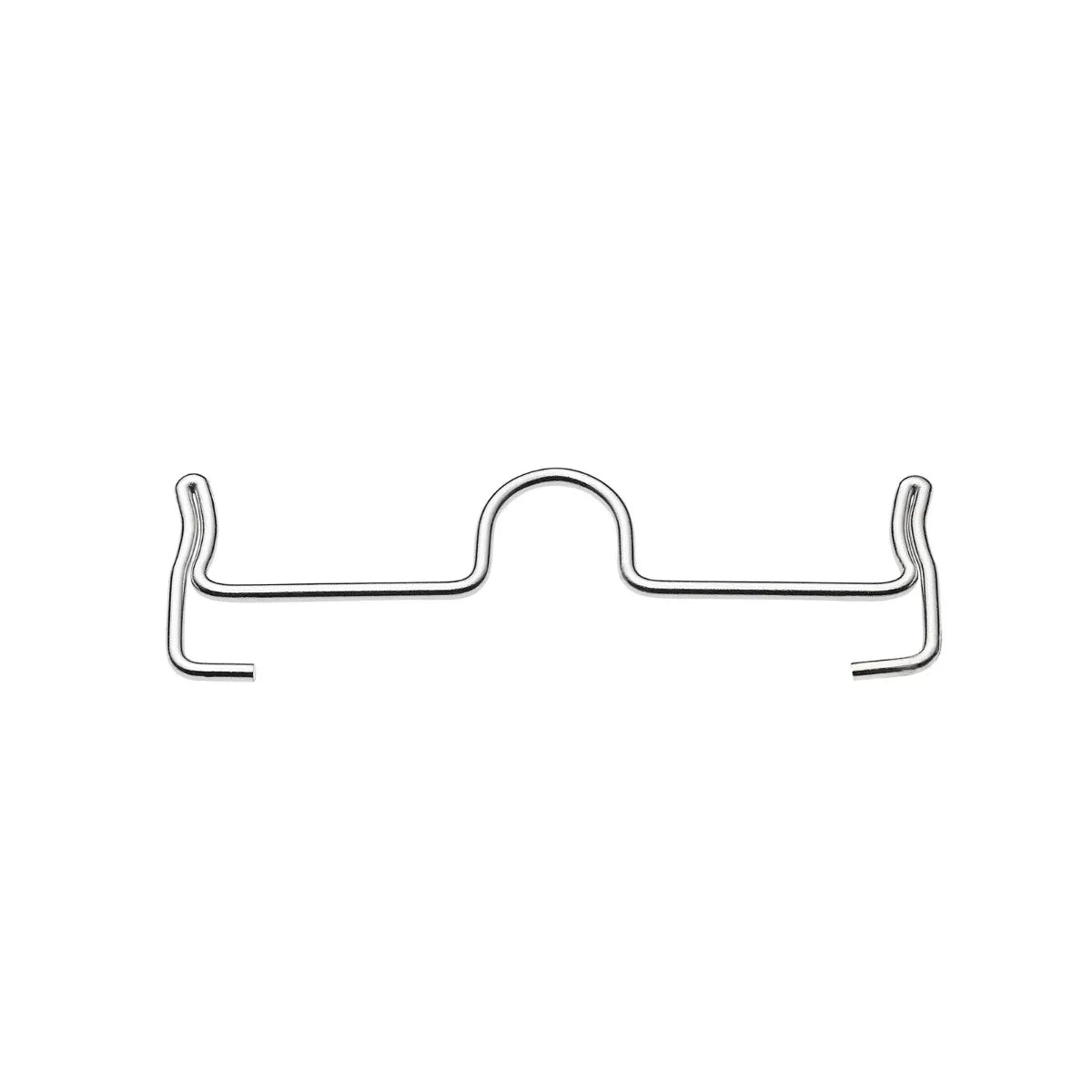

JJ Ortho Palatal Bar With Distal Loop

• Versatile orthodontic device
• Anchored via lingual tubes
• Corrects molar rotation
• Applies torque forces
• Adjusts molar inclination
• Aids in molar distalization
• Provides robust anchorage
• Controls molar eruption

• Stability Features: Passive insertion maintains molar stability
• Material: High-quality, biocompatible orthodontic stainless steel
• Device Type: Orthodontic Palatal Bar with Distal Loop
• Anchoring Method: Lingual tubes connected to the first molar

Primary Functions:

• Molar rotation correction
• Torque application
• Inclination adjustment

Additional Applications:

• Molar distalization
• Anchoring aid
• First molar eruption control (relative intrusion)
• Expansion or contraction of the upper posterior segment

Customization:

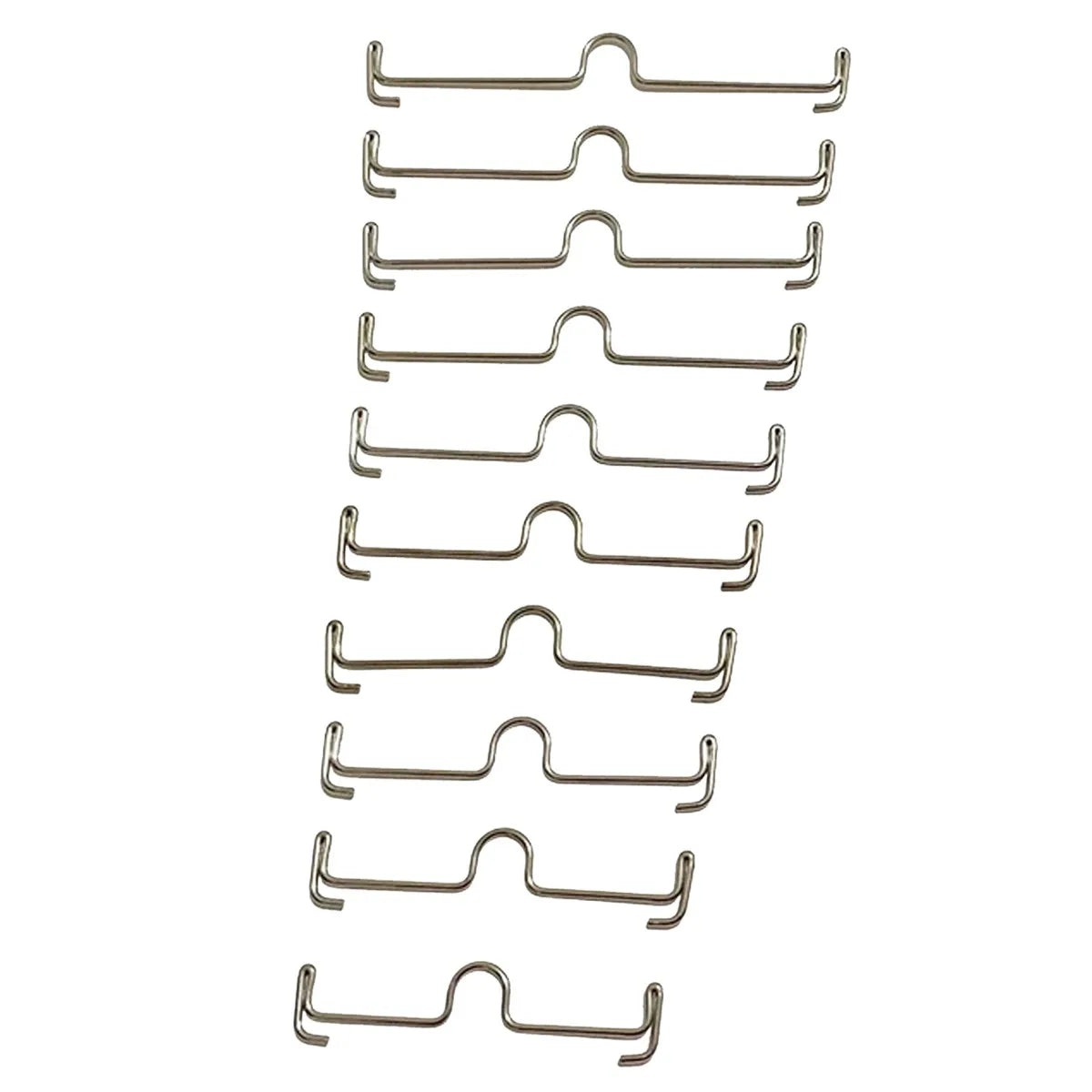

Available in various loop sizes:

• Loop 37mm
• Loop 39mm
• Loop 41mm
• Loop 43mm
• Loop 45mm
• Loop 47mm
• Loop 49mm
• Loop 51mm
• Loop 53mm
• Loop 55mm

• Pack of 1

 Patient Preparation:

• Ensure the patient’s oral cavity is clean and free from debris.
• Verify the suitability of the lingual tubes on the first molars for the palatal bar attachment.

Selection of Palatal Bar:

• Choose the appropriate loop size based on the patient's dental anatomy and treatment plan. Available sizes range from 37mm to 55mm.

Insertion:

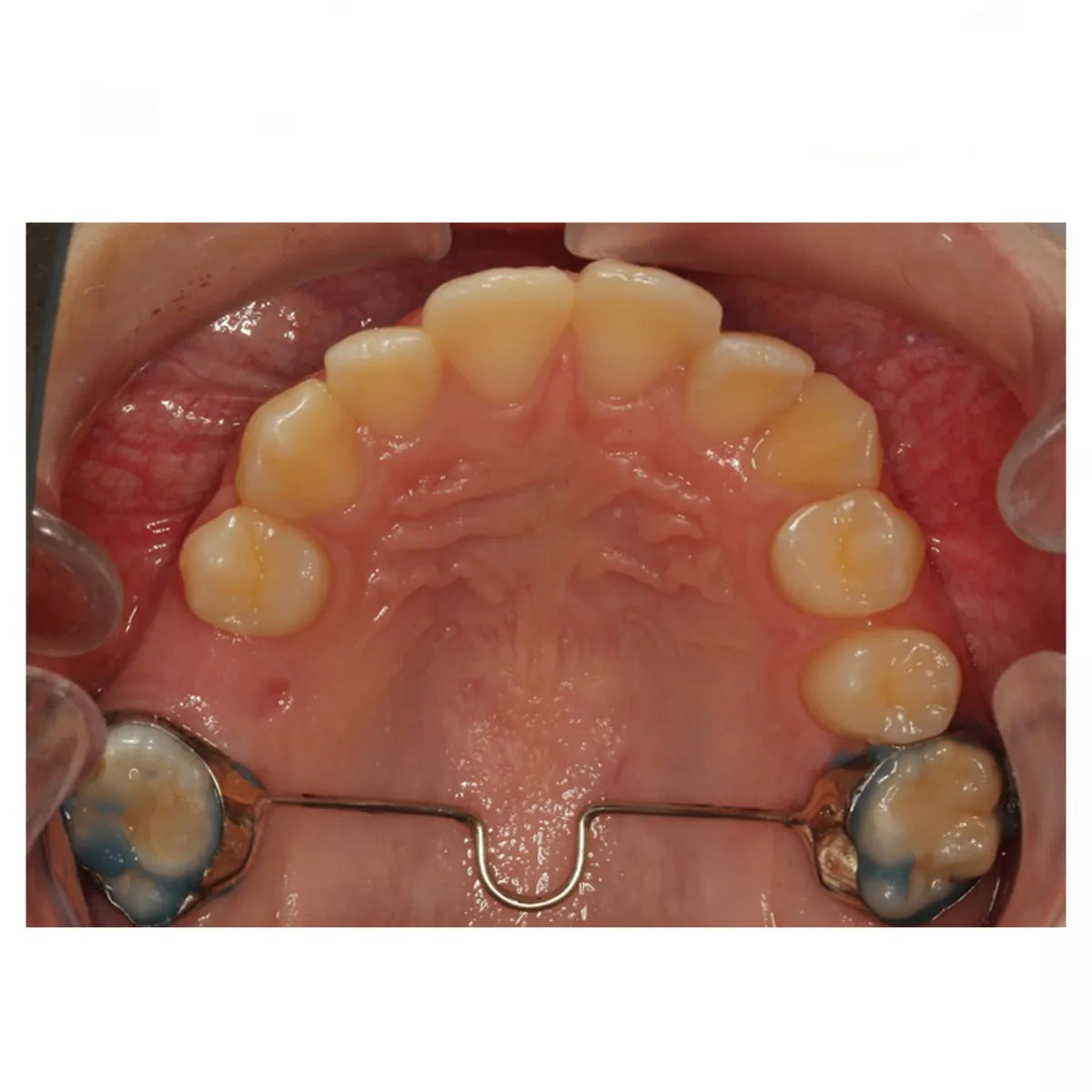

• Insert the ends of the palatal bar into the lingual tubes on the first molars.
• Ensure the bar is properly seated and secure within the tubes.

Adjustment:

• To generate the desired forces (rotation, torque, or intrusion), adjust the palatal loop accordingly.

1. Rotation: Compress the palatal loop during insertion to facilitate molar rotation to the buccal side.
2. Torque and Intrusion: Bend the bar or loop to apply the necessary force vectors.

Stabilization:

• Once the bar is in place and adjusted, verify that it is passively inserted to maintain molar stability.
• Ensure there is no undue pressure or discomfort for the patient.

Monitoring:

• Regularly check the bar during follow-up visits to ensure it remains properly positioned and effective.
• Make any necessary adjustments to maintain the desired treatment effects.

Maintenance and Hygiene:

• Instruct the patient on maintaining oral hygiene around the palatal bar to prevent plaque buildup and potential irritation.
• Recommend using orthodontic-friendly cleaning tools such as interdental brushes.

Removal:

• When the treatment objectives are achieved or if adjustments are required, carefully remove the palatal bar from the lingual tubes.
• Clean and sterilize the bar if it is to be reused or stored.
