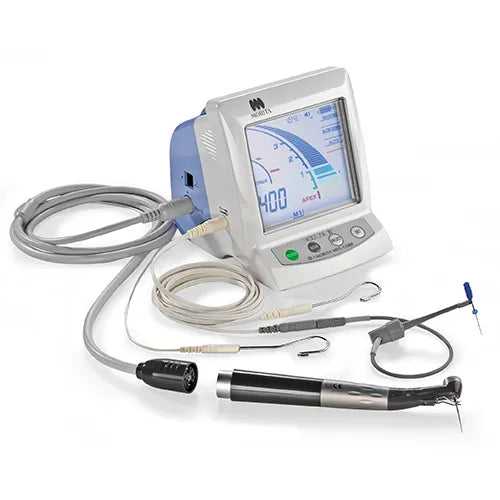

J Morita Dentaport Zx With Otr Module Apex Locator

• OTR Technology: When the torque setting is reached, the file auto reverses 90° and then continues again in the cutting direction. OTR reduces file fatigue, as well as the possibility of file breakage.
• Auto Motor Start/Stop: No footswitch required. Motor starts when the file is inserted into the canal and stops when it is withdrawn.
• Auto Torque Reverse: Reduced file breakage. The file stops and reverses if the torque goes over the set torque limit. There are 11 torque settings.
• Auto Torque Slow Down: Reduced file breakage. The file slows down as the torque approaches the set torque limit.
• Auto Apical Reverse: The file stops and reverses when it reaches the end of the set working length.
• Auto Apical Slow D1own: The file slows down as it approaches the end of the set working length, ensuring safe and accurate preparations.

• Power Consumption: 1.92 VA
• Motor: 0-800 rpm
• Charger: Rapid Charge Type
• Size: W x D x H 4.13” x 5.00” x 4.53” (105 x 127 x 115 mm)
• Weight: approx. 10.58 oz. (300 g)

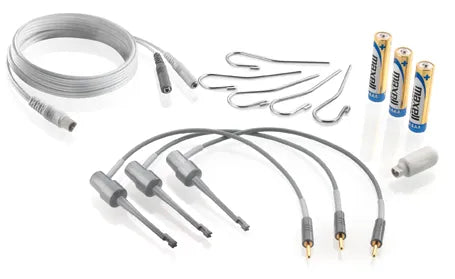

• 1x Apex locator DentaPort Root ZX
• 1x CE measuring cable
• 5x Mucosal electrodes
• 3x File clamps
• 3x Batteries (AA)
• 1x Test plux
• 1x DentaPort TriAuto OTR
• 1x Charger
• 1x Ni-MH battery
• 1x Contra angle handpiece with integrated file electrode
• 1x Micromotor 800 rpm.
• 1x Repository tray for handpiece
• 1x Handpiece cable
• 1x LS oil spray
• 1x Foot control

Preparation and Setup:

• Ensure that the device is clean and in proper working condition.
• Place the product on a stable, flat surface.
• Connect the handpiece to the main unit.

Power On/Off:

• Turn on the device by pressing the power button.
• To turn it off, press and hold the power button until the unit shuts down.

3. Handpiece Attachment:

• Attach the handpiece to the file you intend to use.
• Ensure that the handpiece is properly secured.

Torque Settings:

• Set the appropriate torque limit according to the specific requirements of the procedure.
• Choose from the 11 torque settings available.

Speed Settings:

• Select the desired speed from the three available settings (100, 300, or 500 rpm) based on the procedure and your preference.

Memory Modes (Optional):

• If needed, program the device with specific settings and parameters using the three memory modes.

Auto Motor Start/Stop:

• The motor starts when the file is inserted into the canal and stops when it is withdrawn. No footswitch is required.

Auto Torque Reverse:

• As the file rotates, the device will automatically reverse rotation by 90° if the torque reaches the set value. This reduces the risk of file fatigue and breakage.

Auto Torque Slow Down:

• The device will automatically slow down the file's rotation as it approaches the set torque limit, further reducing the risk of file breakage.

Auto Apical Reverse:

• When the file reaches the end of the set working length, it will stop and reverse rotation to prevent overextension.

Auto Apical Slow Down:

• As the file approaches the end of the set working length, it will automatically slow down, ensuring safe and accurate preparations.

OTR Technology:

• Take advantage of the OTR technology, which reverses the file's rotation when the torque setting is reached. This minimizes file fatigue and reduces the possibility of file breakage.

Monitoring:

• While using the device, closely monitor the LCD display for precise and accurate measurements related to the procedure.

Charging:

• Ensure the device is adequately charged using the provided charger. It features a rapid charge type for convenience.

Cleaning and Maintenance:

• After each use, clean and sterilize the handpiece and files according to standard infection control protocols.

• Country of origin: Japan
• Manufacturer: J-Morita

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: How do I use the three programmable memory modes on this device?
Answer: To use the memory modes, refer to the user manual that accompanies the device. It typically involves saving specific settings and parameters for quick access during procedures.

Question: Can I customize the speed settings on the J Morita Dentaport ZX with OTR Module Apex Locator, and if so, how?
Answer: Yes, you can select from the three available speed settings (100, 300, or 500 rpm) to match your procedure and preference.

Question: What are the available torque settings, and how do I choose the appropriate one for my procedure?
Answer: The Dentaport ZX offers 11 torque settings. The appropriate setting depends on the specific requirements of your procedure, and you can adjust it accordingly on the device.

Question: How does the OTR (On-The-Root) technology work in this device, and what benefits does it offer during root canal procedures?
Answer: OTR technology automatically reverses file rotation by 90° when the torque reaches the set value, reducing the risk of file breakage. This enhances the safety and efficiency of root canal preparations.

Question: What is the J Morita Dentaport ZX with OTR Module Apex Locator used for?
Answer: The J Morita Dentaport ZX with OTR Module Apex Locator is a dental tool designed for precise and safe root canal preparation. It combines an apex locator with OTR (On-The-Root) technology, reducing the risk of file fatigue and breakage during root canal procedures.
