Heron Intraoral Scanner

• Compact, lightweight, and ergonomic design
• Active stereo imaging for precise intraoral scans
• Reusable, autoclavable scanner tip for hygiene
• Fast, accurate scanning with minimal physical effort
• Wide range of indications supported, from crowns to aligners
• Conforms to medical safety standards and regulations
• Cloud integration for convenient file transfer and collaboration
• Compatible with most dental CAD/CAM systems
• User-friendly case management application for intuitive use

Scanner Type:

• Hand-held (chairside) scanner with active stereo imaging.

Design:

• Compact, lightweight, and ergonomic for easy operation with minimal physical effort.

Dimensions:

• Base Size: L 306mm, W 98mm, H 72mm
• Scanner Size: L 256mm, W 43mm, H 43mm

Power Requirement:

• DC5.0V / 4A (Power supply included).

Scanner Tip:

• Reusable, sterilizable using a steam autoclave.

Acquisition Method:

• Intraoral camera with active stereo imaging.

Color Scanning:

• 24-bit (8-bit per channel).

Scanning Process:

• No powder or spray is required for tooth preparation.
• Continuously scans and accumulates (stitching) depth and color data.
• Scanner-to-tooth distance: 0 – 12mm.

Operator Accessible Part:

• Handpiece with possible contact duration by the operator: 10 min ≤ t.

Patient Accessible Part (Type B Applied Part):

• Tip with possible contact duration by patient: 10 min ≤ t.

Computer – Scanner Interface:

• USB 3.0.

Output File Format:

• STL, PLY, OBJ.

Compatibility with CAD/CAM Systems:

• Open Architecture Output format compatible with most Dental CAD systems.

Computer Requirements:

• Operating System: Windows 10 (Excluding Windows 10 S, now defunct).
• CPU: Intel i7 - 4 Cores or greater (e.g., i7 8700).
• Memory: 16 GB of RAM or greater (DDR4 or better).
• GPU: NVIDIA GeForce Graphics Processor Series (GTX): 1070 or greater - At least 6 GB video memory, 2000 Series (RTX): 2060 or greater - At least 6 GB video memory.

Environment Conditions:

• Operating Temperature: 10°C ~ 40°C.
• Operating Relative Humidity: 10% ~ 80% (non-condensing).
• Storage Temperature: -20°C ~ 60°C.
• Storage Relative Humidity: 10% ~ 80% (non-condensing) for indoor use only.

Ingress Protection:

• IPX0 (Protection against harmful ingress of water: Ordinary equipment).

Protective Class:

• Class IIIb.

Overvoltage Category:

• I (Supplied from output DC source, max. 5 V. dc, 600 mA) of notebook or non-medical grade PC certified by IEC60950-1.

Max. Working Condition:

• Continuous cycles with image capture and transmission from/to Notebook or non-medical grade PC.

Scanner Tip Reusability:

• Autoclavable up to 50 times in a steam autoclave.

Power Input:

• 5V DC, 100-240V AC, 50-60Hz.

Cloud Integration:

• Integration with Heron Cloud for file transfer and collaboration with labs.

Calibration:

• Factory-calibrated; no additional calibration required.

• 1 x Heron IOS System (Includes 3 Tips)
• 1 x USB 3.0 Cable
• 1 x AC/DC Power Adapter

Connecting Heron™ IOS Intraoral Scanner to PC

Hardware Setup:

• Place the base on a stable surface.
• Securely position the Heron™ IOS handpiece in its base.
• Connect the AC/DC power adapter cable to the base (located underneath).
• Attach the provided USB 3.0 cable to the base (located underneath).
• Connect the other end of the USB cable to an available USB 3.0 port on your computer.
• Connect the AC/DC power adapter to a power outlet.

Power On:

• Turn on the Heron™ IOS scanner by pressing the power button on the handle.

Software Installation:

• Install the Heron™ IOS software.
• Follow the installation instructions provided with the software.

Configuration:

• Launch the Heron™ IOS software on your computer.
• Log in using your credentials if required.

Patient and Case Creation:

• Create a new patient account if not done previously.

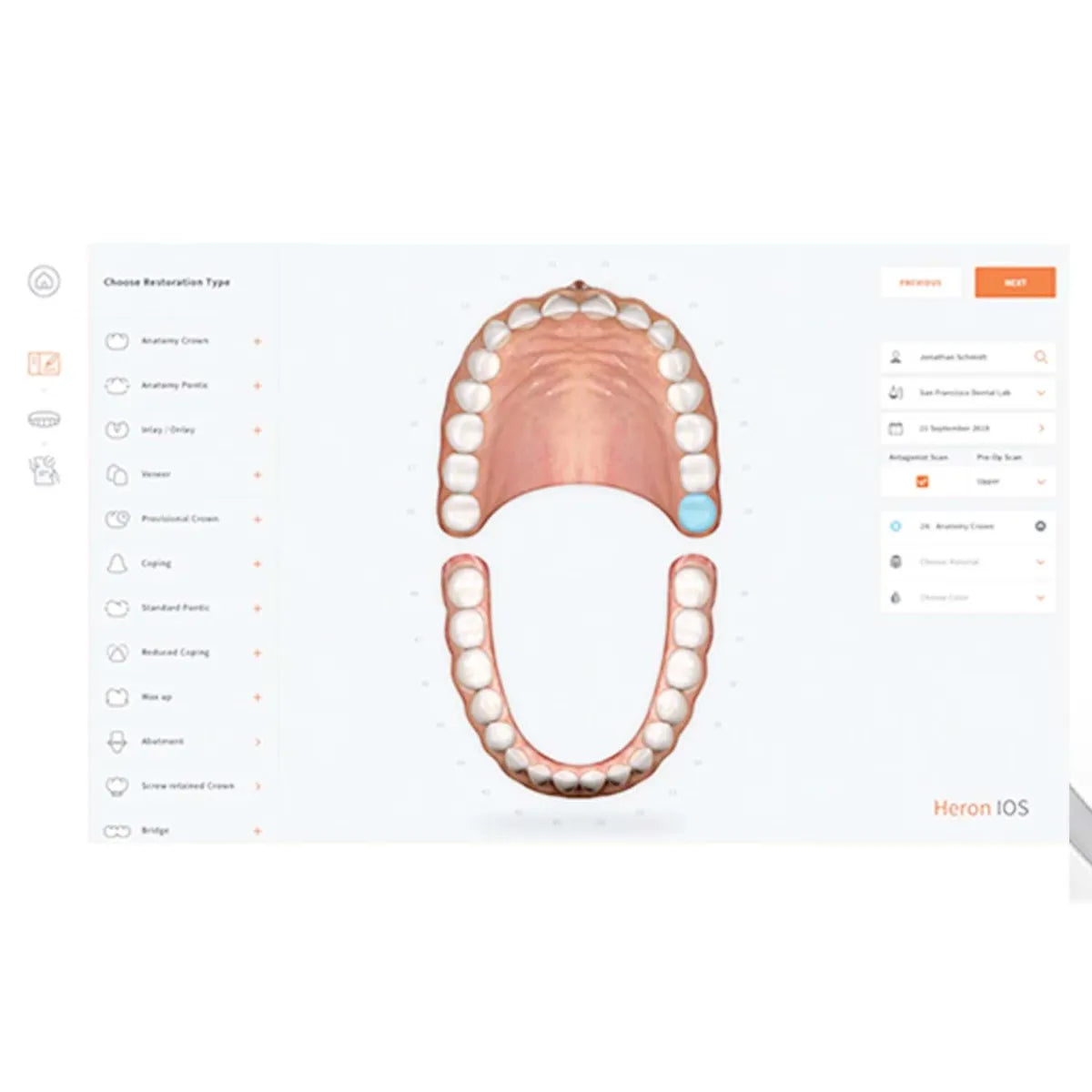

• Follow the on-screen prompts to create a new case, providing necessary details and selecting the type of restoration.

Scanning Process:

• Follow the on-screen instructions for scanning each arch, ensuring stability and precision.
• Use the bite alignment feature if required, following the software prompts.

File Transfer (Optional):

• If connected to a lab via Heron Cloud, you can send the entire case to the lab directly from the software.
• Export scans and order forms to a location on your PC if needed.

Review and Finalization:

• Review the scans in the 3D viewer within the software.
• Add additional notes or attachments if required.
• Finalize the scan process according to the software instructions.

Cloud Integration (Optional):

• Utilize Heron Cloud for file transfer and collaboration with labs.
• Ensure the scanner is connected to the internet for seamless cloud integration.

Heron™ IOS Intraoral Scanner - User Guide:

Shutdown:

• Turn off the Heron™ IOS scanner by pressing the power button on the handle.
• Close the Heron™ IOS software on your computer.

Setting Up and Connecting:

• Place the base on a stable surface and securely position the Heron™ IOS handpiece in its base.
• Connect the AC/DC power adapter cable to the base (located underneath).
• Attach the provided USB 3.0 cable to the base (located underneath).
• Connect the other end of the USB cable to the computer.
• Connect the AC/DC power adapter to a power outlet.

Components Overview:

• Base and scanner
• Tip
• Scan Button
• Handpiece
• USB 3.0 Cable
• AC/DC Power Adapter

Settings:

• Configure language, 3D output format, picture formats, start page preference, and workflow options.
• View software and scanning module versions, check for manual updates, and access user manual and support.

System Configuration:

• Export/import patient database.
• Configure sounds during scanning.
• Manage users, including addition, editing, and deletion.
• Set up and select connections with labs.
• Customize order forms, including tooth numbering and shade systems.

Cloud Integration:

• Connect with Heron Cloud for file transfer and collaboration.
• Edit profile, change password, create groups, and customize case view settings.

Starting a Scan:

• Log in and create a new patient account on HeronCloud.com.
• Connect with a lab through the connections menu.
• Add HeronCloud™ connection to settings.
• Create a new case with order details and restoration selection.
• Follow on-screen instructions for scanning each arch, ensuring stability and precision.
• Use the bite alignment feature if required.

Case Management Software:

• Access the scans directly for export or use HeronCloud™ for file transfer.
• Navigate through patient and case views, applying filters if needed.
• Create new patients and cases, and manage them efficiently using the case management application.

Cleaning and Maintenance:

• Wipe down the scanner with EPA-approved disinfectants.
• Clean the tip with soapy water and sterilize using a steam autoclave.
• Dispose of the device following local environmental laws.
• No user maintenance is required; contact technical support for issues.

Scanner Operation Tips:

• Ensure proper tooth preparation; no powder or spray is needed.
• Maintain a steady hand for accurate scanning; restart if needed.
• Follow the scanning paths for mandibular and maxillary scans.
• Use the bite alignment feature for quadrant or full arch scans.
• Finalize the scan and review in the 3D viewer.

Question: What is the primary purpose of the Heron™ IOS scanner?
Answer: The Heron™ IOS scanner is designed for producing high-quality digital intraoral scans used in dental restoration or analysis.

Question: What indications are supported by the Heron™ IOS?
Answer: The Heron™ IOS supports a wide range of indications, including crowns, copings, aligners, bridges, and more.

Question: What certifications and compliance standards does the Heron™ IOS adhere to?
Answer: The Heron™ IOS has been tested and conforms to standards such as IEC 60601-1 for electrical safety and essential performance, IEC 62471 for photobiological safety, and complies with US FDA Regulations and EU Medical Device Directive 93-42-EEC.

Question: How is the scanner powered, and what are the system requirements?
Answer: The scanner requires DC5.0V / 4A power, and the system is compatible with Windows 10. Detailed hardware specifications are provided in the user guide.

Question: Can the scanner be used for orthodontic applications?
Answer: Yes, the Heron™ IOS supports orthodontic applications, including the creation of aligners, retainers, and other orthodontic devices.

Question: Is the scanner tip reusable, and how should it be maintained?
Answer: Yes, the scanner tip is reusable and can be autoclaved up to 50 times. Detailed cleaning and sterilization instructions are provided in the user manual.

Question: How does the Heron™ IOS connect to a computer?
Answer: The Heron™ IOS connects to a computer via a USB 3.0 cable. The software can be downloaded from the official support website.

Question: Does the scanner integrate with CAD/CAM systems?
Answer: Yes, the scanner outputs files in STL, PLY, OBJ formats, making it compatible with most Dental CAD/CAM systems.
