Garrison Dental Strata-G Wedges

• Soft-Face™ Material: Garrison Dental Strata-G™ Wedges utilize Soft-Face™ materials for enhanced flexibility, promoting a better cervical seal and reducing trauma to the papilla.

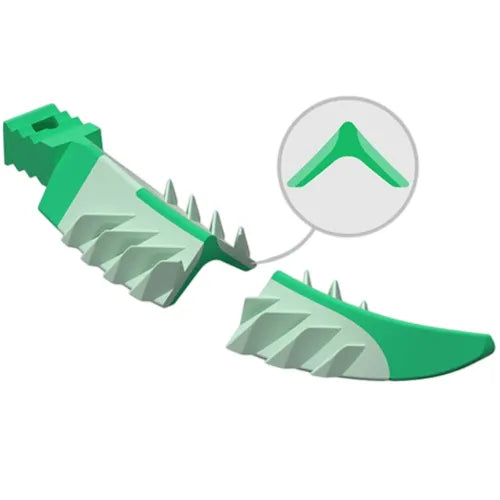

• Advanced Design: Engineered with an inverted V shape and flexible sidewalls, these wedges maximize adaptation to concavities and irregularities, ensuring a deeper interproximal seal for superior restorations.
• Stackable Design: The smooth tunnel design allows for easy stacking of wedges, facilitating simultaneous wedging from the buccal and lingual sides, ideal for cases of gingival recession or when dual-side wedging is desired.
• No Back-Out: Soft retentive fins smoothly fold down during insertion and spring back when clear of the interproximal space, preventing wedge back-out and ensuring secure placement.
• Gentle on Tissue: With rounded edges and a smooth tunnel design, Strata-G™ Wedges glide over the papilla with minimal trauma, enhancing patient comfort during the restorative process.
• Materials: Crafted from Polypro and TPE, these wedges offer excellent cervical sealing and tissue compatibility, maximizing adaptation and minimizing the risk of post-operative complications.

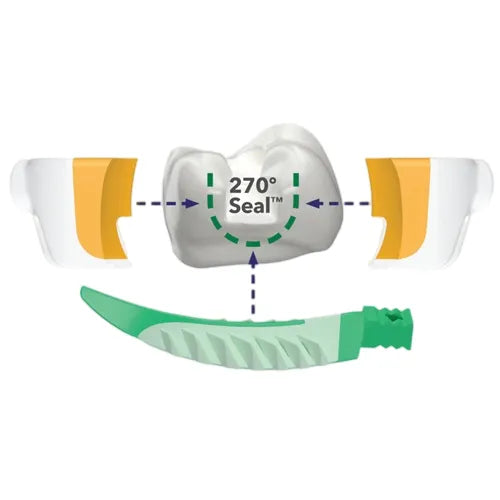

• Cervical Seal: Strata-G™ Wedges excel in providing an excellent cervical seal, thanks to the Soft-Face™ fins and flexible sidewalls that maximize adaptation to the tooth structure.
• Wedge Back-Out: Designed to prevent back-out, the flexible fins of these wedges ensure secure placement, maintaining stability throughout the restorative procedure.
• Gentle to Tissue: The smooth tunnel design and rounded edges of Strata-G™ Wedges reduce trauma to the surrounding tissue, enhancing patient comfort and satisfaction.

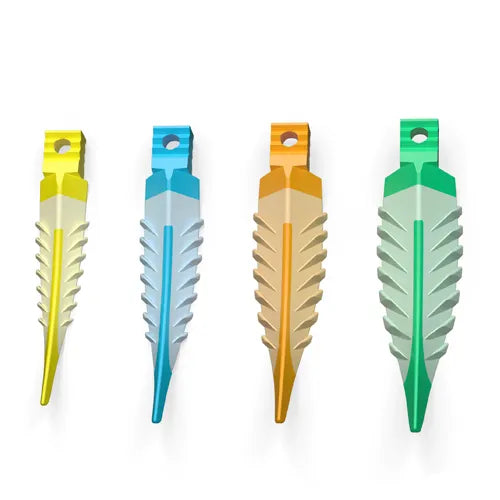

SGYL Dimensions

• 2.15 mm height (tallest point)
• 2.64 mm width (widest point)
• 15.53 mm length

SGBL Dimensions

• 2.65 mm height (tallest point)
• 2.99 mm width (widest point)
• 16.55 mm length

SGOR Dimensions

• 2.92 mm height (tallest point)
• 3.53 mm width (widest point)
• 16.57 mm length

SGGR Dimensions

• 3.29 mm height (tallest point)
• 4.07 mm width (widest point)
• 17.09 mm length

Materials

• Polypro
• TPE

Garrison Dental Strata-G Wedge (Medium)

• 50 x Wedges

Garrison Dental Strata-G Wedge (Large)

• 10 x Wedges

• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.
• Prepare tooth with conservative Class II preparation.
• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern. Place Strata-G™ sectional matrix band. Select a matrix band that most closely approximates the occlusogingival height of the tooth. The Grab-Tab should be oriented toward the occlusal margin and may be bent over the adjacent tooth after placement.

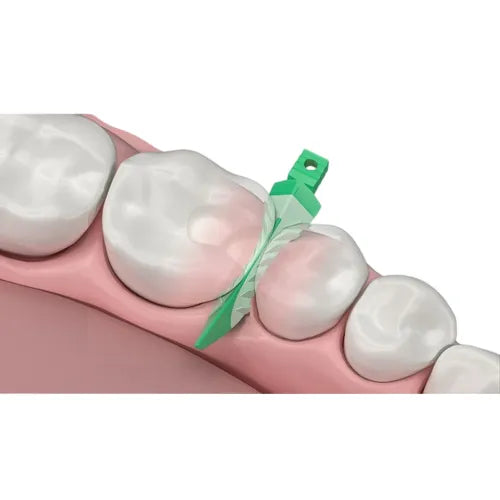

• Insert Strata-G™ wedge: Keep a fi nger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge fi rmly, a high viscosity resin packed into the preparation may displace the band away from the tooth.
• Apply the Strata-G™ Soft Face™ ring retainer: Select a retainer ring that is appropriate for the embrasure and tooth being restored. Spread it with the *Garrison Premier Ring Placement forceps and place it over the wedge.
• Very Important: Push the matrix band firmly into contact with the adjacent tooth in the desired contact area.
• Use your preferred etching, disinfecting, and bonding technique following the manufacturer’s instructions. Apply your preferred composite resin following the manufacturer’s instructions.
• Remove the ring, wedge, and band.
• Contour and polish the restoration.

• Warranty is not applicable for this product.
