Garrison Dental Strata-G Sectional Matrix Bands

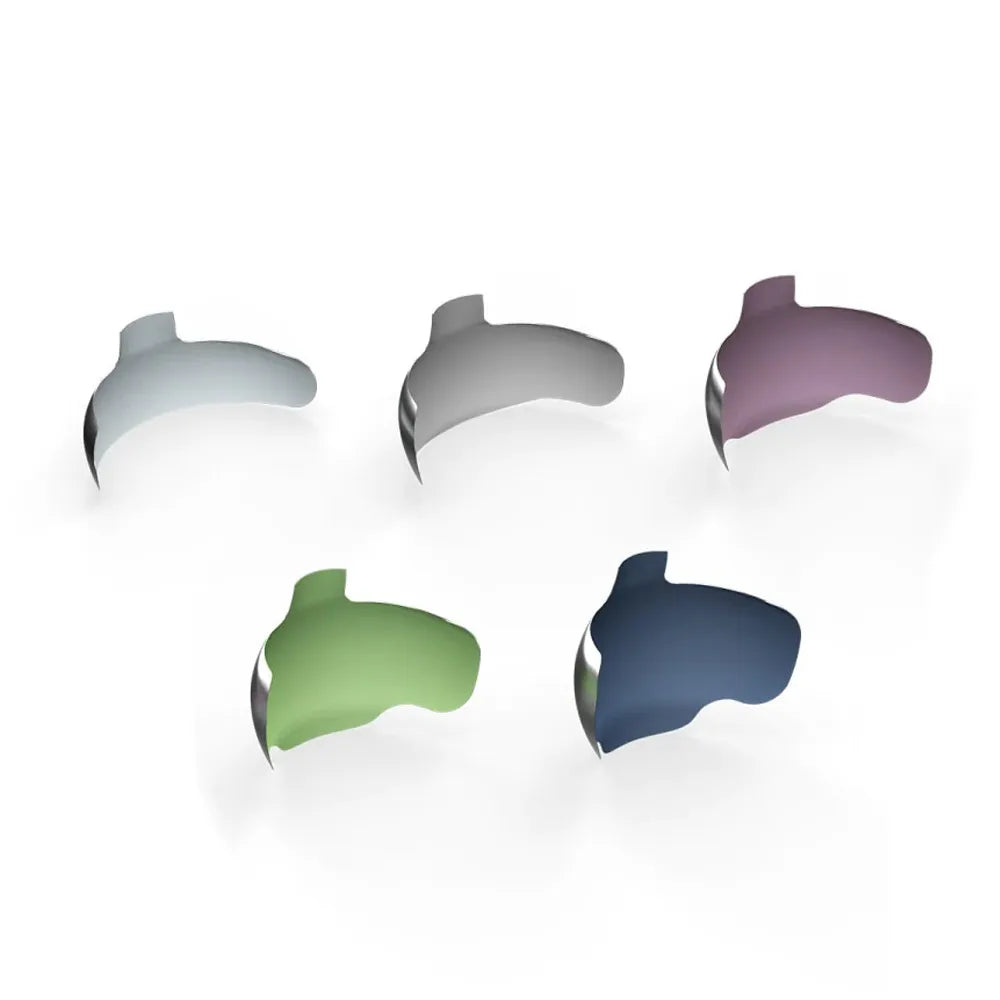

• Precision Design: Tailored specifically for Class II composite restorations, the Strata-G™ Sectional Matrix System features contoured matrix bands and three ring styles, ensuring precise tooth separation and adaptation for tight, anatomical contacts.
• 270° Seal™ Technology: With its innovative 270° Seal™, this system provides ultimate control over flash, ensuring clean and seamless restorations.
• User-Friendly: Non-stick and color-coded for easy identification and application, the Strata-G™ Sectional Matrix System simplifies the restorative process, enhancing efficiency and workflow in the dental practice.

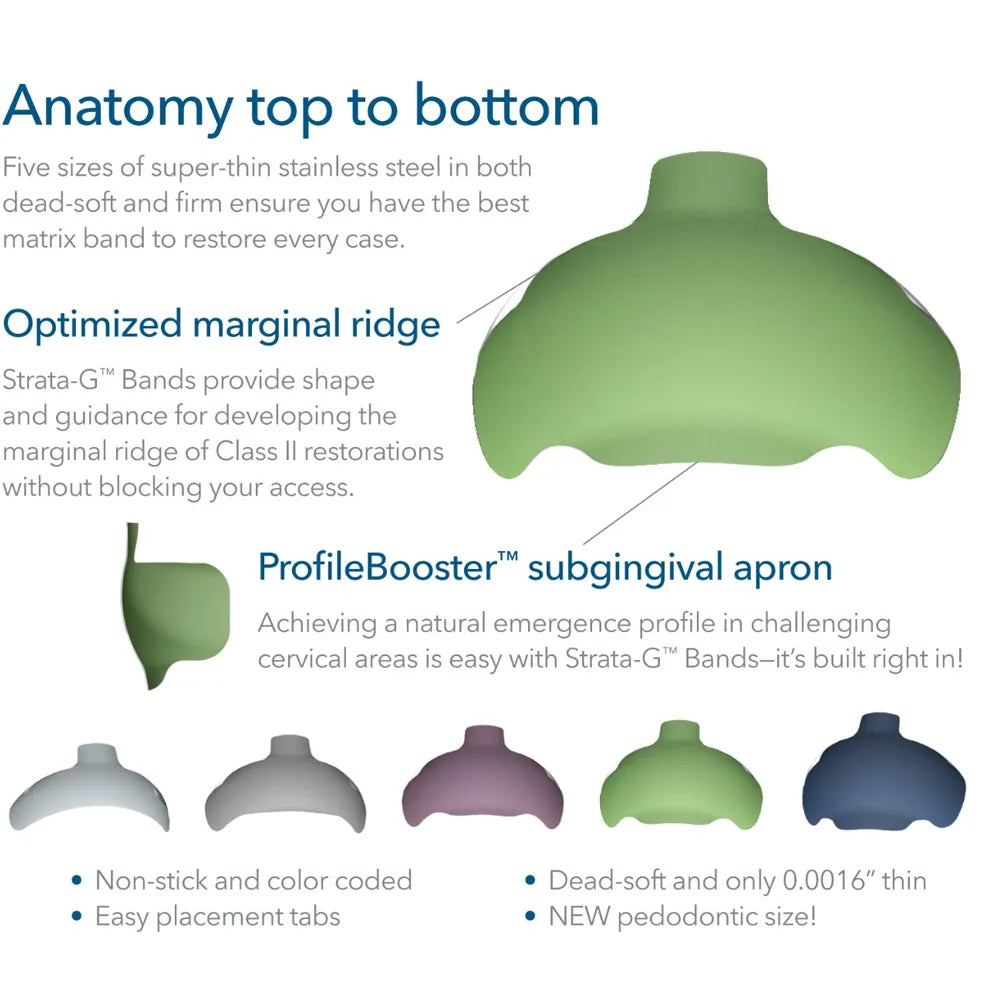

• Guided Marginal Ridge Development: The matrix bands provide shape and guidance for developing the marginal ridge of Class II restorations without obstructing access, facilitating accurate restoration of tooth anatomy.
• Natural Emergence Profile: Designed to address challenging cervical areas, Strata-G™ Bands effortlessly achieve a natural emergence profile, seamlessly integrating into the surrounding tooth structure for aesthetically pleasing results.

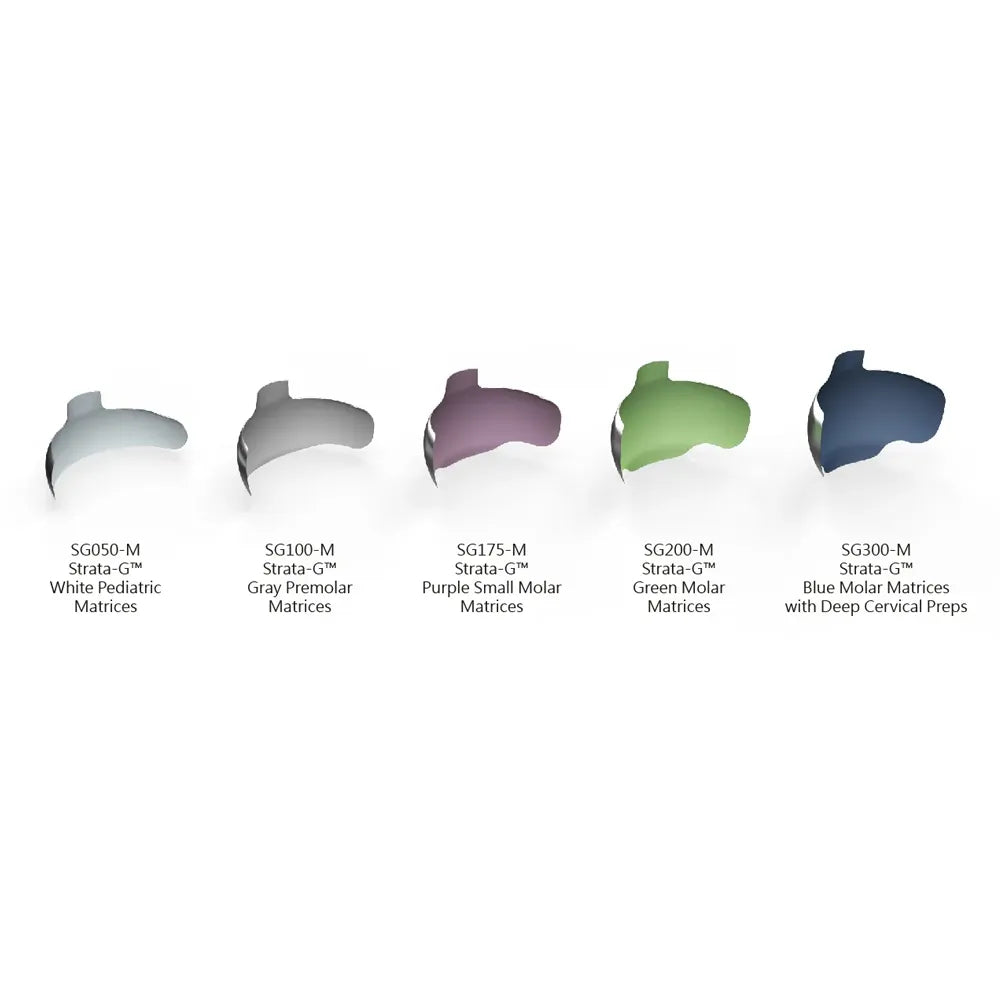

SG050 Dimensions

• 3.5 mm height (4 mm with apron)
• 12 mm length
• 5.6 mm width (profile view)
• 0.0016" thickness

SG100 Dimensions

• 4 mm height (6 mm with apron)
• 12 mm length
• 5.6 mm width (profile view)
• 0.0016" thickness

SG175 Dimensions

• 4.5 mm height (5.6 mm with apron)
• 12 mm length
• 5.6 mm width (profile view)
• 0.0016" thickness

SG200 Dimensions

• 5 mm height (6 mm with apron)
• 12 mm length
• 5.6 mm width (profile view)
• 0.0016" thickness

SG300 Dimensions

• 5.6 mm height (8.7 mm with apron)
• 12 mm length
• 5.6 mm width (profile view)
• 0.0016” thickness

Materials

• Stainless steel
• PTFE

Garrison Dental Strata-G Sectional Matrix Bands (Medium)

• 50 x Matrix Band

Garrison Dental Strata-G Sectional Matrix Bands (Large)

• 10 x matrix Band

• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.
• Prepration: Prepare tooth with conservative Class II preparation.

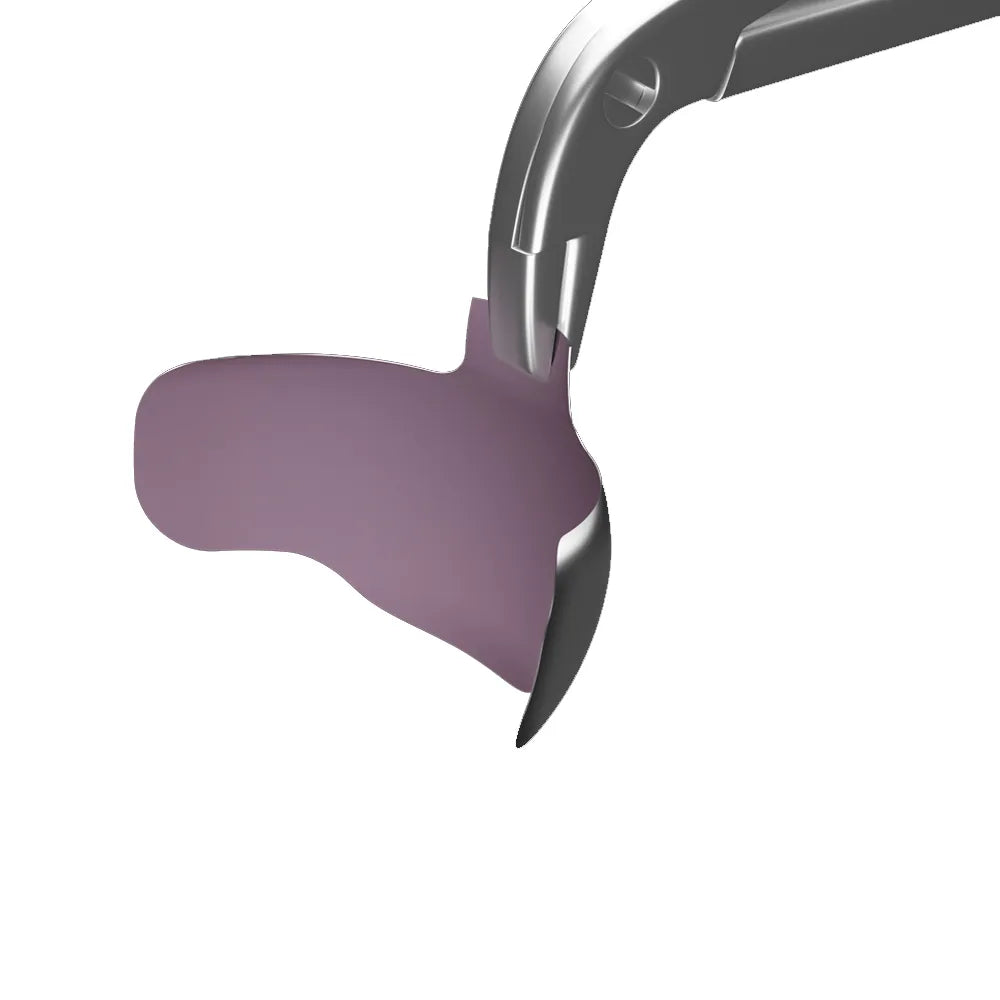

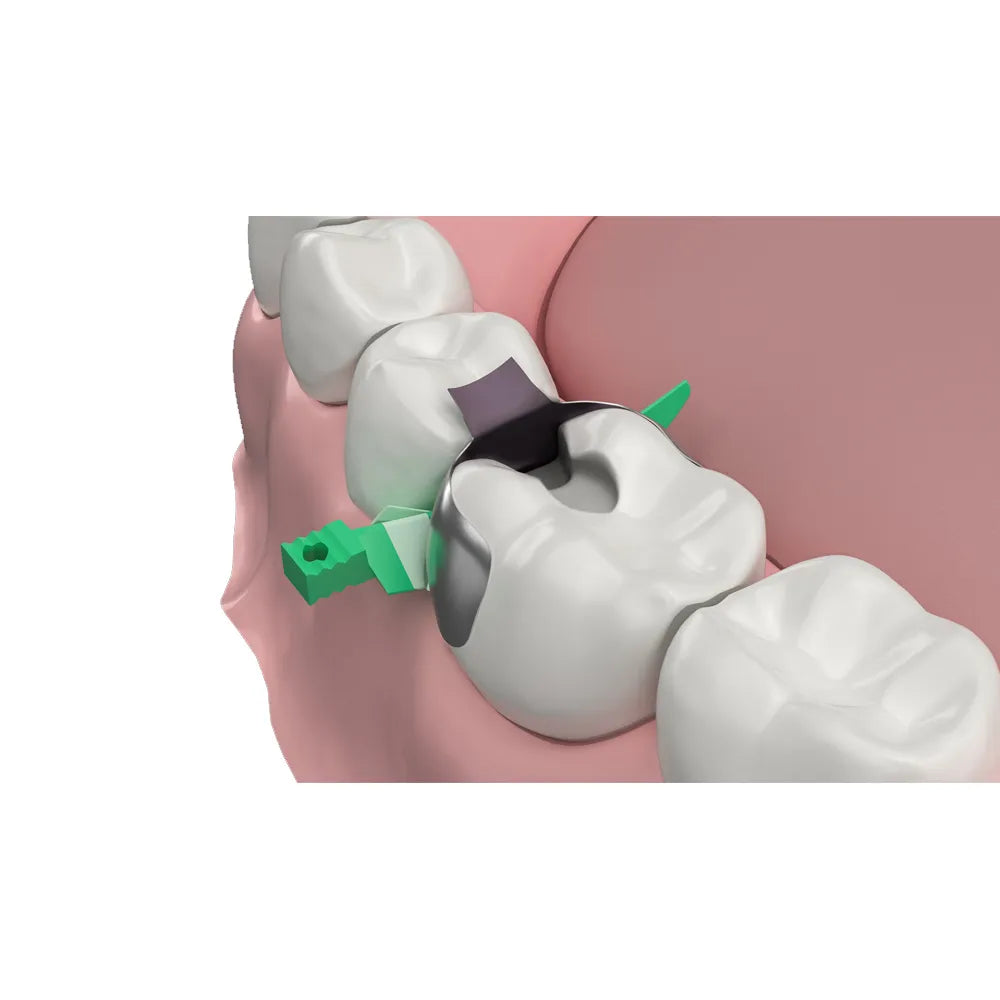

• Place Strata-G™ sectional matrix band: Select a matrix band that most closely approximates the occlusogingival height of the tooth. The Grab-Tab should be oriented toward the occlusal margin and may be bent over the adjacent tooth after placement.
• Insert Strata-G™ wedge: Keep a finger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge firmly, a high viscosity resin packed into the preparation may displace the band away from the tooth.
• Apply the Strata-G™ Soft Face™ ring retainer: Select a retainer ring that is appropriate for the embrasure and tooth being restored. Spread it with the *Garrison Premier Ring Placement forceps and place it over the wedge.
• Very Important: Push the matrix band firmly into contact with the adjacent tooth in the desired contact area.
• Use your preferred etching: Disinfecting and bonding technique following manufacturer's instructions. Apply your preffered composite resin following manufacturer's instructions.
• Remove the ring, wedge, and band.
• Contour and polish the restoration.

• Warranty is not applicable for this product.

Question: How does the Strata-G™ System improve my Class II restorations?
Answer: Strata-G™ offers contoured matrix bands and various ring styles for precise tooth separation, ensuring tight, anatomical contacts.

Question: Can Strata-G™ Bands assist in developing the marginal ridge of Class II restorations?
Answer: Yes, these bands provide shape and guidance for marginal ridge development without obstructing access, facilitating accurate restoration of tooth anatomy.

Question: What is the significance of the 270° Seal™ Technology?
Answer: This innovative feature controls flash effectively, ensuring clean and seamless restorations for optimal patient outcomes.
