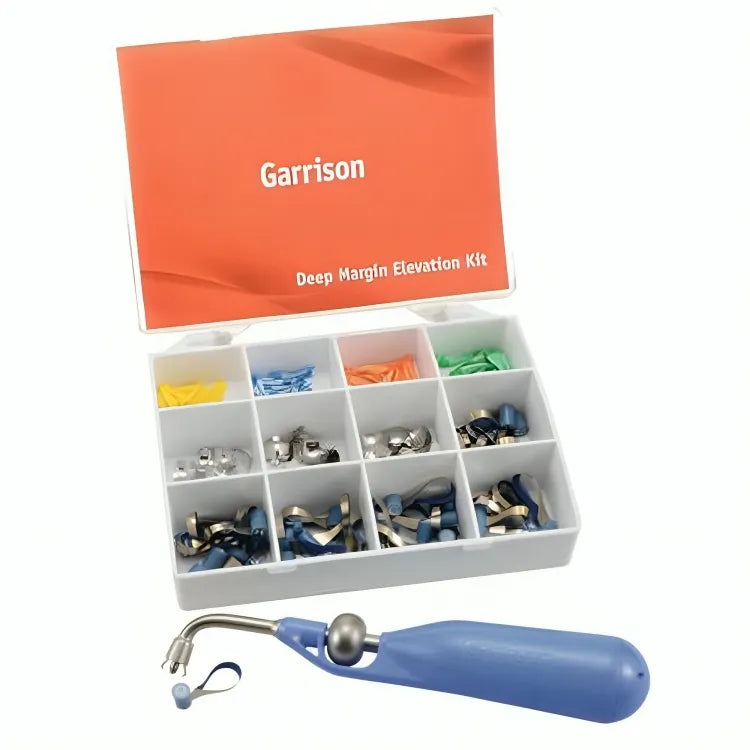

Garrison Dental Deep Margin Elevation Kit (DME-01)

• Conservative Approach: Utilizes a conservative deep margin elevation procedure, preserving maximum natural tooth structure and avoiding invasive alternatives like crown lengthening.
• Predictable Margin Relocation: Provides a reliable method for relocating deep localized margins, ensuring precise and predictable outcomes for restorative procedures.
• Specialized Materials: Developed with specialized materials designed to provide the extra matrix band seal and control required for successful margin relocation, enhancing procedural efficacy.
• Improved Bonding: Relocated supragingival margins facilitate easier scanning, impressions, and proper isolation, resulting in improved bonding of inlays, onlays, and direct final restorations.
• Biomimetic Collaboration: Developed in collaboration with leading biomimetic clinicians, ensuring a comprehensive approach to restorative dentistry that prioritizes natural tooth preservation and optimal bonding outcomes.
• Enhanced Control: Offers enhanced control and precision during margin relocation procedures, allowing for meticulous adjustment and placement of restorative materials.
• Versatile Application: Suitable for a wide range of restorative procedures, including inlays, onlays, and direct final restorations, providing adaptability to diverse clinical needs.
• Efficient Procedure: Streamlines the restorative process by providing the necessary tools and materials to achieve successful deep margin elevation with minimal disruption to workflow.

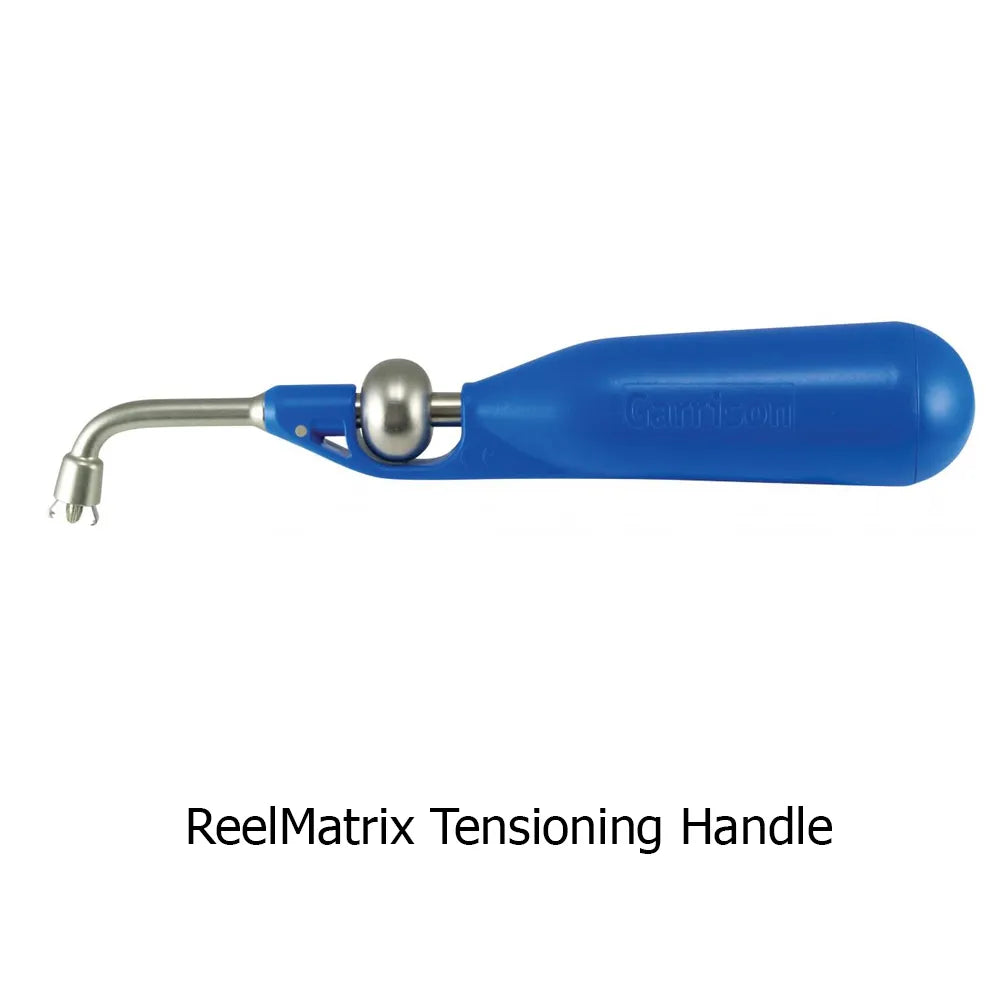

ReelMatrix Tensioning Handle:

• Height: 33.7mm
• Width (Width Point): 27.98mm
• Length: 155.32mm

Composi-Tight 3D Fusion Wedges Materials:

• Polypro
• TPE

Composi-Tight 3D Fusion Firm Matrix Bands, Bicuspid w/Extension, 4.3 mm, 5.9 mm w/Ext:

• 4.3 mm height (5.9 mm with apron)
• 11.4 mm length
• 4 mm width (profile view)
• 0.0015" thickness

Composi-Tight 3D Fusion Firm Matrix Bands, Large Molar, 6.1 mm

• 6.1 mm height
• 12.4 mm length
• 4.7 mm width (profile view)
• 0.0015" thickness

Composi-Tight 3D Fusion Firm Matrix Bands, Molar w/Extension, 6.1 mm, 7.7 mm w/Ext

• 6.1 mm height (7.7 mm with apron)
• 12.3 mm length
• 4.7 mm width (profile view)
• 0.0015" thickness

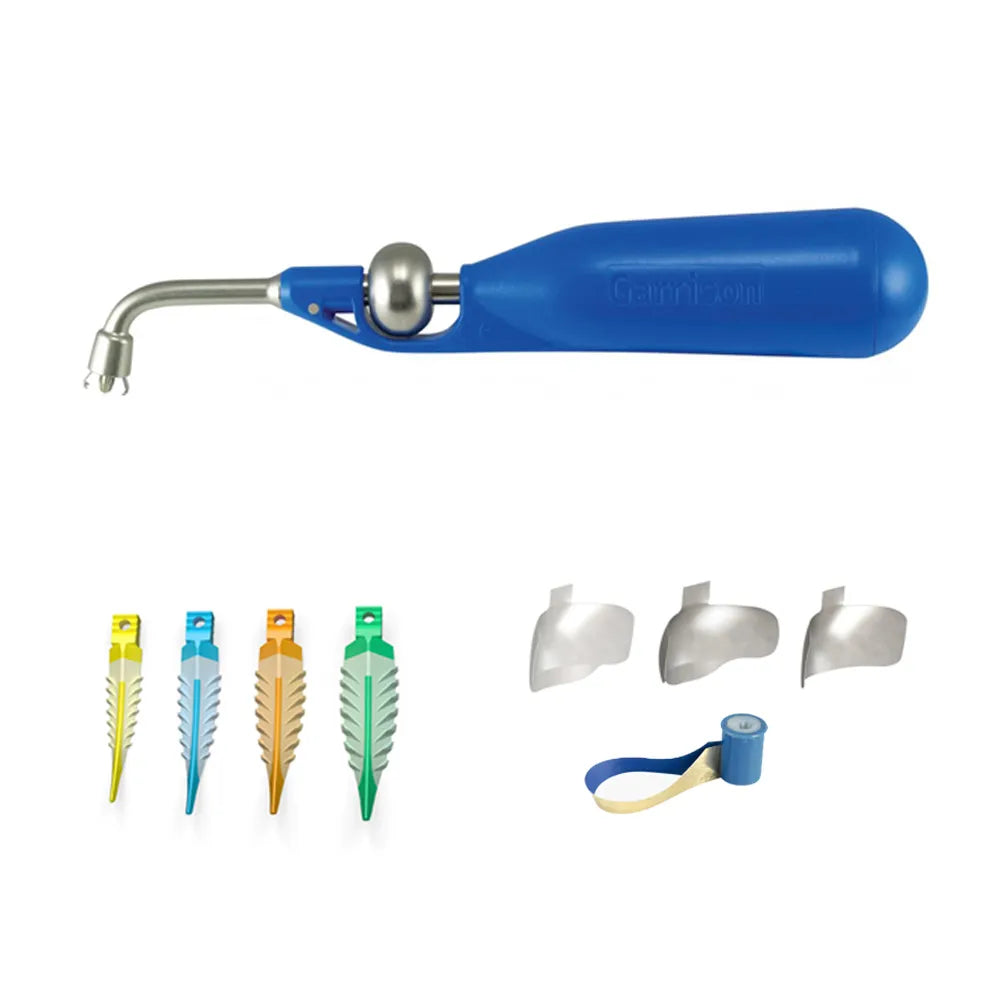

• 1 x ReelMatrix Tensioning Handle
• 5 x Composi-Tight 3D Fusion Firm Matrix Bands, Bicuspid w/Extension, 4.3 mm, 5.9 mm w/Ext
• 10 x Composi-Tight 3D Fusion Firm Matrix Bands, Large Molar, 6.1 mm
• 20 x Composi-Tight 3D Fusion Firm Matrix Bands, Molar w/Extension, 6.1 mm, 7.7 mm w/Ext
• 20 x Composi-Tight 3D Fusion Extra Small Yellow Wedges
• 20 x Composi-Tight 3D Fusion Small Blue Wedges
• 20 x Composi-Tight 3D Fusion Medium Orange Wedges
• 20 x Composi-Tight 3D Fusion Large Green Wedges

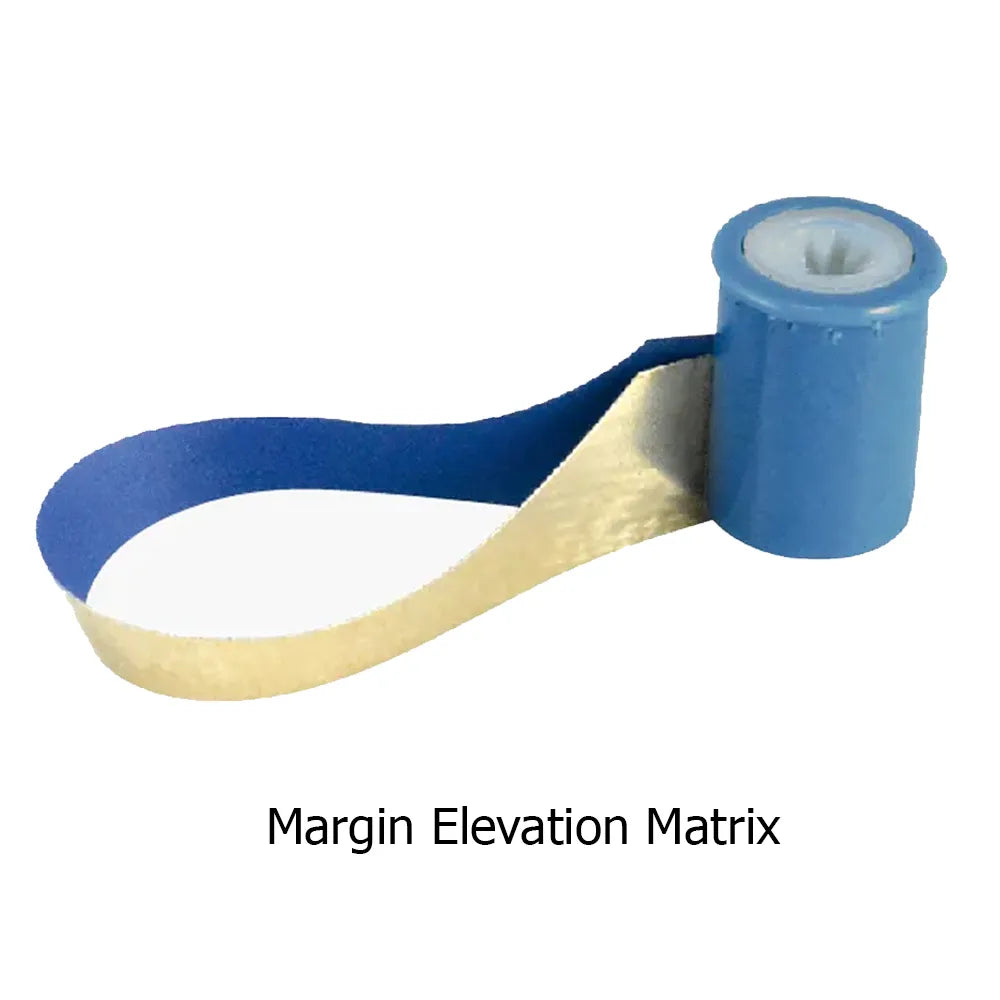

• 50 x ReelMatrix Margin Elevation Matrices

• Select a matrix band: Most margin elevations will be performed with the RM500H (ReelMatrix™ Margin Elevation band). A Firm Band is recommended in cases where there is not sufficient tooth structure remaining to allow the RM500H to be securely tightened.

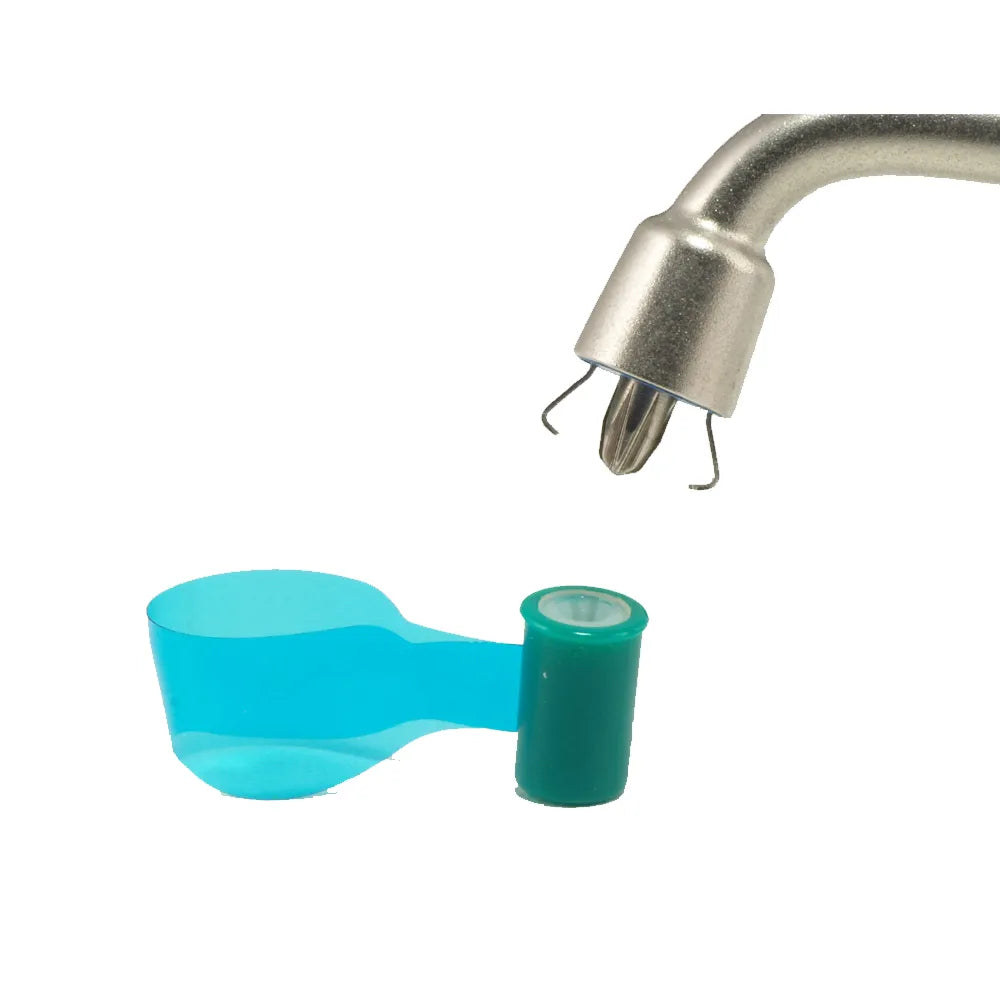

• Place the matrix band: Seat the margin elevation band subgingivally and begin to tighten it using the ReelMatrix handle. The narrowness and enhanced conical shape will allow it to slide more deeply subgingival and seal the margin efficiently.
• Further seal the matrix band: Apply a Fusion Wedge, gingival retraction cord, or other material to definitively seal the matrix against the tooth, preventing any leakage into the preparation.
• Seal the dentin and elevate the margin: Using your preferred materials, follow the manufacturer’s instructions to elevate the margin equigingival or slightly supragingival.
• Remove any flash: Remove the matrix and finish with a #12 blade to remove any flash. The deep margin has been relocated for predictable isolation and delivery of a final restoration.

Double band technique

• If it is not possible to slide the RM500H subgingivally deep enough to reach the deepest portion of the preparation, a Firm Band can be placed inside the RM500H and pressed into place. Care should be taken to not over-tighten the ReelMatrix band, thereby forcing it to encroach into the preparation. Further seal the matrix band if necessary.

• Warranty is not applicable for this product.

Question: How does the DME-01 kit benefit my restorative procedures?
Answer: The kit elevates subgingival margins to ideal heights, optimizing tooth preparation for superior restorations.

Question: Can the kit be used for both direct and indirect restorations?
Answer: Absolutely, it's versatile and suitable for various restorative procedures, ensuring adaptability to diverse clinical needs.

Question: Is the kit easy to use in a clinical setting?
Answer: Yes, designed with ergonomic tools and intuitive techniques, the kit promotes ease of use and streamlined workflow for dentists.

Question: How does the DME-01 kit integrate with existing dental equipment?
Answer: It's compatible with standard dental equipment and procedures, seamlessly integrating into established workflows for enhanced efficiency.
