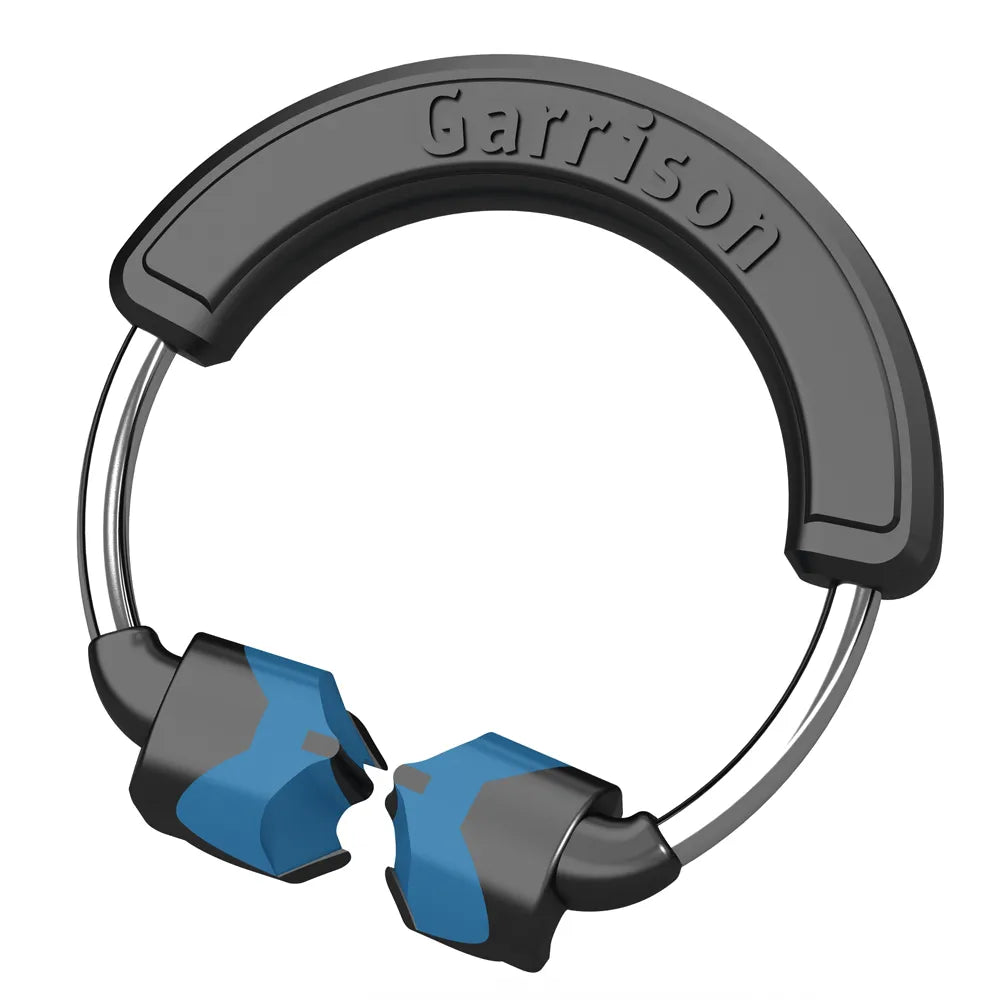

Garrison Dental Composi-Tight 3DXR Ring (3DXR-1)

• Ultra-Retentive Design: Specifically designed for short or malpositioned teeth, including areas between the canine and first bicuspid, ensuring superior grip and stability.
• Enhanced Soft Face™ Technology: Minimizes flash formation and ensures precise adaptation for optimal restoration outcomes.
• Dynamic Tip Angle™: Improves results on difficult dentition by enhancing adaptation and contouring, facilitating efficient and precise restorative procedures.
• Space-Age PEEK® Overmold: Promotes unparalleled strength and resistance to fatigue, ensuring durability and longevity in clinical use.
• Expanded Indications: Offers versatile indications for predictable placement, reducing procedure time and enhancing workflow efficiency.
• Streamlined Workflow: Faster, more efficient restorative procedures due to the ring's enhanced grip, adaptation, and durability.
• Standard for Class II Restorations: Trusted by dental professionals as the standard for excellence in Class II restorative procedures, ensuring consistent and reliable results.

• Height (tallest point): 10.19mm
• Width (widest point): 25.87mm
• Lenght: 24.22mm

Material:

• Stainless steel
• Peek
• Silicone

• 1 x Composi-Tight 3DXR Ring

• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.
• Place FenderWedge: Prior to preparation pre-separate and protect the adjacent teeth. Prepare tooth with conservative Class II preparation. Once the preparation is complete, remove the FenderWedge and place your matrix.
• Place contoured sectional matrix band: Select a matrix band that most closely approximates the occlusogingival height of the tooth. Over-approximate tooth curvature buccolingually by rolling the contoured band with your fingers. This will help keep the matrix band ends from interfering with the Soft Face™ 3D500 Ring placement. The band should be oriented with the convex edge towards the gingival margin of the tooth.
• Insert wedge: For optimal contour, gingival seal, and tooth separation, use Garrison’s Wedge Wands™ or other Garrison wedge. Keep a finger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge firmly, a high-viscosity resin packed into the preparation may displace the band away from the tooth.
• Apply Soft Face Ring: Apply the Soft Face™ 3D500-ring retainer by spreading it with the ComposiTight Ring Placement forceps and placing it over the wedge. NOTE: For secure gripping of ring tips to the surface, dry teeth thoroughly before placement.
• Very Important: Push the matrix band firmly into contact with the adjacent tooth in the desired contact area.
• Use your preferred etching, disinfecting, and bonding technique following the manufacturer’s instructions.
• Apply your preferred composite resin following the manufacturer’s instructions.
• Removal: Remove the Ring, wedge, and band, because of the superior contact achieved with Composi-Tight 3D, removal of the band may require a Composi-Tight Matrix Forceps (model #BFA-1) or hemostat. This is especially true with particular bonding agents that preferentially bond to metal. For easier removal choose Slick Bands™.

• Warranty is not applicable for this product.
