Garrison Dental Composi-Tight 3D Fusion Matrix Rings

• Get a grip –  All Composi-Tight 3D Fusion separator rings incorporate Ultra-Grip™ retention extensions that anchor them securely to virtually any tooth. Fusion rings stay where you place them!
• Stack it up – Tru-Stack technology allows placement of the orange ring (tall) over the blue ring (short) for easier MOD and multiple tooth restorations
• Hugs the curves – Soft-Face silicone tips with enhanced marginal ridge anatomy hug the matrix band to the tooth for flash free restorations
• It just keeps going – Enhanced durability for extended ring life and greater tooth separation

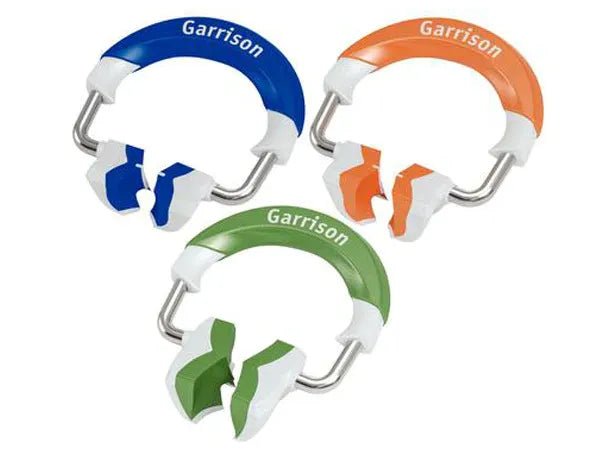

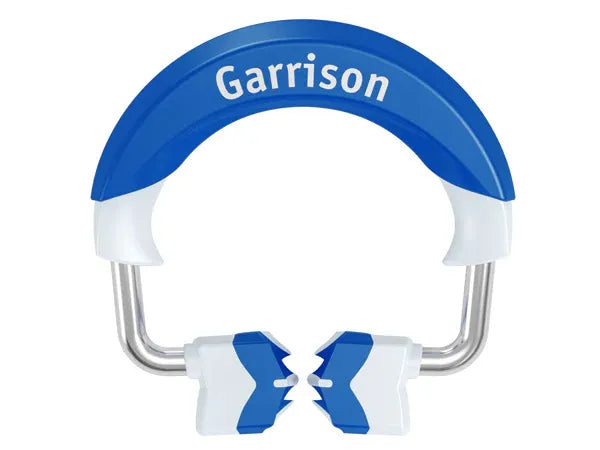

Composi-Tight 3D Fusion Short Ring FX400: used for bicuspids, premolars, pedo, malpositioned teeth; any tooth with a short crown.

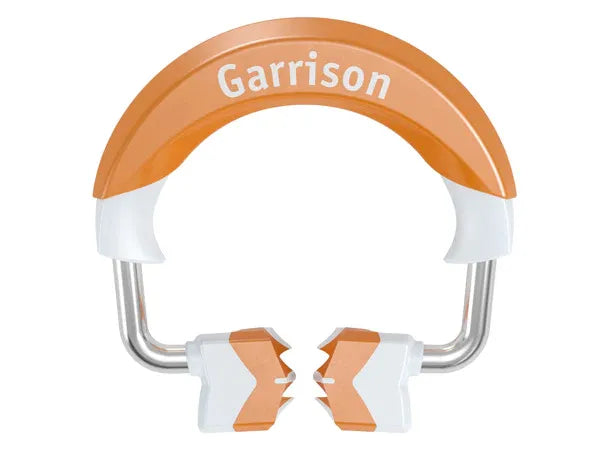

Composi-Tight 3D Fusion Tall Ring FX500: used for typical molars, taller teeth, or stacking over blue for MODs.

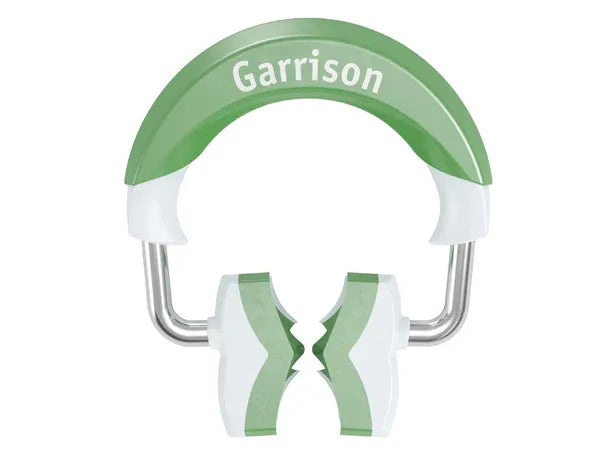

Composi-Tight 3D Fusion Wide Prep Ring FX600: used for extremely wide preps, missing cusps.

• 1 x Composi-Tight 3D Fusion Ring

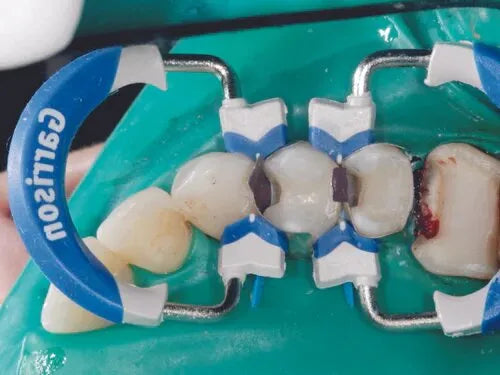

Technique for Class II restorations utilizing Composi-Tight 3D Fusion Soft Face Rings

1. Place rubber dam. Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.
2. Place FenderWedge prior to preparation to pre-separate and protect the adjacent tooth. Prepare tooth with conservative Class II preparation. Once the preparation is complete, remove the FenderWedge and place your matrix.
3. Place Composi-Tight 3D Fusion sectional matrix band. Select a matrix band that most closely approximates the occlusogingival height of the tooth. The Grab-Tab should be oriented toward the occlusal margin and may be bent over the adjacent tooth after placement
4. Insert Composi-Tight 3D Fusion wedge. Keep a finger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge firmly, a high viscosity resin packed into the preparation may displace the band away from the tooth.
5. Apply the Composi-Tight 3D Fusion Soft Face ring retainer. Select a retainer ring that is appropriate for the embrasure and tooth being restored. Spread it with the *Composi-Tight 3D Fusion Ring Placement forceps and place it over the wedge.
6. Very Important: push the matrix band firmly into contact with the adjacent tooth in the desired contact area.
7. Use your preferred etching, disinfecting and bonding technique following manufacturer’s instructions. Apply your preferred composite resin following manufacturer’s instructions.
8. Remove the ring, wedge and band.
9. Contour and polish the restoration.

• Warranty is not applicable for this product.
