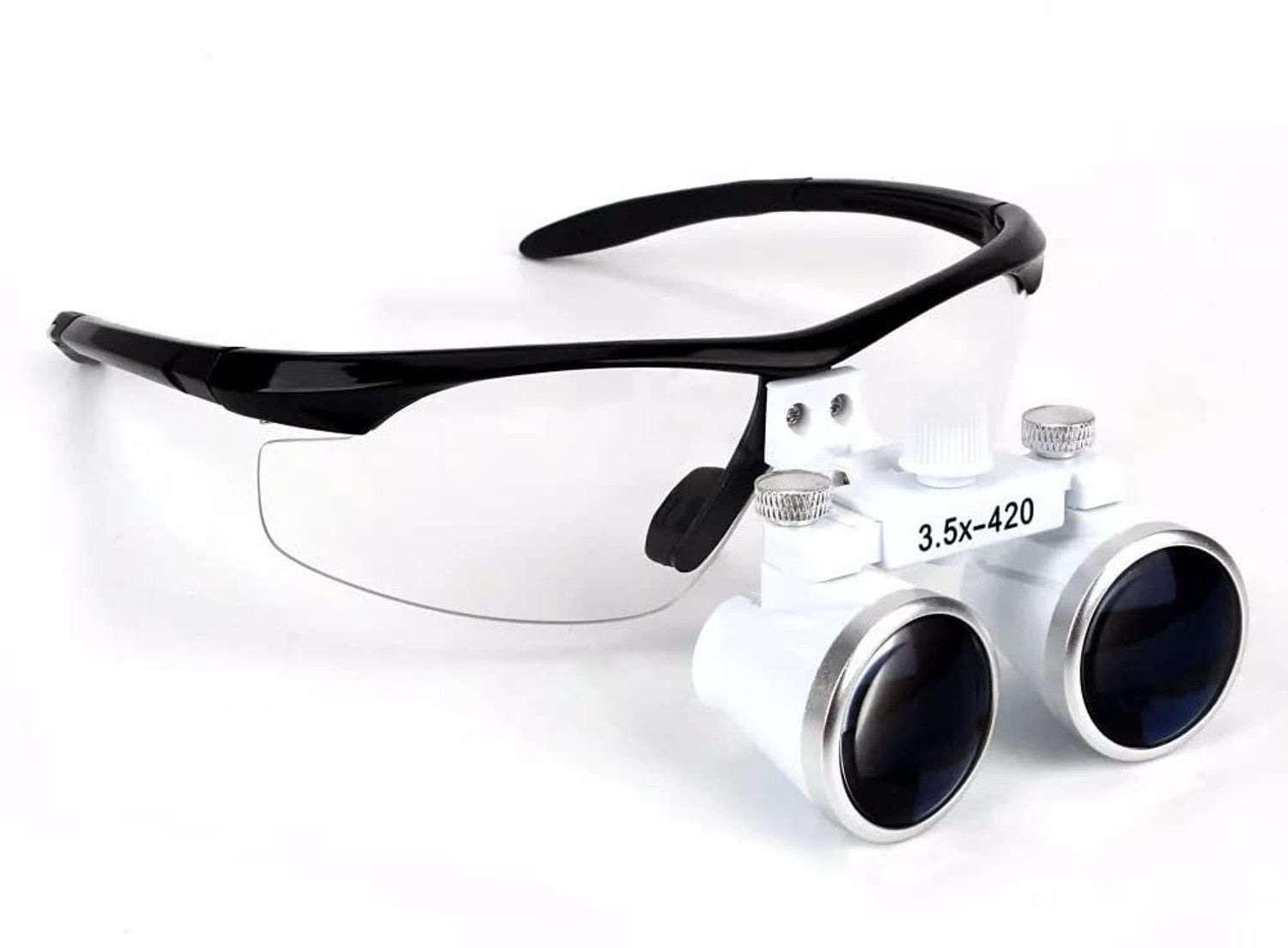

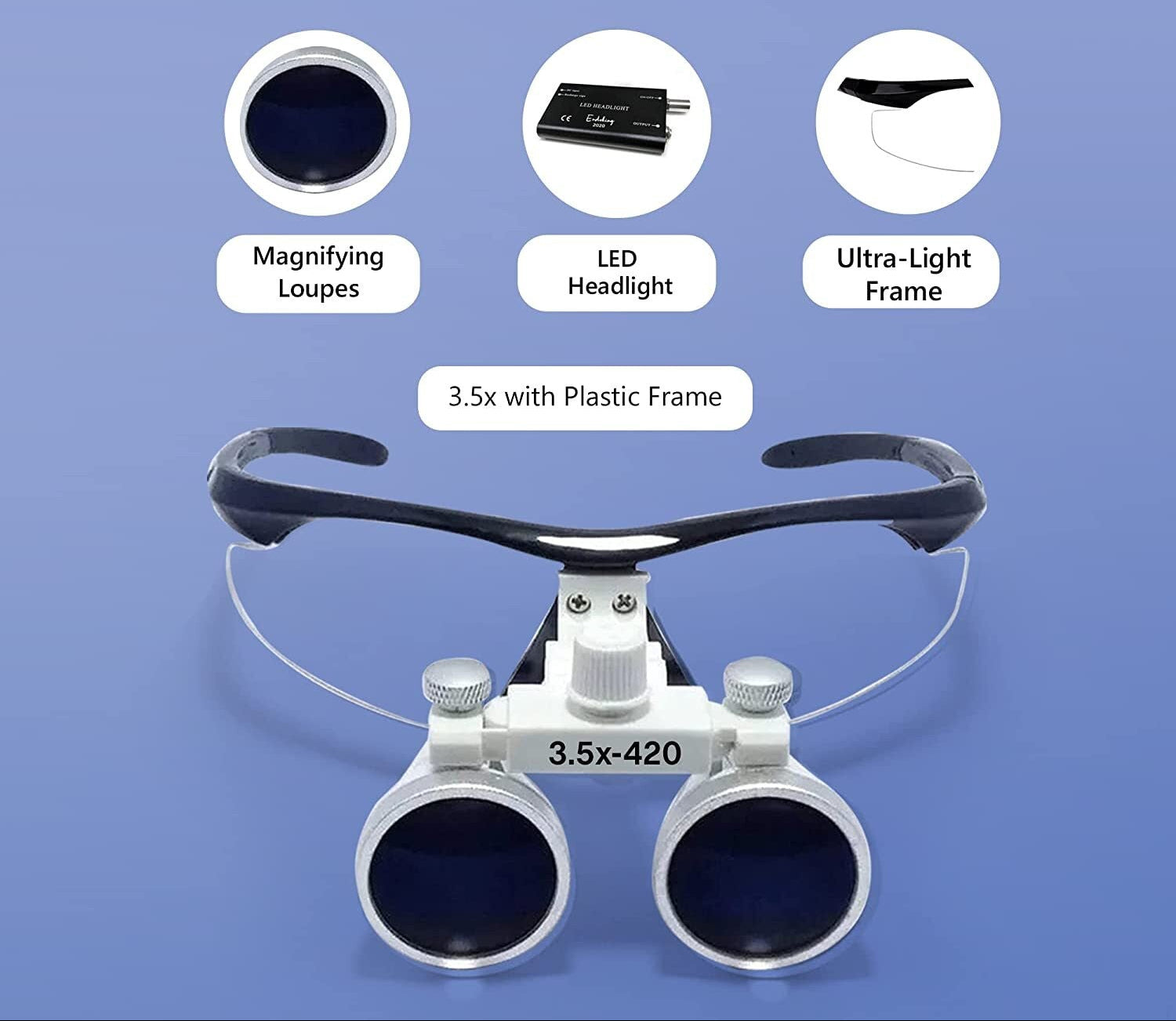

Dental Loupes 2.5x and 3.5x with Plastic Frame & LED Headlight

Dental Loupes 2.5x and 3.5x with Plastic Frame & LED Headlight

Rs. 3,600.00
Rs. 7,500.00 Rs. 3,600.00
Sale Sold out

The Dental Loupes 2.5x and 3.5x with Plastic Frame & LED Headlight is an essential magnification and illumination tool designed for dental practitioners, surgeons, and specialists who require superior optical clarity and ergonomic comfort during precision clinical procedures.

Equipped with high-grade multi-coated optical silica glass lenses, these 2.5x and 3.5x binocular loupes deliver wide fields of view, generous depth of field, and crisp edge-to-edge visualization. The ultra-lightweight, durable plastic frame features ergonomic wrap-around temples and adjustable Pupillary Distance (PD) controls, ensuring a customized fit that reduces neck, back, and eye fatigue during long treatments.

The included portable 3W LED headlight provides powerful, uniform, shadow-free white light (15,000–40,000 Lux) that directly illuminates the oral cavity, powered by a rechargeable lithium battery pack offering up to 5 hours of continuous clinical use.

Features

  • 2.5x Binocular Magnification: Provides high-resolution, distortion-free optical visualization with exceptional depth of field.
  • Ultra-Lightweight Ergonomic Plastic Frame: Designed with comfortable wrap-around temples to minimize facial pressure and fatigue during extended procedures.
  • Multi-Coated Optical Glass Lenses: Scratch-resistant, anti-reflective silica glass optics ensuring maximum light transmission and sharp edge-to-edge clarity.
  • High-Intensity 3W LED Headlight: Delivers bright, concentrated, shadow-free illumination (15,000 to 40,000 Lux) directly to the working field.
  • Independent Pupillary Distance (PD) Adjustment: Individual convergence knobs allow precise optical alignment according to your unique interpupillary distance.
  • Rechargeable Lithium Battery Pack: Compact, clip-on battery unit providing up to 5 hours of continuous runtime with adjustable brightness controls.
  • Prescription Glasses Compatible: Flexible frame design easily accommodates prescription lenses or optical inserts as needed.

Description

Specification

  • Brand: Indian
  • Model: 2.5x and 3.5x Binocular Loupes with LED Headlight
  • Magnification: 2.5x and 3.5x
  • Working Distance: 320 mm - 420 mm
  • Field of View: 100 mm - 110 mm
  • Depth of Field: 90 mm
  • Frame Material: Medical-grade lightweight durable plastic
  • Lens Material: Multi-coated optical grade silica glass
  • LED Light Power: 3W High-Intensity LED
  • Illumination Output: 15,000 - 40,000 Lux
  • Color Temperature: 6,000K (Daylight White)
  • Battery Type: Rechargeable Lithium-ion Battery Pack
  • Battery Voltage / Capacity: 3.7V / 1800mAh
  • Battery Runtime: Approx. 5 Hours continuous operation
  • Bulb Lifetime: Up to 10,000 Hours

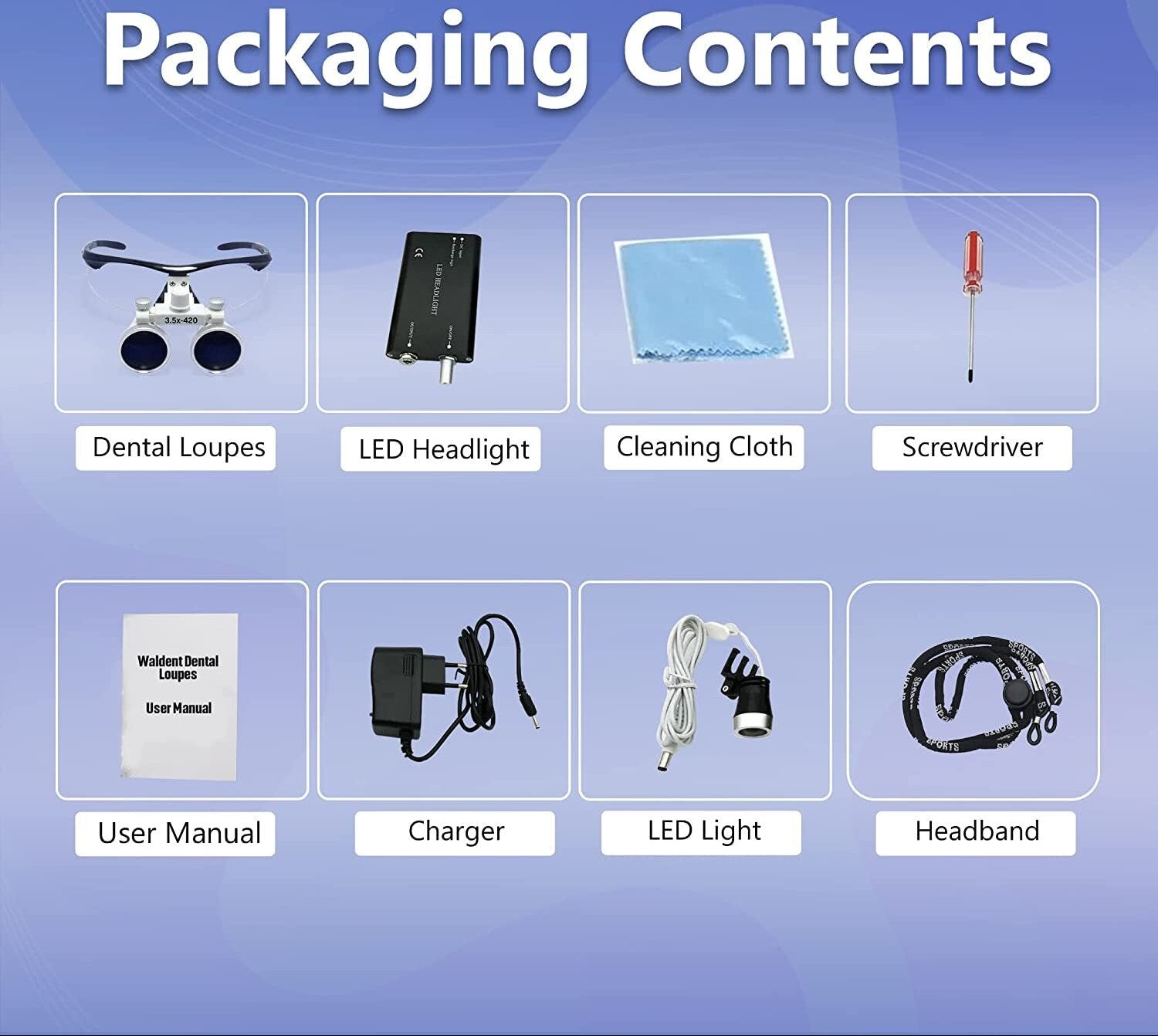

Packaging

  • 1 x 3.5x or 2.5x Binocular Dental Loupes with Frame
  • 1 x Portable 3W High-Intensity LED Headlight
  • 1 x Rechargeable Lithium Battery Pack with Belt/Pocket Clip
  • 1 x Power Charging Adapter / Cable
  • 1 x Adjustable Retaining Head Strap / Neck Cord
  • 1 x Precision Screwdriver for Optical Adjustments
  • 1 x Optical Microfiber Cleaning Cloth
  • 1 x Protective Hard Carrying Case & User Manual

Direction to use

  • Position the loupe frame comfortably on your face and secure the adjustable retaining strap around your head for stability.
  • Attach the 3W LED headlight firmly to the center mounting clip on the bridge of the loupe frame.
  • Loosen the Pupillary Distance (PD) adjustment knobs located on the top of each optical barrel.
  • Sit in your standard ergonomic posture at your preferred working distance (~320-420 mm) from the oral cavity or patient.
  • Look through the optics and rotate the independent PD knobs until the two optical circles merge into a single, sharp circular field of view.
  • Tighten the adjustment screws firmly to lock your personalized focal alignment.
  • Connect the headlight power cable to the rechargeable battery pack, clip the battery to your belt or pocket, and switch on the illumination.
  • Rotate the rotary dial on the battery pack to adjust the LED brightness to your desired intensity level for shadow-free visibility.
