Eighteeth NanoPix E RVG Sensor - Size-1.3
Eighteeth NanoPix E RVG Sensor - Size-1.3
Couldn't load pickup availability

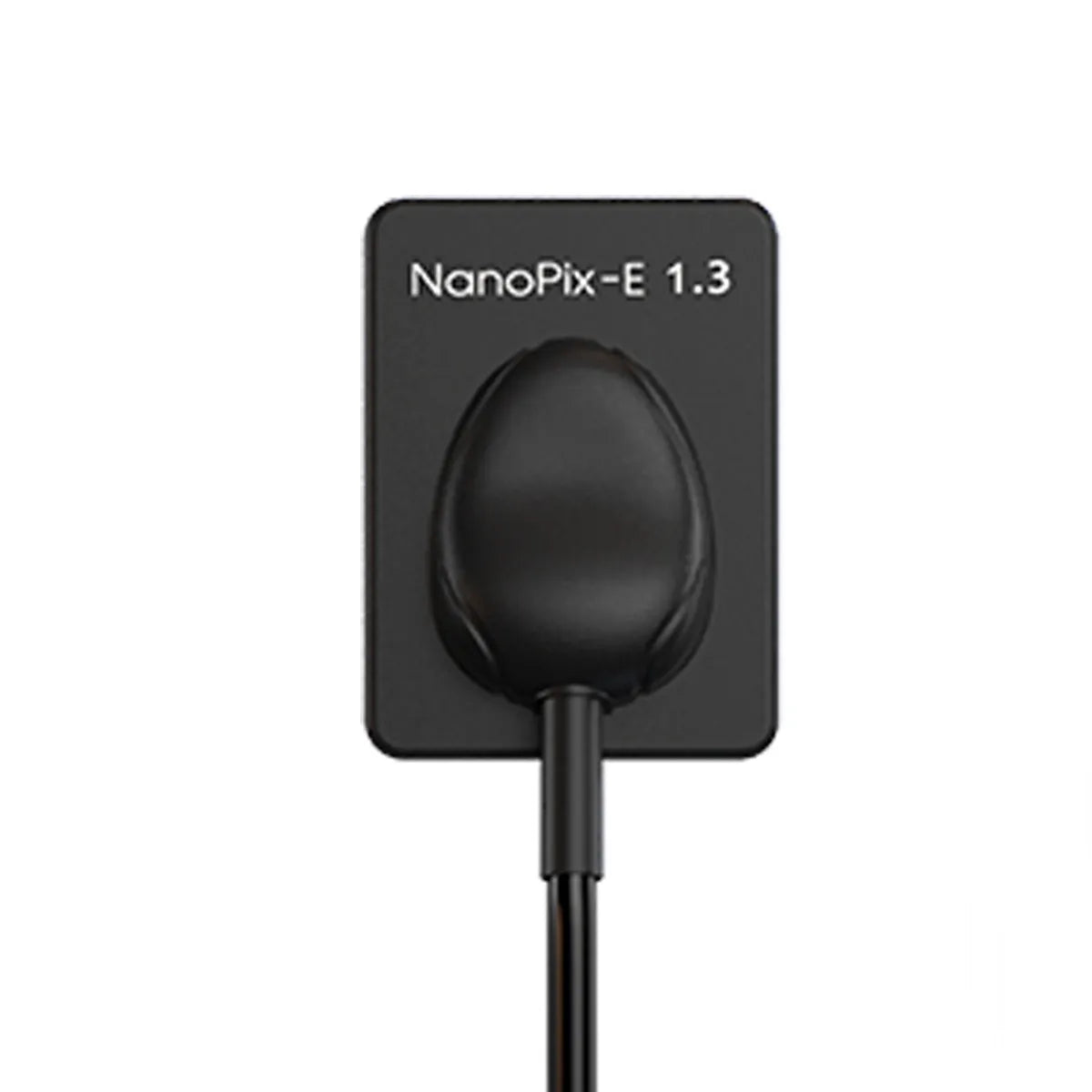

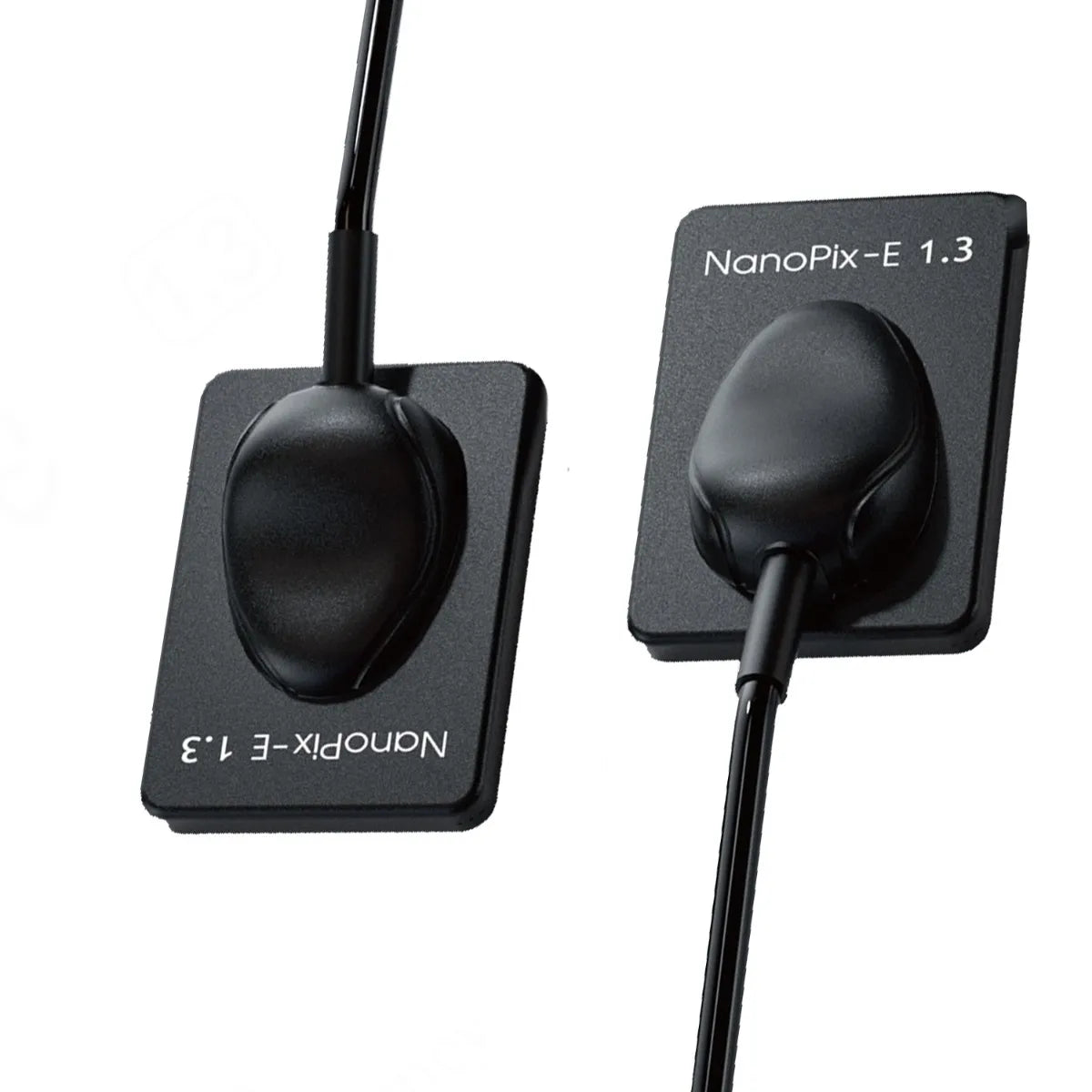

Eighteeth NanoPix E RVG Sensor - Size-1.3 is an advanced imaging system that utilizes the latest detector technology to deliver high-quality images. It is designed with an APS CMOS detector that ensures fast, accurate and high-resolution imaging. The scintillator used in the Nanopix-E 1.3 is the CSL, which is known for its high light output and excellent energy resolution. The combination of these two technologies ensures that the system delivers exceptional image quality. The active area of the Nanopix-E 1.3 provides a large imaging area for capturing a wide range of samples. The system is also equipped with a USB 2.0 data interface, which allows for fast and easy transfer of data to a computer or other device. Its advanced detector technology, high-resolution pixel matrix, and large…
Features
Features
- Thin Body Design
- Robust Cable Connection
- Ergonomic design
Description
Description
Specification
Specification

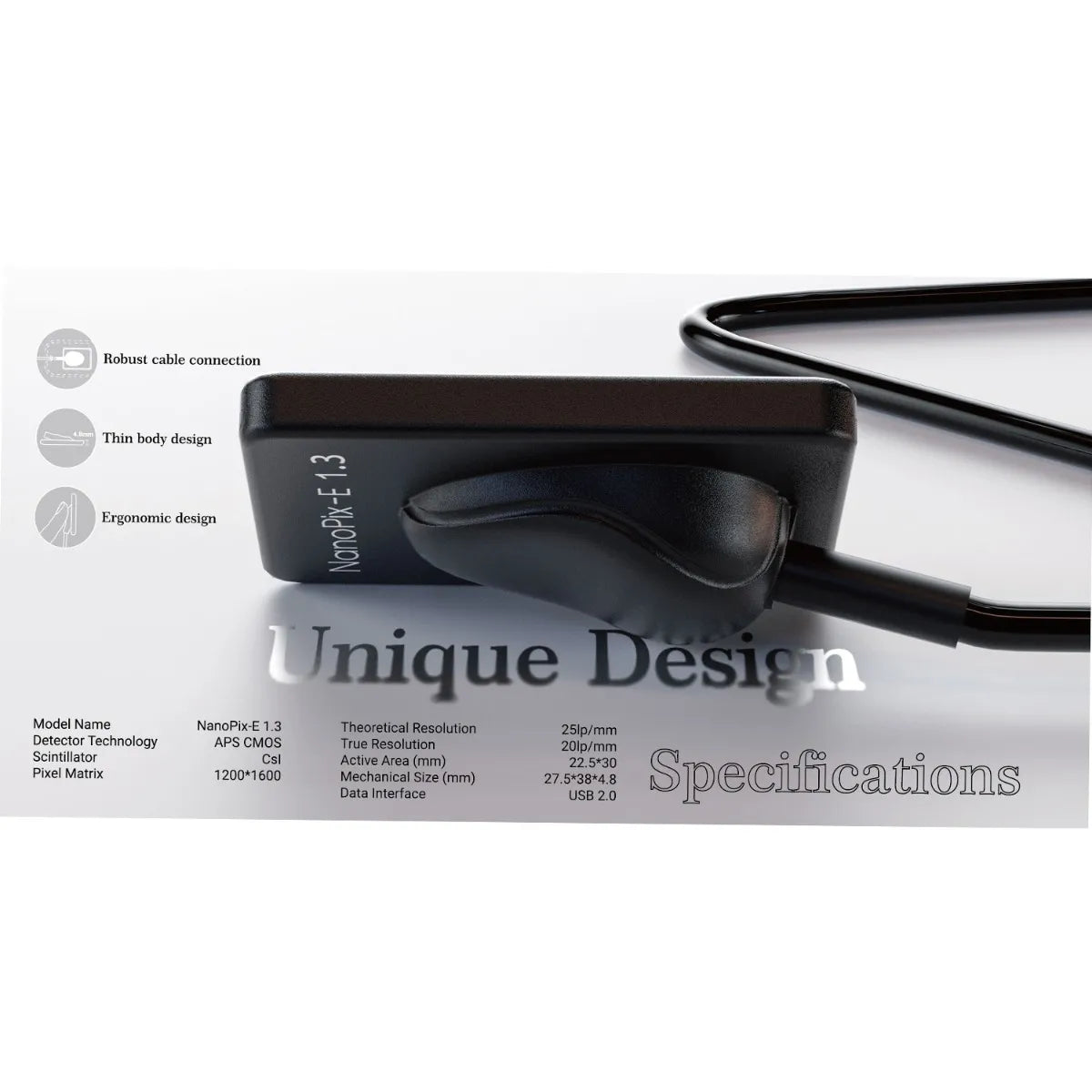

- Model Name - Nanopix-E 1.3
- Detector Technology - APS CMOS

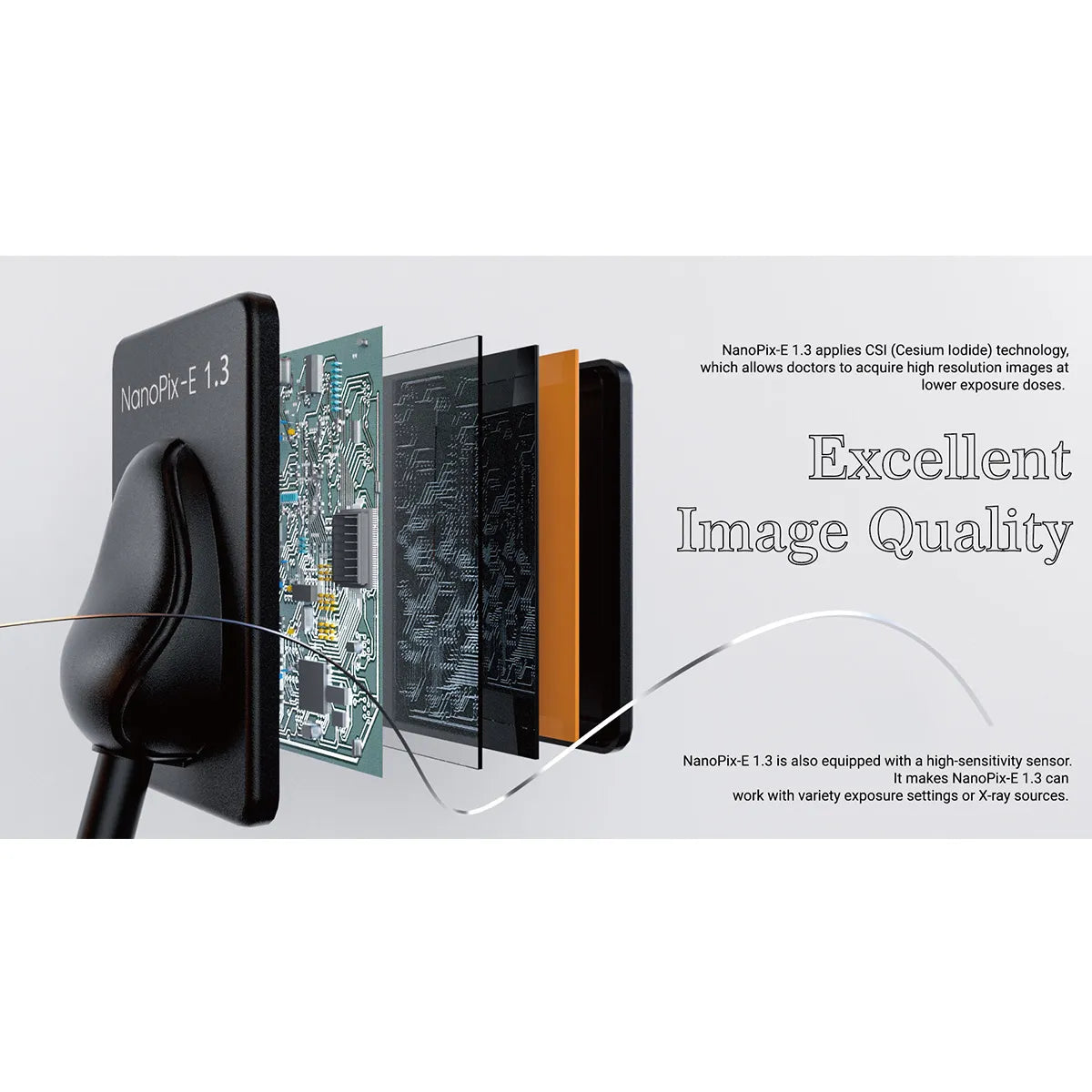

- Scintillator - CSL
- Pixel matrix - 1200*1600
- Theoretical Resolution - 25lp/mm
- True Resolution - 20lp/mm
- Active Area (mm) - 27.5*38*4.8
- Data Interface - USB 2.0
Packaging
Packaging
- 1 x NanoPix E RVG Sensor - Size-1.3
Direction to use
Direction to use
Additional info
Additional info
- Country of Origin: PRC
- Manufacturer: Eighteeth
Warranty
Warranty
- Manufacturer/Importer warranty for Eighteeth NanoPix E RVG Sensor - Size-1.3 is 5 Years as applicable for this product.
- Service and Warranty are handled by the manufacturer/importer directly for this product
- Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
- Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
- Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
- The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.
Product Related Questions
Product Related Questions
Question: Is it better than nanopix 2?
Answer: The Eighteeth NanoPix E RVG Sensor with a size of 1.3 is different from the NanoPix 2 in terms of size and specifications. To determine the right sensor for your needs, it's essential to review the product description page's specifications section and choose the one that suits your requirements best.
Question: What is APS CMOS technology?
Answer: APS CMOS stands for Active Pixel Sensor Complementary Metal-Oxide-Semiconductor Technology. It is a type of image sensor technology that is commonly used in digital cameras and other imaging devices. APS CMOS sensors use a photodiode and a transistor to convert light into an electrical signal, resulting in high-speed and high-quality image capture.
Question: What is the theoretical resolution of Nanopix-E 1.3?
Answer: The theoretical resolution of Nanopix-E 1.3 is 25lp/mm. This means that it can resolve 25 line pairs per millimeter, which is a measure of the spatial resolution of the device.
Question: What is the true resolution of Nanopix-E 1.3?
Answer: The true resolution of Nanopix-E 1.3 is 20lp/mm. This is the actual resolution that can be achieved in practice, taking into account factors such as the scintillator thickness, pixel size, and noise levels.
Question: What is the active area of Nanopix-E 1.3?Answer: The active area of Nanopix-E 1.3 is 27.5mm x 38mm x 4.8mm. This is the area of the device that is sensitive to X-rays and can produce an image.
