Eighteeth Medical E-Pex Apex Locator
Eighteeth Medical E-Pex Apex Locator
Couldn't load pickup availability

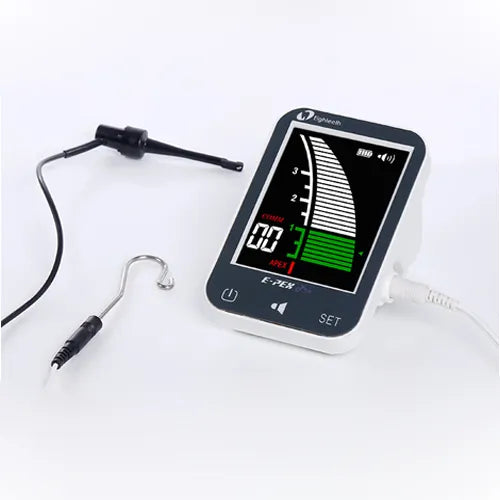

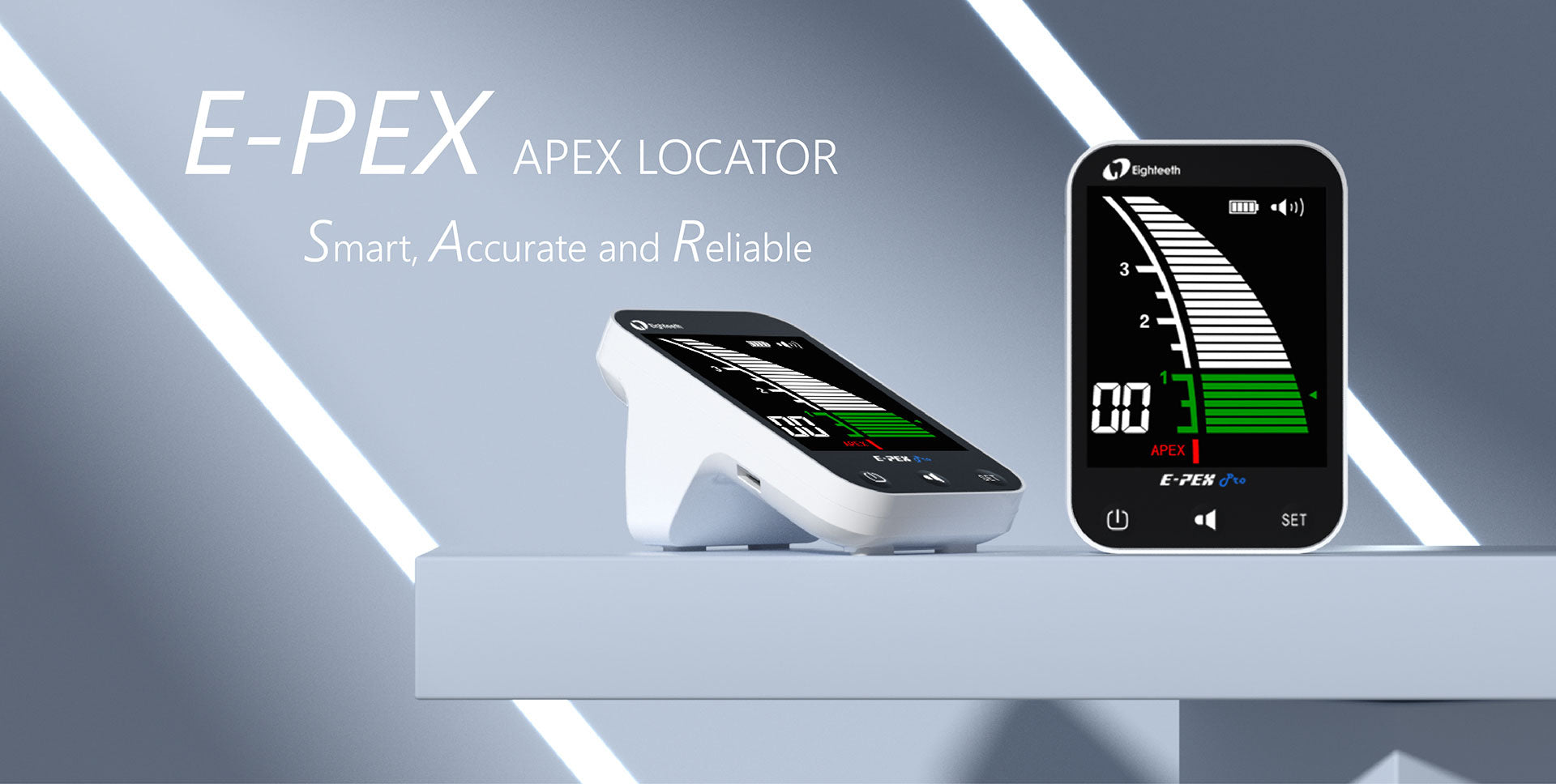

The Eighteeth Medical E-Pex Apex Locator is a compact, stable apex locator for measuring working length during root canal treatment. It uses multiple-frequency network impedance measurement technology with automatic calibration for accurate readings.

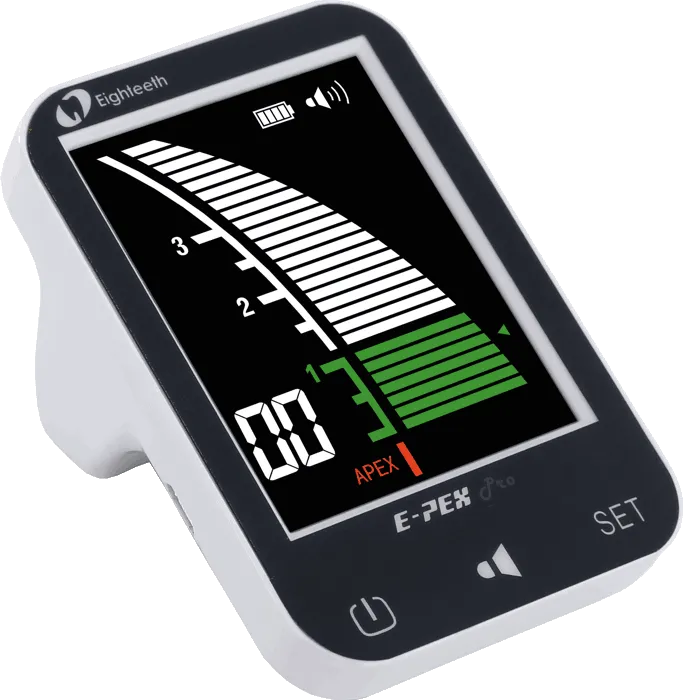

Bright LCD with colour-coded measurements
- White strips: the file has reached the region in front of the apical foramen
- Green strips: the file is near the apical foramen
- Red strips: the file has passed the apical foramen, with a rapid beep
- Adjustable keys and alarm volume

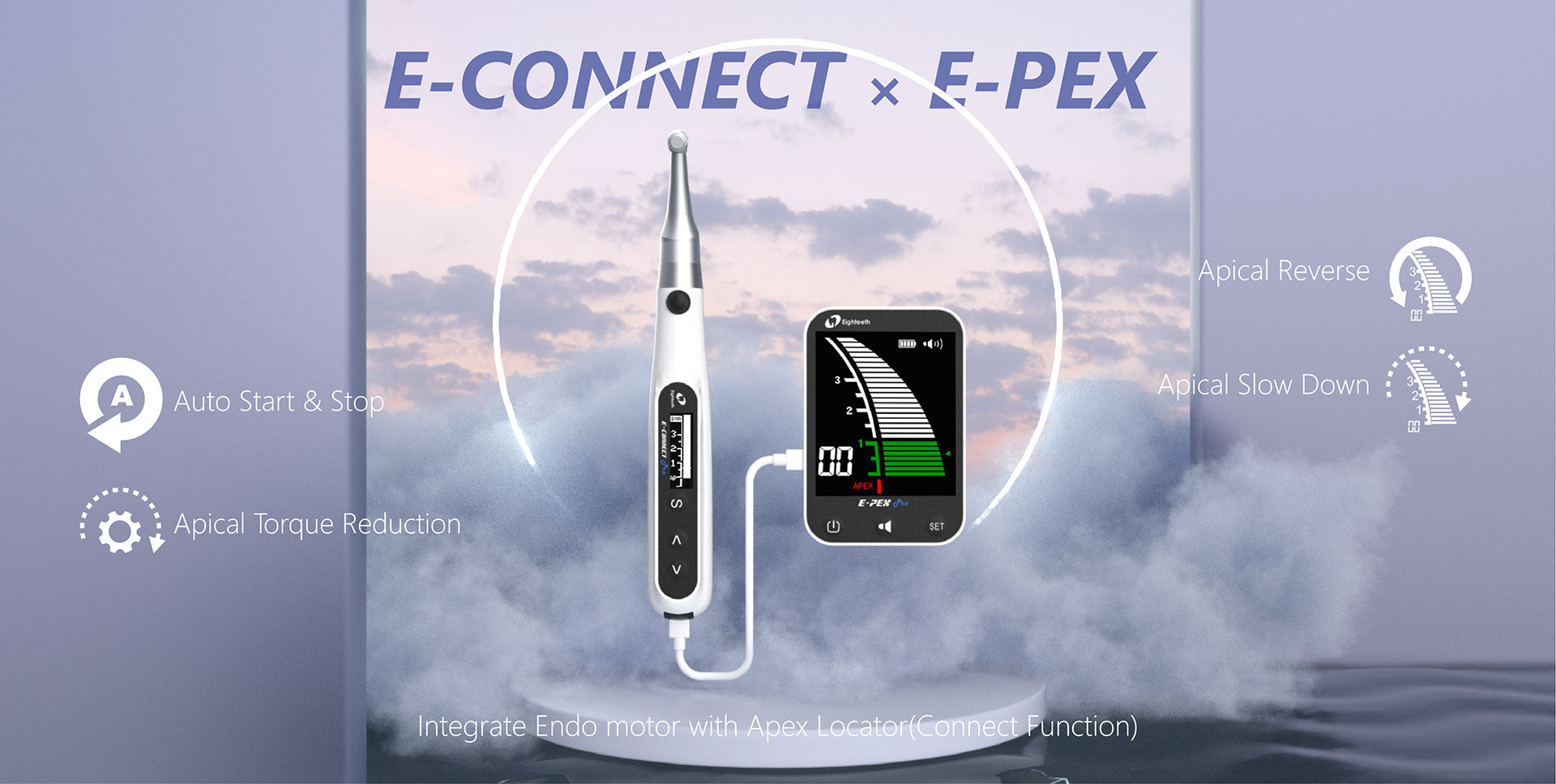

Functions when integrated with the E-Connect endomotor
- Auto start-stop: the motor starts when the file enters the canal and stops when it is withdrawn
- Apical reverse: at the pre-set apical reverse point, the user can set whether the file reverses direction
- Apical slow down: motor speed slows near the apical region to preserve the cemento-dentinal junction and help avoid file separation
- Apical torque reduction: torque is reduced in the apical third to lower the chance of file separation
Please note: apex locator readings are claimed to be 97.7% accurate. Readings may vary from the radiographic method of working length determination and may fluctuate if the precautions in the user manual are not followed.

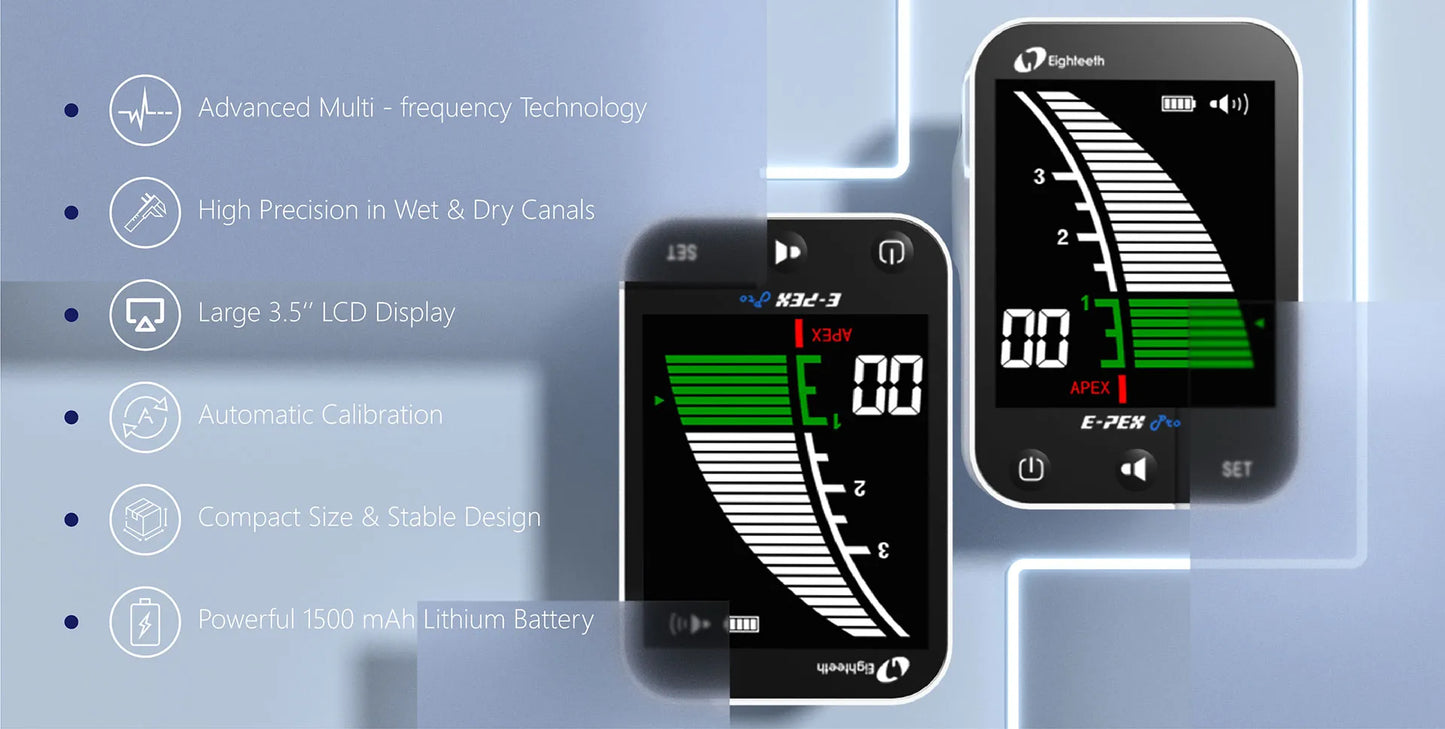

Features
Features
- Based on advanced multi-frequency network impedance measurement technology.
- LCD Display: Bright & clear display
- High precision of apical foramen localization in wet & dry canals
- Automatic calibration: Ensure stable & accurate measurements
- Compact size & stabledesing allows for excellent flexibility during procedures
Description
Description
Specification
Specification
Model Number E-PEXScreen 3.5" LCD
Battery Capacity DC 3.7V/ 1500 mAh
Adaptor Working VoltageAC 100-240v, 50-60 Hz
Dimensions197mm x 175mm x70mm(outer box)

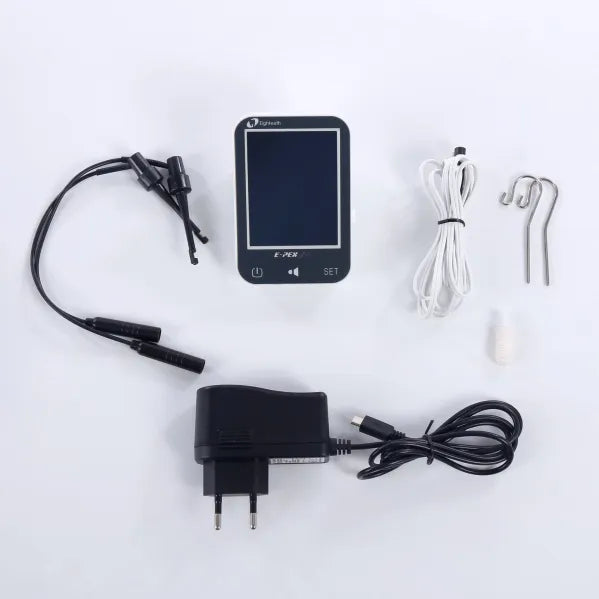

Packaging
Packaging
- 1 X E-PEX (Main Unit)
- 1 X Measuring Wire.
- 2 X File Clip
- 2 X Lip Clip
- 1 X Tester
- 1 X Adaptor
Direction to use
Direction to use
Preparation:
- Ensure that the patient is comfortably positioned, and the dental operatory is set up for endodontic treatment.
- Sterilize the apex locator probe and cover it according to standard infection control procedures.
Device Setup:
- Turn on the E-Pex Apex Locator and allow it to complete the automatic calibration process.
- Connect the apex locator probe to the device.
Patient Isolation:
- Isolate the tooth with a rubber dam to keep the area dry and free from saliva.
Access Cavity Preparation:
- Access the pulp chamber and prepare the canal for instrumentation.
Insertion of File:
- Insert a sterile endodontic file into the root canal. Ensure that the file is properly seated and not in contact with the canal walls.
Initial Measurement:
- Gently advance the file until it reaches the coronal part of the canal.
- Observe the readings on the LCD display. The initial position is usually marked by a specific color code on the screen.
Working Length Determination:
- Continue advancing the file slowly while monitoring the display.
- Note the color changes on the screen, indicating the proximity of the file to the apical foramen.
- Stop when the screen displays the desired measurement or when the red indicator appears (indicating that the file has exceeded the apical foramen).
Additional Functions:
- If integrated with an endomotor (E-CONNECT), utilize additional functions such as Auto Start-Stop, Apical Reverse, Apical Slow Down, and Apical Torque Reduction according to the specific requirements of the case.
File Removal:
- After determining the working length, carefully withdraw the file from the canal.
Cleaning and Sterilization:
- Clean and sterilize the apex locator probe and file according to recommended protocols.
Additional info
Additional info
- Country of Origin: PRC
- Manufacturer: Eighteeth
Warranty
Warranty
- Manufacturer/Importer warranty of 1 Year against manufacturing defect
- Service and Warranty are handled by the manufacturer/importer directly for this product
- Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
- Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
- Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
- The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
Product Related Questions
Product Related Questions
Question: Which generation is the e-pex apex locator?
Answer: The Eighteeth Medical E-Pex Apex Locator is a 5th generation apex locator, incorporating advanced multi-frequency network impedance measurement technology for precise root canal measurements.
Question: How to use Eighteeth Medical E-Pex Apex Locator?
Answer: Using the Eighteeth Medical E-Pex Apex Locator is straightforward: Connect to power and power on. Attach the lip clip to the patient's lip and the file holder to the endodontic file. Insert the file into the root canal, adjusting until the screen displays ""APEX"" and beeps when near the apical constriction. After use, disinfect the file before using it on another tooth or patient.
Question: What are the features and benefits of Eighteeth Medical E-Pex Apex Locator?
Answer: The Eighteeth Medical E-Pex Apex Locator offers several features and benefits, including a real-time high-resolution colored LCD screen for precise distance display to the apical constriction. Its auto calibration adapts to varying canal conditions. The device's compact, stable design enhances procedural flexibility, while maintaining high precision in localizing the apical foramen in both wet and dry canals, ensuring efficient and accurate endodontic treatments.
Question: What is Eighteeth Medical E-Pex Apex Locator?
Answer: Eighteeth Medical E-Pex Apex Locator is a device that uses advanced multi-frequency network impedance measurement technology to measure the position of the apical constriction in root canals. It helps dentists to perform accurate and efficient endodontic treatments.
