Eighteeth Medical E-connect S+ Endomotor

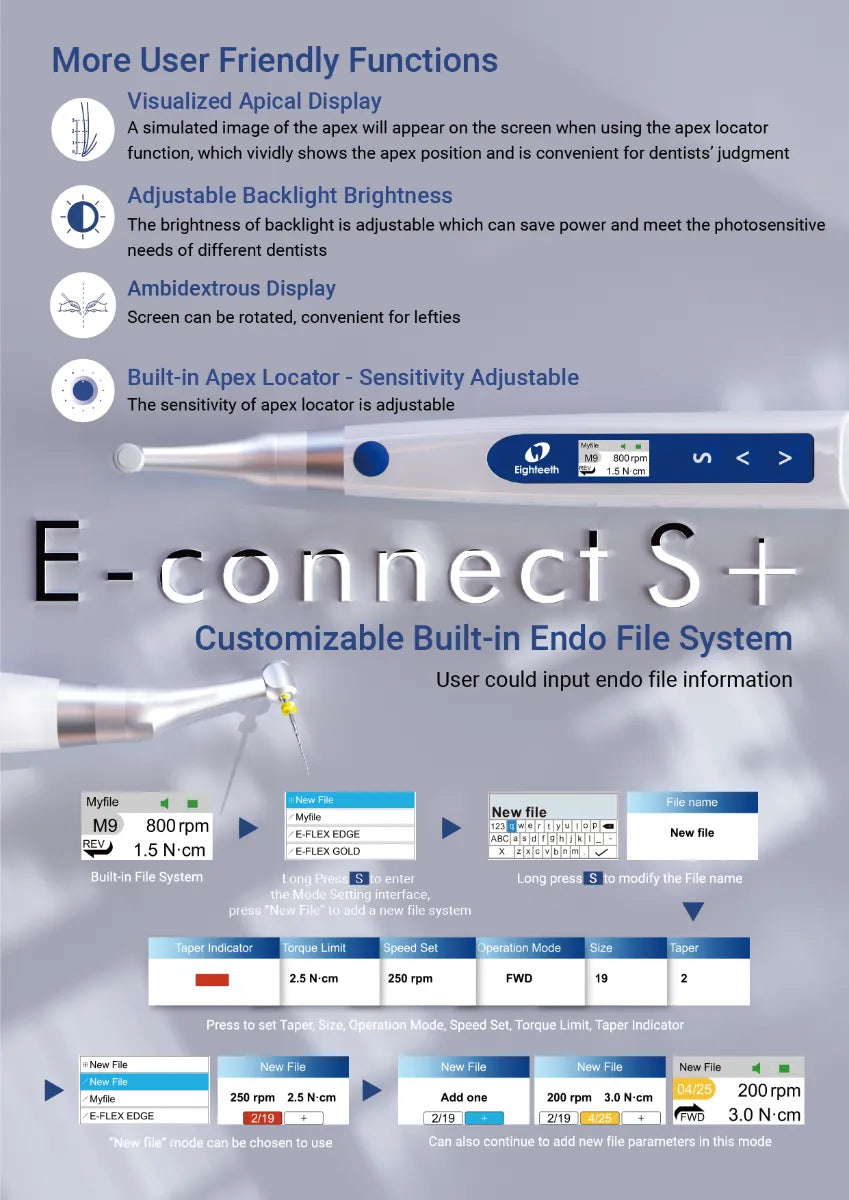

Visualized Apical Display

• A simulated image of the apex will appear on the screen when using the apex locator function, which vividly shows the apex position and is convenient for dentists' judgment

Adjustable Backlight Brightness

• The brightness of backlight is adjustable which can save power and meet the photosensitive needs of different dentists

Ambidextrous Display

• Screen can be rotated, convenient for lefties

Built-in Apex Locator - Sensitivity Adjustable

• The sensitivity of apex locator is adjustable

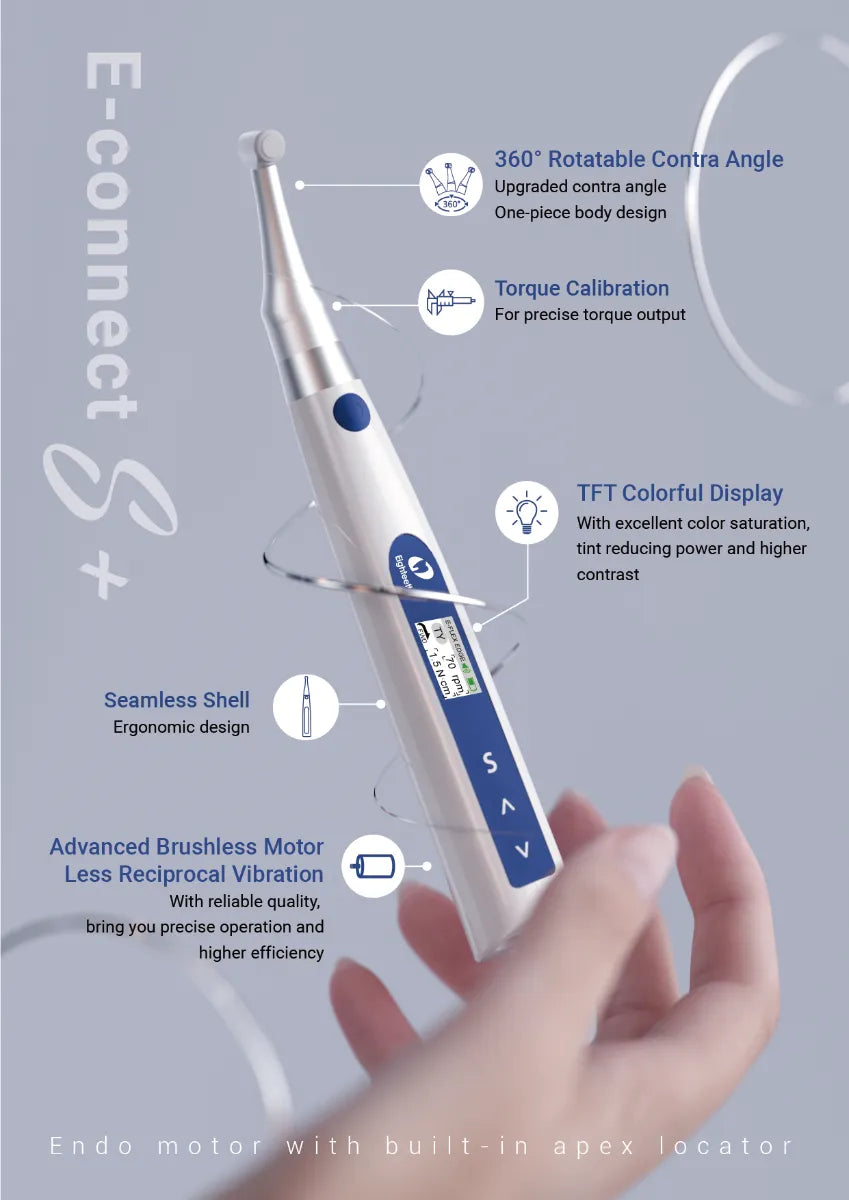

360° Rotatable Contra Angle

• Upgraded contra angle One-piece body design
• Torque Calibration For precise torque output

TFT Colorful Display

• With excellent color saturation, tint reducing power and higher contrast

Advanced Brushless Motor Less Reciprocal Vibration

• With reliable quality. bring you precise operation and higher efficiency

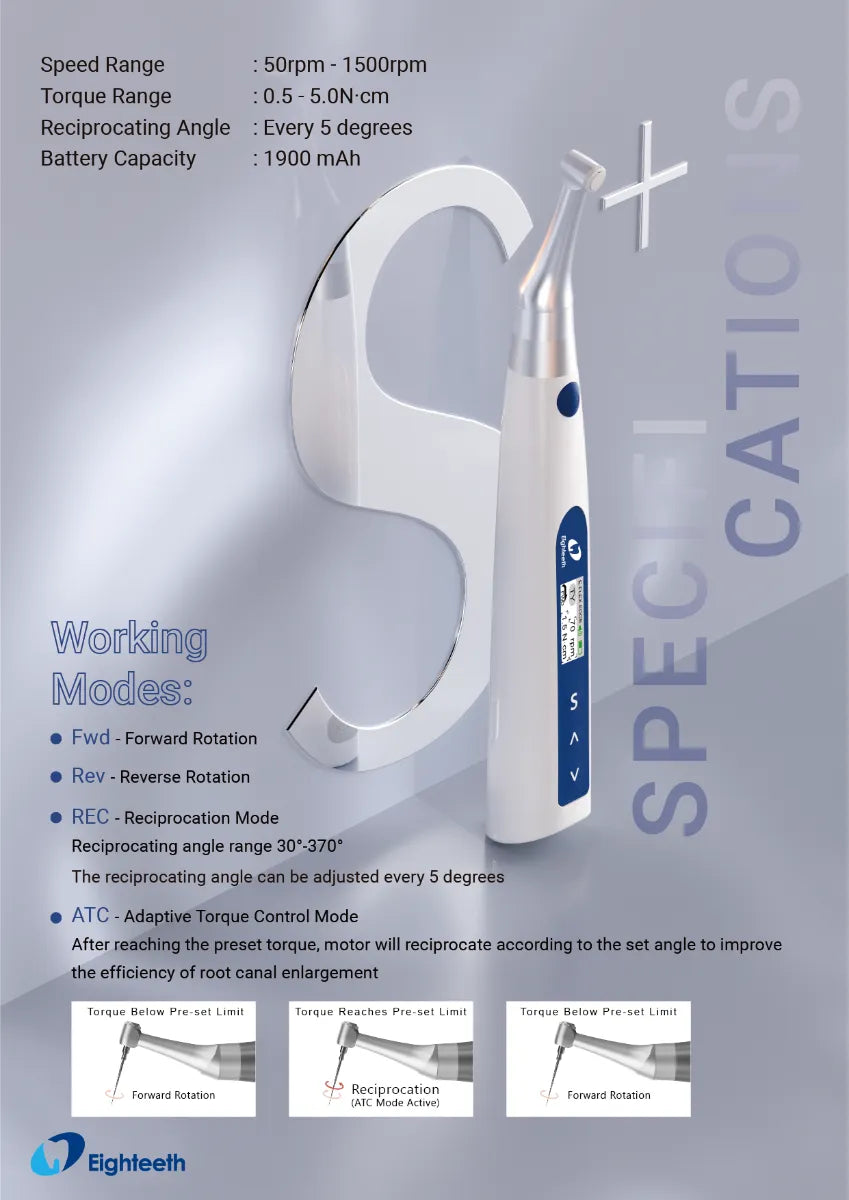

• Speed Rang : 50rpm - 1500rpm
• Torque Range : 0.5 - 5.0N cm
• Reciprocating Angle : Every 5 degree
• Battery Capacity : 1900 mAh

• 1 x Handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Adapter
• 1 x Measuring wire
• 1 x Insulating sleeve
• 2 x Lip hooks
• 2 x File clips
• 1 x Instruction manual

Power On/Off:

• Press the power button to turn on the endomotor. To power off, press and hold the power button until the device shuts down.

Selecting Mode:

• Use the mode selector to choose the desired working mode: FWD (Clockwise Continuous Rotation), REV (Anti-clockwise Continuous Rotation), REC (Reciprocation Mode), or other available modes.

Setting Speed and Torque:

• Adjust the speed and torque settings based on the specific requirements of the dental procedure. Use the controls provided on the device interface for precise customization.

Reciprocating Mode:

• If using the REC mode, set the reciprocating angle according to preferences. The angle can be adjusted in increments of 5 degrees for optimal flexibility.

Built-in Apex Locator:

• Activate the built-in apex locator function. The visualized apex display will show a simulated image on the screen, aiding in the precise determination of the apex position.

Adjustable Sensitivity:

• Fine-tune the sensitivity of the apex locator to enhance accuracy. This is particularly useful for different tooth structures and varying clinical situations.

Contra Angle Rotation:

• Utilize the 360° rotatable contra angle for flexibility in accessing different areas. The one-piece body design enhances durability.

Torque Calibration:

• Calibrate the torque settings for precise torque output. This ensures optimal control during procedures, preventing excessive stress on files.

TFT Colorful Display:

• Take advantage of the TFT colorful display with adjustable backlight brightness. Rotate the screen if needed for ambidextrous use, catering to both left-handed and right-handed dentists.

Power Management:

• Monitor the battery level regularly. Charge the device as needed to maintain a sufficient power supply. Adjust the backlight brightness to save power when necessary.

Apical Slow Down and Reverse:

• If applicable, consider enabling features like apical slow down and reverse. These features enhance safety and precision during procedures.

Power Off After Use:

• Once the procedure is complete, power off the endomotor. Clean and sterilize the components according to the manufacturer's guidelines.

• Country of Origin: PRC
• Manufacturer: Eighteeth

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the accuracy of the inbuilt apex locator?
Answer: The Eighteeth Medical E-connect S+ Endomotor features an inbuilt apex locator with an impressive accuracy rate of greater than 97%. This high level of precision ensures reliable and consistent measurements during root canal procedures, enhancing the clinician's ability to accurately determine the working length.

Question: Can left-handed dentists use the Eighteeth Medical E-connect S+ Endomotor comfortably?
Answer: Yes, the E-connect S+ Endomotor is designed with an ambidextrous display, allowing the screen to be rotated. This feature is particularly convenient for left-handed dentists, ensuring a comfortable and efficient user experience. Additionally, the adjustable backlight brightness caters to the photosensitive needs of different dentists.

Question: What is the advantage of the Eighteeth Medical E-connect S+ Endomotor integrated apex locator feature?
Answer: The integrated apex locator in the E-connect S+ Endomotor provides a simulated image of the apex on the screen, vividly displaying the apex position. This visual aid aids dentists in precise judgment. The sensitivity of the apex locator is adjustable, and the apex can be conveniently located, ensuring high precision and accuracy during dental treatments.
