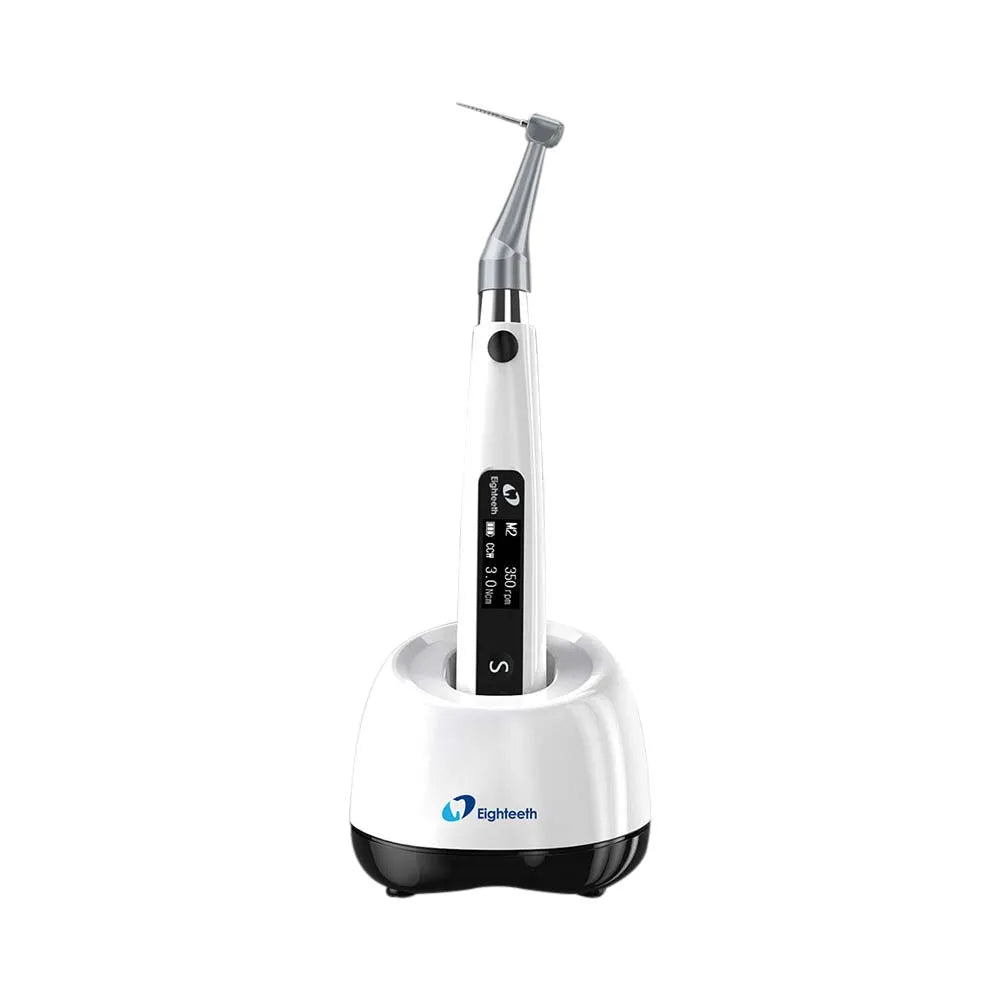

Eighteeth Medical E-connect S Endomotor

• Auto torque reverse, reduce the possibility of file broken in tooth.
• Reciprocating mode: 5 modes of reciprocating cutting make operation safe and effective.
• More advanced functions: Right & Left hand converting, Self-calibration, volume adjustment etc.

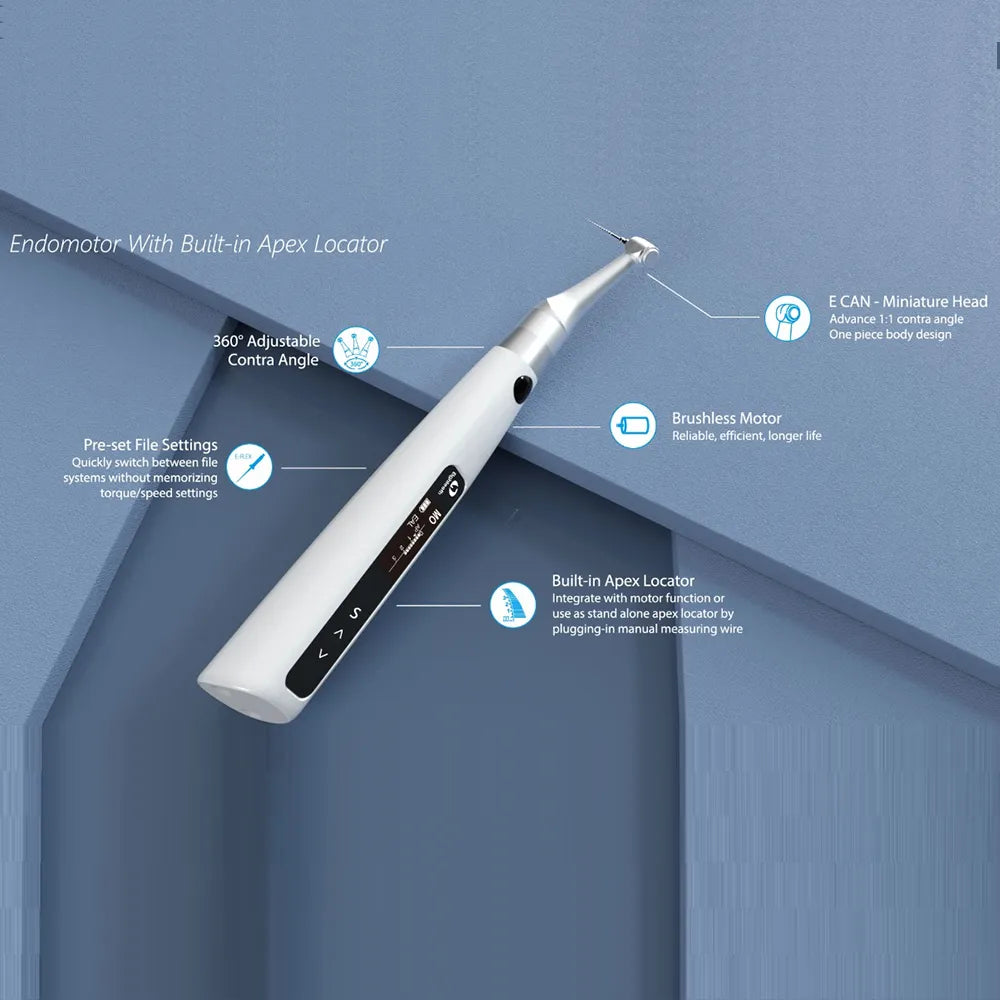

• 340° adjustable miniature head provide excellent visibility
• Original import motor with low noise and long life.
• Counter Clockwise Continuous Rotation
• Reciprocation Movement
• First-in-class cordless open motor with adjustable angles of rotation ranging from 30° to 370° for reciprocation as per user's need.
• The first-in-class feature of speed adjustment in reciprocation mode.
• Adaptive Torque Control ATC manages the file stress in a smart way. When a torque limit is reached. Instead of going into reverse mode, motor reciprocates till the stress is reduced. Once back to below pre-set torque level, a file will again rotate in continuous rotation.

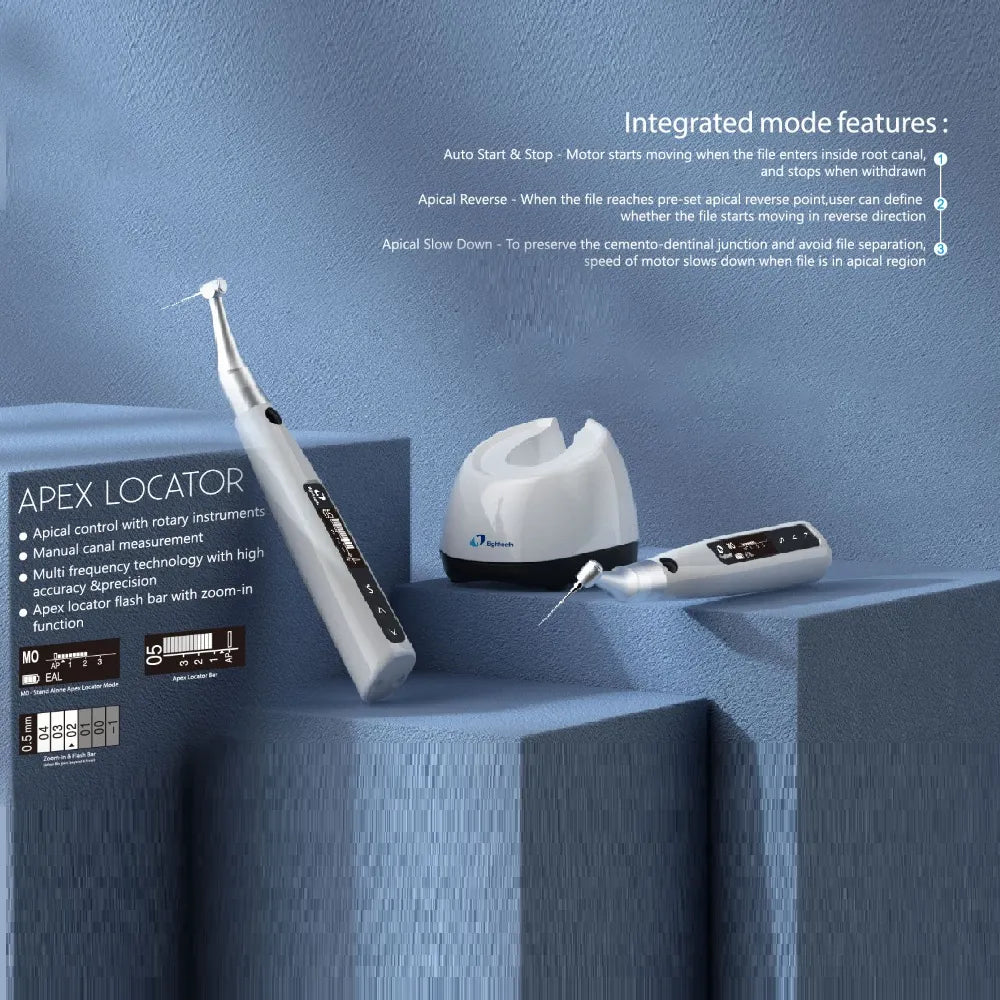

 Integrated mode features :

• Auto Start & Stop - Motor starts moving when the file enters inside root canal, and stops when withdrawn
• Apical Reverse -When the file reaches the pre-set apical reverse point, a user can define whether the file starts moving in a reverse direction
• Apical Slow Down -To preserve the cemento-dentinal junction and avoid file separation, a speed of motor slows down when a file is in the apical region

• Continuous Rotation - Speed 100 to 1000 RPM
• Rotational Speed Range -120-1000
• RPM Torque Range - 0.5- 4.0 Ncm
• Memory Programs - 11( M0 to M10)

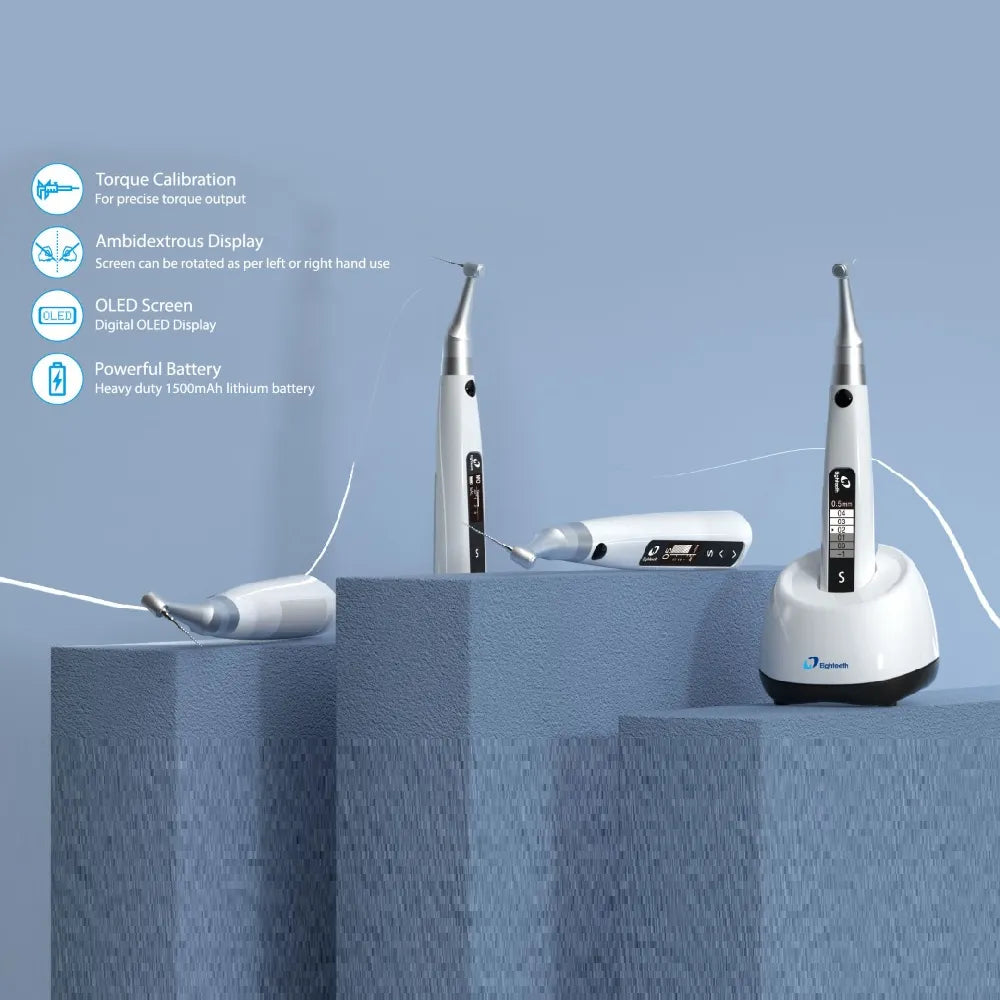

• Battery Capacity - 1500 mAh

• 1 x Handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Adapter
• 1 x Measuring wire
• 1 x Insulating sleeve
• 2 x Lip hooks
• 2 x File clips
• 1 x Instruction manual

Power On and Off:

• To turn on the device, press and hold the power button for more than 0.5 seconds.
• To power off the device, hold down the power button and follow the specified procedure.

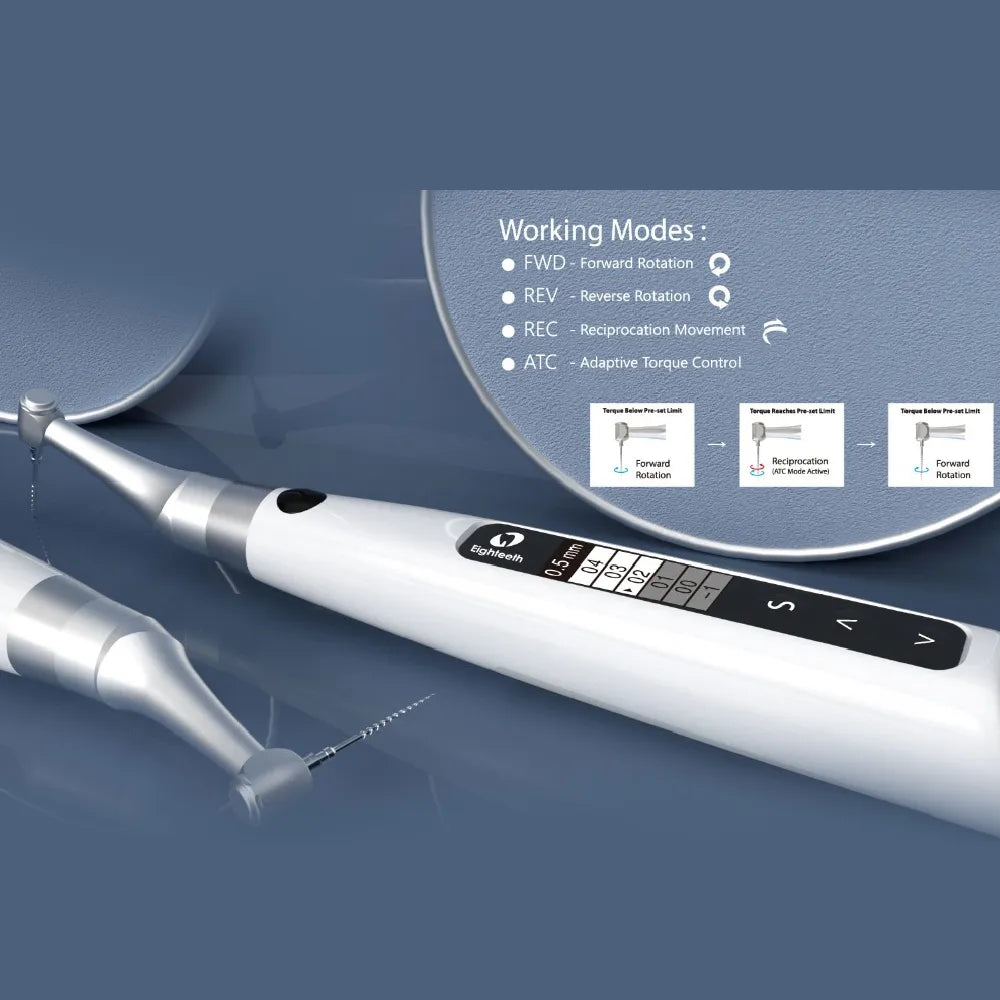

Operation Modes:

• Confirm that the selected operation mode (FWD, REV, REC, ATC) is appropriate for the specific dental procedure.
• Use the "<" or ">" buttons to adjust and customize operation mode settings if needed.

Speed and Torque Settings:

• Adjust the speed setting within the range of 120 rpm to 1000 rpm.
• Adjust the torque setting from 0.5 N·cm to 4.0 N·cm, with the option for torque reverse less (R.L).

Apex Locator and Apical Action:

• Utilize the integrated apex locator for real-time feedback on file positioning.
• Customize apical action settings, such as Reverse, SlowDown, Stop, or Off, as needed.

Preset Programs:

• Access preset programs for common file systems by long-pressing the designated button during standby state.
• Change parameters within preset programs for customization.

Auto Stop and Apical Reverse:

• Enable or disable the auto-stop function when the endo file is out of the root canal.
• Adjust apical reverse settings for precise control during length determination.

FWD and REV Angle Adjustment:

• Adjust the forward angle (FWD Angle) and reverse angle (REV Angle) during REC and ATC operation modes for optimal control.

Software Update:

• Easily update the software without additional tools by holding down the "S" button and pressing during the power-off state.

Safety Precautions:

• Always follow the safety guidelines outlined in the device manual.
• Ensure proper sterilization of components between uses.

Contact Distributor for Support:

• For any software updates or technical assistance, contact your distributor.

• Country of Origin: PRC
• Manufacturer: Eighteeth

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the Eighteeth Medical E-connect S Endomotor?
Answer: The Eighteeth Medical E-connect S Endomotor is an advanced dental endodontic motor system designed to assist dental professionals in performing root canal treatments. It offers precision, ease of use, and a range of features to enhance endodontic procedures.

Question: What is the rotational speed range of the E-connect S Endomotor?
Answer: The E-connect S Endomotor offers a rotational speed range from 100 to 1000 RPM, providing flexibility for different procedures.

Question: What integrated modes are available with the E-connect S Endomotor?
Answer: The E-connect S Endomotor offers integrated modes like Auto Start & Stop, Apical Reverse, and Apical Slow Down to enhance precision and safety during endodontic procedures.
