Diadent
Diadent EvoFill Gutta Percha Cartridges
Diadent EvoFill Gutta Percha Cartridges
Couldn't load pickup availability

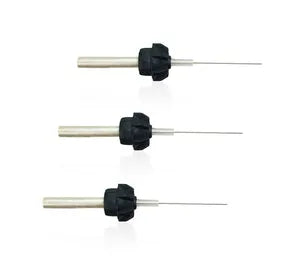

DiaDent Gutta percha cartridges that feature a more flexible and longer needle to navigate canal curvatures that reach the canal apex more easily. This needle is better for heat conductivity, which will ensure a more consistent flow of liquid gutta percha for denser fills. Cartridge design also allows for more gutta percha to be expressed from the cartridge, decreasing waste.

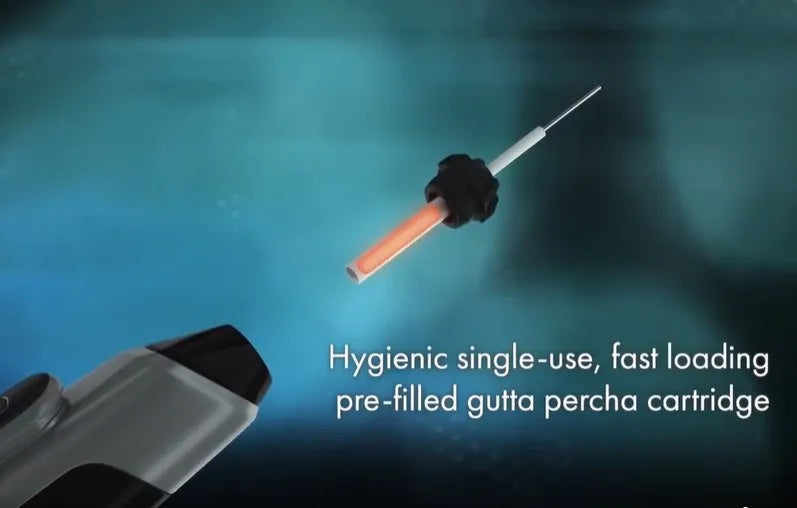

Pre-loaded, single-use gutta percha cartridges for EvoFill motorized backfill obturation system. No cleaning necessary, fast loading and hygienic, with bendable tip (23 gauge) and excellent flowability.
Features
Features
- Fast loading
- Single-use
- Hygienic
- Bendable tip
- Excellent flowability
Description
Description
Specification
Specification
- Composition - Gutta Percha
- Tip - Bendable
- Disposable/Non Disposable - Disposable
Packaging
Packaging

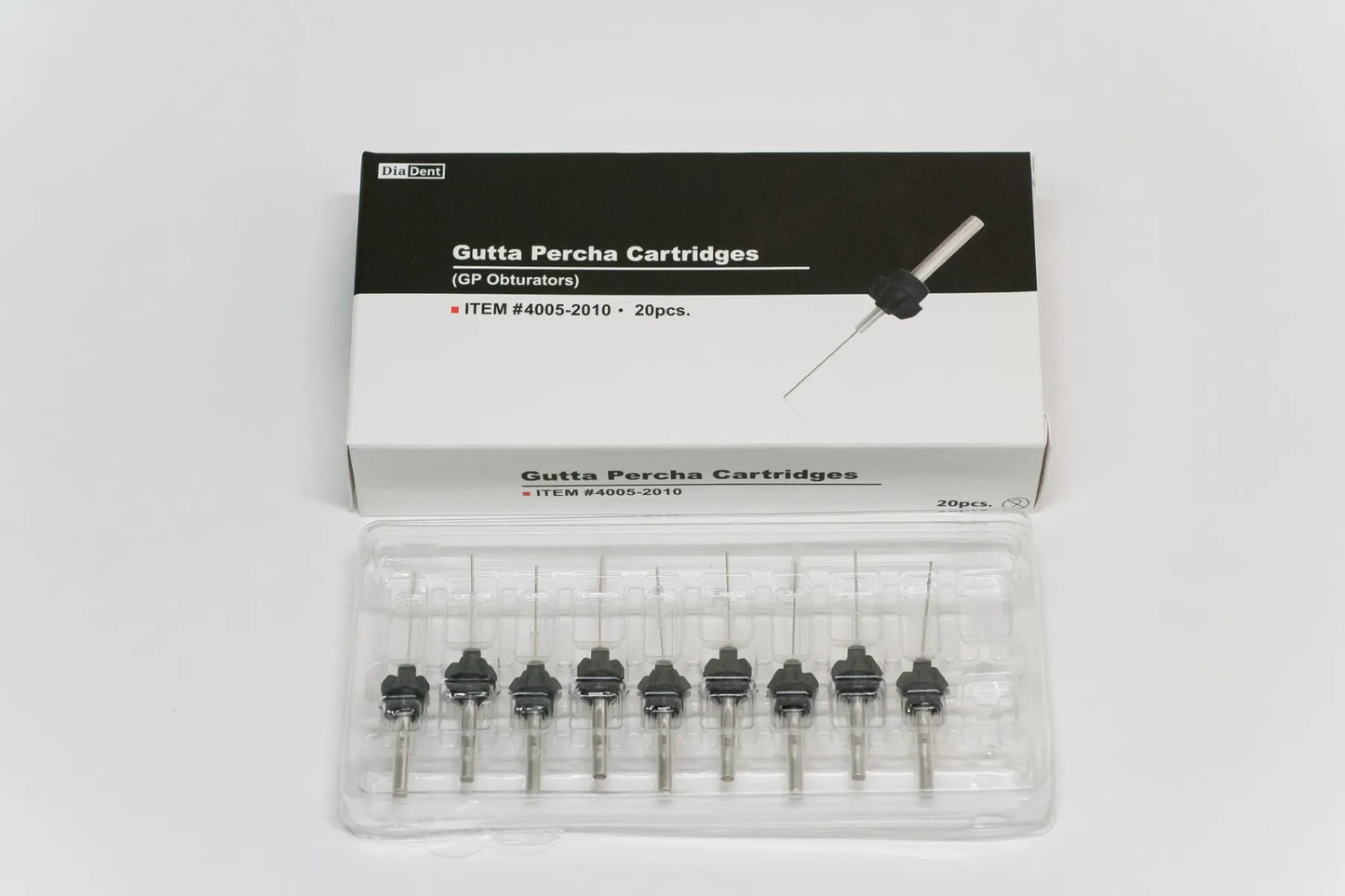

- 20 x Gutta Percha Catridges in a box
Direction to use
Direction to use
1. Insert the Gutta Percha Cartridge (EvoFill).
- Insert the Gutta Percha Cartridge (EvoFill) into the handpiece and turn the cartridge nut clockwise to securely connect the two parts. Turn counterclockwise to release Gutta Percha Cartridge (EvoFill).
- Put on the EvoFill Safety Cap at the front part of the device.
- Bend the tip part of the Gutta Percha Cartridge (EvoFill) using the Multi-Tool provided
2. Turn on the device
- Press and hold the power button to turn on the device. It automatically starts to preheat to the selected temperature.
- If the initial heating temperature is low, preheat Gutta Percha at a higher temperature for a short time to soften it quickly.
- The temperature indicator flashes when the device is preheating and stops flashing with an audible alert when preheating is complete.

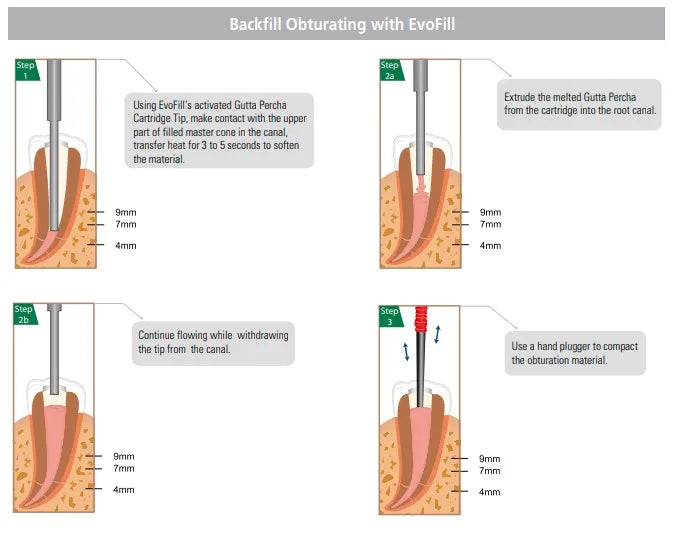

3. Obturating (Backfill)
- Fit the master Gutta Percha cone that is dipped in sealer and take a radiograph to ensure that it is fitting well.
- Increase the preset temperature of EvoFill, so the Gutta Percha inside the cartridge is heated.
- Using EvoFill’s tip, make contact with the upper part of Gutta Percha Point that is already filled in the root canal, transfer heat for 3 to 5 seconds.
- Extrude the melted Gutta Percha Obturator to the root canal and continue extruding while withdrawing the tip from the canal.
- Use an Endodontic hand plugger to compact obturation material. Repeat as needed until canal is filled without voids and take a radiograph
Additional info
Additional info
- Country Of Origin: Korea
- Manufacturer: Diadent group international
Warranty
Warranty
Product Related Questions
Product Related Questions
Question: Will Diadent EvoFill Gutta Percha Cartridges fit with the Eighteeth Fast Fill?
Answer: Yes, the Diadent EvoFill Gutta Percha Cartridges are compatible with the Eighteeth Fast Fill system. This compatibility ensures efficient and effective filling during endodontic procedures.
