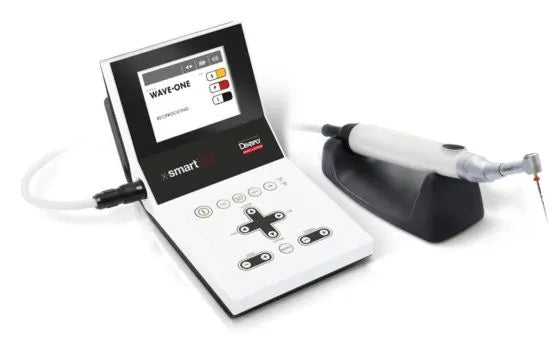

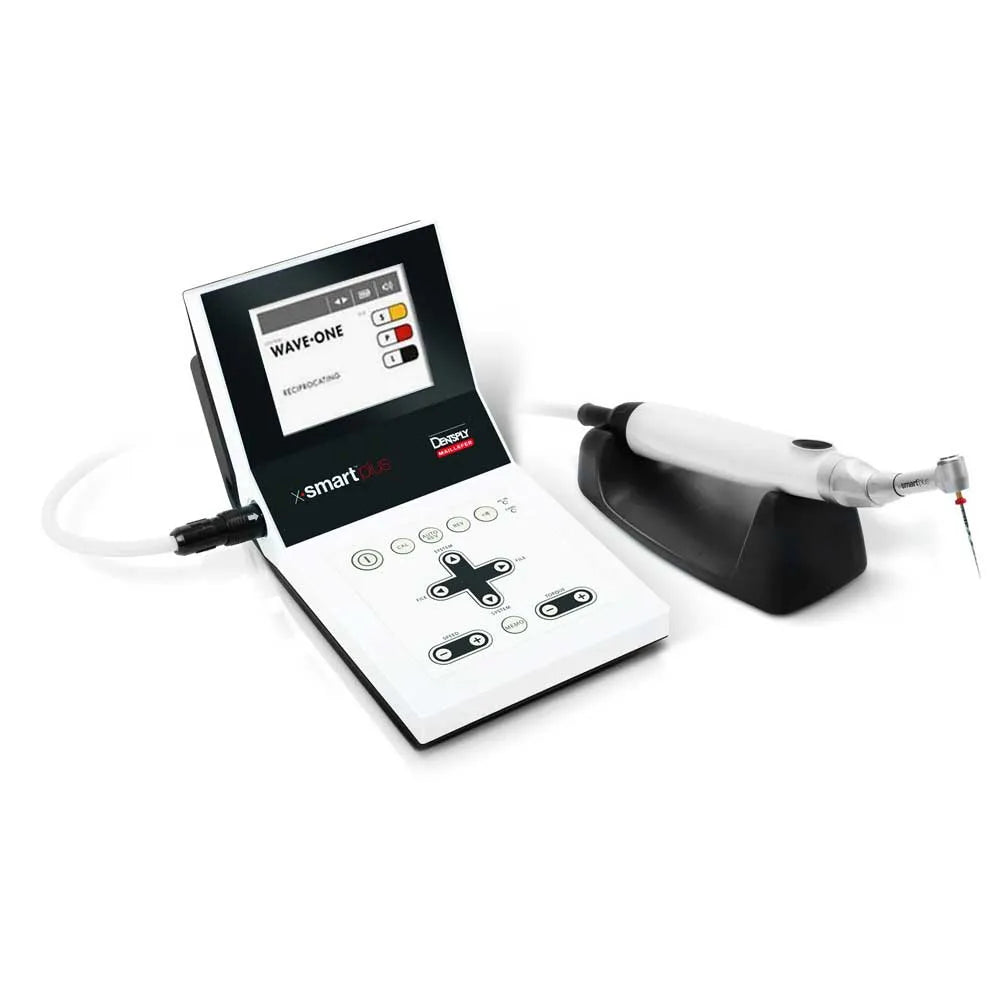

Dentsply X-Smart Plus Endodontic Endo Motor

This generation of the X-Smart endo motor is everything you like about the X-Smart with a plus:

No foot pedal

• On / Off button on the motor handpiece

Excellent visibility & access

• Due to the miniature contra-angle head

Simple & improved user interface

• Large bright color screen
• Dedicated button controls
• “Click and go” navigation
• New design with optimized screen & keyboard ergonomics

Single file root canal shaping:

• Reciprocating motion - discover the WAVEONE RECIPROCATING FILE SYSTEM

File selection at a single glance:

• ISO colour coded file library
• Pre-programmed settings for WaveOne, Protaper® Universal, PROTAPER NEXT™ Pathfile™, Gates and reciproc™
• 7 free programs for individual settings

The X-Smart Plus is operated by a rechargeable battery and provides in continuous rotation, a speed range between 250 and 1,200 rpm and a torque range between 0.6 and 4.0Ncm. A warning sound helps you keep track of the file stress and the auto reverse rotation at the torque limit reduces the risk of file breakage.

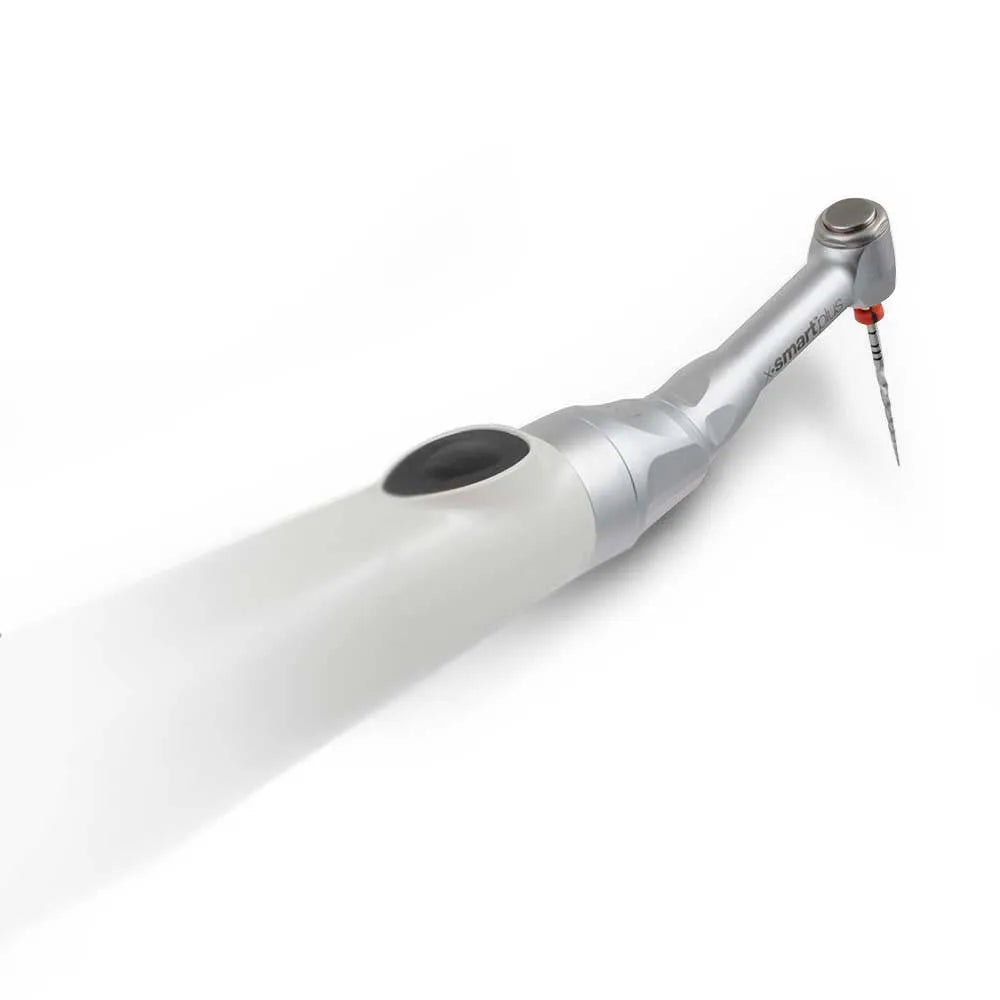

• Miniature contra-angle head that can be adjusted in 6 positions
• On /Off button on the motor handpiece
• Reciprocating motion and continuous rotation
• Includes a file library with preset programs for wave one®, , PROTAPER® UNIVERSAL, PATHFILE, GATES, RECIPROC – 7 free programs for individual settings in continuous rotation
• Auto reverse rotation at preset torque limit
• Torque range : 0.6 – 4.0 Ncm
• Speed range: 250 – 1’200 rpm
• Operates on a rechargeable battery and when connected to the mains
• Battery autonomy: approx. 2 hours continuous use
• Full recharge in approx. 5 hours

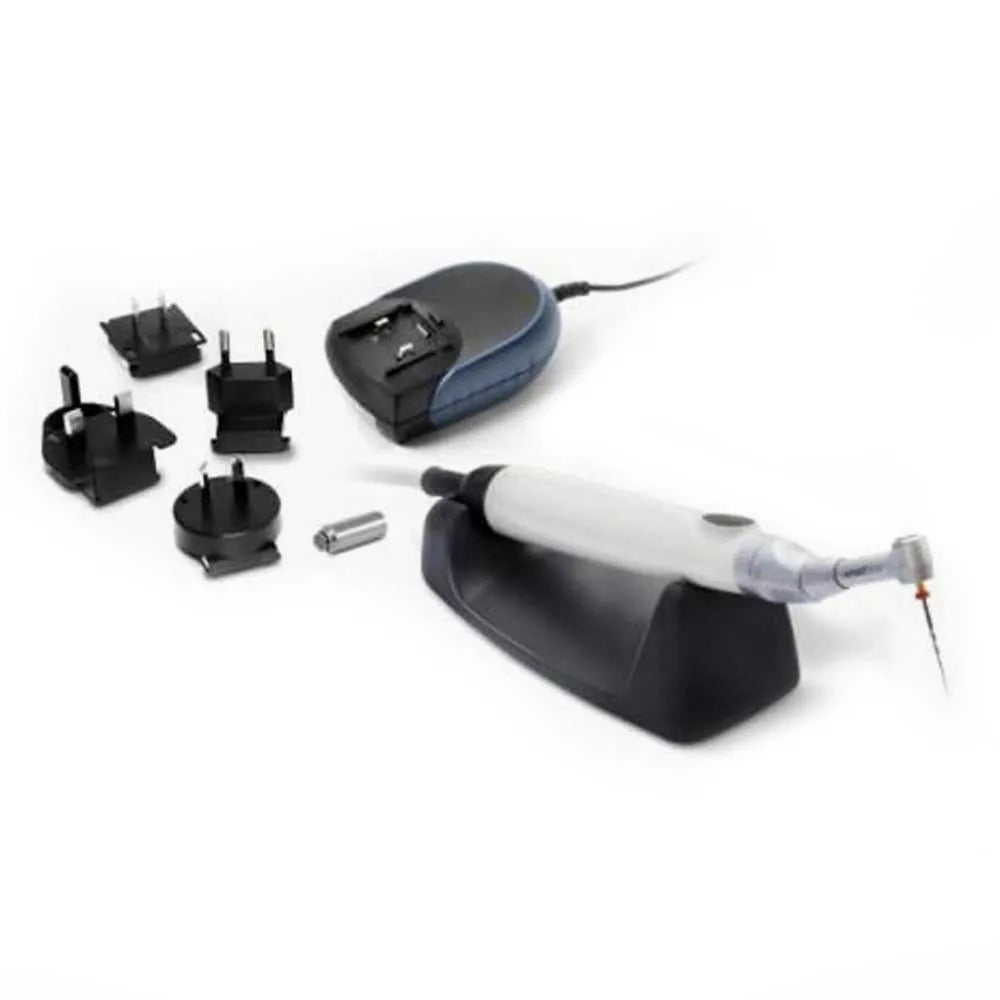

• X-Smart Plus 6:1 contra angle
• X-Smart Plus AC Adapter
• X-Smart Plus Motor Handpiece
• 1 control unit
• X-Smart Plus Handpiece Stand
• X-Smart Battery
• X-Smart Spray Nozzle for F-Type contra-angle
• X-Smart Cleaning Adaptor

• Before using the X-SMART Plus, read and understand all safety precautions outlined in the manual to ensure safe usage and prevent harm to yourself and others. Keep the manual for future reference and pass it on to any new owners.
• When using the X-SMART Plus, always wear gloves and a rubber dam for protection.
• Before changing the contra-angle or file, ensure that the power is turned off to prevent unintended rotation. Accidental touching of the ON/OFF key with the power on can be dangerous.
• Clean the shank of the file before installation to prevent dirt from entering the chuck, which could lead to loss of concentricity and deterioration of chucking force.
• Pay attention to the direction of the battery connector when installing batteries. Incorrect installation can cause damage and fluid leakage due to a short circuit.
• Fully charge the rechargeable batteries before each use. Over time, fully charged batteries may discharge gradually even when not in use.
• If the device stops automatically due to low battery voltage, it may not immediately indicate low voltage when powered on again. Recharge the battery as soon as possible.
• Recharge the battery after it depletes as much as possible. Repeating short-time use and subsequent recharging may shorten its operating time due to the "memory effect." Complete discharge and full charge cycles can help recover battery performance.
• Return used Nickel Metal Hydride batteries to your distributor for proper recycling. Follow local laws and regulations regarding disposal of batteries.
• When disposing of the control unit, follow the instructions provided by your local government for proper disposal as it may contain materials considered industrial waste.
• Dispose of the contra-angle and motor handpiece as medical waste when discarding them.

Question: How long can we use the battery after full charge?
Answer: After a full charge, the Dentsply X-Smart Plus Endodontic Endo Motor provides approximately 2 hours of continuous use. It is also usable while connected to the mains, allowing for uninterrupted operation during extended procedures.

Question: Does it have a built-in apex locator?
Answer: No, it is an endomotor and does not have a built-in apex locator

Question: What is the X-Smart Plus endodontic motor used for?
Answer: The X-Smart Plus is specifically designed for general dental practitioners who perform root canal treatments using either the reciprocating, single-file technique or traditional continuous rotation file systems.

Question: What are the benefits of using the X-Smart Plus?
Answer: The X-Smart Plus offers simplicity of use, excellent visibility, and access due to its miniature contra-angle attachment. It allows practitioners to fully focus on the patient and the treatment.

Question: What is the adjustable position of the miniature contra-angle head?
Answer: The miniature contra-angle head of the X-Smart Plus can be adjusted in six different positions, providing flexibility and ease of use during the procedure.

Question: Does the X-Smart Plus offer both reciprocating motion and continuous rotation?
Answer: Yes, the X-Smart Plus is capable of both reciprocating motion and continuous rotation, allowing practitioners to choose the appropriate technique for their root canal treatments.

Question: Are there pre-set programs available for specific file systems?
Answer: Yes, the X-Smart Plus includes a file library with pre-set programs for various file systems such as WAVEONE, PROTAPER NEXT, PROTAPER UNIVERSAL, PROGLIDER, PATHFile, GATES, and RECIPROC.

Question: Can I customize the settings for individual preferences?
Answer: Absolutely, the X-Smart Plus provides six free programs that can be customized for individual settings in continuous rotation, allowing practitioners to tailor the motor to their specific needs.

Question: What are the torque and speed ranges of the X-Smart Plus?
Answer: The torque range of the X-Smart Plus is 0.6 to 4.0 Ncm, while the speed range is 250 to 1,200 rpm, providing versatility for different treatment scenarios.

Question: Does the X-Smart Plus have an auto reverse rotation feature?
Answer: Yes, the motor has an auto reverse rotation function that activates when the pre-set torque limit is reached, enhancing safety and preventing file breakage.

Question: How is the X-Smart Plus powered?
Answer: The X-Smart Plus operates on a rechargeable battery and can also be connected to the mains for continuous power supply. The battery provides approximately 2 hours of continuous use and can be fully recharged in approximately 5 hours.
