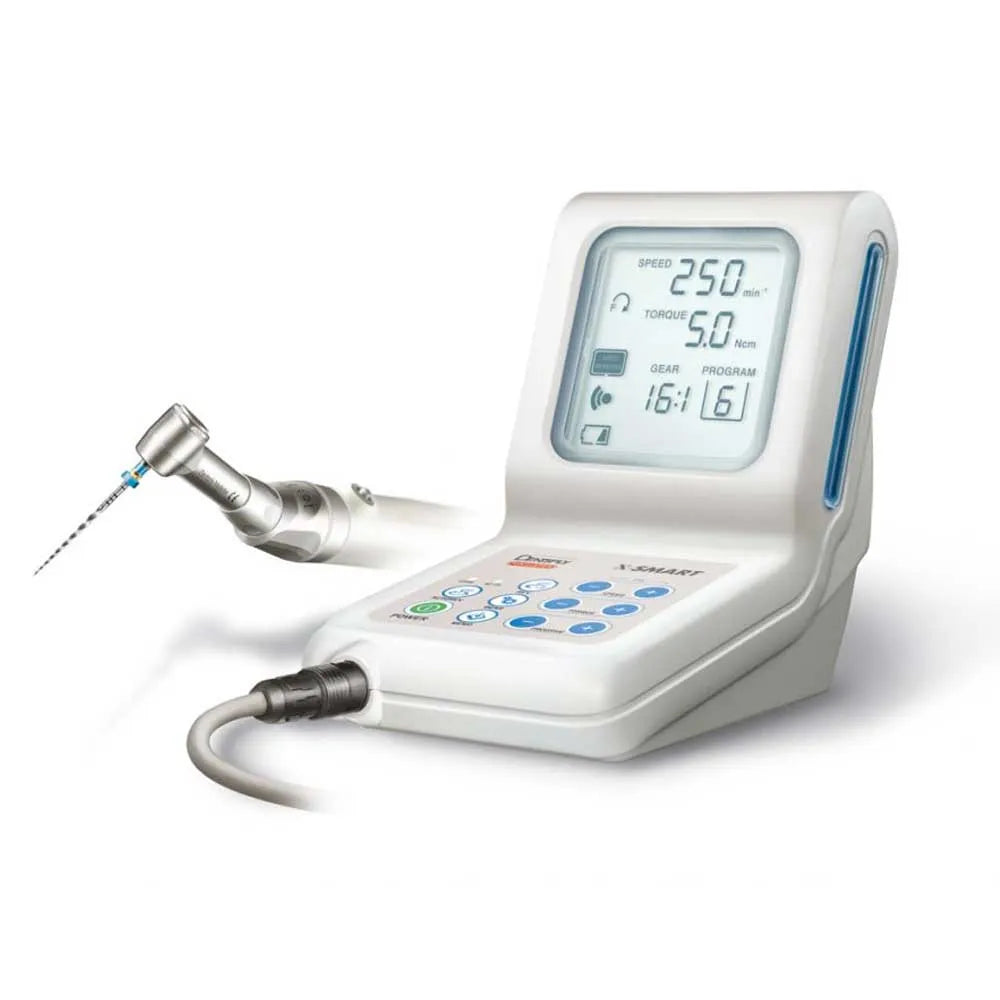

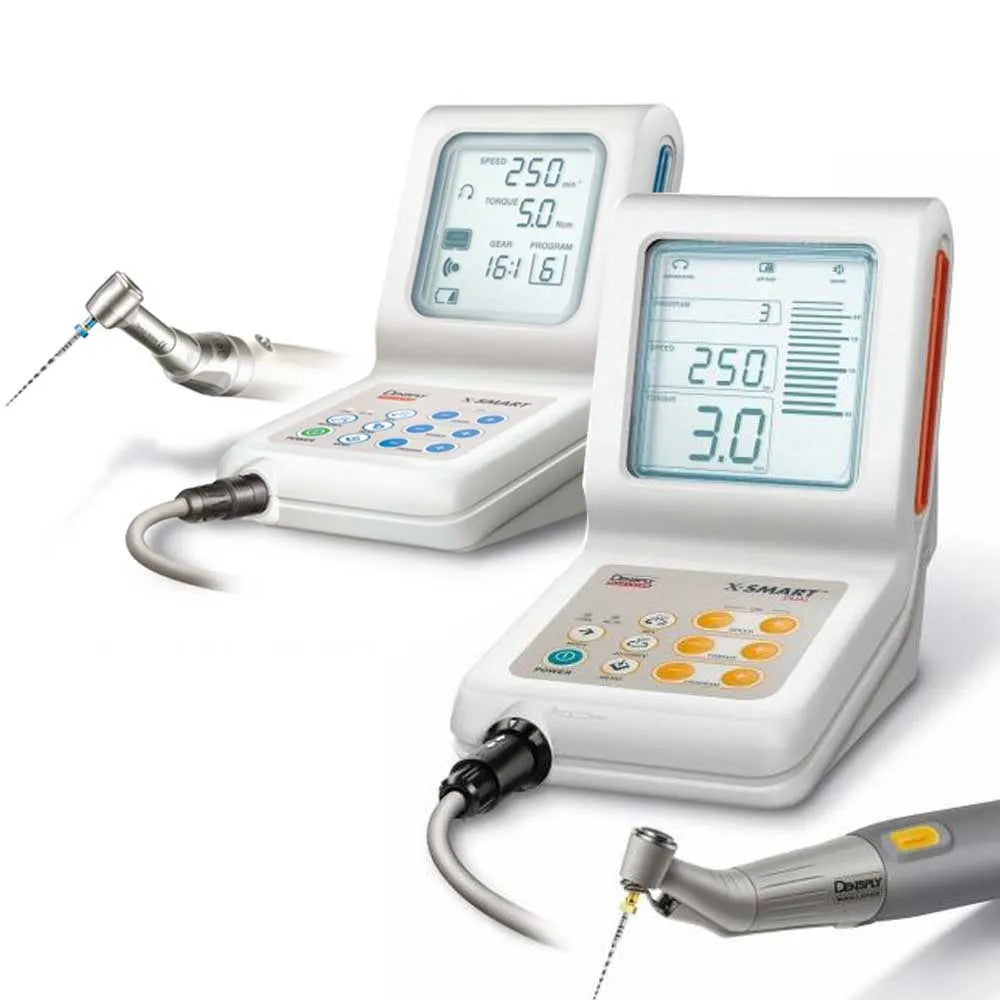

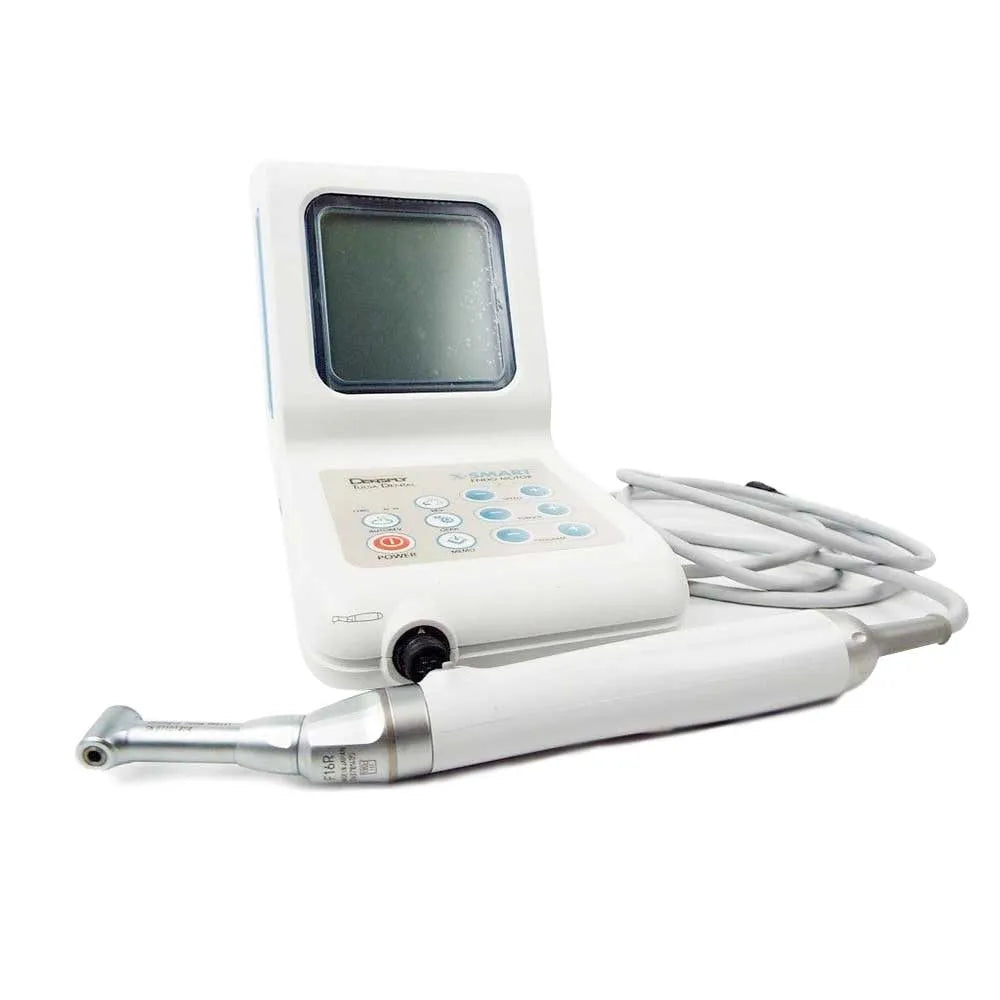

Dentsply X-Smart Endomotor

• Compact and Lightweight unit
• Operates on battery or electrical power
• Provides easy visualization
• Operates on battery or electrical power
• Battery recharging time: approx. 5 hours
• Time of use on battery: approx. 2 hours
• Supplied with a 16:1 contra-angle
• Operates without a pedal (sold separately)

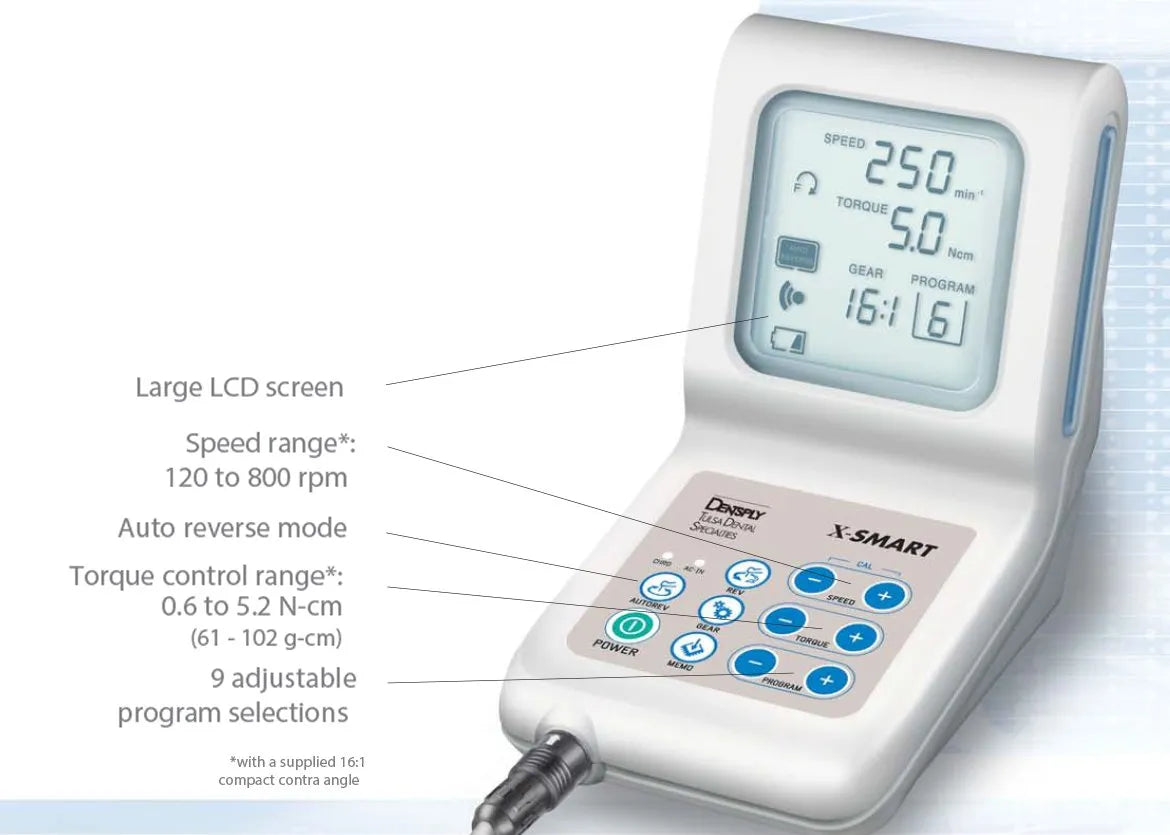

• Speed range : 120 - 800rpm
• Torque : 0.6 - 5.2Ncm
• 9 adjustable program selections
• 16:1 compact contra-angle
• Handpiece weight - 92 grams

• 1 x Control Unit
• 1 x Handpiece
• 1 x Contra Angle 16:1
• 1 x Handpiece Stand
• 1 x AC Adapter
• 1 x F-Type Spray Nozzle
• 1 x Instruction Manual

• Align the B mark on the cord plug of the motor handpiece with the S mark on the motor handpiece connector.
• Insert the plug into the connector and ensure a secure connection.
• If using an AC adapter, connect it to the power connector with the B mark facing downward.
• Optionally, if using a foot pedal, securely insert its plug into the foot pedal connector with the S mark facing downward.
• If you prefer not to use the foot pedal, you can operate the device without it.
• To connect the contra-angle head, align the positioning pins of the head with the positioning slots on the motor handpiece.
• Insert the head until it clicks into place.
• When inserting a file into the chuck, push it in until it stops and lightly turn it until it engages with the latch mechanism. Push inward to ensure a secure click.
• To remove the file, depress the push-button and pull it out.
• The motor handpiece will start in reverse and automatically switch to forward rotation when the load is removed.
• To stop the motor handpiece, press the ON/OFF button or release the foot pedal (if connected).
• If desired, lubricate the contra-angle head following the manufacturer's instructions. Avoid lubricating before autoclaving.
• Refer to the user manual for further information and specific guidelines.

• Country Of Origin: Switzerland
• Manufacturer: Dentsply

2 years (by any dentsply service center in india)

Question: What does Operates on battery or electrical power means?
Answer: When the Dentsply X-Smart Endomotor is described as operating on battery or electrical power, it means that the endomotor can function using either its internal rechargeable battery or by directly connecting to an electrical power source. This dual capability provides flexibility in usage: it can be used cordlessly when powered by its battery, allowing for greater mobility and convenience during procedures, or it can be connected to a power supply for continuous operation without relying on battery charge.

Question: Does this comes with apex locator feature?
Answer: No, the Dentsply X-Smart Endomotor does not come with an inbuilt apex locator feature.

Question: Can the X Smart Endomotor be operated on both battery and electrical power?
Answer: Yes, the X Smart Endomotor can be operated using either a battery or an electrical power source.

Question: How long does it take to fully charge the battery, and how long does it last?
Answer: The battery of the X Smart Endomotor takes approximately 5 hours to reach a full charge. Once fully charged, it offers approximately 2 hours of usage time.

Question: What can be controlled using the settings on the device?
Answer: The device settings allow you to control the speed, torque, gear ratio, direction of file rotation, and the auto-reverse function of the X Smart Endomotor. There are 9 programmable settings available to personalize your endomotor settings.

Question: Does the X Smart Endomotor have a display for easy visualization?
Answer: Yes, the X Smart Endomotor features an LCD screen that provides a clear display. The screen is angled to facilitate easy visualization during the biomechanical preparation of the root canal.

Question: What is the purpose of the graduated bar on the device?
Answer: The graduated bar on the X Smart Endomotor's screen denotes, in real-time, the load being applied to the rotary instrument. It provides feedback on the pressure being exerted during the procedure.

Question: How do I connect the motor handpiece?
Answer: To connect the motor handpiece, align the B mark on the cord plug of the handpiece with the S mark on the motor handpiece connector. Insert the plug into the connector and ensure a secure connection.

Question: How do I insert and remove files from the chuck?
Answer: To insert a file, push it into the chuck until it stops, and then lightly turn it until it engages with the latch mechanism. Push inward to ensure a secure click. To remove the file, depress the push-button and pull it out.

Question: How does the motor handpiece function in terms of rotation?
Answer: The motor handpiece starts in reverse and automatically switches to forward rotation when the load is removed. It stops when you press the ON/OFF button or release the foot pedal (if connected).

Question: Can I use the X Smart Endomotor without a foot pedal?
Answer: Yes, the X Smart Endomotor can be operated without a foot pedal. If you prefer not to use one, you can operate the device using the ON/OFF button.
