Dentsply Start-X Ultrasonic Tips

• Developed in conjunction with Dr. Berutti, Dr. Cantatore and Dr. Castellucci.
• Based on a simple concept of 'One - Tip - One Clinical Indication'.
• Great working precision and incomparable view of the operative field.
• Tips with micro milled active part, water port and excellent resistance to fracture.
• Each tip has been designed for a specific indication.
• Strong resistance to wear and tear.
• Creates smooth finish.
• Minimizes risk of diamond grit loss.

Technical specification/thread:

EMS type M3 x 0.5mm

Satelec type M3 x 0.6mm

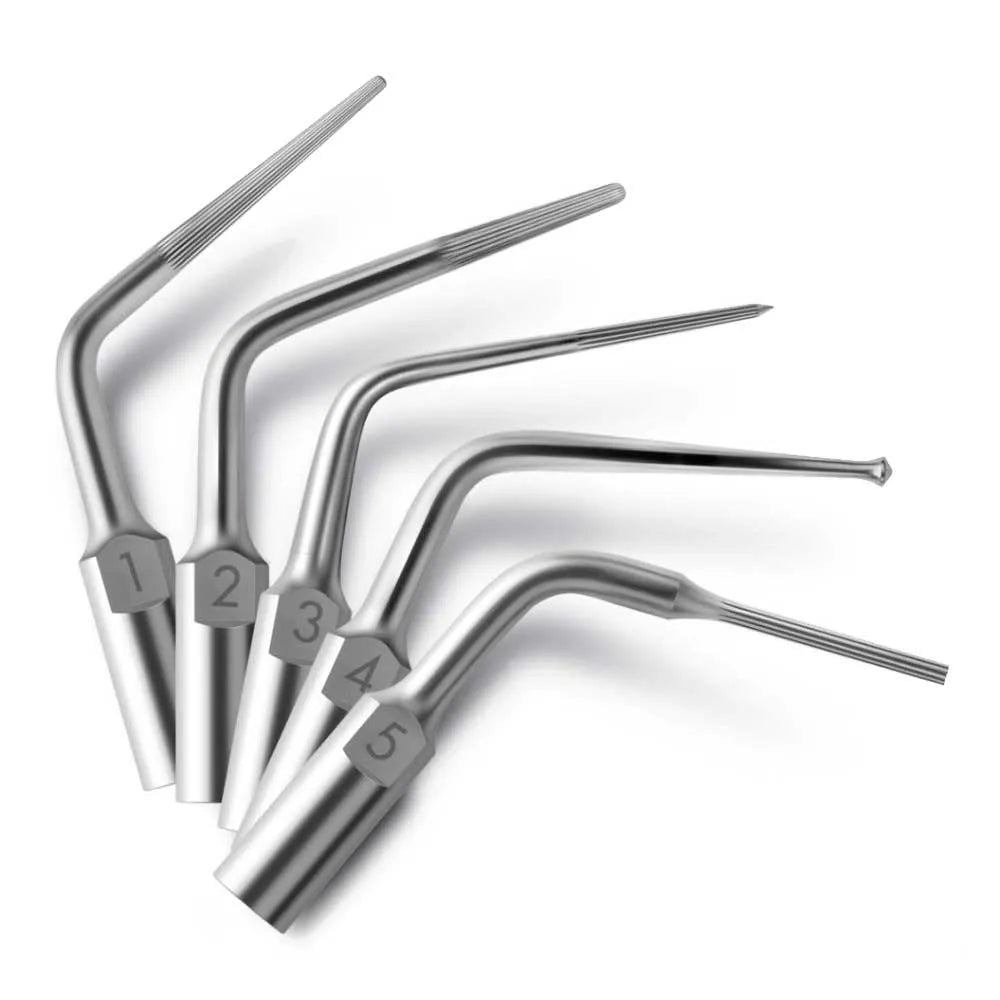

• Start-X #1. Access cavity wall refinement
• Start-X #2. MB2 canal scouter
• Start-X #3. Canal openings scouter
• Start-X #4. Metal post removal
• Start-X #5. Reveals the original pulp chamber floor anatomy

• Dentsply Start-X Tip EMS/Satelac : Pack of 1

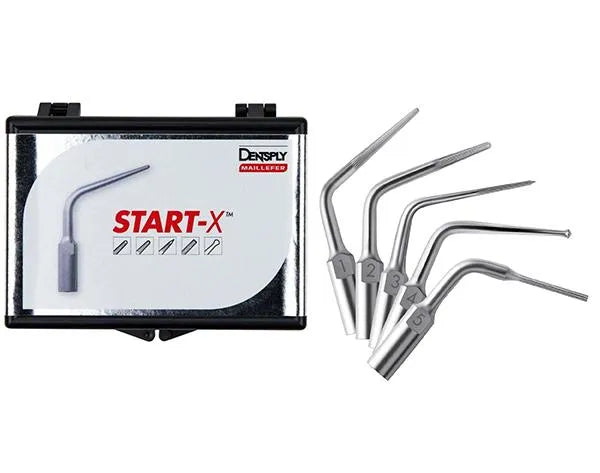

• Dentsply Start-X Tips EMS/Satelac Type Assorted: Pack of 5

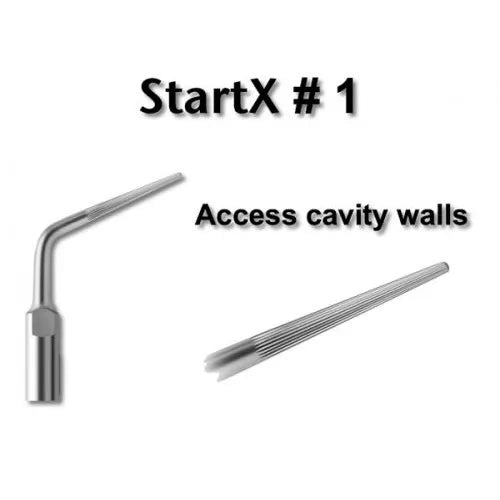

Start-X #1: Access cavity wall refinement.

1. Select Start-X #1 tip for access cavity refinement.
2. Attach the tip securely to the ultrasonic handpiece or scaler.
3. Ensure the water port is properly connected to the water source for cooling.
4. Begin using the tip to refine the walls of the access cavity, carefully removing any excess material and creating a smooth and precise cavity.

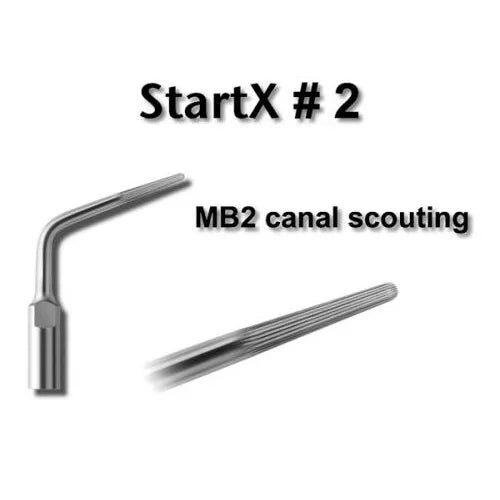

Start-X #2: MB2 canal scouter.

1. Choose Start-X #2 tip for scouting the MB2 canal.
2. Attach the tip securely to the ultrasonic handpiece or scaler.
3. Connect the water port to the water source for cooling.
4. Use the tip to carefully explore and locate the MB2 canal, providing tactile feedback and enhancing visibility.

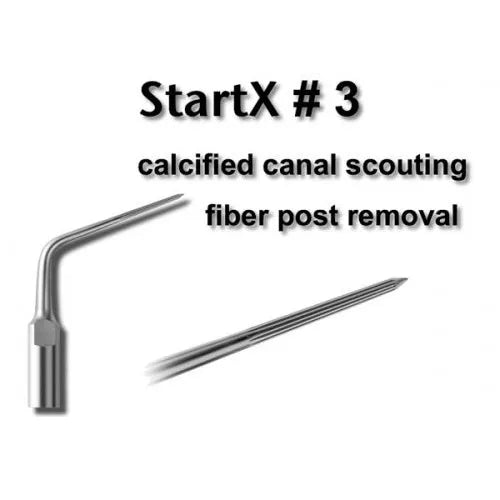

Start-X #3: Canal openings scouter.

1. Select Start-X #3 tip for scouting canal openings.
2. Attach the tip securely to the ultrasonic handpiece or scaler.
3. Connect the water port to the water source for cooling.
4. Utilize the tip to scout and identify additional canal openings, aiding in comprehensive cleaning and shaping of the root canal system.

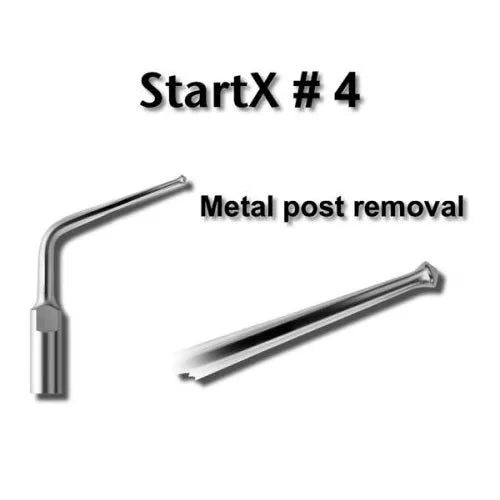

Start-X #4: Metal post removal.

1. Choose Start-X #4 tip for removing metal posts.
2. Attach the tip securely to the ultrasonic handpiece or scaler.
3. Connect the water port to the water source for cooling.
4. Carefully apply the tip to the metal post, using controlled vibrations to loosen and remove the post from the tooth structure.

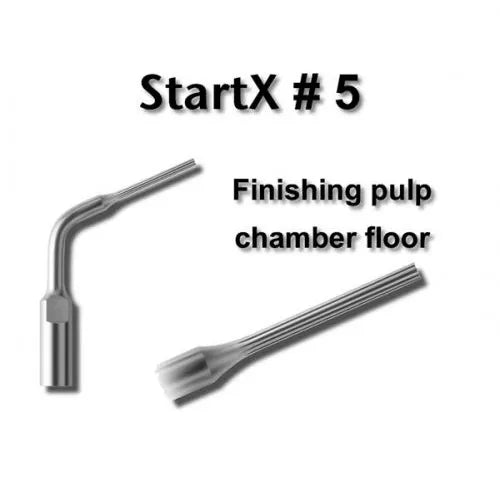

Start-X #5: Reveals the original pulp chamber floor anatomy.

1. Select Start-X #5 tip to reveal the original pulp chamber floor anatomy.
2. Attach the tip securely to the ultrasonic handpiece or scaler.
3. Connect the water port to the water source for cooling.
4. Use the tip to gently remove any obstructing materials and uncover the natural anatomy of the pulp chamber floor for better assessment and treatment planning.

Question : What is the difference between ems and satelac tips ?
Answer: The main difference between EMS and Satelec ultrasonic tips lies in their thread standards. EMS-type tips use a metric thread (M3x0.5-3.5), while Satelec-type tips use an imperial thread (M3x0.6-3.6). This difference affects compatibility with specific scaler units, so ensure correct tip-thread matching.

Question : Can these ultrasonic tips can be used with normal woodpecker ultrasonic scalers or you need to have scalers with endo modes ?
Answer: To utilize Dentsply Start-X Ultrasonic Tips effectively, an ultrasonic scaler with an endo mode is required. These tips are specifically designed for use with endodontic procedures and are optimized for compatibility with ultrasonic scalers equipped with endo modes.

Question : Which tip used for removing rotary file ?Answer: These Start-X tips are not specifically designed for the removal of broken instruments. However, the Start X no. 3 tip, in particular, is effective in facilitating the removal of restrictive dentine during endodontic procedures, contributing to enhanced accessibility and management of challenging anatomical situation.

Question : What are Start-X Ultrasonic Tips used for?
Answer: Start-X Ultrasonic Tips are specifically designed for access cavity refinement and canal orifice location during endodontic treatments. Each tip is created for a specific indication to improve precision and visibility in the operative field.

Question : Who developed Start-X Ultrasonic Tips?
Answer: Start-X Ultrasonic Tips were developed in collaboration with renowned endodontists Dr. Berutti, Dr. Cantatore, and Dr. Castellucci. Their expertise and experience contributed to the design and functionality of these specialized tips.

Question : What is the concept behind Start-X Ultrasonic Tips?
Answer: The concept behind Start-X Ultrasonic Tips is "One - Tip - One Clinical Indication." Each tip is designed to address a specific clinical need or situation, providing dentists with a clear and straightforward selection process.

Question : What are the advantages of Start-X Ultrasonic Tips?
Answer: Start-X Ultrasonic Tips offer great working precision and an incomparable view of the operative field, enhancing the quality of endodontic treatments. The tips feature a micro-milled active part, a water port for cooling, and excellent resistance to fracture, ensuring durability and safety during procedures.
