Dentsply Endoactivator Tips

• Single-use, 22 mm activator tips
• Practical snap-on/snap-off design
• Smooth Non-cutting tips
• Strong, flexible medical-grade polymer
• Color-coded by size for easy identification
• Convenient depth gauge marks at 18, 19 and 20 mm

Specifications : Length - 22mm

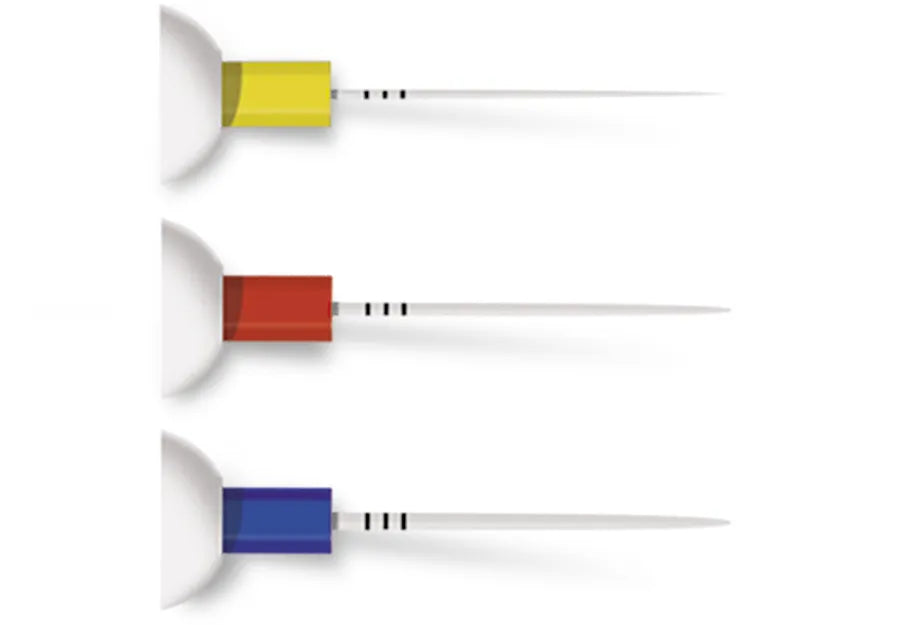

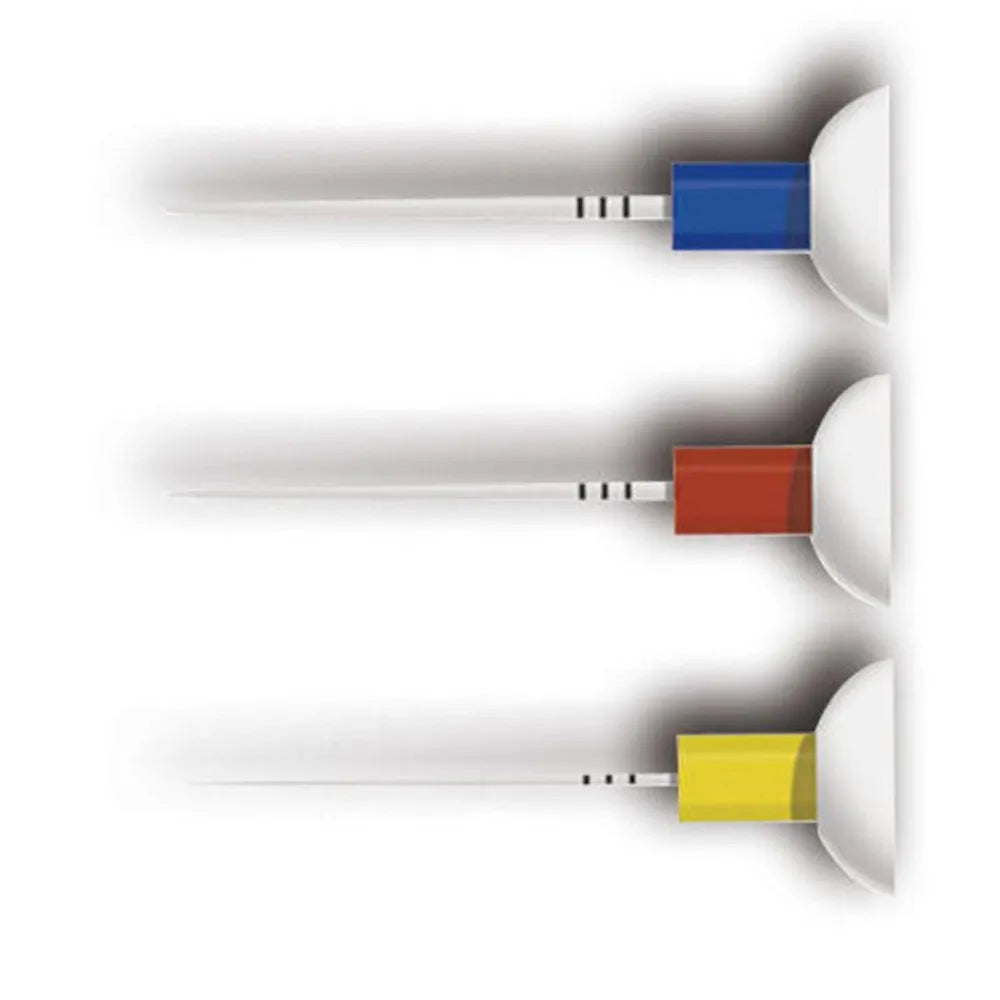

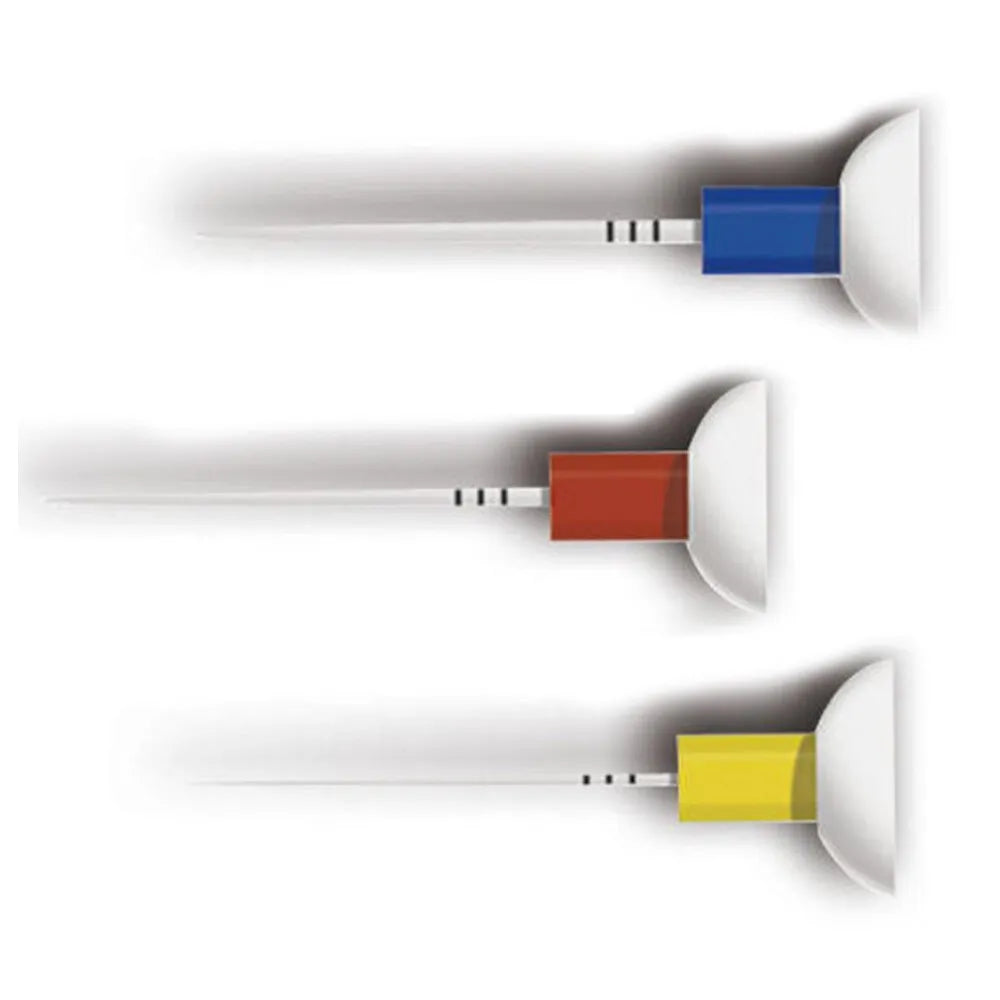

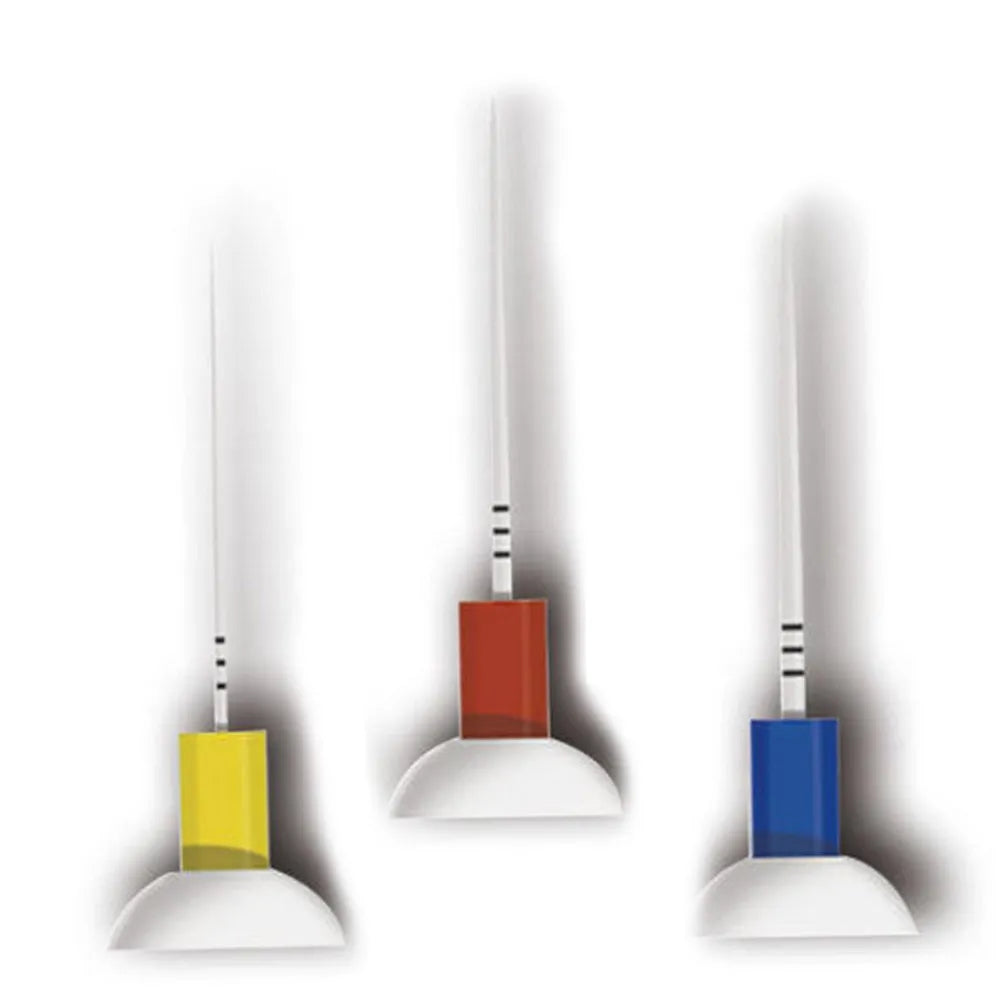

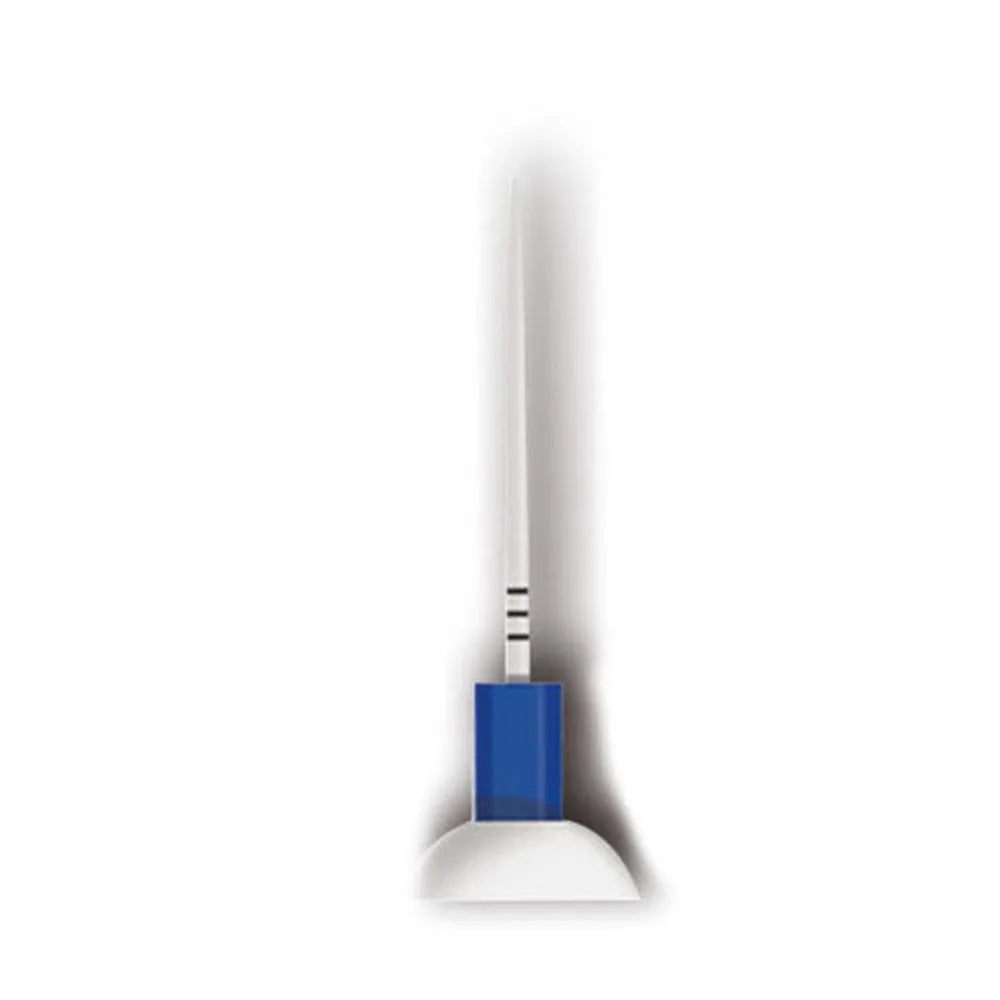

• Blue 35/04 : Large tips

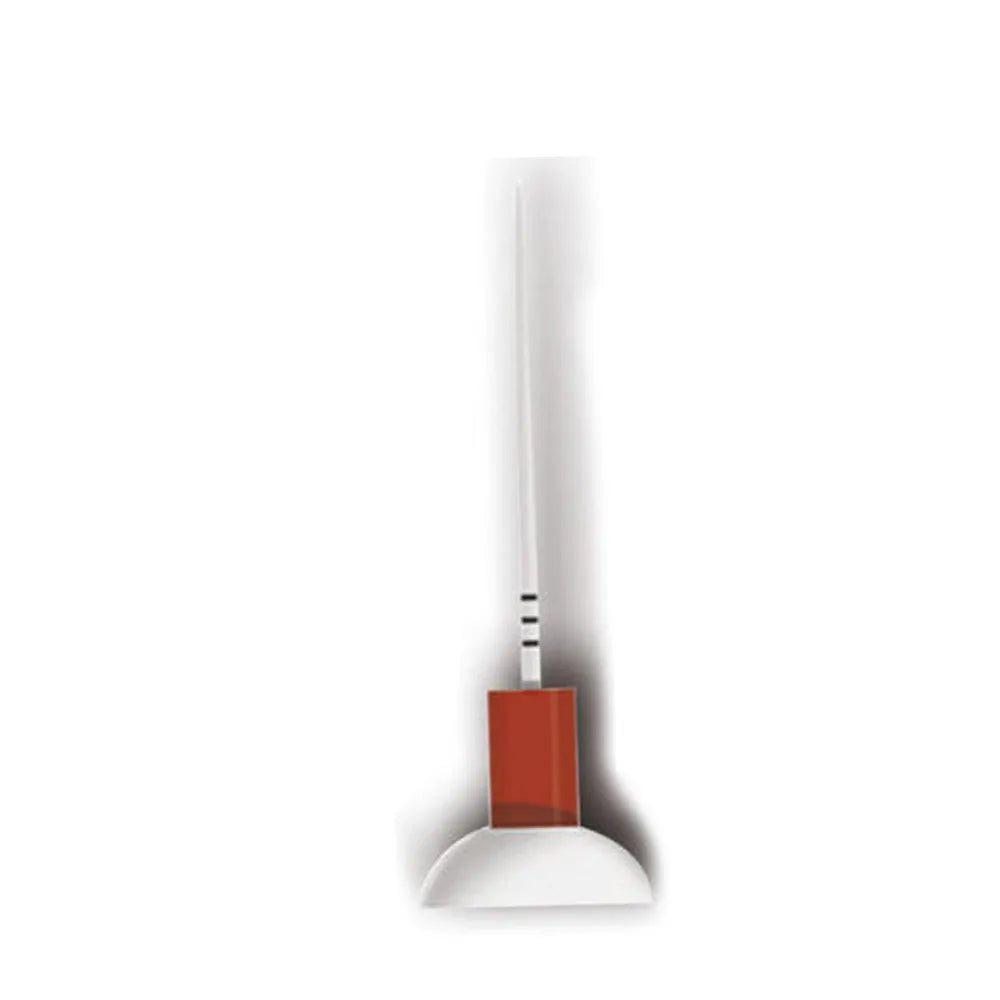

• Red 25/04 : Medium tips
• Yellow 15/02 : Small tips

PRECAUTIONS:

• To avoid the contamination of the root canal, the irrigator tip should be disinfected before use.
• The tips should be cleaned with the use of gauge moistened with the disinfecting solution like sodium hypochlorite.
• For infection control, select the approximately sized sonic irrigator tip and remove it from plastic packages.
• Irrigator Tips are intended for single patient use.
• Proper Disposal of the tips should be done after the use.
• Do not autoclave.
• Never twist, turn or torque the tips when removing.
• Never use the clock wise or the counter clock wise motion to remove the tip.

• Pack of 25

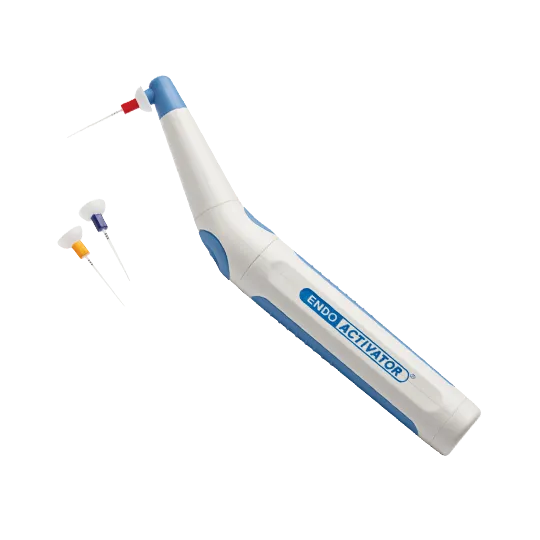

Endo Activator, Tips can be very easily placed on the Sonic Endo Activator as it has snap On / Snap off design.

• First, prepare the canal to produce a fully tapered shape.
• Fill The Pulp Chamber with EDTA, NaOCl, or any other final Rinsing solution.
• Selection of the irrigation tip that manually fits loosely within 2 mm of working length is a must.
• There are three types of irrigation tips available – Small, Medium and Large.
• Place the barrier sleeve over the complete length of the handpiece.
• Attach the Irrigator tip over the barrier-protected handpiece.
• The Irrigator tip should snap on firmly, promoting a secure connection with the handpiece.
• The Irrigator tip is then passively inserted in the canal within 2mm of the WL.
• The irrigator tips are moved in short 2-3 mm vertical strokes.
• Hydrodynamically agitate the intracanal solution for 30-60 seconds.
• Then use saline and intracanal suction to eliminate loose debris.
• Repeat the above steps for each intracanal irrigant used.

Irrigator Tip Removal :

• Firmly Support the head of the handpiece with your thumb while grasping the white circular flange portion of the irrigator tip with the opposite thumb and forefinger.
• Use your thumb to maintain support of the handpiece and pull the irrigator tip STRAIGHT off.
• Keep the handpiece head and irrigator tip aligned During the removal process.

Question : What are Dentsply EndoActivator Tips?
Answer: Dentsply EndoActivator Tips are single-use tips designed for use in endodontic treatment. They are used in conjunction with the EndoActivator Handpiece/Driver to provide sonic energy for tip oscillation and vibration.

Question : How do I differentiate between different sizes of EndoActivator Tips?
Answer: The tips are color-coded for easy identification. The small tips are yellow (15/02), the medium tips are red (25/04), and the large tips are blue (35/04).

Question : How do I attach the EndoActivator Tips to the Handpiece/Driver?
Answer: The tips have a snap-on/snap-off design, making it easy to attach and remove them. Simply align the tip with the handpiece and snap it on firmly.

Question : How deep can the EndoActivator Tips reach?
Answer: The tips are 22mm in length and come with depth gauge rings at 18, 19, and 20mm. These gauge marks help in controlling the depth of the tip during the treatment process.

Question : How do I remove the EndoActivator Tips?
Answer: To remove the tip, firmly support the head of the handpiece with your thumb while grasping the white circular flange portion of the tip with your opposite thumb and forefinger. Pull the tip straight off while keeping the handpiece head and tip aligned.
