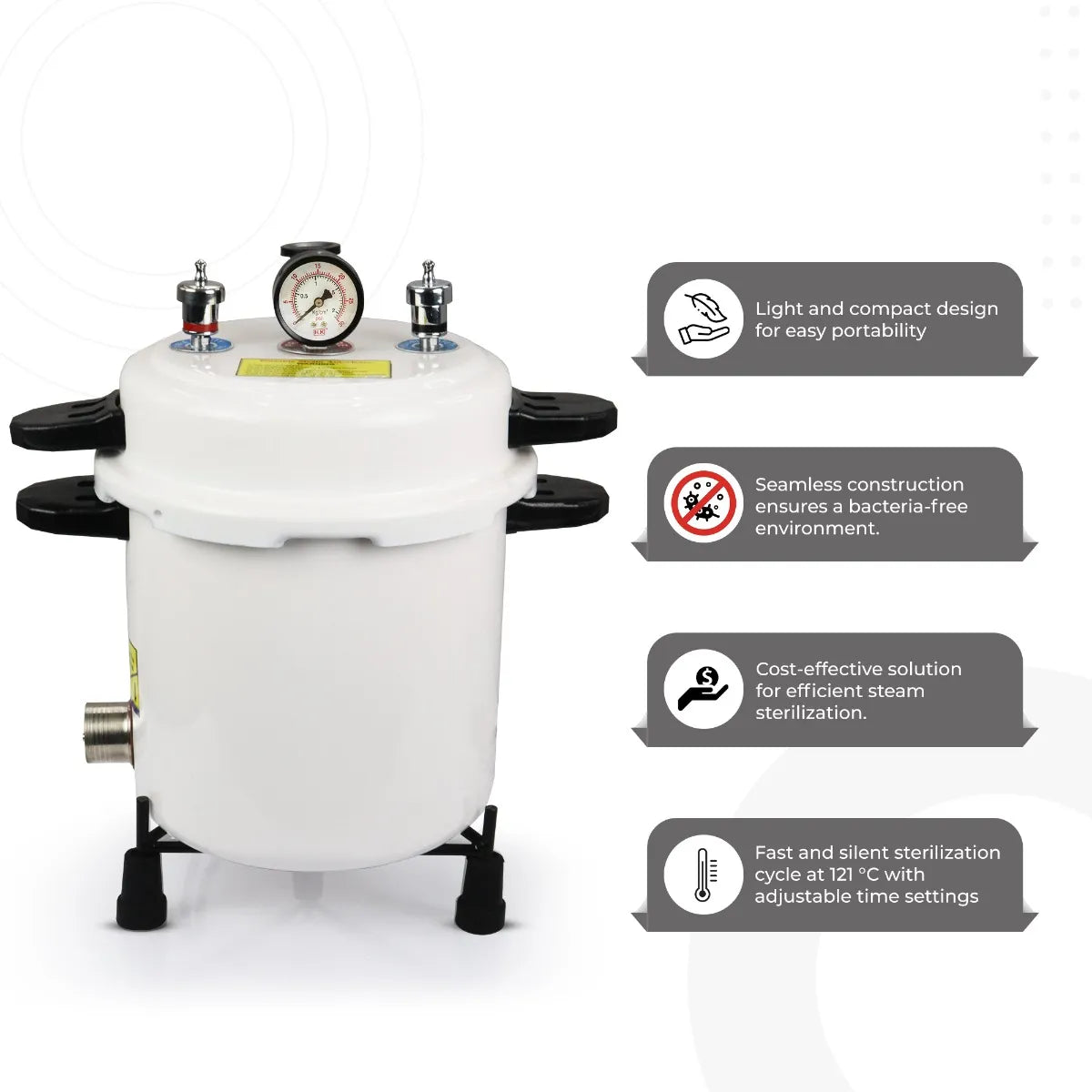

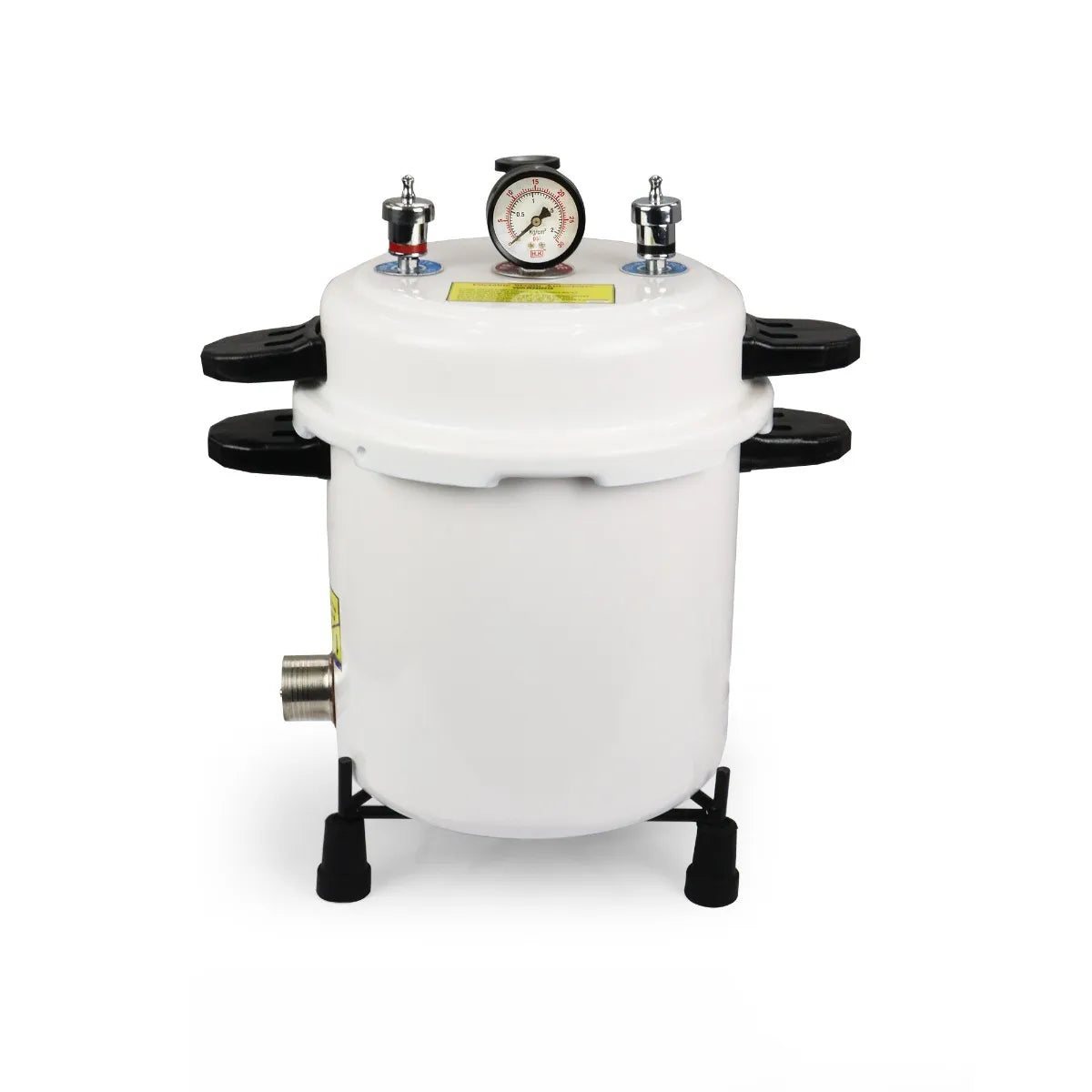

Dentis Autoclave Powder Coated D01 with Drum

• Light compact portable easy to use top loading autoclave
• Seamless construction ensures bacteria free environment
• Offers the most cost effective solution for Steam sterilization
• Fast & silent sterilization cycle at 121 ° C
• The sterilization Cycle is controlled with time adjustment facility

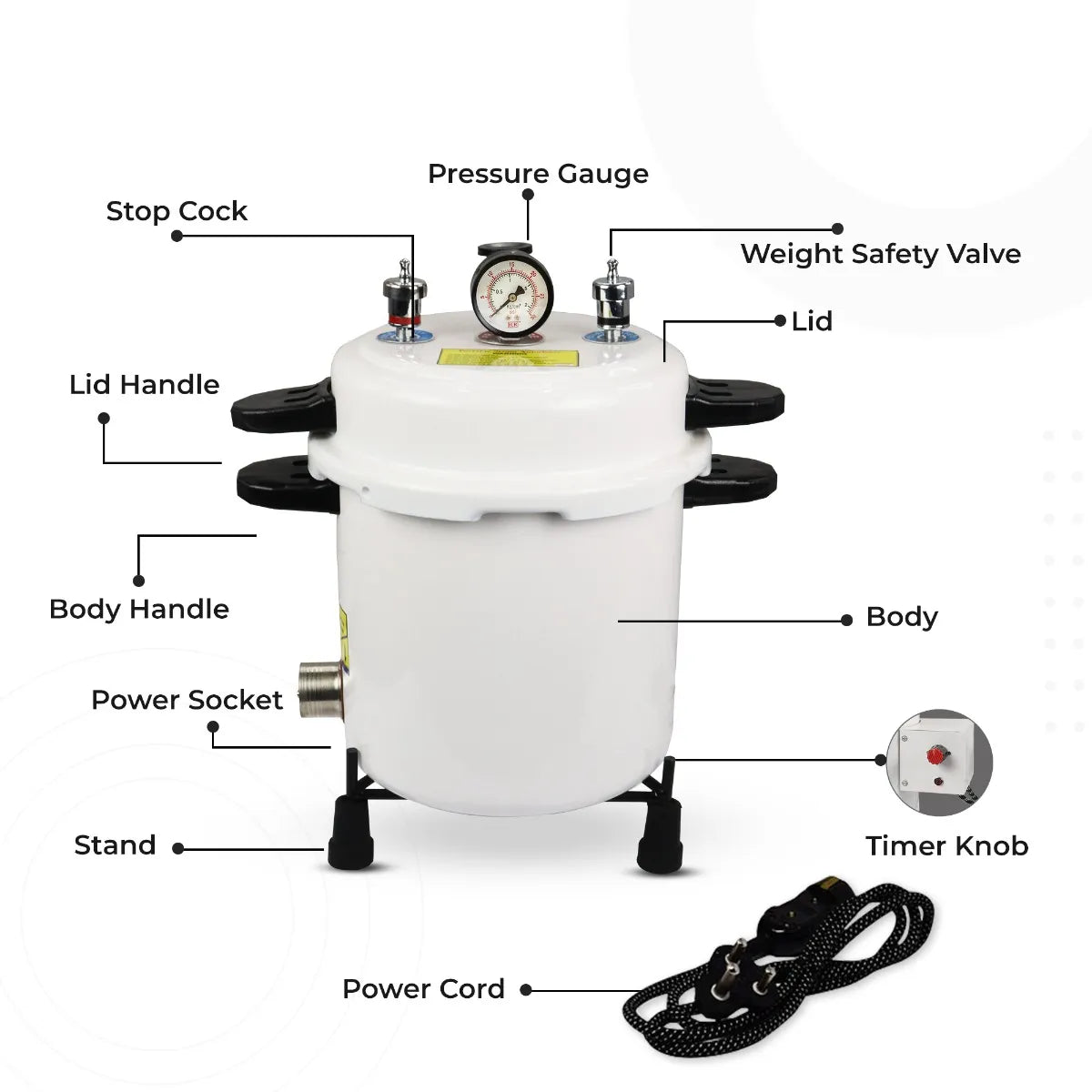

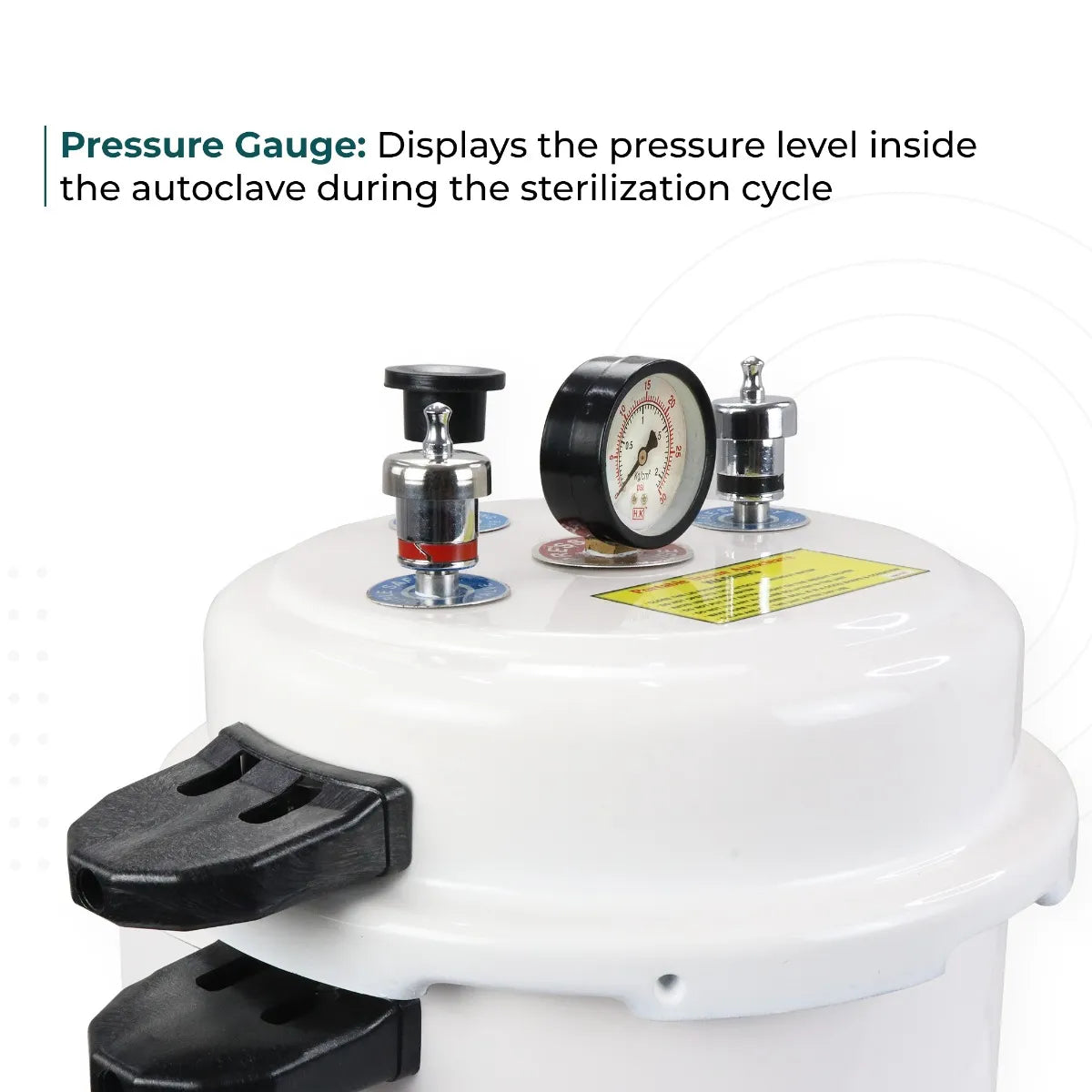

• Color-coded pressure gauge shows internal chamber condition during the cycle

• Chamber diameter - 233mm
• Total height with lid - 305mm
• Capacity with lid - 13 ltrs
• Sterilizing Temperature - 121ºC
• Operating pressure - 15psi
• Wattage - 1000W
• Power Supply - 220V/240V
• Sterilizing Cycle - 40-50 mins

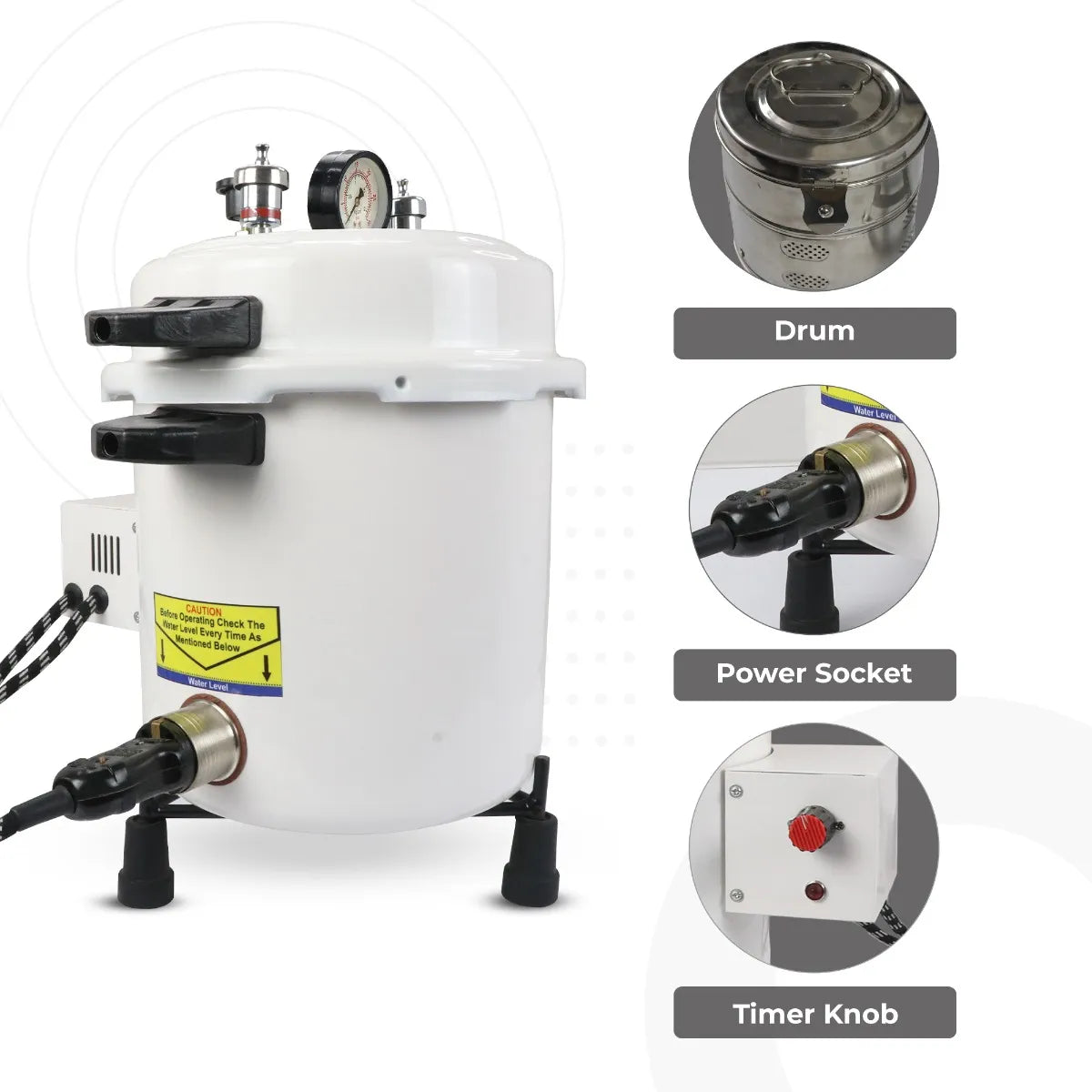

• Suitable for single drum size 8"x8"

• 1 x Dentis Autoclave Powder Coated D01 with Drum

Instructions to follow while loading the autoclave :-

• Only designated individuals should be allowed to set and/or change parameters for the autoclaves.
• Before using the autoclave, check inside for any items left by the previous user that could pose a hazard.
• Clean the chamber before loading the autoclave.
• Always place items in a sterilizing drum.
• Do not overload or pack bags too tightly. Leave sufficient room for steam circulation. If necessary, place container on its side to maximize steam penetration and avoid entrapment of air.
• Ensure sufficient liquid is packed with contents of autoclave if dry.
• Place soiled glassware and labware in sterilizing drum and autoclave them in the solids cycle. Do not fill containers more than 2/3 full with liquids.
• Choose appropriate cycle for the material.  Incorrect selection of cycle may damage the autoclave, cause liquid to boil over or bottles to break.
• Check chamber/jacket pressure gauge for minimum pressure of 20 pounds per square inch (psi).
• Close and lock door.
• Check temperature for 250⁰F (121⁰C) every load.
• Do not attempt to open the door while autoclave is operating.

Instructions to follow while unloading the autoclave :-

• Ensure cycle has completed and both temperature and pressure have returned to a safe range.
• Stand back from the door as a precaution and carefully open door no more than 1 inch. This will release residual steam and allow pressure within liquids and containers to normalize.
• Allow the autoclaved load to stand for 10 minutes in the chamber. This will allow steam to clear and trapped air to escape from hot liquids, reducing risk to operator.
• Do not agitate containers of super-heated liquids or remove caps before unloading.
• Place liquids in an area which clearly indicates the items are “hot” until the items cool to room temp.
• Allow autoclaved materials to cool to room temperature before transporting. Never transport superheated materials.
• Autoclaved infectious liquids may be disposed of into the sanitary sewer.

Question: Does this dentis autoclave comes with drum or should i buy separately ?
Answer: Yes, the Dentis Autoclave D01 typically comes with a drum included. You do not need to purchase the drum separately, as it is usually included with the autoclave.

Question: What is a autoclave used for?
Answer: Autoclaves provide a physical method for disinfection and sterilization. They work with a combination of steam, pressure and time. Autoclaves operate at high temperature and pressure in order to kill microorganisms and spores.

Question: What is the principle of autoclave?Answer: The basic principle of steam sterilization, as accomplished in an autoclave, is to expose each item to direct steam contact at the required temperature and pressure for the specified time. Thus, there are four parameters of steam sterilization: steam, pressure, temperature, and time.

Question: What is effective temperature of autoclave?
Answer: To be effective, the autoclave must reach and maintain a temperature of 121° C for at least 30 minutes by using saturated steam under at least 15 psi of pressure. Increased cycle time may be necessary depending upon the make-up and volume of the load.

Question: How does autoclaving kill bacteria?Answer: The heat that an autoclave delivers via pressurized steam kills bacteria and other microorganisms by causing the organisms' structural proteins and enzymes to lose their shape in an irreversible way, denaturing and coagulating them and making them nonfunctional.

Question: What materials are compatible for sterilization in an autoclave?
Answer: Autoclave compatible materials are as follows :-
Tissue Culture Flasks
Surgical Instruments
Glassware
Pipette tips
Media SolutionsPolypropylene (Secondary containers)
Stainless steel
Gloves
