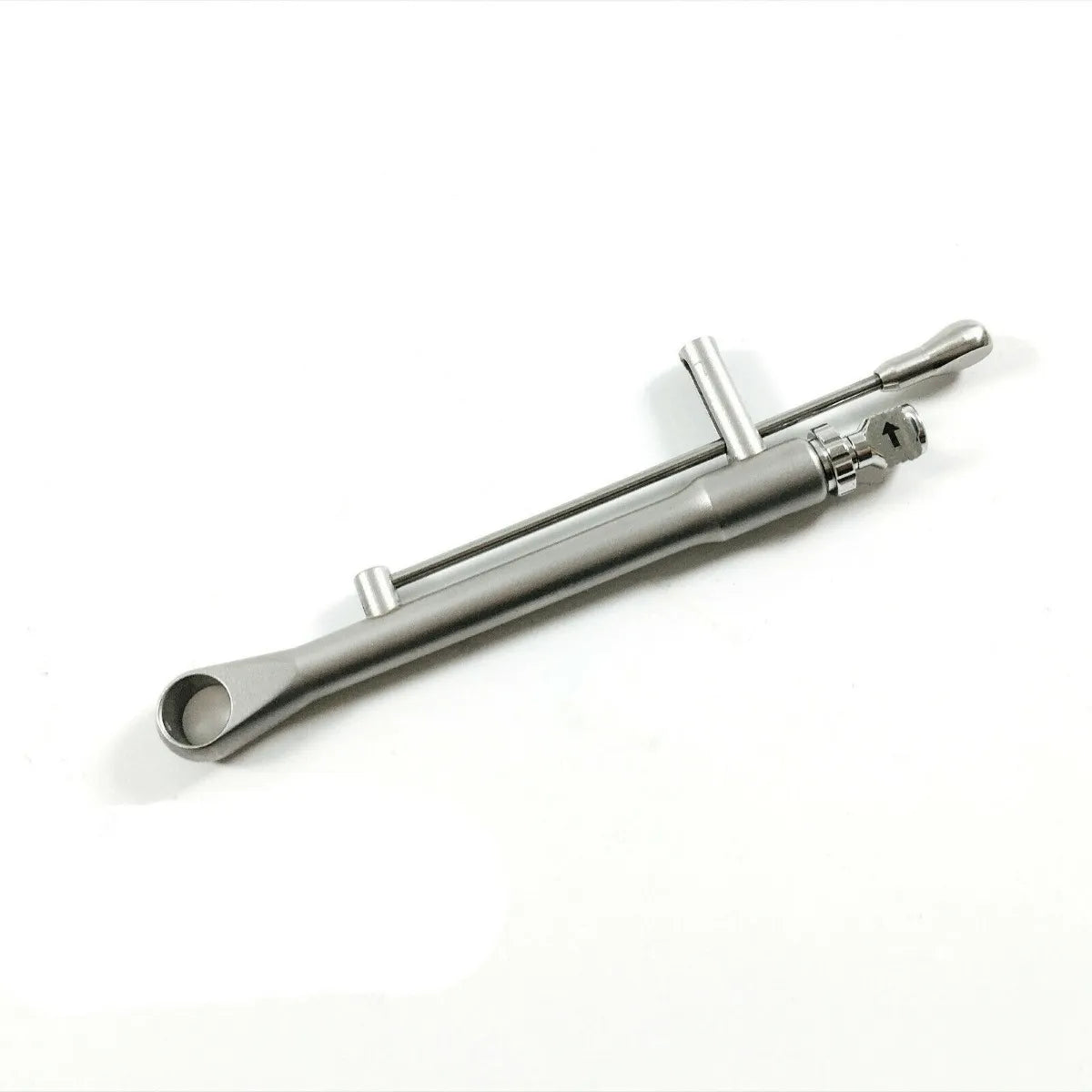

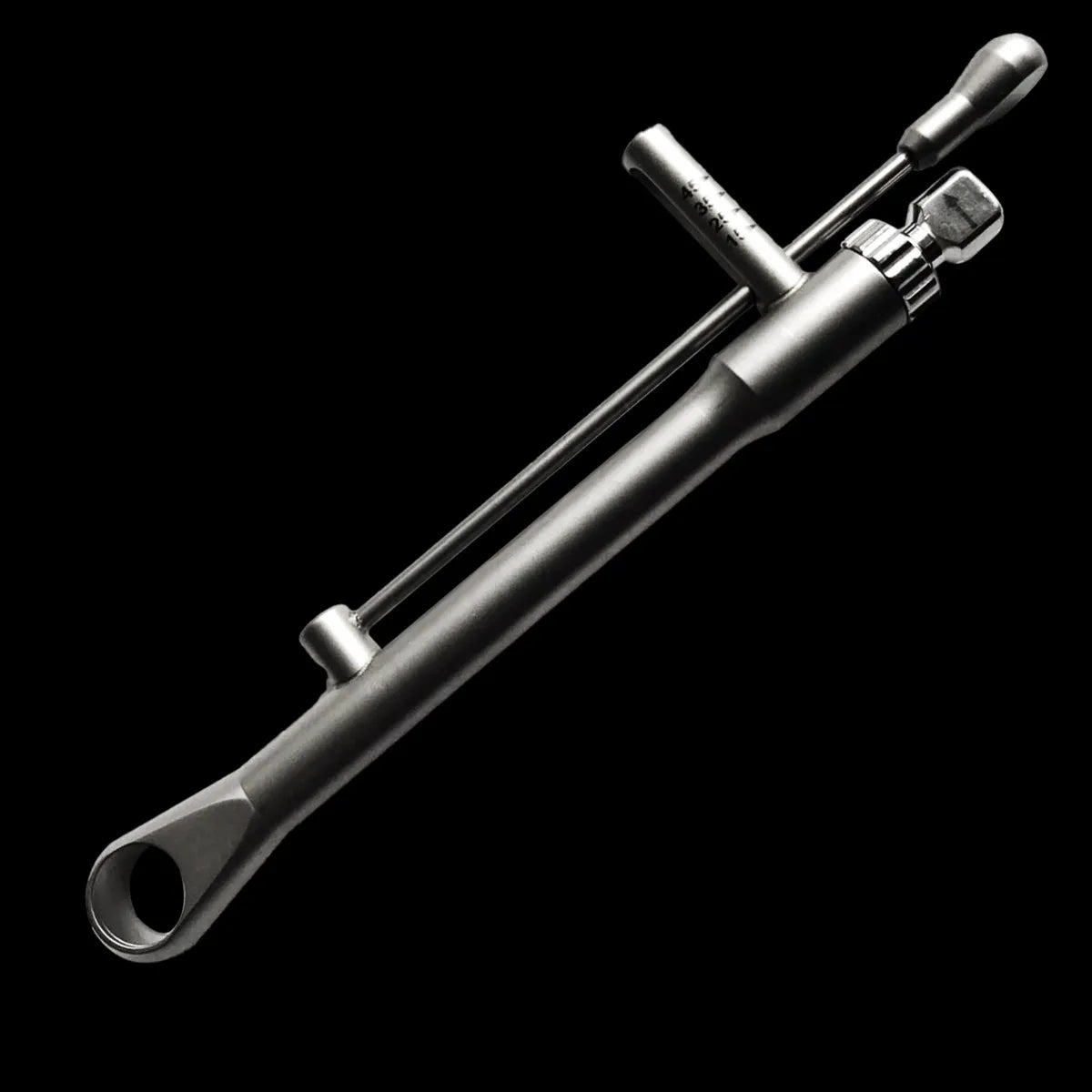

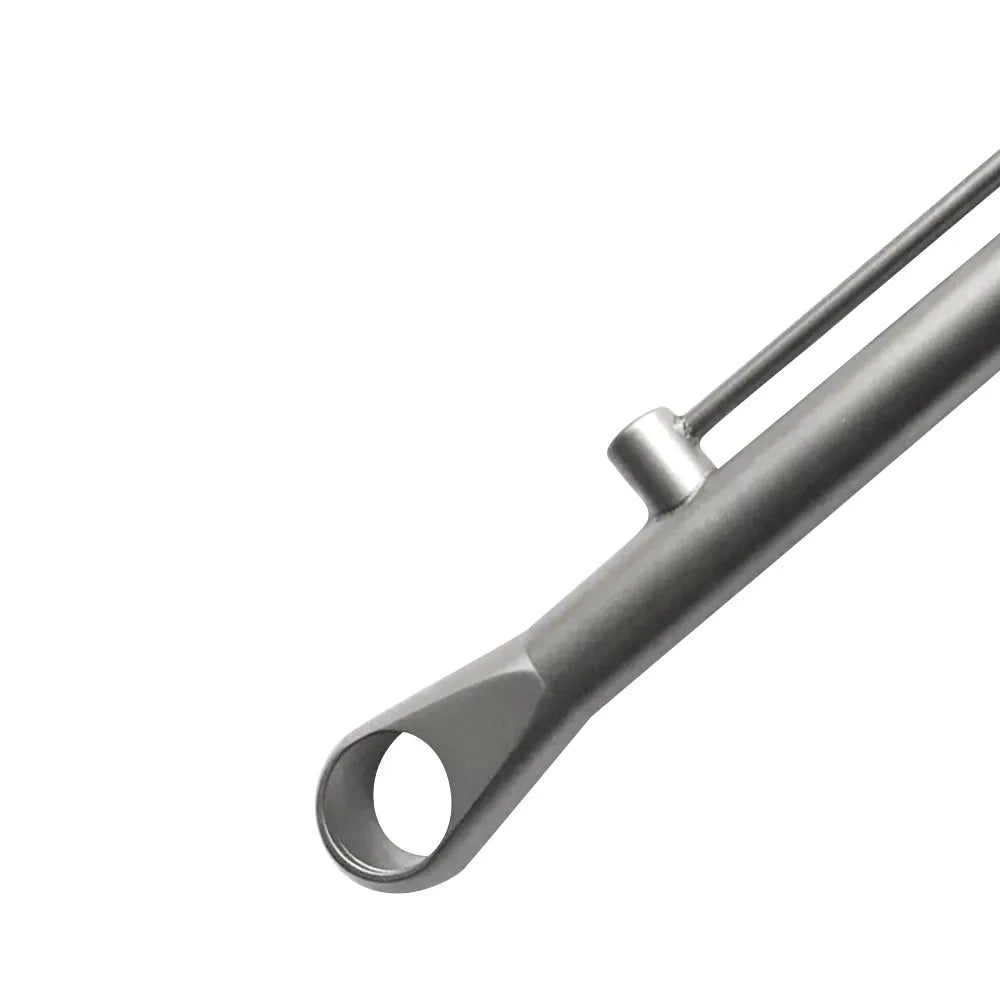

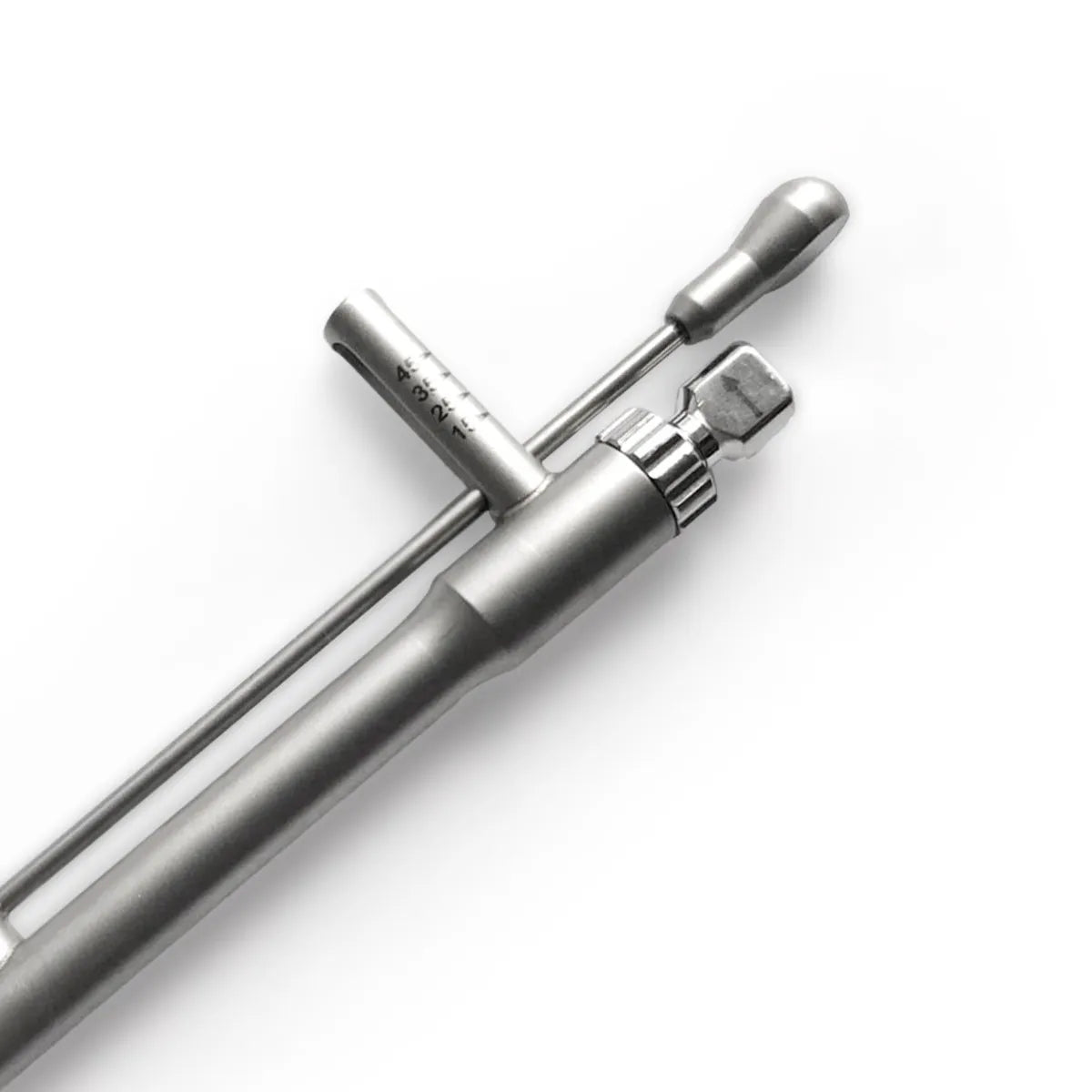

DentalPlant Implant Torque Wrench Ratchet 15-45 NCM

• Ergonomic grip
• Easy to use
• Adjustable torque option
• Made of High Grade Stainless Steel
• High Durability

• Made of high grade Stainless steel,therefore autoclavable.
• Latex Free
• Ambidextrous in usage
• Resistant to rusting & corrosion

• 1 x Implant Torque Wrench Ratchet 15-45 NCM

Intended Use

The Manual Torque Wrench Prosthetic is intended to be used to tighten abutments and abutment screws and can be used as a controlled alternative to machine tightening.

Handling procedure:
For tightening of abutments and abutment screws, always start with manual tightening
(steps 1 and 2) before using the wrench (steps 3 and 4).

1. For manual tightening, remove the Manual Torque Wrench Adapter Prosthetic
2. Insert the driver and tighten the prosthetic component in a clockwise direction

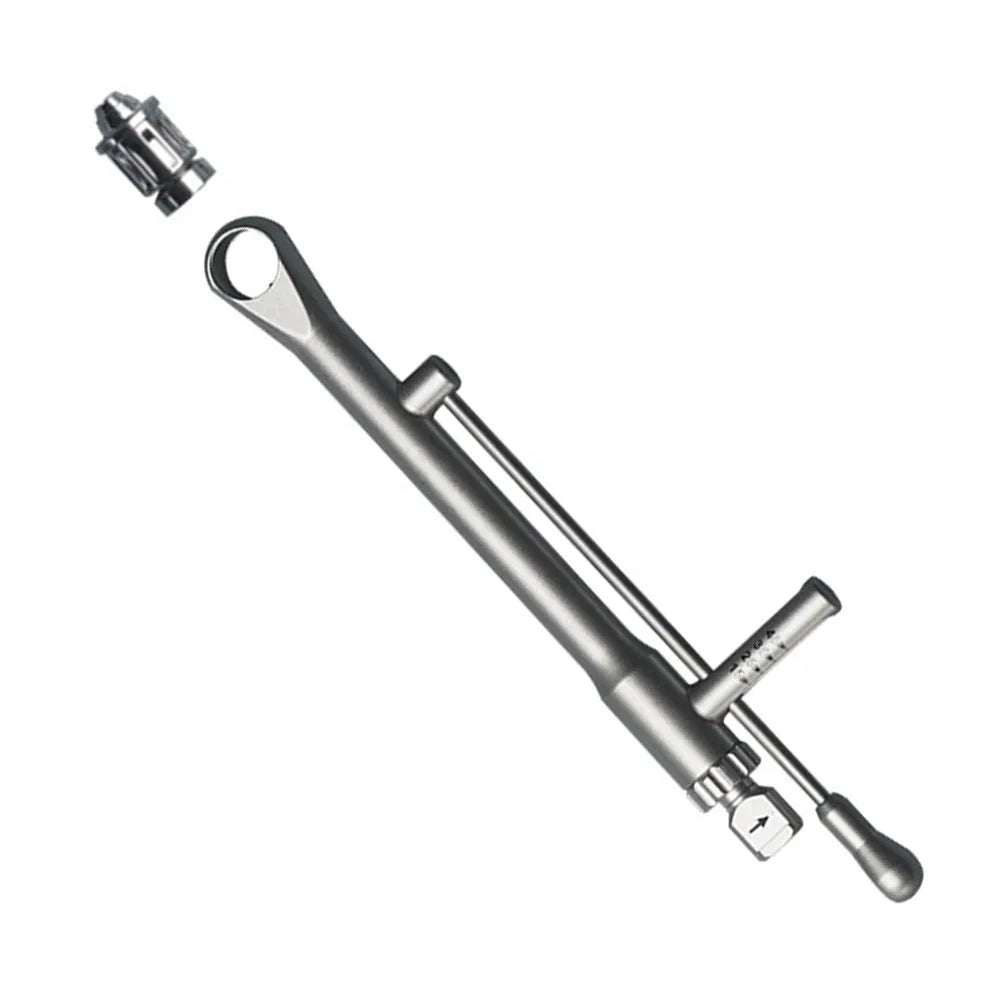

3. For tightening with the wrench, insert the Manual Torque Wrench Adapter Prosthetic into the Manual Torque Wrench Prosthetic. A click will indicate that the adapter is fitted correctly

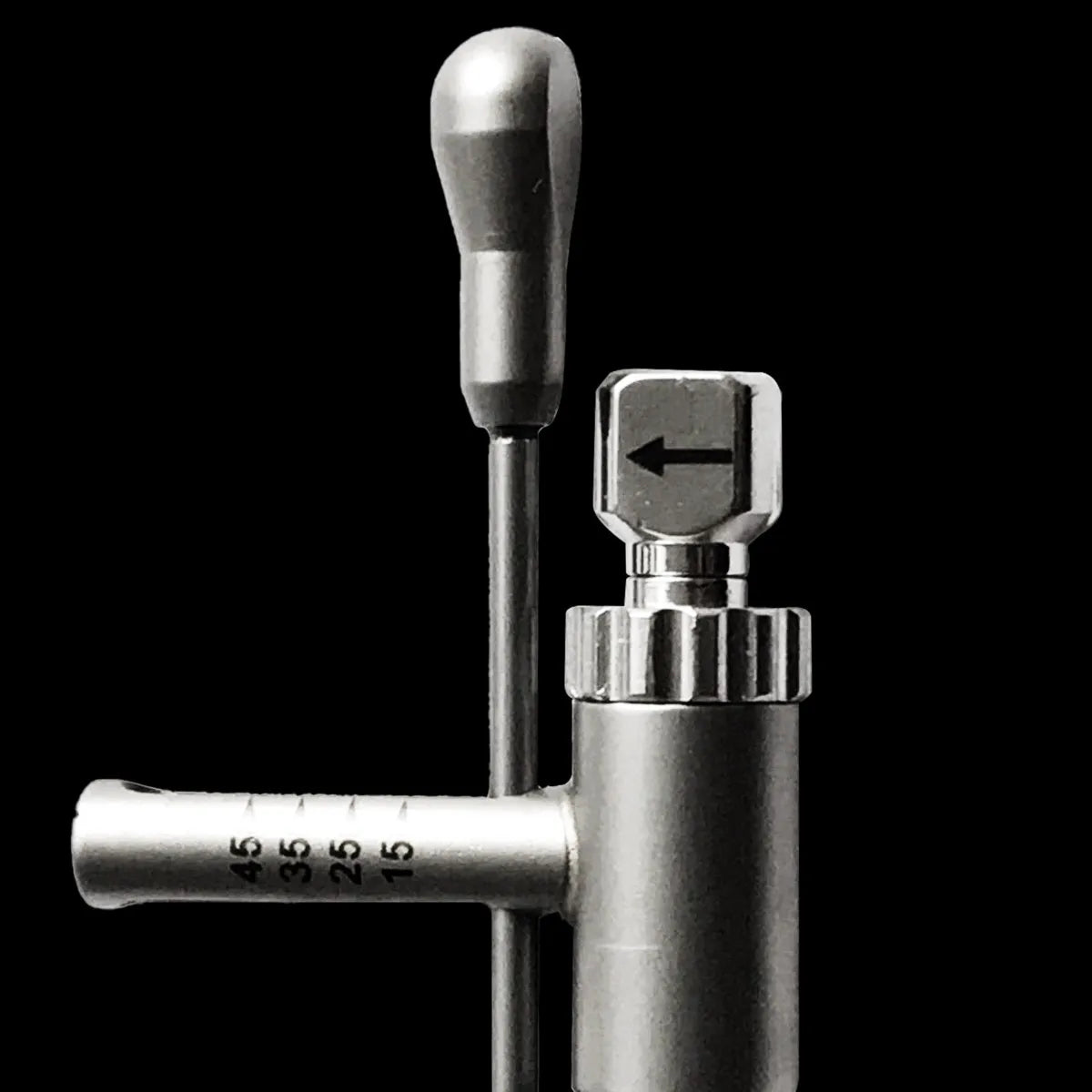

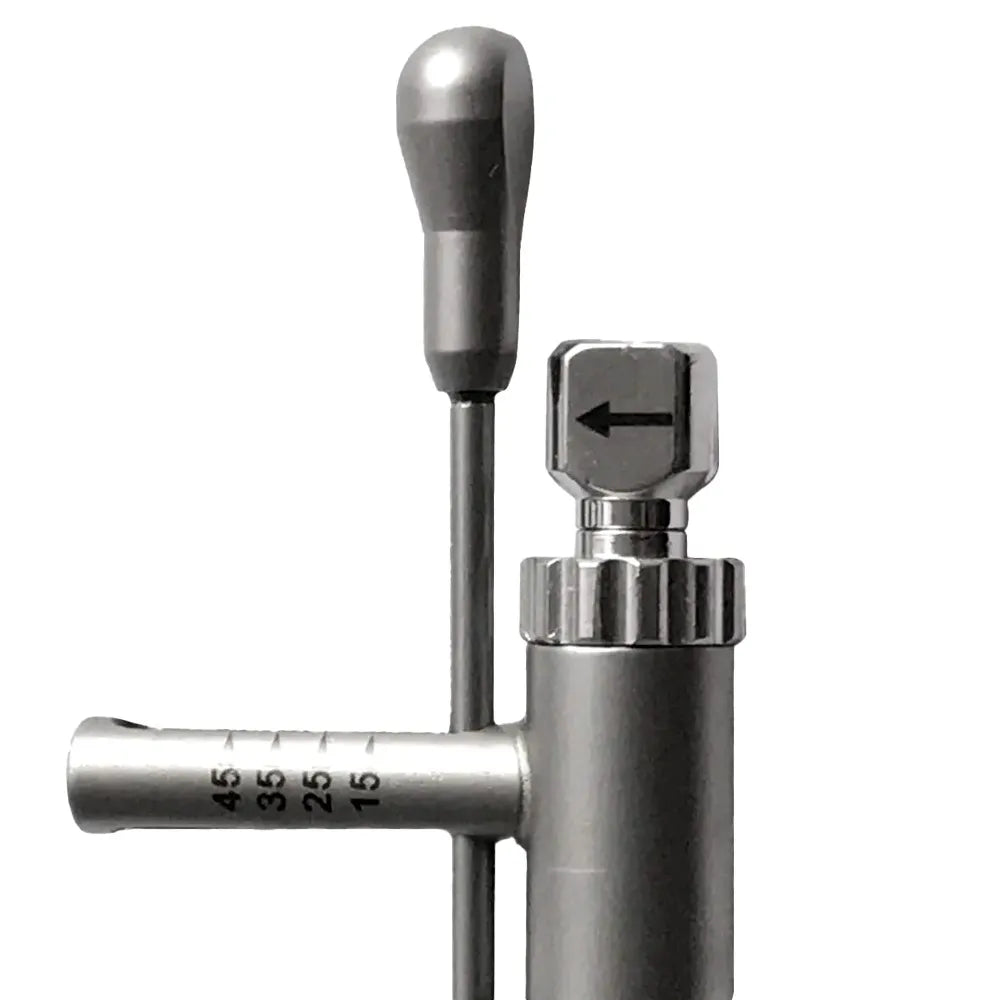

4. Secure that arrow is pointing in a clockwise direction. Tighten the prosthetic component with the tightening torque

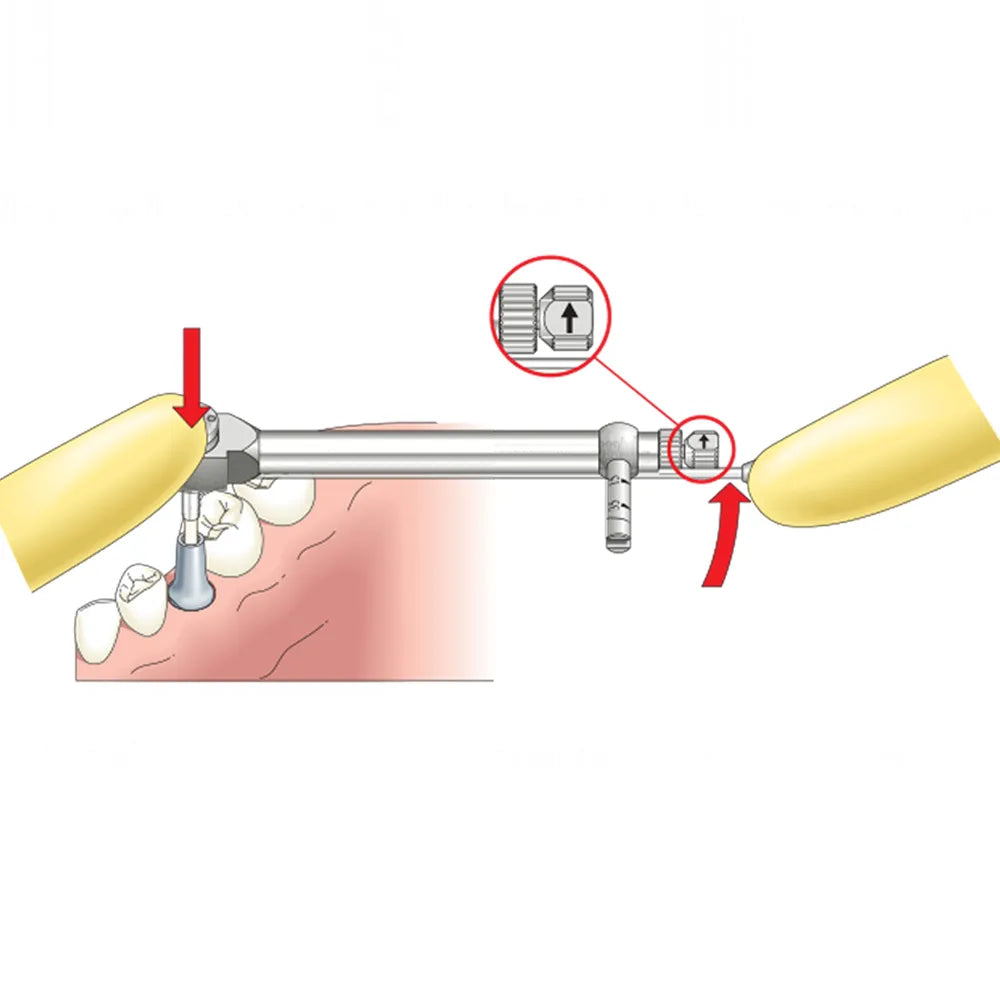

5. Warning: By applying force on the main body of the ratchet and not the lever arm, the applied torque cannot be measured, which could result in excessive torque which may lead to damage of the prosthetic component.
6. If necessary, the prosthetic component can be backed out using the Manual Torque Wrench Prosthetic with the direction indicator in reverse mode / counter-clockwise direction
7. Apply manual pressure to the lever arm to unscrew the prosthetic component

• Country of Origin: Made in PRC

Question: Will it be used with JD implant system?
Answer: Yes, the DentalPlant Implant Torque Wrench Ratchet (15-45 NCM) is compatible with the JD implant system. However, for optimal performance, ensure that you use the appropriate implant or prosthetic hex driver that matches the JD system. This will ensure accurate torque application and proper engagement during the implant procedure.

Question: Is it compatible with Korean and Israeli implant systems? And is a hex driver also provided in combination with the wrench?
Answer: Yes, the DentalPlant Implant Torque Wrench Ratchet 15-45 NCM is compatible with Korean and Israeli implant systems. However, hex drivers are not included in the packaging, so you'll need to use the correct hex driver compatible with your specific implant system for proper use.

Question: Is it compatible with adin system ?
Answer: Yes, the DentalPlant Implant Torque Wrench Ratchet with a range of 15-45 Ncm is compatible with the Adin implant system. This torque wrench is designed to be universally compatible with various implant systems, offering versatility and ease of use for clinicians performing implant procedures across different brands and platforms.

Question: Can we use this with Osstem implant system ?
Answer: The DentalPlant Implant Torque Wrench Ratchet 15-45 NCM is compatible with the Osstem implant system.

Question: Can we use this torque wrench to place the implant ?
Answer: Certainly, the DentalPlant Implant Torque Wrench Ratchet with a torque range of 15-45 NCM can be effectively used in implant dentistry. When coupled with the fixture hex driver, it is employed for tightening implant fixtures during the placement procedure. Additionally, when utilized with the prosthetic hex driver, it serves the purpose of securely tightening cover screws or implant abutments. This dual functionality enhances its versatility in various stages of the implant process, ensuring precise and controlled torque application for optimal outcomes.

Question: Can it be used with israel implant systems ?
Answer: Yes, the DentalPlant Implant Torque Wrench Ratchet 15-45 NCM can be used with Israel implant systems, provided you use the correct hex adapter specific to the Israel based implant systems.

Question: Is it universal for all implant systems ?
Answer: Yes, the DentalPlant Implant Torque Wrench Ratchet (15-45 NCM) is universal for all implant systems. However, it is important to use the correct implant or prosthetic hex driver that is compatible with the specific implant system you are working with. This ensures proper engagement and accurate torque application during the implant procedure.

Question: What is a dentalplant implant torque wrench used for?
Answer: A dentalplant implant torque wrench is a torque wrench used to precisely apply a specific torque to a fastener bolt for fixation of an abutment, dentures or prosthetics on a dental implant.

Question: What is the indication for implant torque wrench?
Answer: The Manual Torque Wrench is indicated to be used with abutments and abutment screws and to ensure that correct torque is achieved duringmanual tightening.

Question: What is the contraindication for implant torque wrench?
Answer: In general, contraindications are applicable for implant surgery related procedures in patients:– who are medically unfit for an oral surgical procedure.– who are allergic or hypersensitive to commercially stainless steel.
