Dentalplant

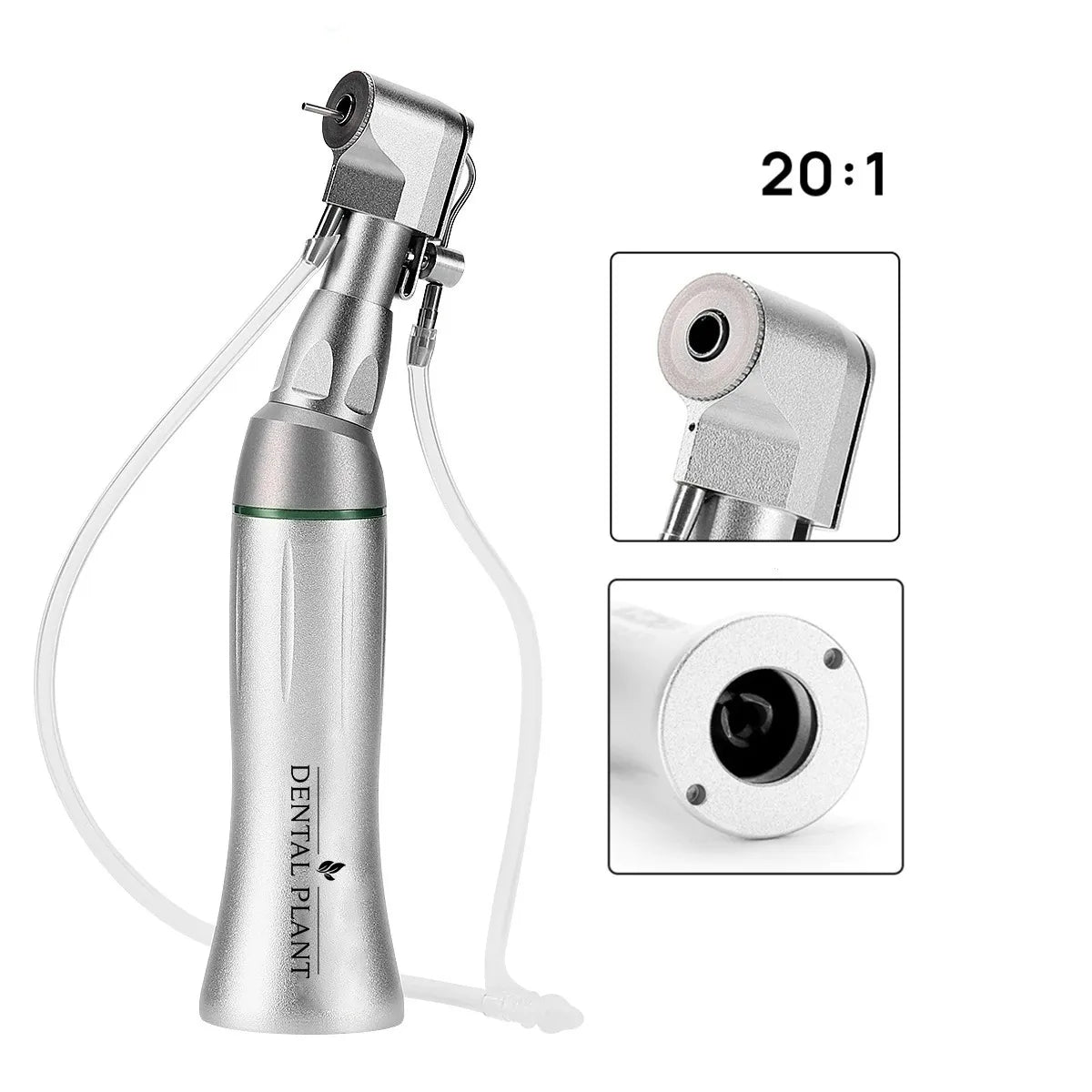

DentalPlant Implant Handpiece 20:1 (DP-101)
DentalPlant Implant Handpiece 20:1 (DP-101)
Couldn't load pickup availability
Dentalplant contra-angle surgical handpiece have been specially designed for oral and maxillofacial surgery and implantology.
The high standards required for the achievement of optimum surgical results are met by the Dentalplant range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.
Double sealing system Prevents blood, Saliva or any other fluids from seeping inside the instrument head,thus increasing its longevity.
Features
Features
- Smaller head and enhanced technology.
- Comfortable Grip.
- Smooth operation.
- Corrosion Resistant; Stainless Steel Body
- Autoclavable.
- Double Sealing System
Description
Description
Specification
Specification
- Gear ratio：20:1

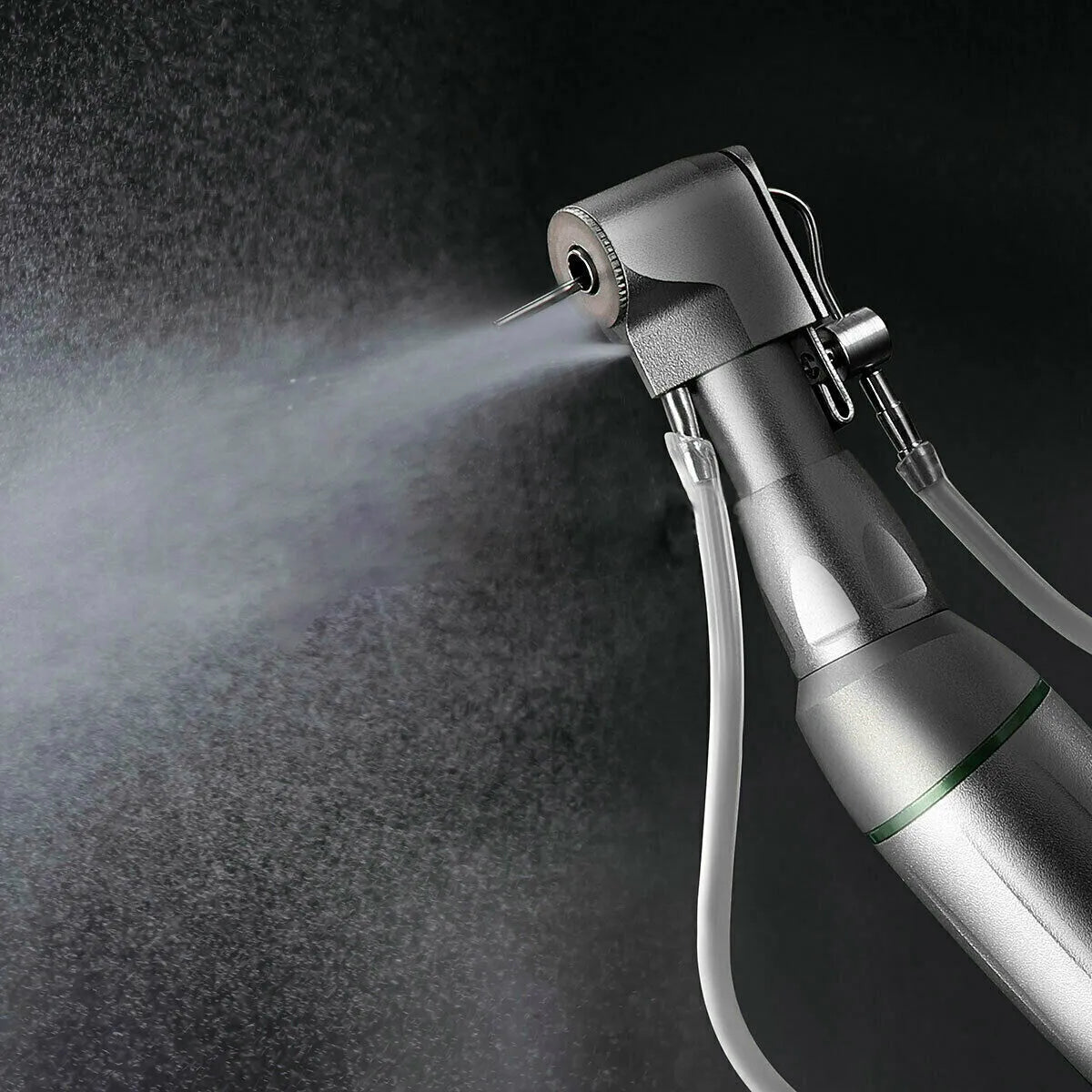

- Internal/External Irrigation System
- Speed : 2000rpm
- Max Torque : 50 Ncm
- Weight: 87g
- Chuck type：Latch type
- Body material：Stainless steel
- Autoclavable
Packaging
Packaging

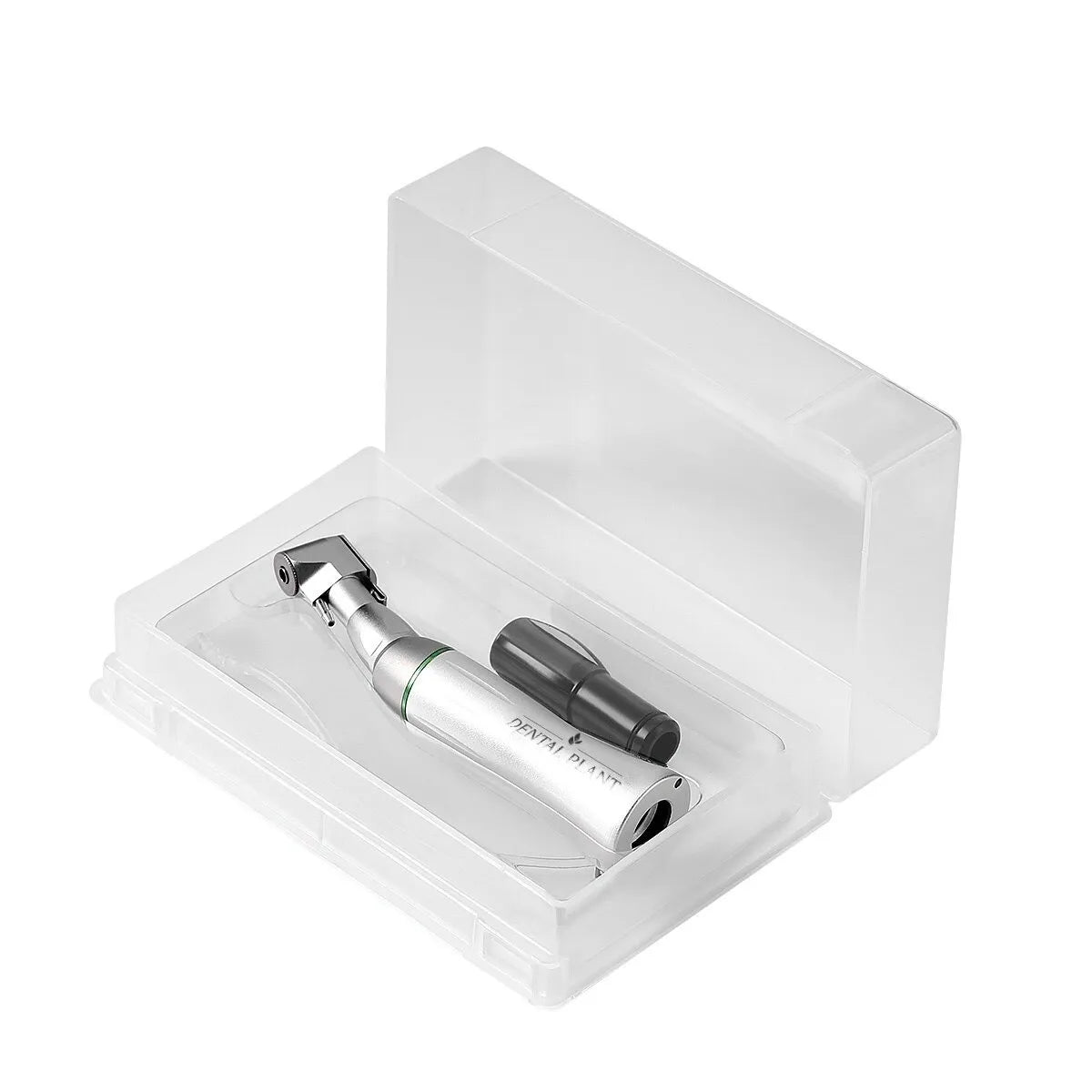

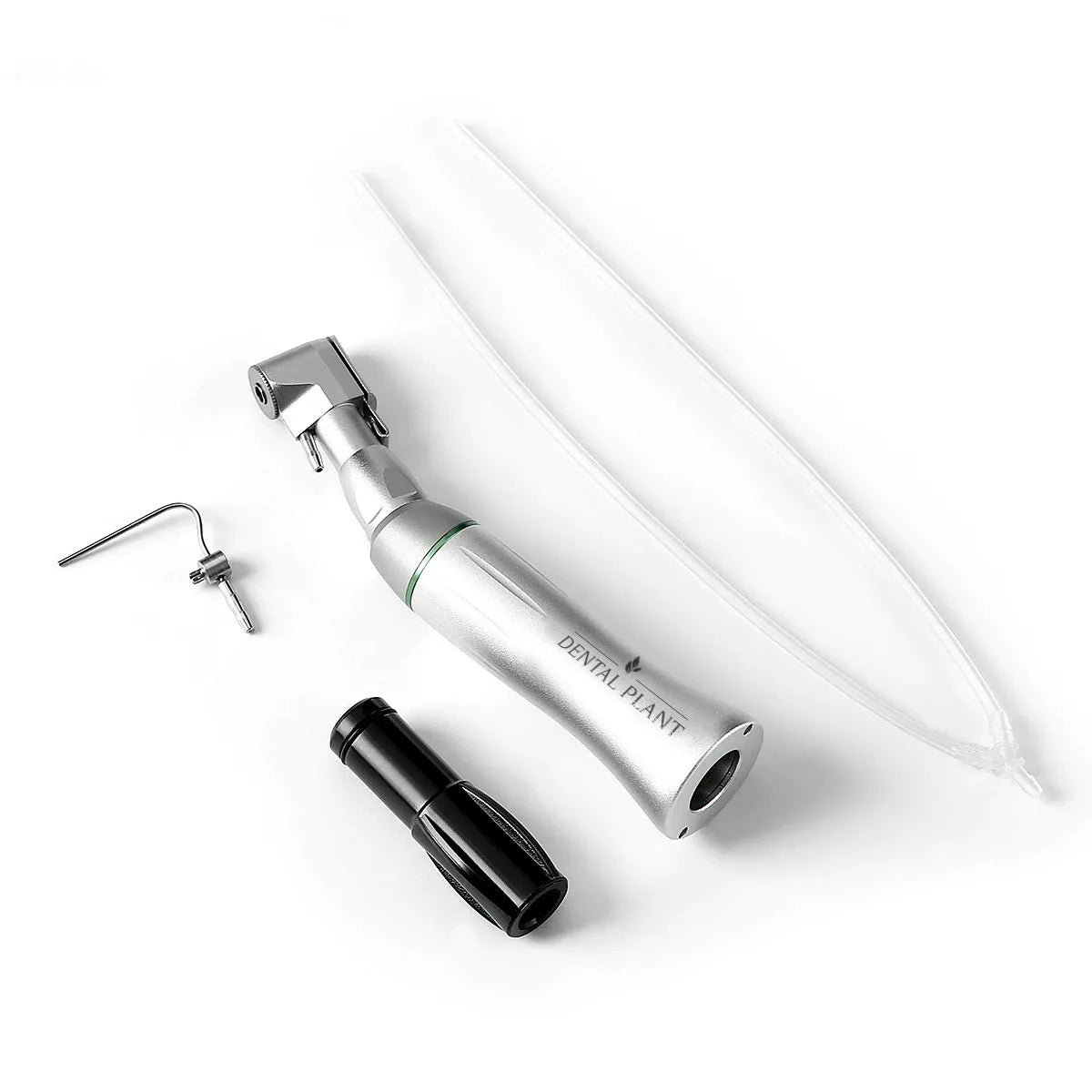

- 1x Contra-angle implant handpiece
- 1x Spray nozzle
- 1x Water tubing
- 1x Instruction manual
Direction to use
Direction to use
- Attach the spray clip.
- Insert the coolant tube for the internal bur cooling system.
- Push the handpiece onto the motor and turn until it engages audibly. Verify full engagement.
- Insert the coolant hose onto the coolant tube of the spray clip and onto the coolant tube for the internal bur cooling system.
- Insert the rotary instrument over the coolant tube until the limit stop and latch it, turn the rotary instrument until it engages. Verify full engagement.
- After use, remove the coolant tube for the internal bur cooling system.
- Unlock the latch and remove the rotary instrument.
- Remove the coolant tube for the internal bur cooling system.
- Remove the handpiece and spray clip.
- Regular lubrication is recommended after use, followed by sterilization,according to protocol.
Additional info
Additional info
- Country of Origin: Made in PRC
Warranty
Warranty
- Manufacturer/Importer warranty of 1 Year is applicable for this product.
- Service and Warranty are handled at the manufacturer's discretion.
- Oralkart will be liable to replace any faulty or unsatisfactory products.
- Oralkart will provide guaranteed assistance to the customer in registering a request to get the products replaced or serviced.
- The Buyer acknowledges that the Products once sold will be exchanged or taken back only if the seal of the package or the Product is intact or unaltered or is not tampered with.
Product Related Questions
Product Related Questions
Question: Can we use it in conventional implant also?
Answer: Yes, the DentalPlant Implant Handpiece 20:1 (DP-101) can be used for both conventional and immediate implants. Its 20:1 gear ratio makes it suitable for various implant procedures.
Question: Can this be used with micromotor ?
Answer: The DentalPlant Implant Handpiece 20:1 (DP-101) is not designed to be used with a micromotor. Instead, it is specifically intended for use with a physiodispenser or implant motor. It is essential to adhere to this recommendation to ensure proper functionality and compatibility during dental procedures.
Question: Is this handpiece autoclavable?
Answer: Yes,it is indeed recommended to autoclave after every patient to prevent cross contamination.
Question: What is the gear head ratio for this handpiece?
Answer: The gear head ratio is 20:1
