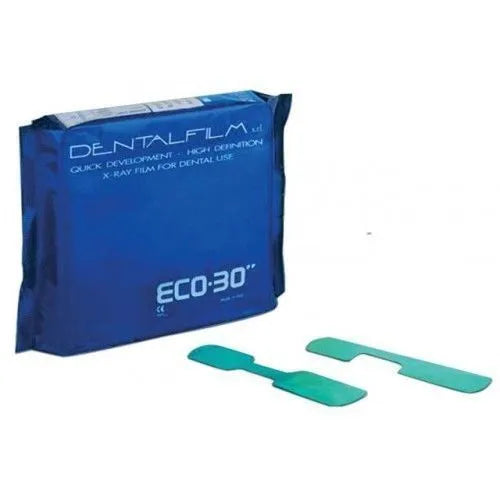

Dentalfilm - Eco 30 - Self Developing

• The ECO-30 films come ready packed with a mono bath containing both developer and fixer, and so do not require a darkroom.
• The ECO-30 is intended to provide fast, high-resolution x-rays without the use of a dental processor.
• Available as a self-contained packet with a mono bath solution in one end and an adult size film in the other, the  ECO-30 x-ray is fully developed in 50 seconds.
• It is recommended for endodontic and implant procedures, nursing home dentistry, mobile dentistry, late night emergencies, and in case of equipment failure.
• The developed x-ray can be archived for up to 10 years

• The ECO-30 films come ready packed with a moon bath containing both developer and fixer, and so do not require a darkroom.
• The ECO-30 is intended to provide fast, high-resolution x-rays without the use of a dental processor.

INDICATION -

• For emergencies, surgery check, endodontic and implant procedures.
• Mobile dentistry, nursing home dentistry, military field conditions, and as a back-up for digital radiography.

ADVANTAGE -

• Self-developing, high definition x-ray films.
• No need for a developer, fixer and darkroom.
• Ideal standby for RVG clinics in case of malfunction of RVG/computer.
• Develop X-Ray quickly.

• Pack of 50 Films
• BOX CONTENT:  50 films - Size 30.5 mm x 40.5 mm.

INSTRUCTIONS FOR USE:

STEP 1:

We suggest to disinfect the film before use. After exposure to x-rays , and holding ECO 30 up -right , open the liquid pouch by rolling it up. It is important to squeeze the pouch to its extremity, ensuring that all the monobath travels to the opposite film end, then un-roll it.

STEP 2:

Start agitating by sliding the fingers from the top all way down to the bottom of the film, repeating this movement for 50 secs/1 minute

IT IS IMPORTANT TO AGITATE : CONSTANTLY, FOR 50 SECS AND IMMEDIATELY AFTER THE MONOBATH POUCH HAS BEEN OPENED, otherwise image may result spotted.

STEP 3:

When development and fixation are complete, turn the film upside down, pushing the monobath back into its original place. Open film by prising apart, remove the film and rinse it under water , even by sliding the fingers on its surface to remove all the monobath residual, otherwise the picture may turn yellow.

• Country Of Origin: United Arab Emirates

• Manufacturer: Dentalfilm

Question How many films are there ?Answer: The Dentalfilm Eco 30 Self-Developing X-Ray Film pack contains 50 films. These films are designed for quick, high-resolution imaging without the need for a darkroom or dental processor.

Question Till what time should we mix with the liquid
Answer: The Dentalfilm – Eco 30 Self-Developing X-Ray Film should be mixed with the liquid for 50 seconds, while constantly agitating. Immediate mixing after opening the monobath pouch is essential to prevent spotting on the image.
